FK05010014

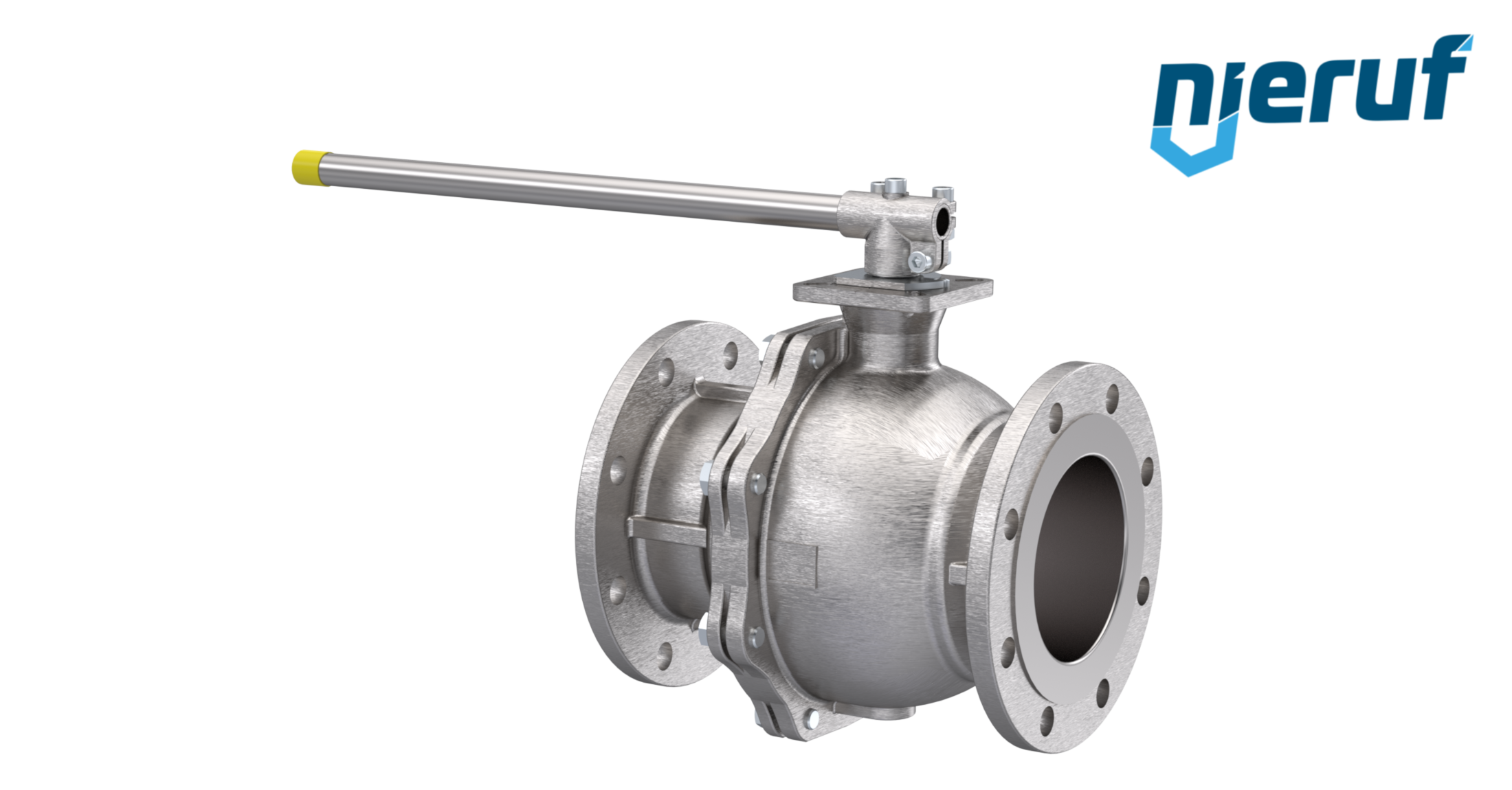

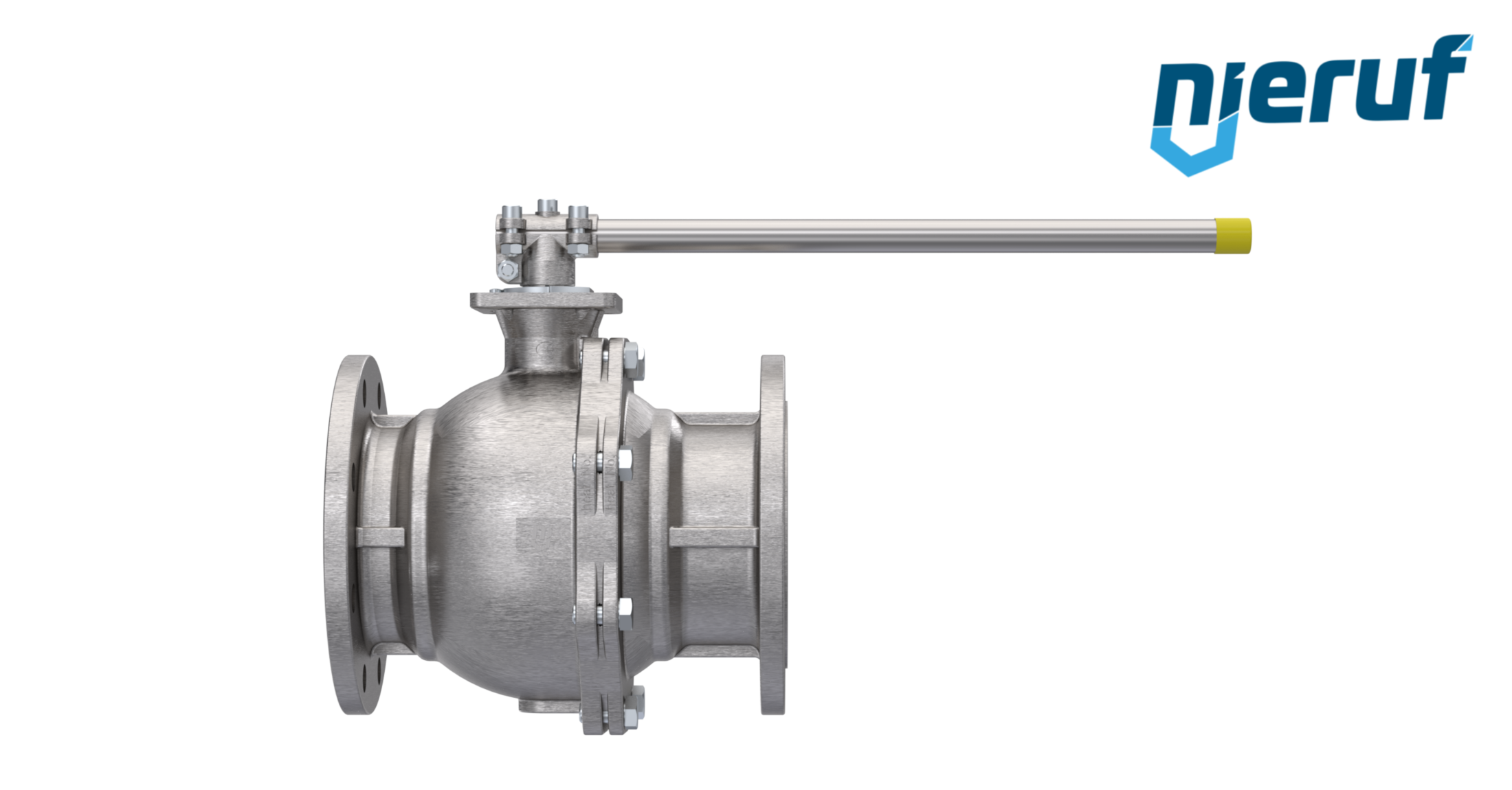

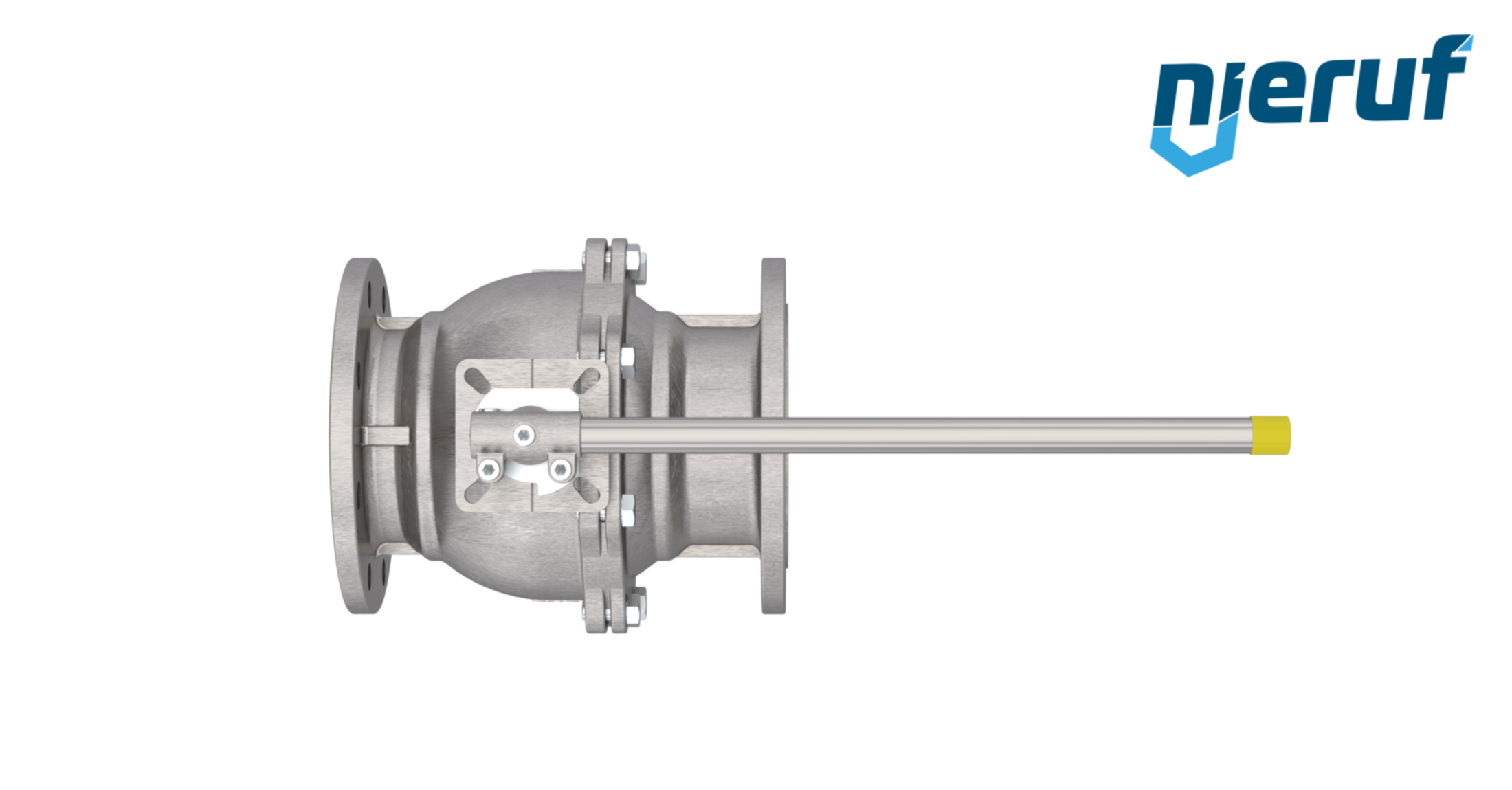

Steam-flange ball valve DN200 FK05 stainless steel 1.4408
- Delivery time
- 1 - 2 weeks
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN16 stainless steel
€52.84 VAT included.
stem extension hub length 100 mm square 27mm AD02 stainless steel
€234.31 VAT included.
Questions about the article?
Steam-flange ball valve DN200 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / TFM for gaseous for example steam
| product | Steam-flange ball valve |
|---|---|
| type | FK05 |
| manufacturer | NieRuf |
| diameter | DN200 |
| connection | flange dimensions acc. to EN 1092-1 PN16 |
| Seal steam | graphite |
| body seal | graphite |
| ball seal | PTFE/TFM |
| media | gaseous for example steam |
| temperature | -20°C up to +220°C - depending on media and dimension |
| max. pressure | PN16 |
| design | full port design |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of stainless steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality ball valve is made of stainless steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media, such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Steam-flange ball valve DN200 FK05 stainless steel 1.4408
Article no.
: FK05010014
product:
Steam-flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN200
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
graphite
body seal:
graphite
ball seal:
PTFE/TFM
media:
gaseous for example steam
temperature:
-20°C up to +220°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with graphite seal and is suitable for gaseous media, such as steam. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
