FK01020005

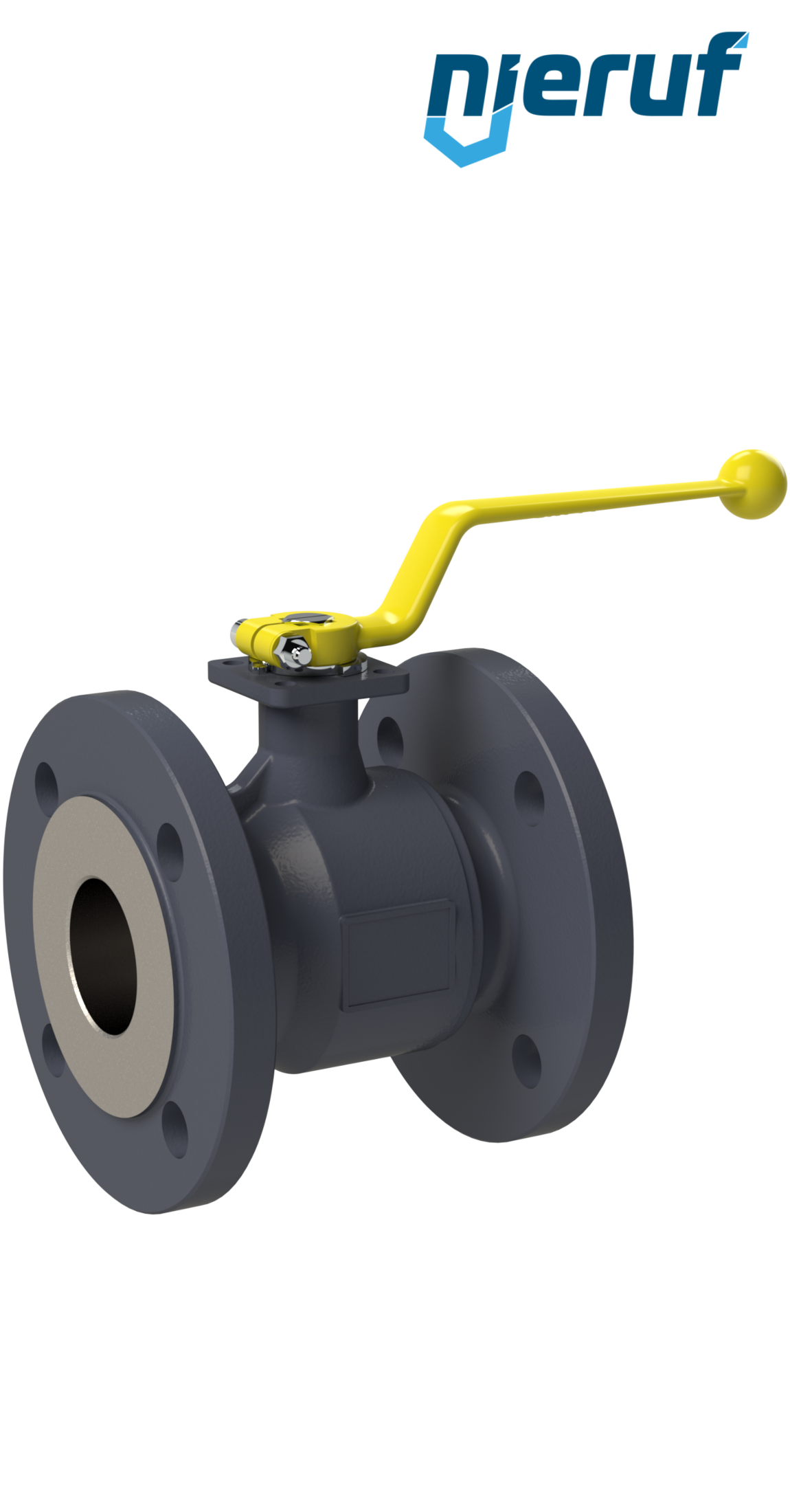

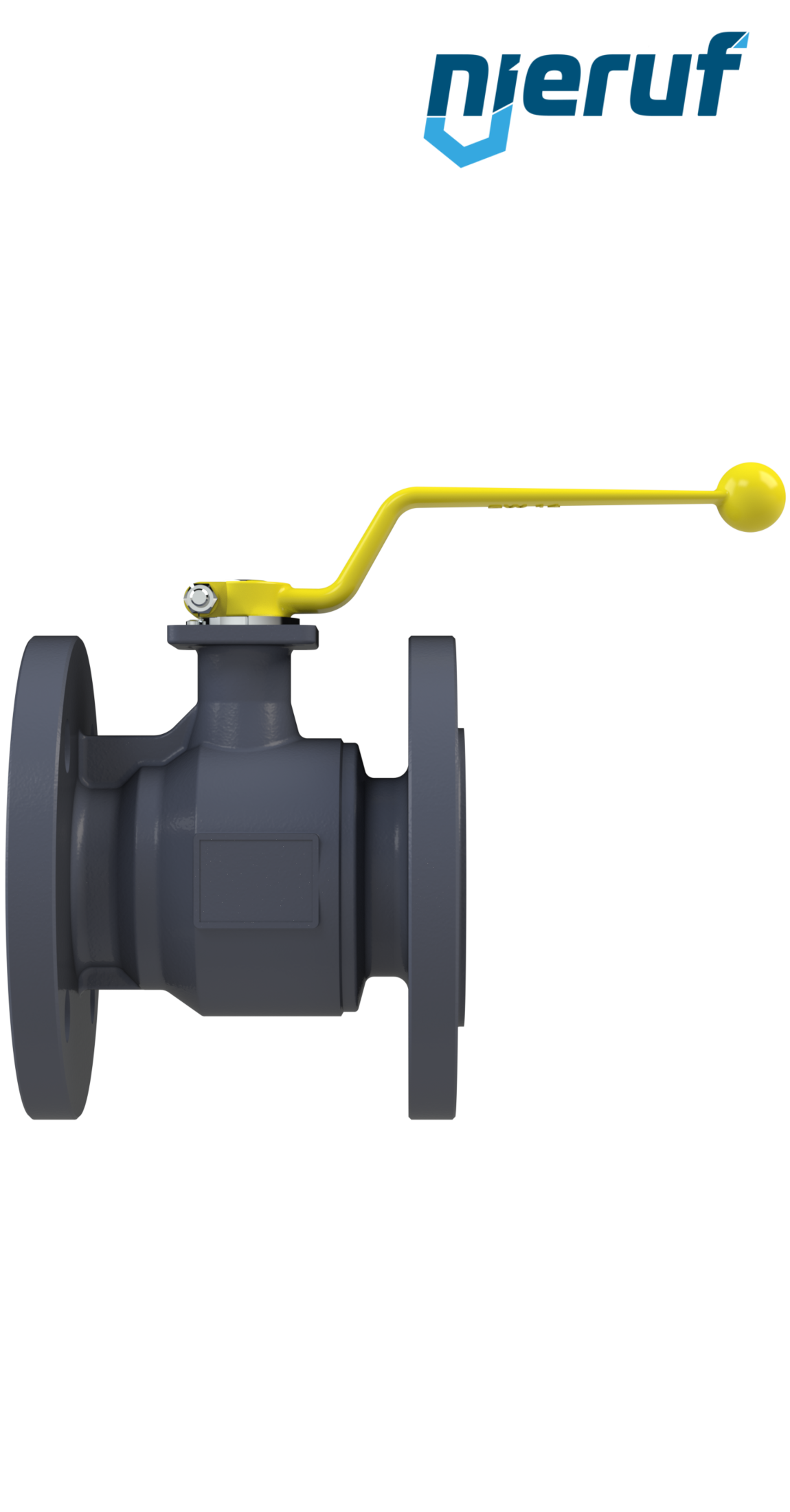

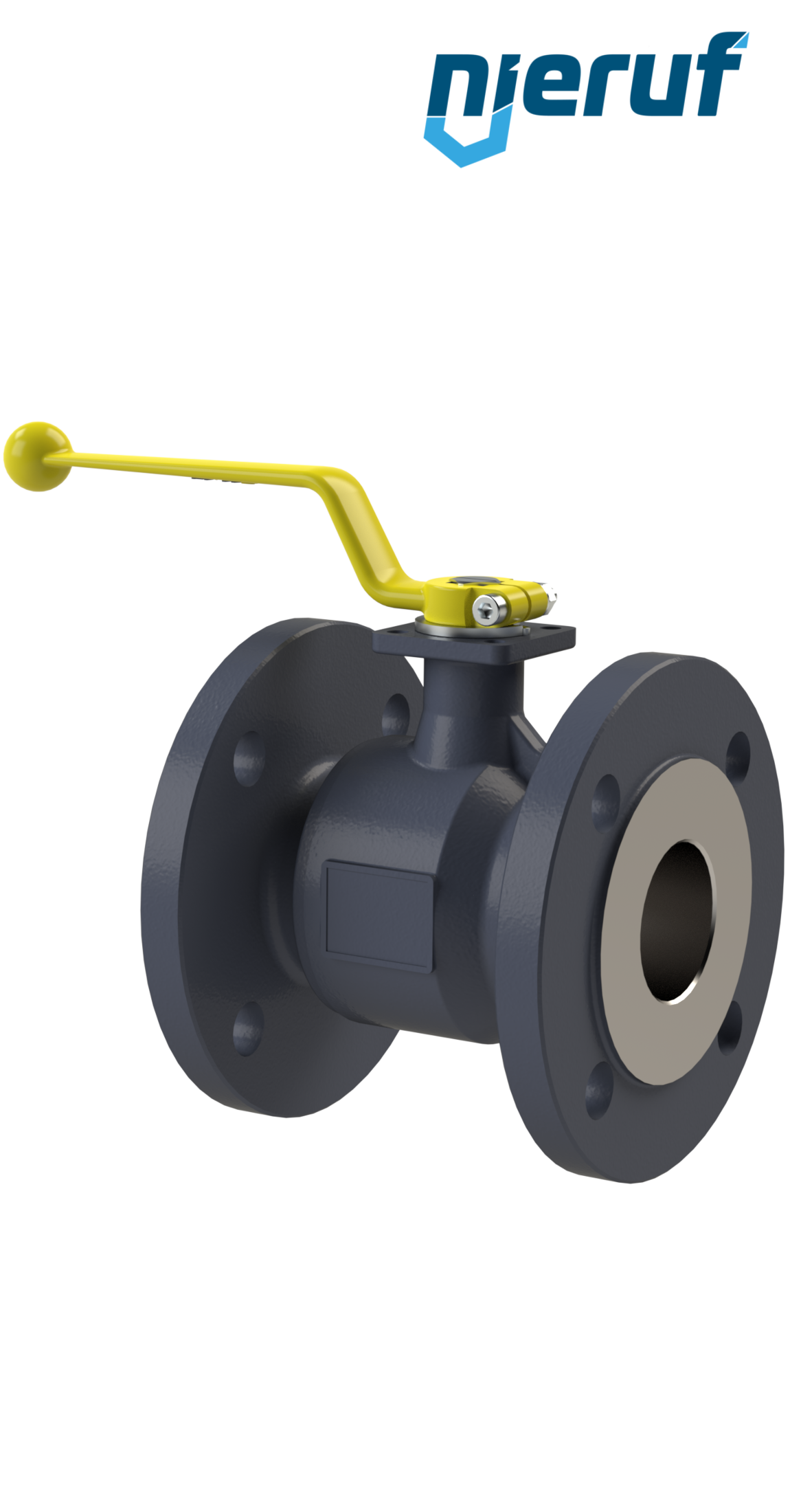

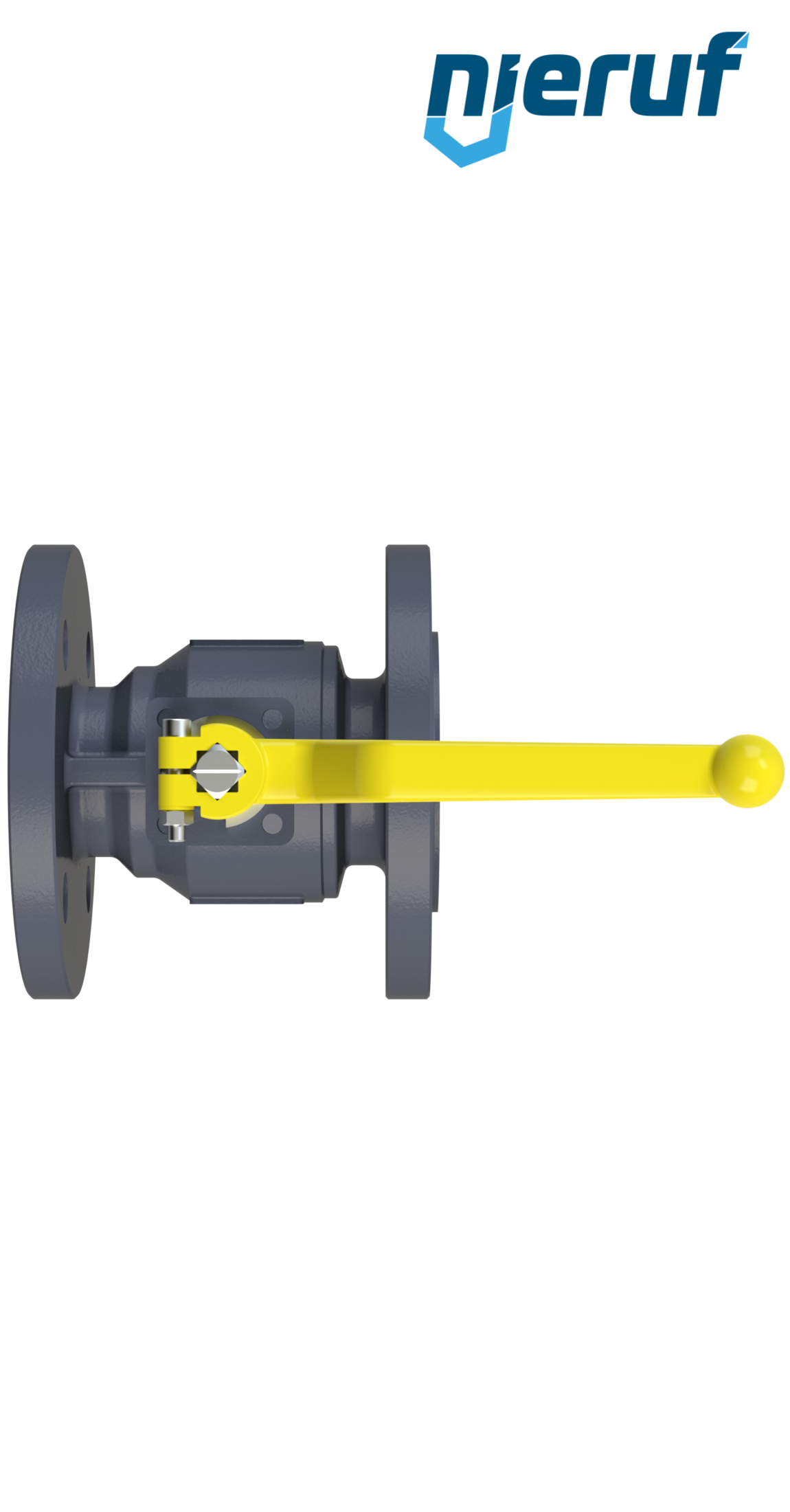

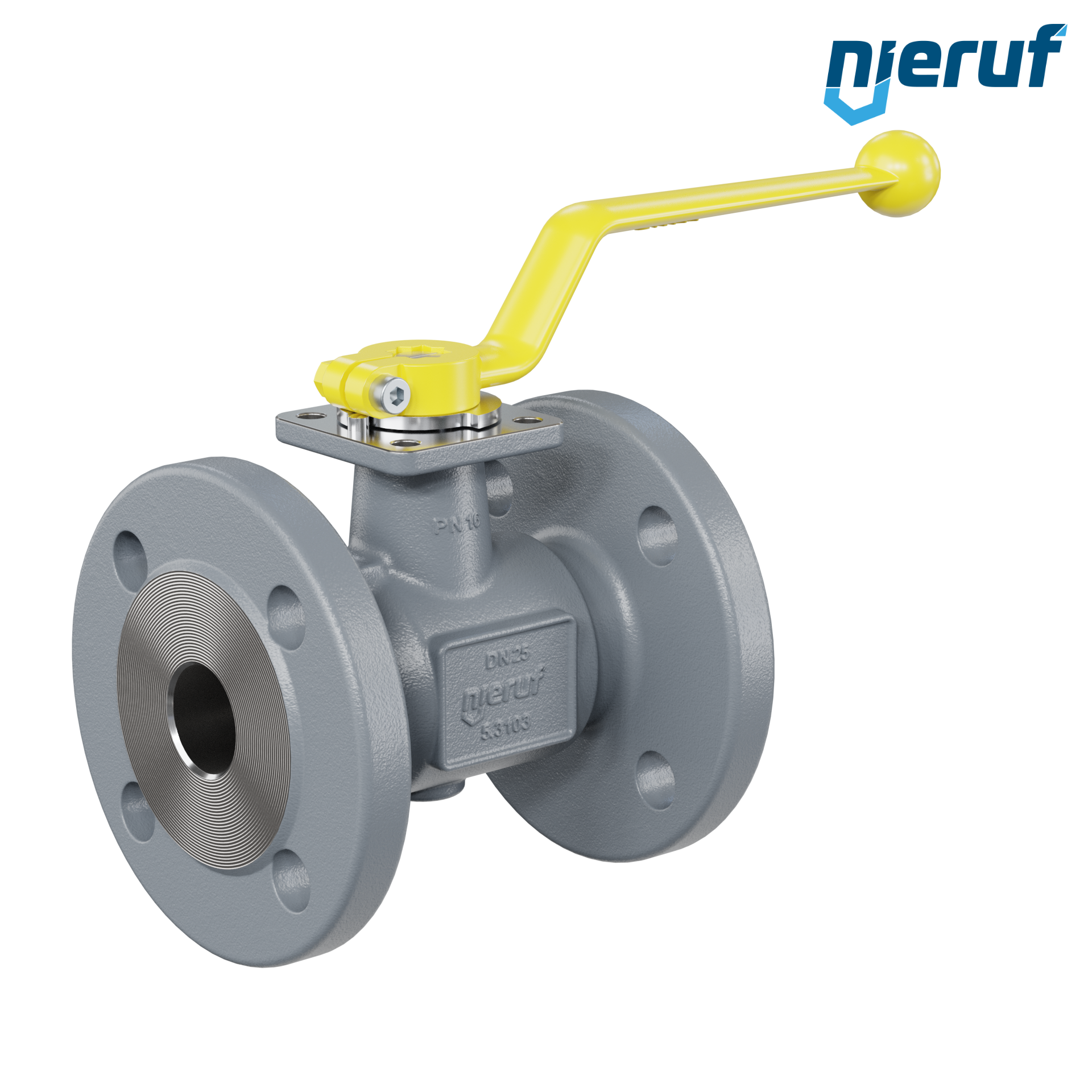

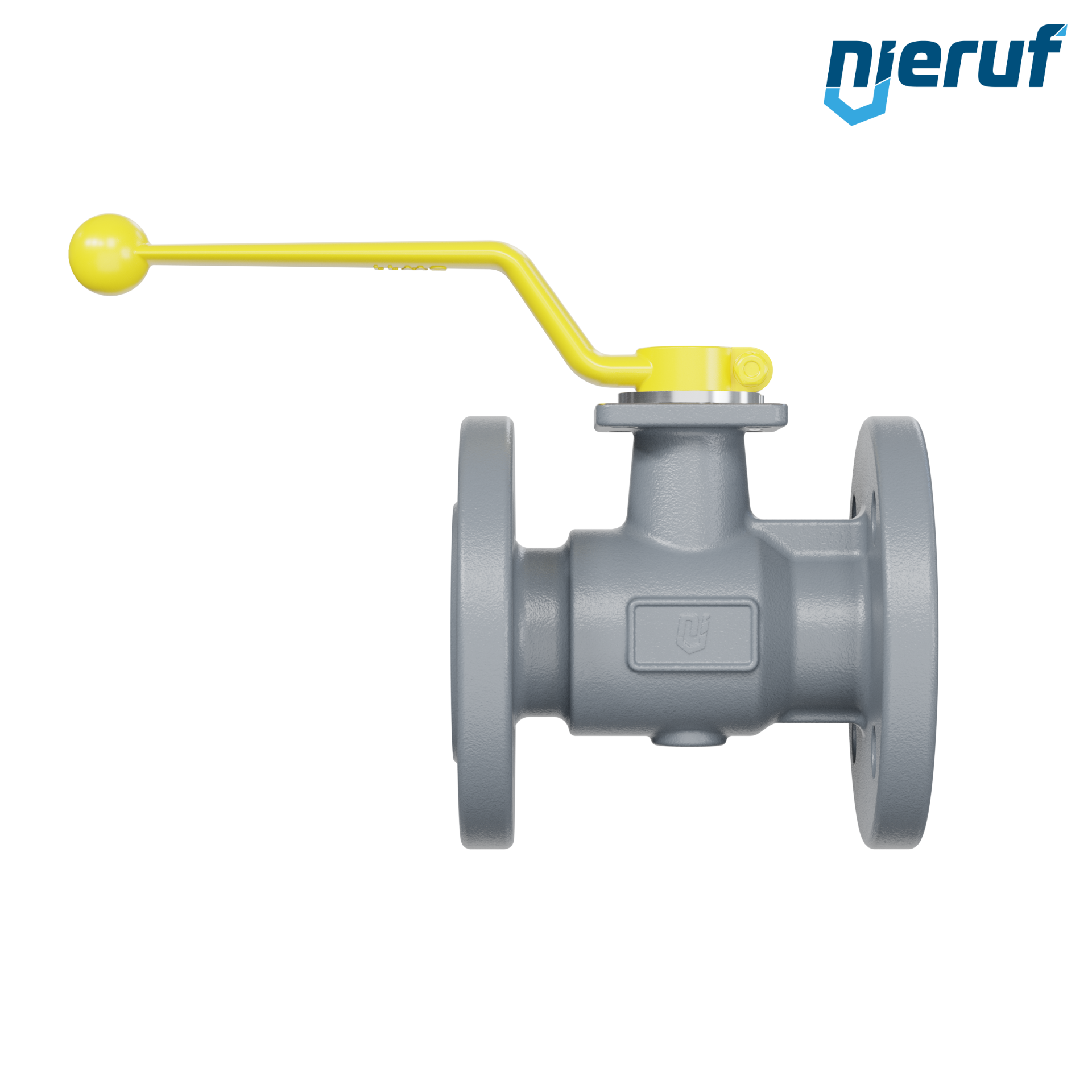

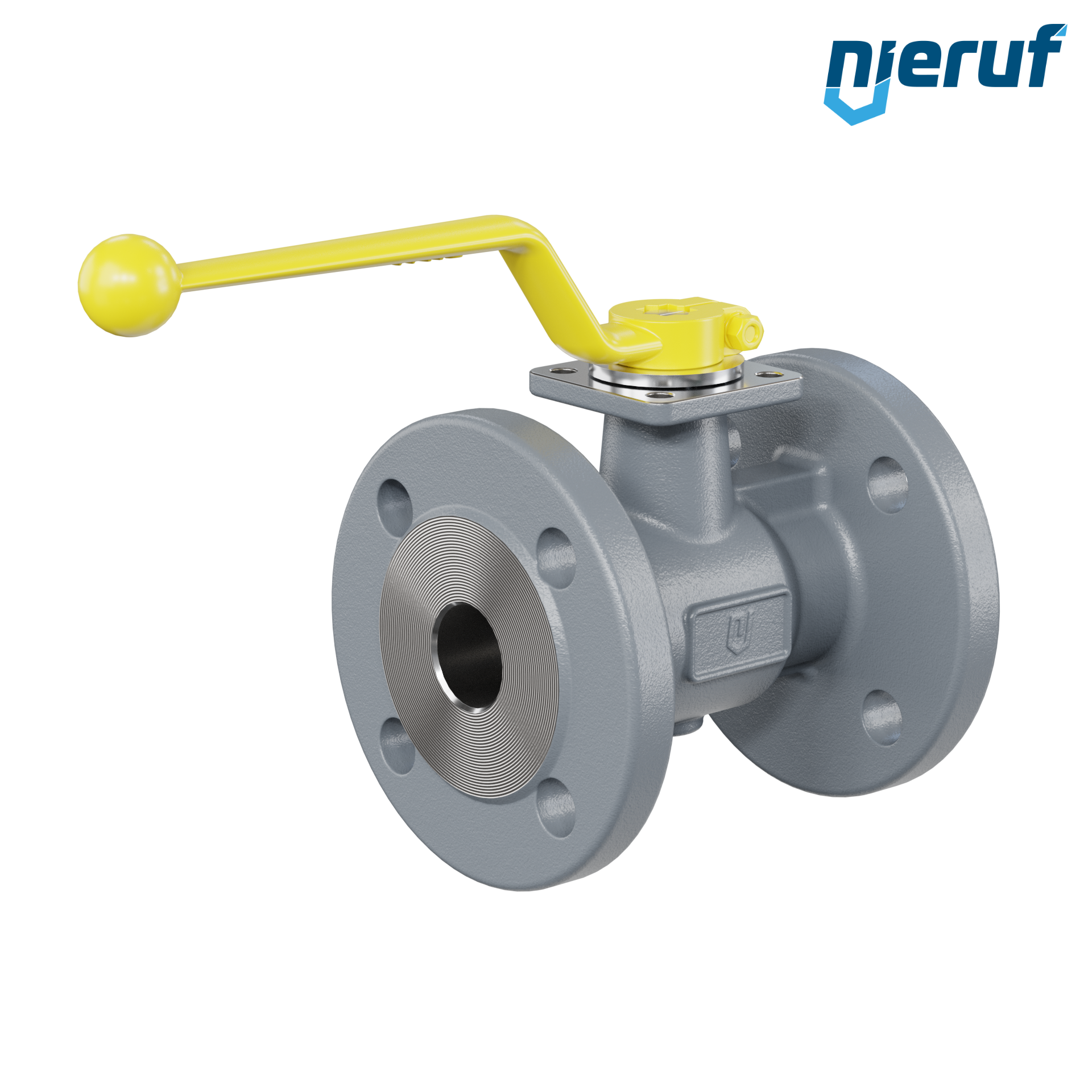

Flange ball valve DN25 FK01 GGG40 ball steel chrome plated DVGW-Gas

€141.10*

€167.91 VAT included.

Delivery time
3 - 5 working days

Equipment

FL01020105

Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare

€14.00*

€16.66 VAT included.


FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€3.90*

€4.64 VAT included.


VS01010105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel

€3.60*

€4.28 VAT included.


AD02010011

stem extension hub length 100 mm square 11mm AD02 stainless steel

€27.50*

€32.73 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

24 months warranty

24 months warranty

Certified

Certified

Product number: FK01020005
Flange ball valve DN25 FK01 GGG40 ball steel chrome plated DVGW-Gas

Flange ball valve DN25 FK01 body spheroidal graphite cast iron GJS 400-18 ball steel chrome plated seal PTFE approval DVGW gas

product Flange ball valve
type FK01
manufacturer NieRuf
diameter DN25
connection flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam O-rings FKM
ball seal PTFE
media gas: 1., 2. and 3. gas category
temperature -20°C up to +60°C - depending on working pressure and media
max. pressure PN16
design full port design with chrome plated steel ball
body material spheroidal graphite cast iron 5.3103
ball material steel chrome plated 1.0503
length DIN EN 558-1 R14
actuator hand lever made of alu with yellow cover
installation position any position
authorized for DVGW-Gas
product description This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and floating chrome plated steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange ball valve DN25 FK01 GGG40 ball steel chrome plated DVGW-Gas

Article no. : FK01020005
product: Flange ball valve
type: FK01
manufacturer: NieRuf
diameter: DN25
connection: flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam: O-rings FKM
ball seal: PTFE
media: gas: 1., 2. and 3. gas category
temperature: -20°C up to +60°C - depending on working pressure and media
max. pressure: PN16
design: full port design with chrome plated steel ball
body material: spheroidal graphite cast iron 5.3103
ball material: steel chrome plated 1.0503
length: DIN EN 558-1 R14
actuator: hand lever made of alu with yellow cover
installation position: any position
authorized for: DVGW-Gas
product description: This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and floating chrome plated steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.

No spare parts were found for the item number .

FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€3.90*

€4.64 VAT included.

FL01020105

Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare

€14.00*

€16.66 VAT included.

VS01010105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel

€3.60*

€4.28 VAT included.

AD02010011

stem extension hub length 100 mm square 11mm AD02 stainless steel

€27.50*

€32.73 VAT included.
