FK02020005
Flange ball valve DN25 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas
Delivery time: 3 - 5 working days
Equipment
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€16.66 VAT included.
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

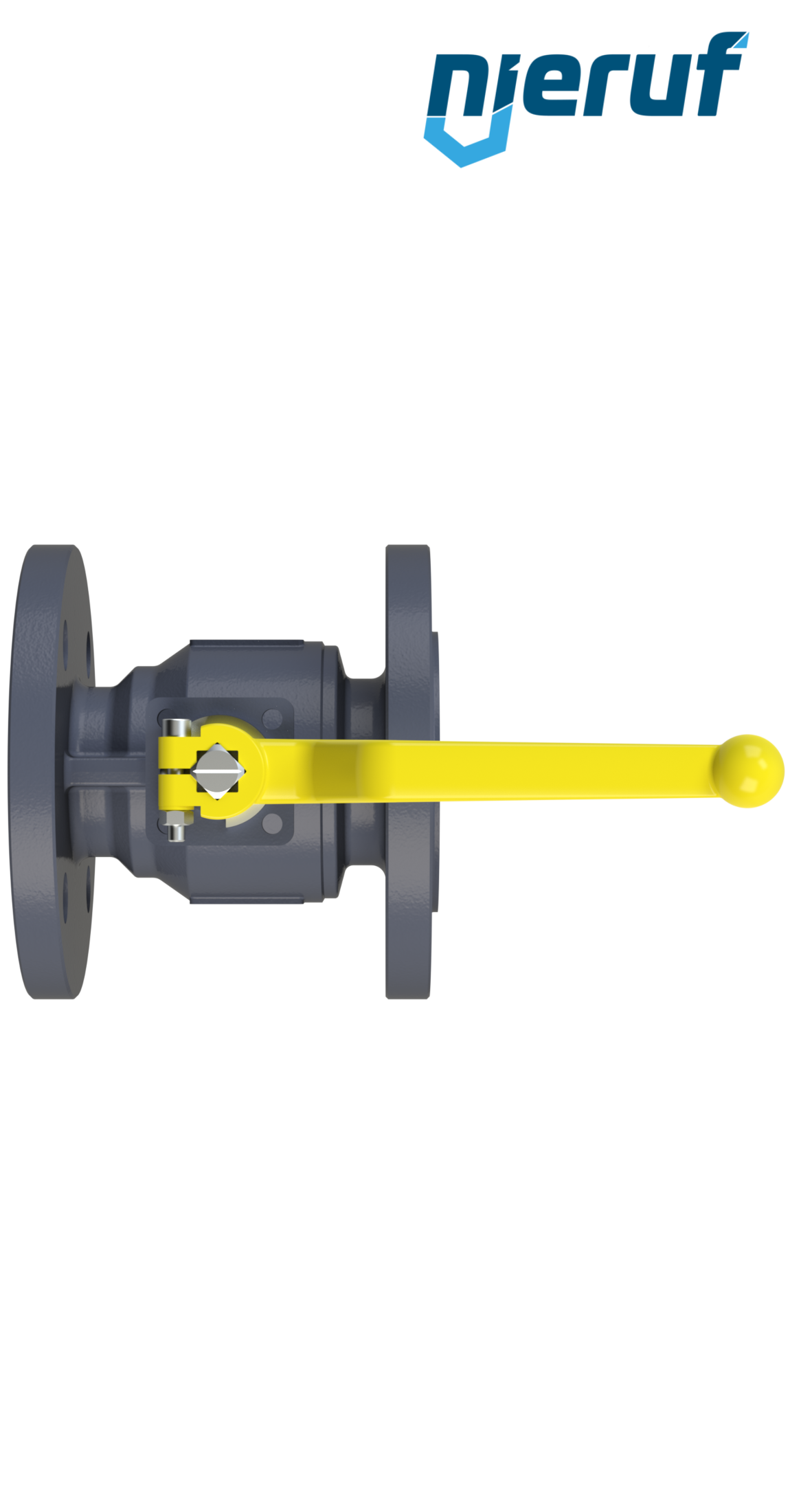

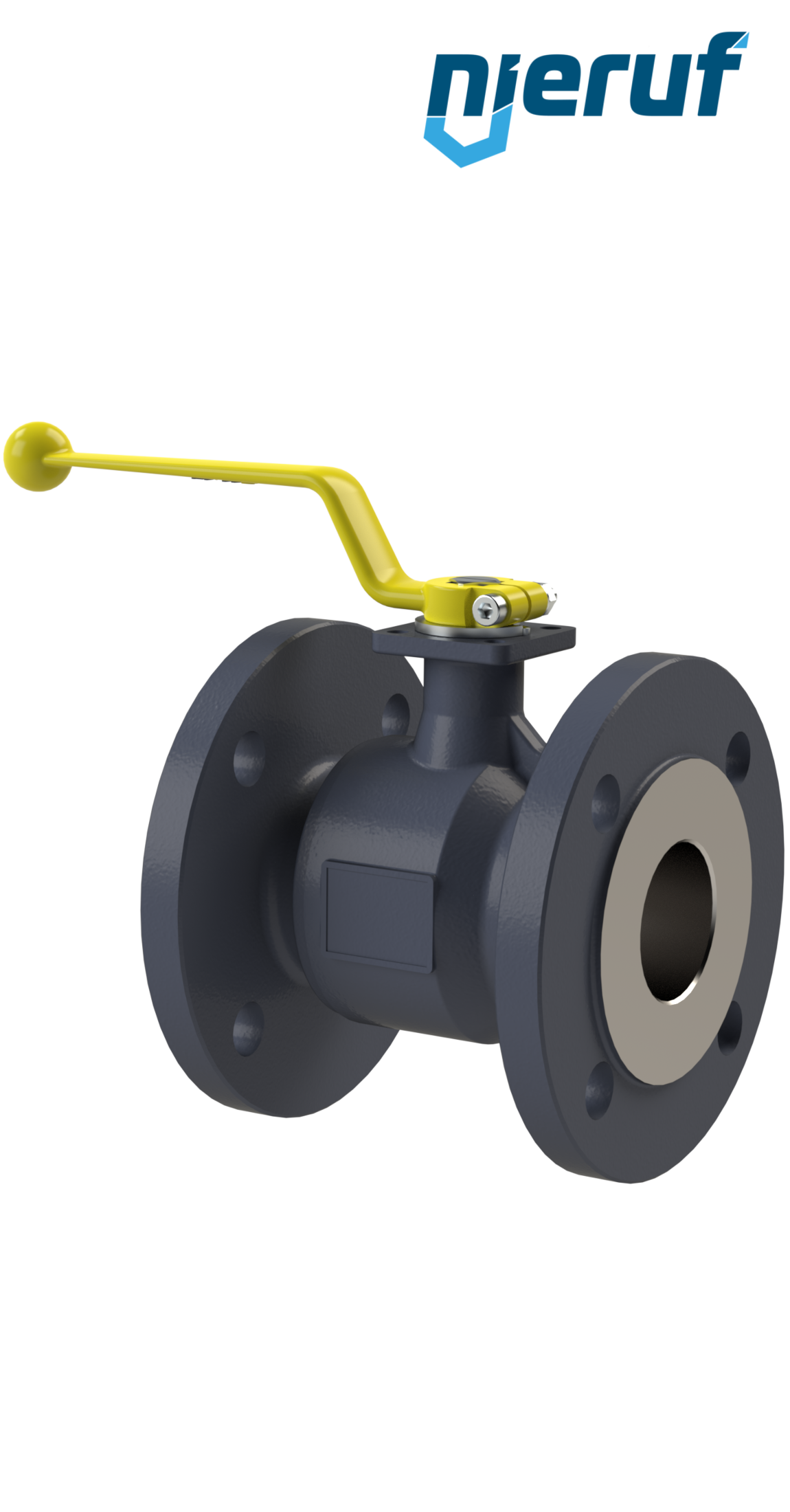

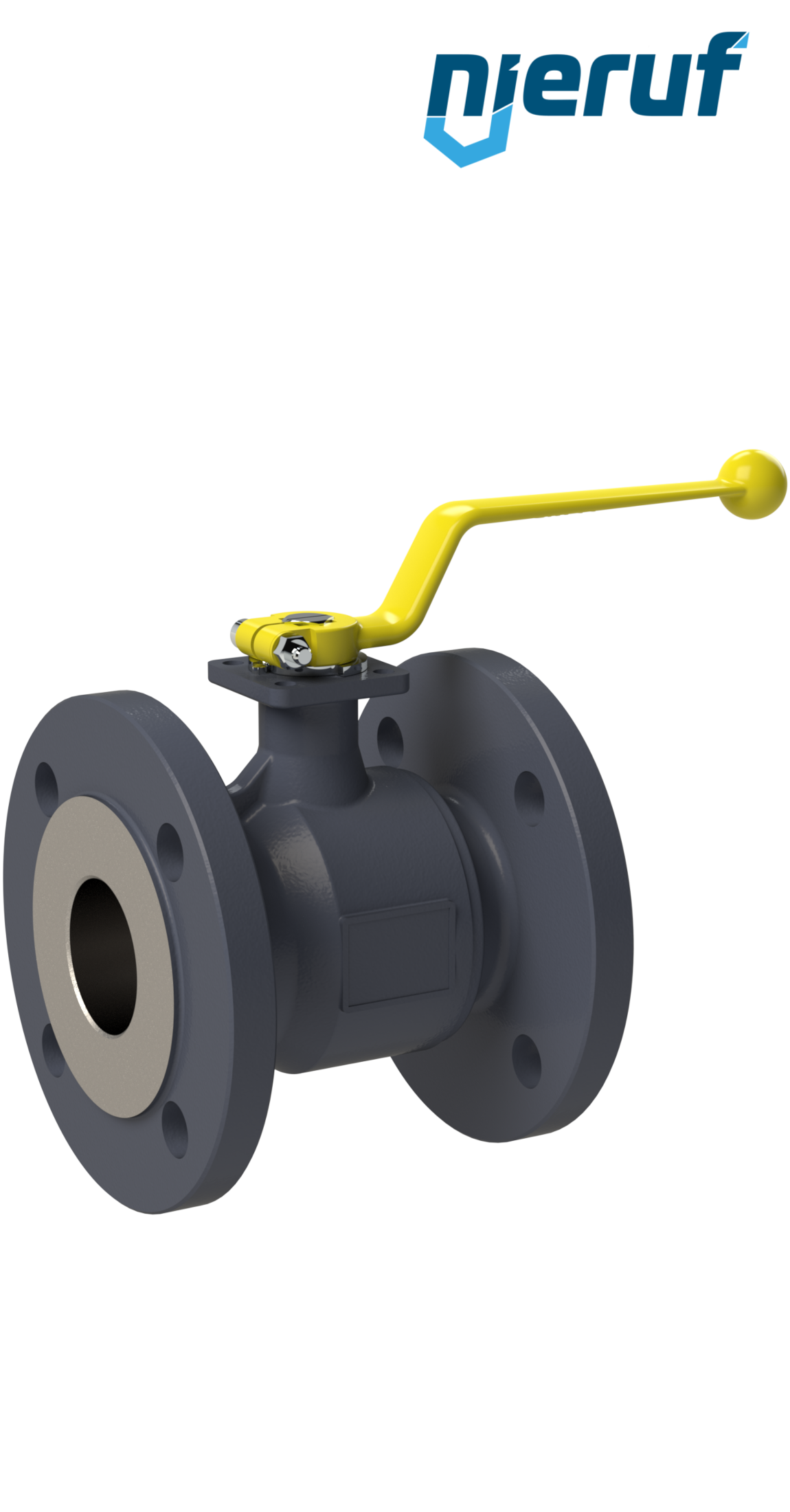

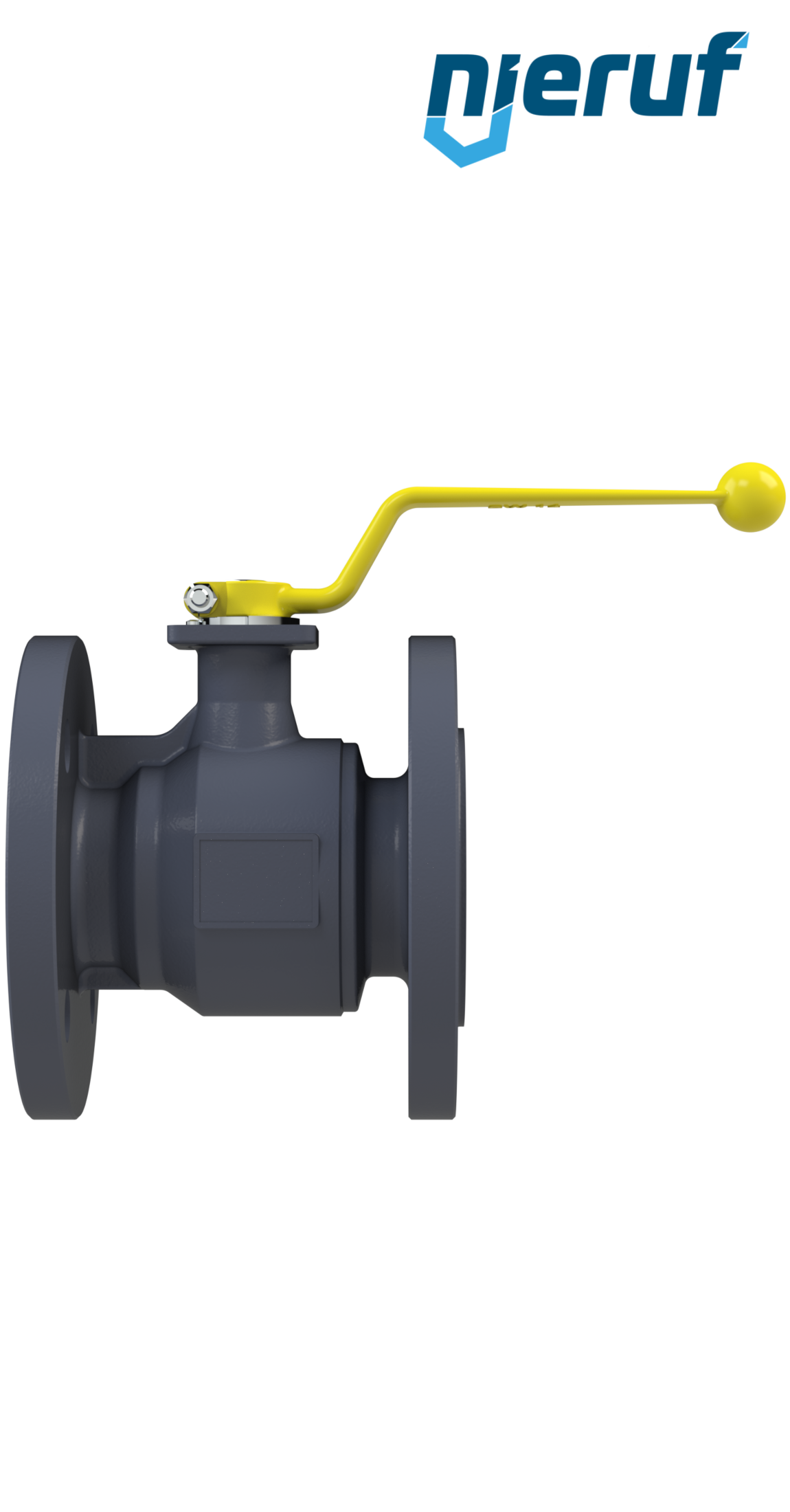

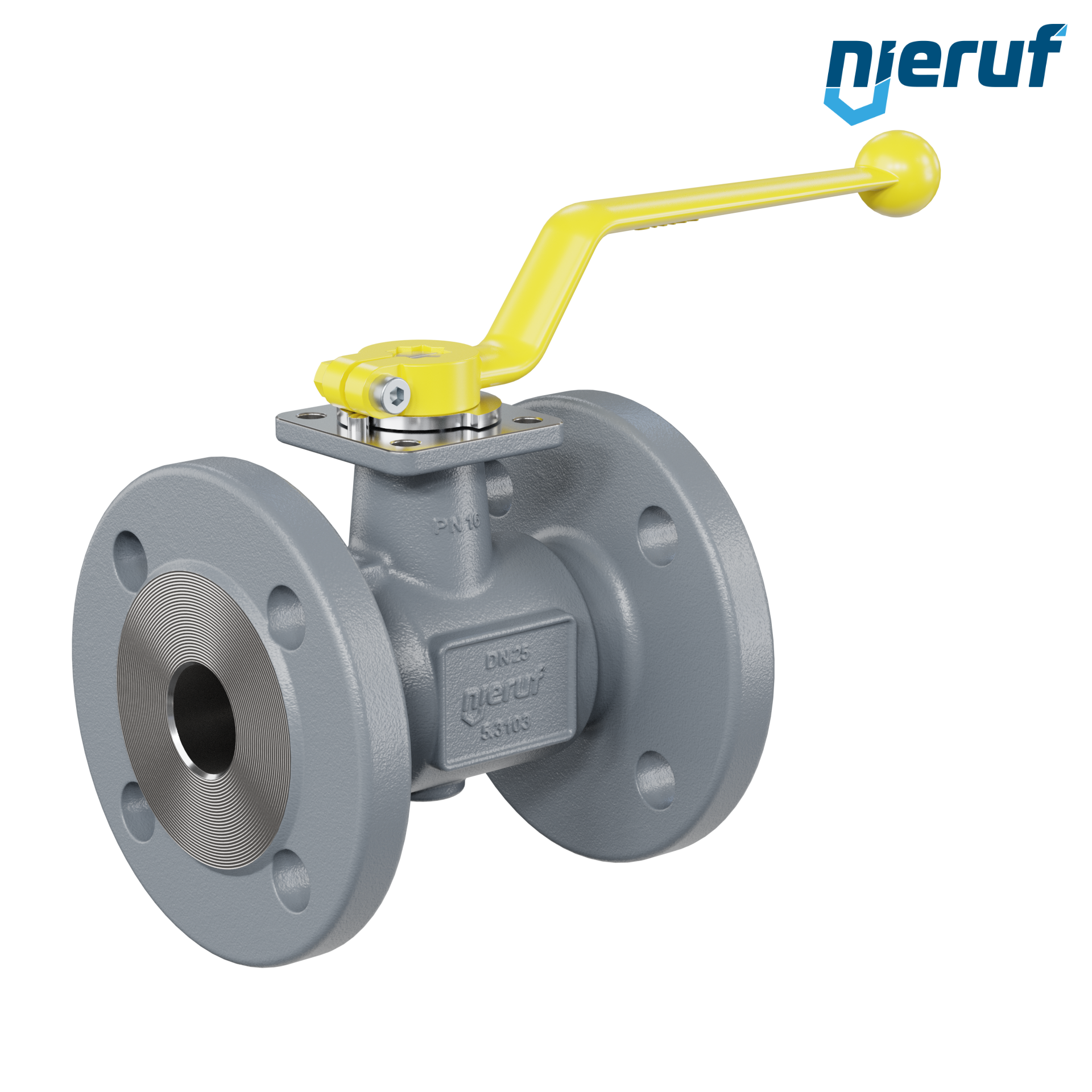

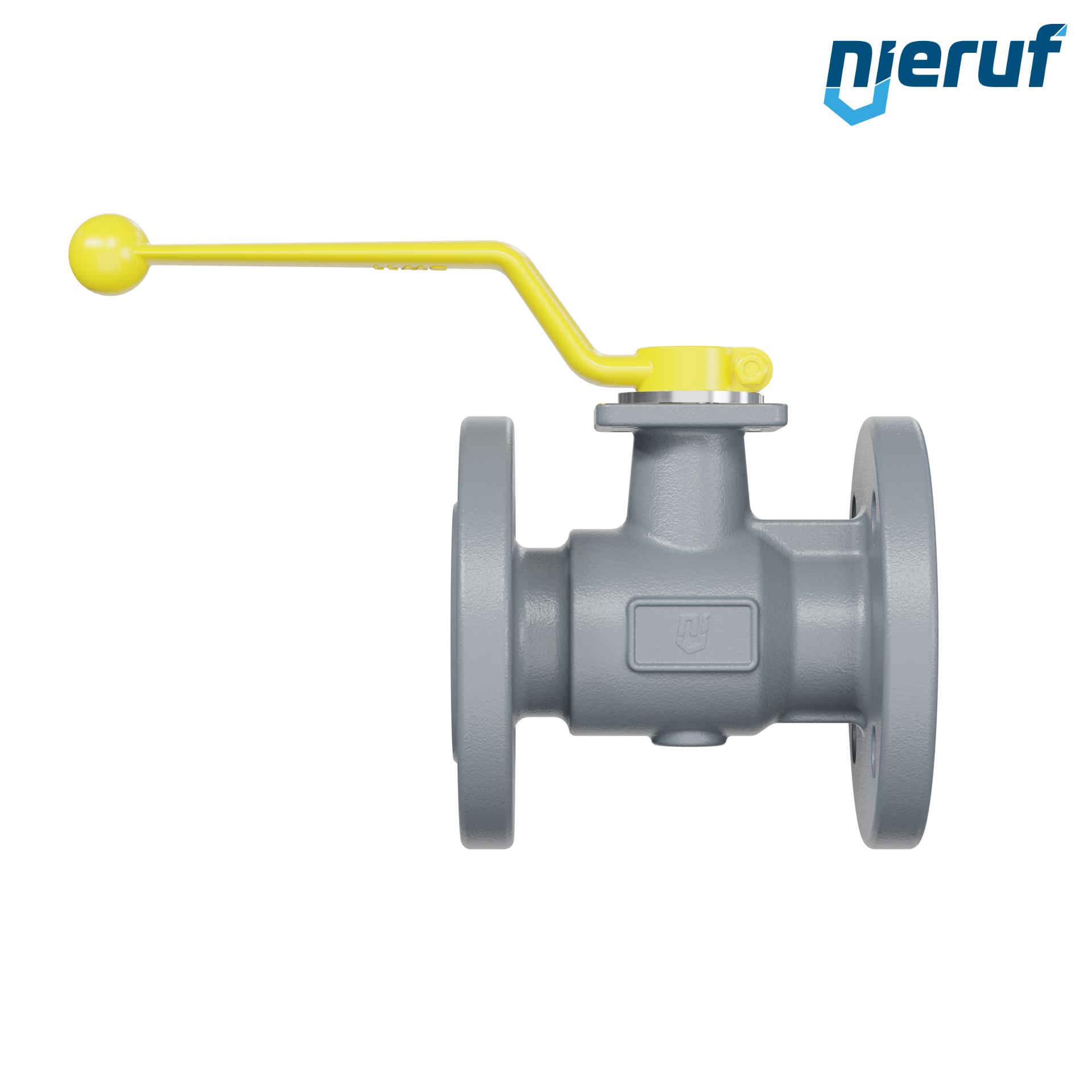

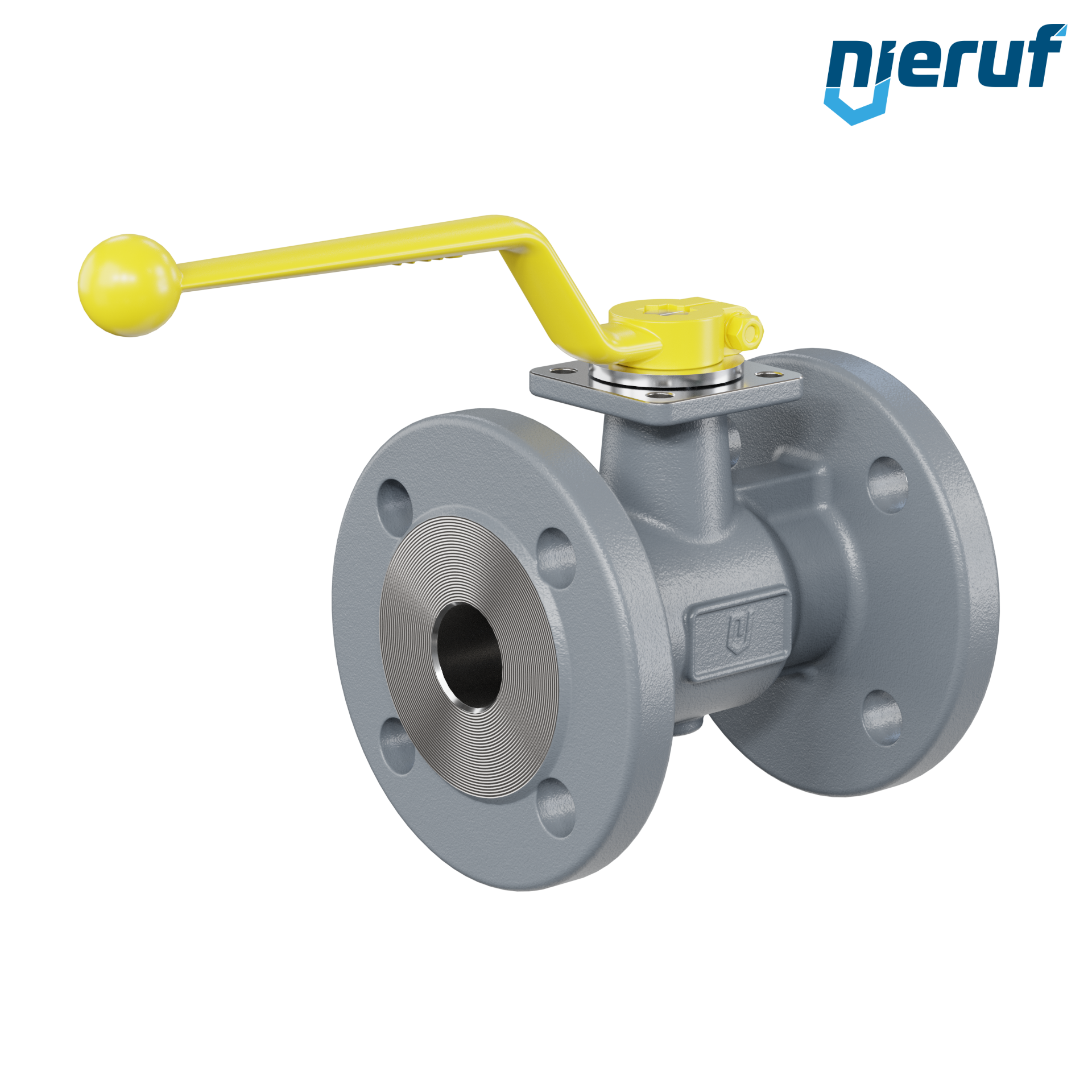

Flange ball valve DN25 FK02 body spheroidal graphite cast iron GJS 400-18 ball (solid) stainless steel 1.4408 seal PTFE approval DVGW gas
product: | Flange ball valve |
---|---|
type: | FK02 |
manufacturer: | NieRuf |
diameter: | DN25 |
connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
Seal steam: | O-rings FKM |
ball seal: | PTFE |
media: | gas: 1., 2. and 3. gas category |
temperature: | -20°C up to +60°C - depending on working pressure and media |
max. pressure: | PN16 |
design: | full port design with solid stainless steel ball |
body material: | spheroidal graphite cast iron GJS 400-18 |
ball material: | (solid) stainless steel 1.4408 |
length: | DIN EN 558-1 R14 |
actuator: | hand lever made of alu with yellow cover |
installation position: | any position |
authorized for: | DVGW-Gas |
product description: | This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange ball valve DN25 FK02 GGG40 ball (solid) stainless steel 1.4408 DVGW-Gas
Article no.
: FK02020005
product:
Flange ball valve
type:
FK02
manufacturer:
NieRuf
diameter:
DN25
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
ball seal:
PTFE
media:
gas: 1., 2. and 3. gas category
temperature:
-20°C up to +60°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design with solid stainless steel ball
body material:
spheroidal graphite cast iron GJS 400-18
ball material:
(solid) stainless steel 1.4408
length:
DIN EN 558-1 R14
actuator:
hand lever made of alu with yellow cover
installation position:
any position
authorized for:
DVGW-Gas
product description:
This high quality ball valve is made of spheroidal graphite cast iron with Fire-Safe-Design and a solid stainless steel ball. Two-piece body valve with flange dimensions acc. DIN EN 1092-2 PN 16 dimensions acc. to DIN EN 1092-2 PN 16.
