FK05030007
Gas-flange ball valve DN40 FK05 stainless steel 1.4408
Delivery time: 1 - 2 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
€54.15 VAT included.
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

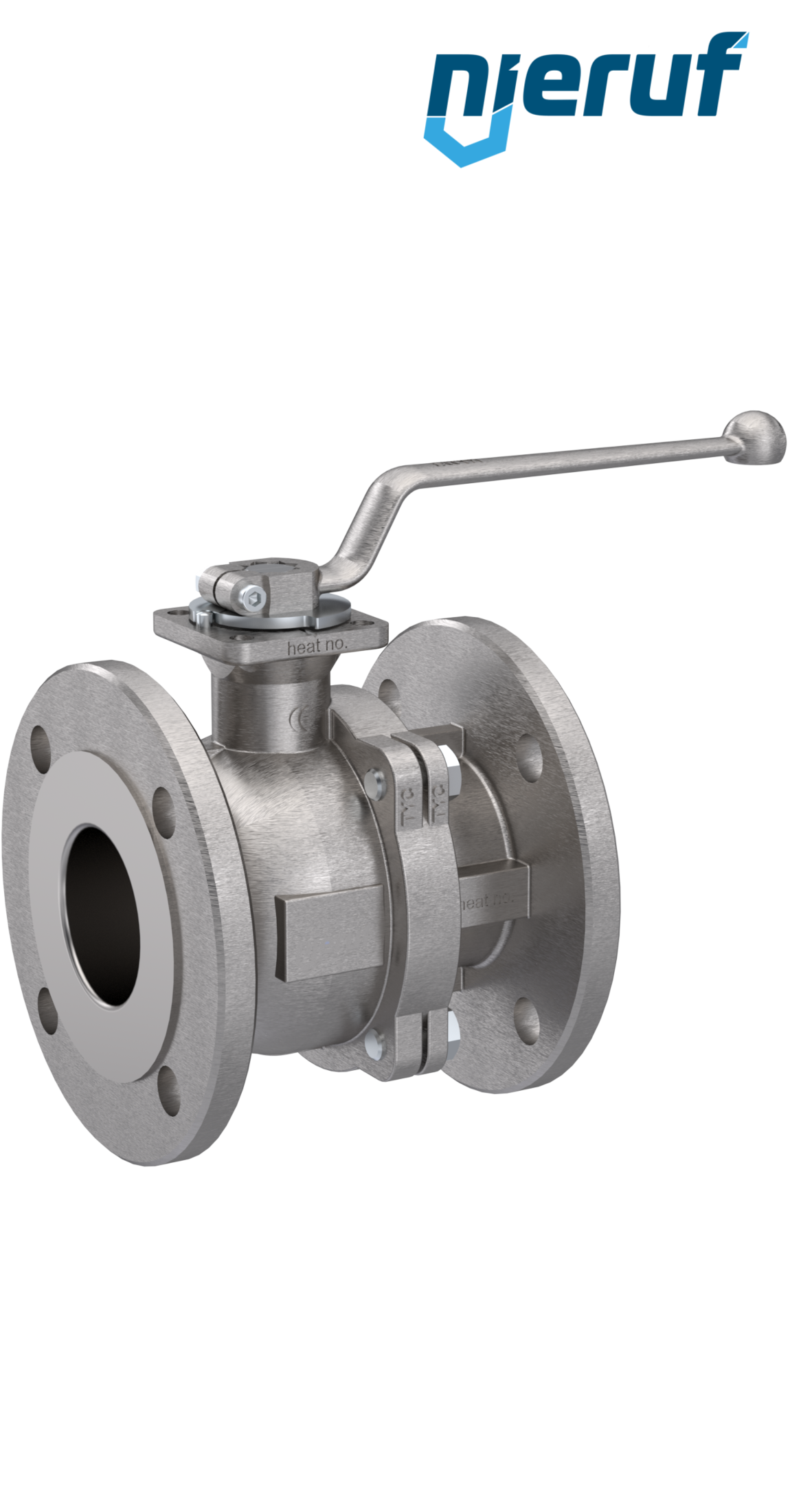

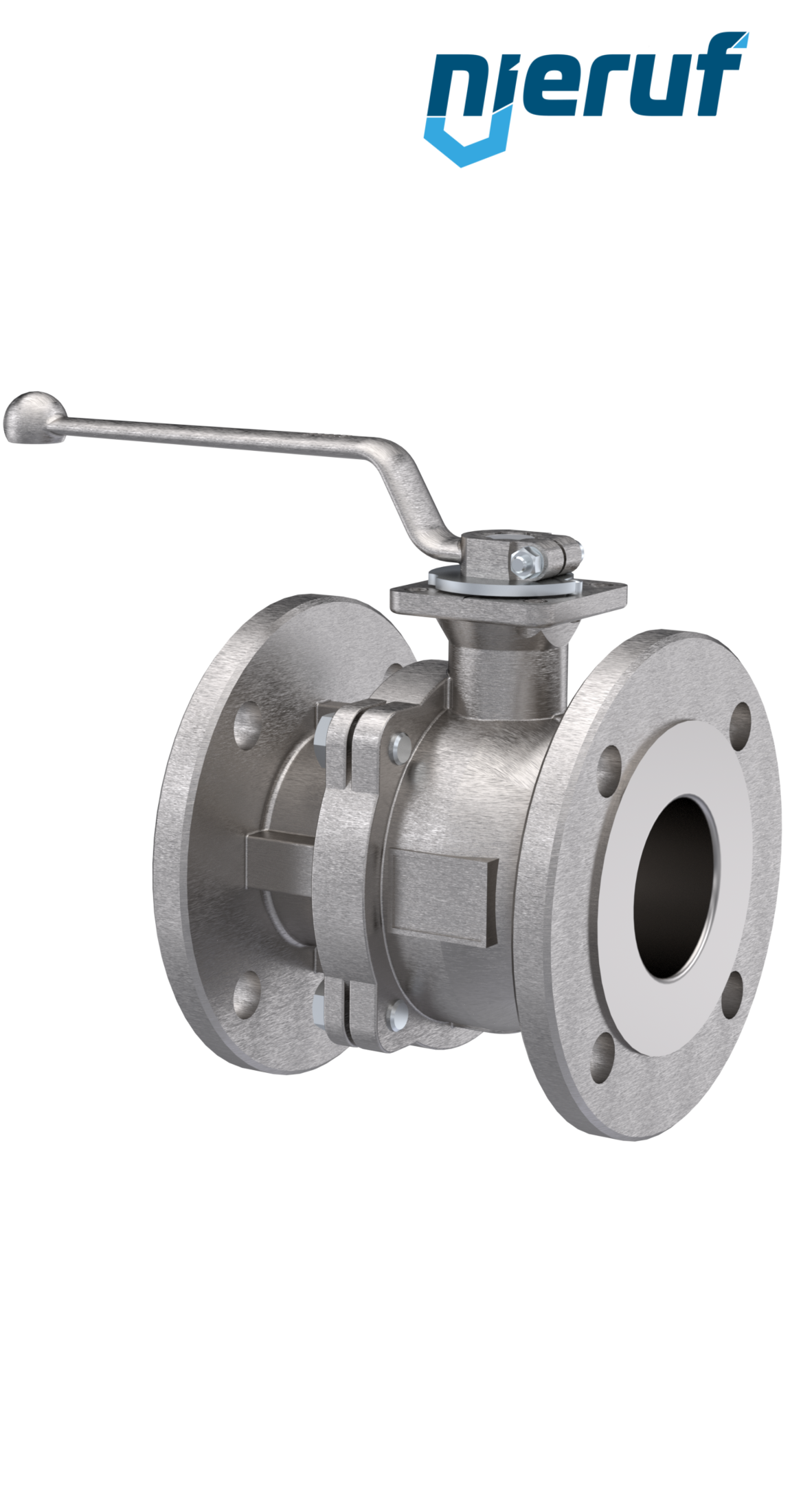

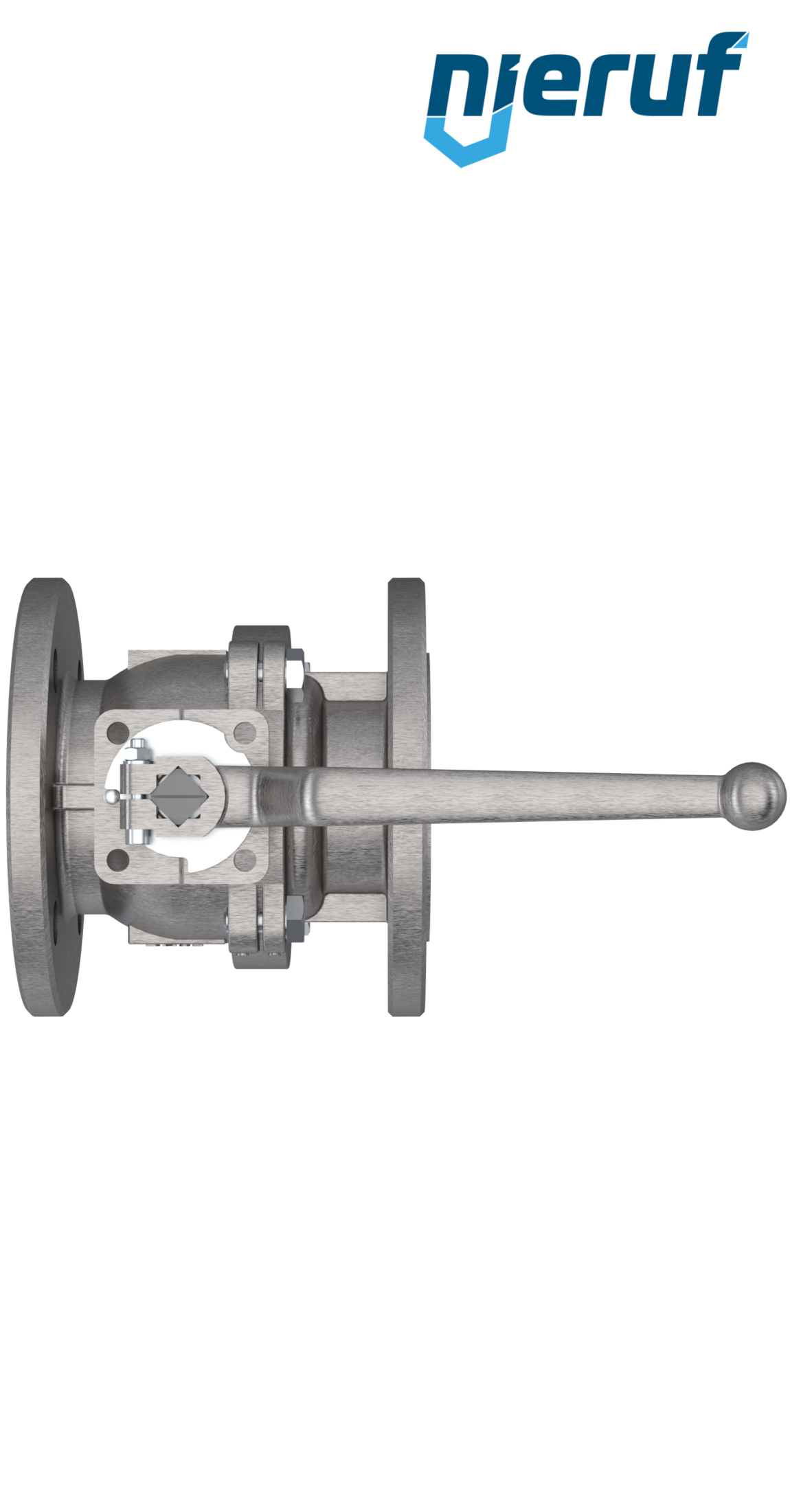

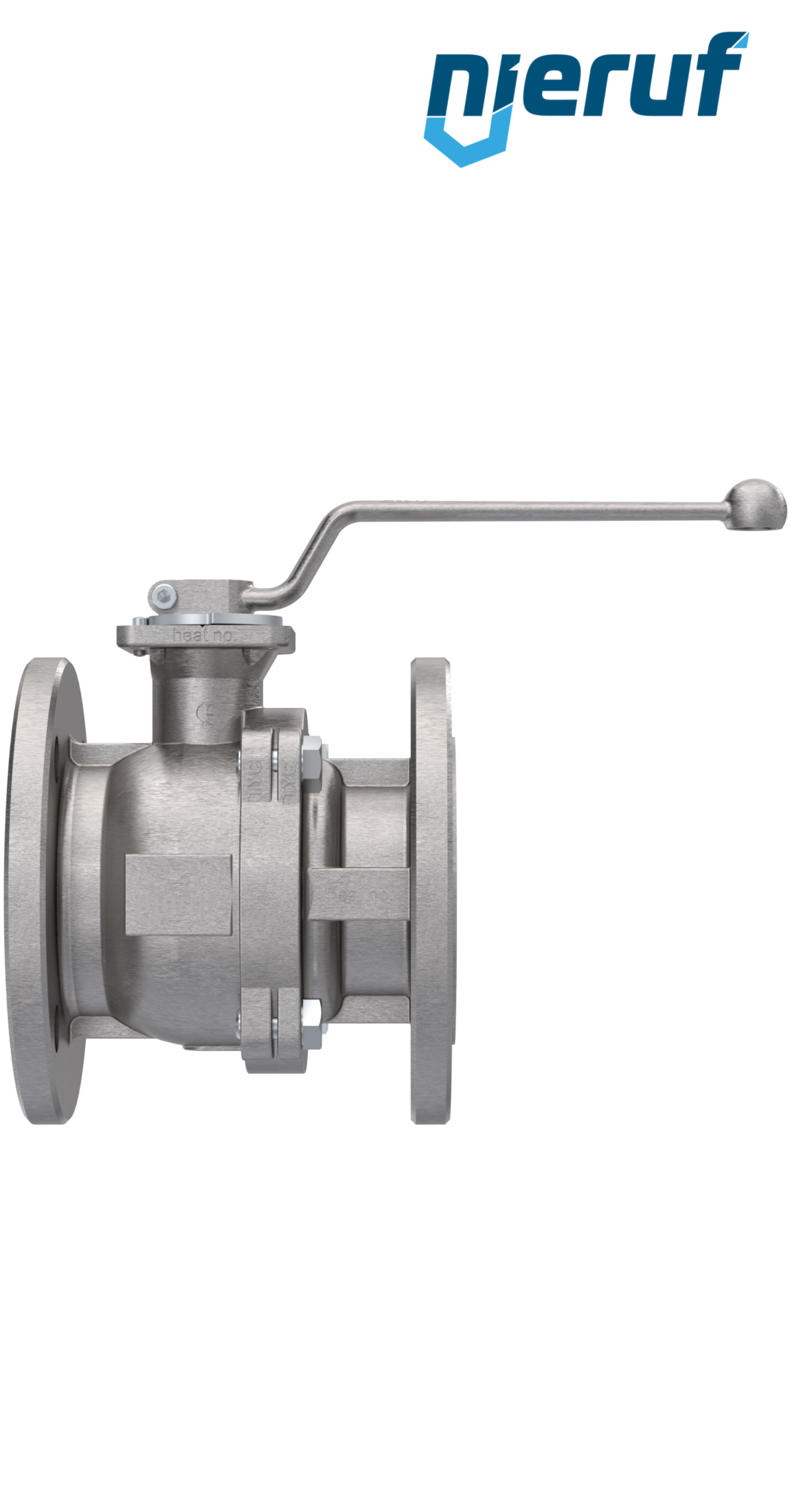

Gas-flange ball valve DN40 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for gas
product: | Gas-flange ball valve |
---|---|
type: | FK05 |
manufacturer: | NieRuf |
diameter: | DN40 |
connection: | flange dimensions acc. to EN 1092-1 PN16 |
Seal steam: | PTFE/FKM |
body seal: | FKM/TFM |
ball seal: | PTFE |
media: | gaseous media, gas, DVGW-gas |
temperature: | -20°C up to +180°C - depending on media and dimension |
max. pressure: | PN16 |
design: | full port design |
body material: | stainless steel 1.4408 |
ball material: | stainless steel 1.4408 |
length: | DIN EN 558 R 27 |
actuator: | lever handle made of stainless steel |
installation position: | any position |
authorized for: | TA Luft, DVGW-Gas |
product description: | This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. This ball valve includes DVGW gas approval. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Gas-flange ball valve DN40 FK05 stainless steel 1.4408
Article no.
: FK05030007
product:
Gas-flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
PTFE/FKM
body seal:
FKM/TFM
ball seal:
PTFE
media:
gaseous media, gas, DVGW-gas
temperature:
-20°C up to +180°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
TA Luft, DVGW-Gas
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. This ball valve includes DVGW gas approval.
