FK05000007

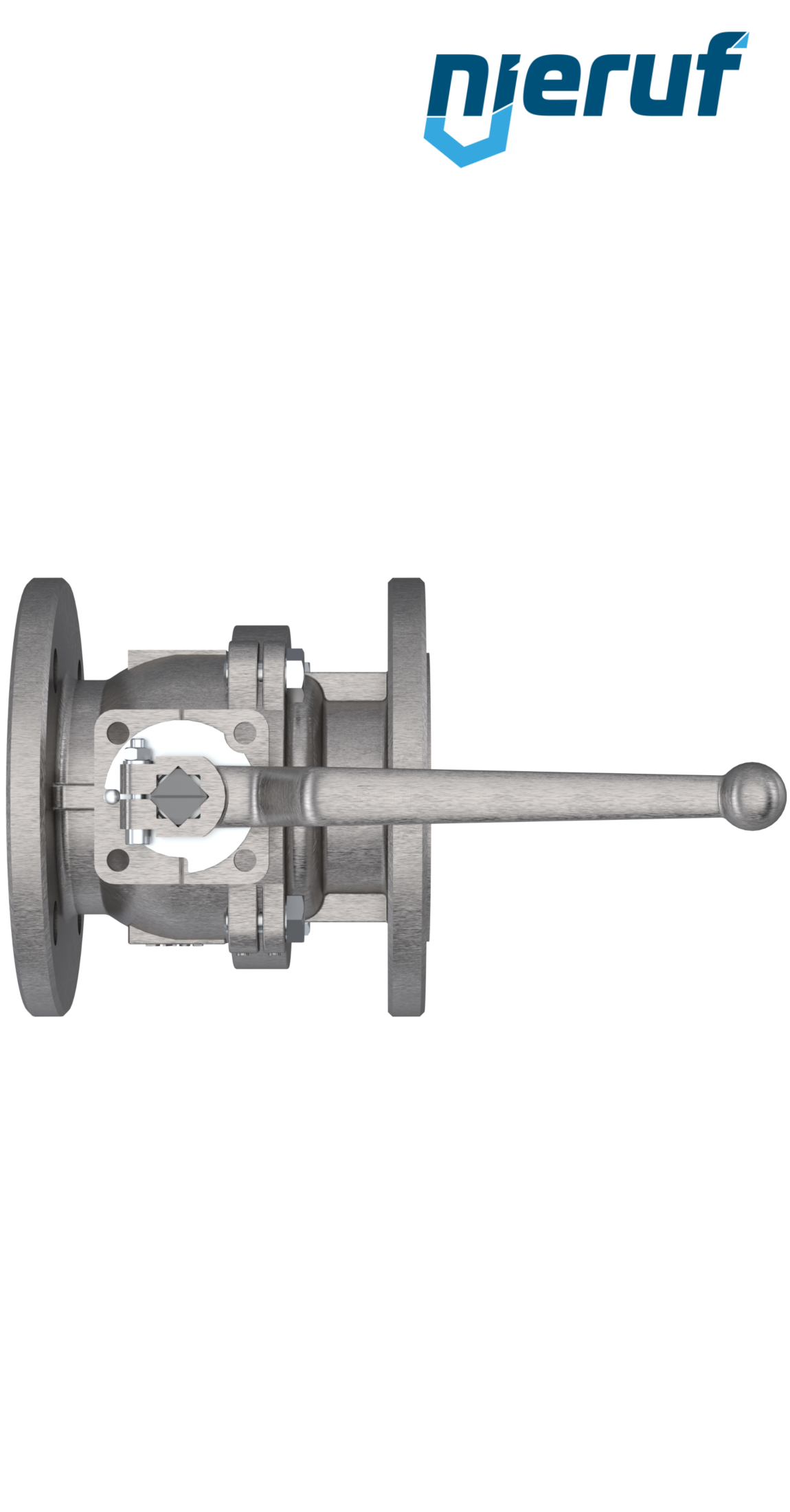

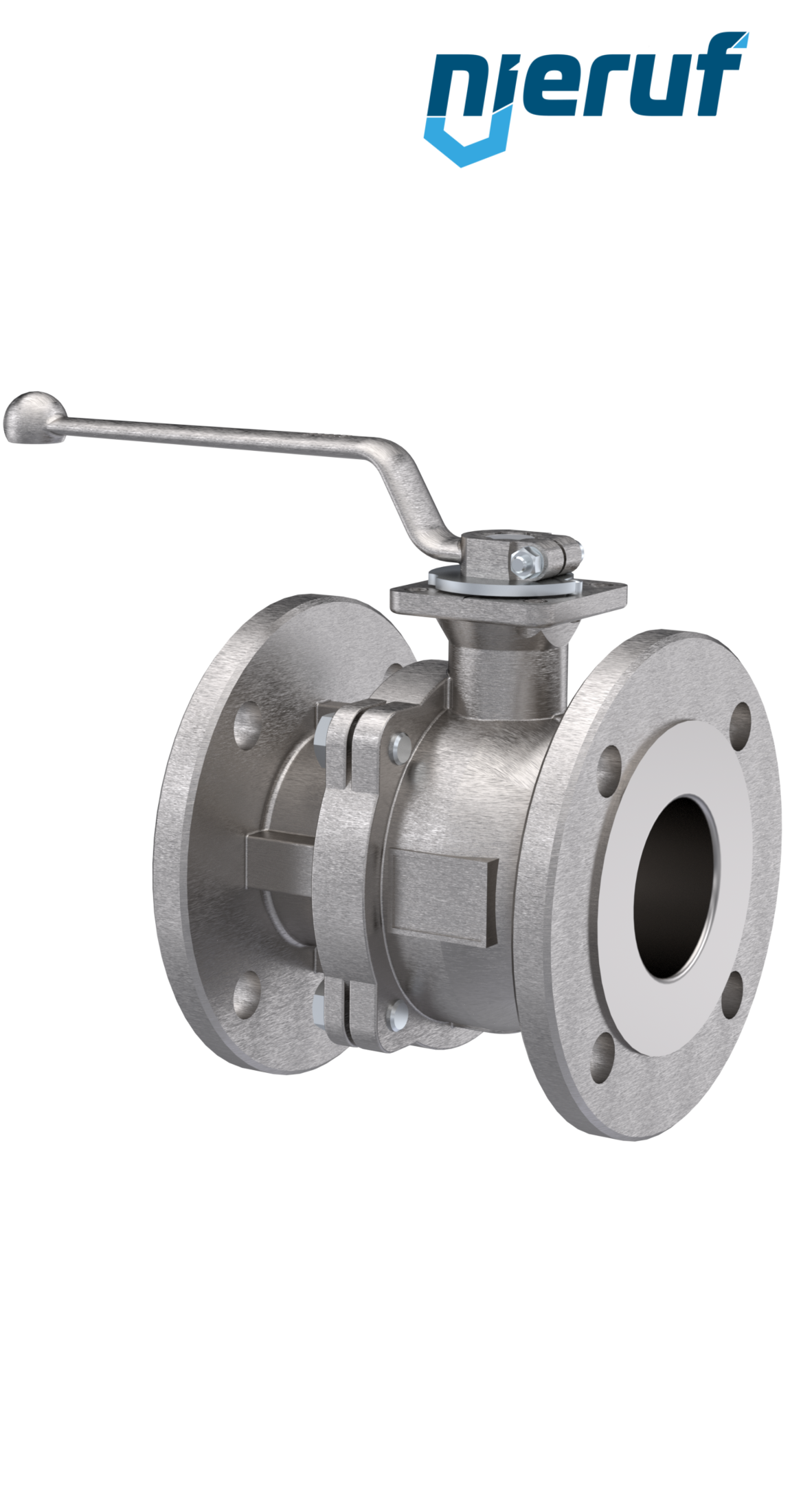

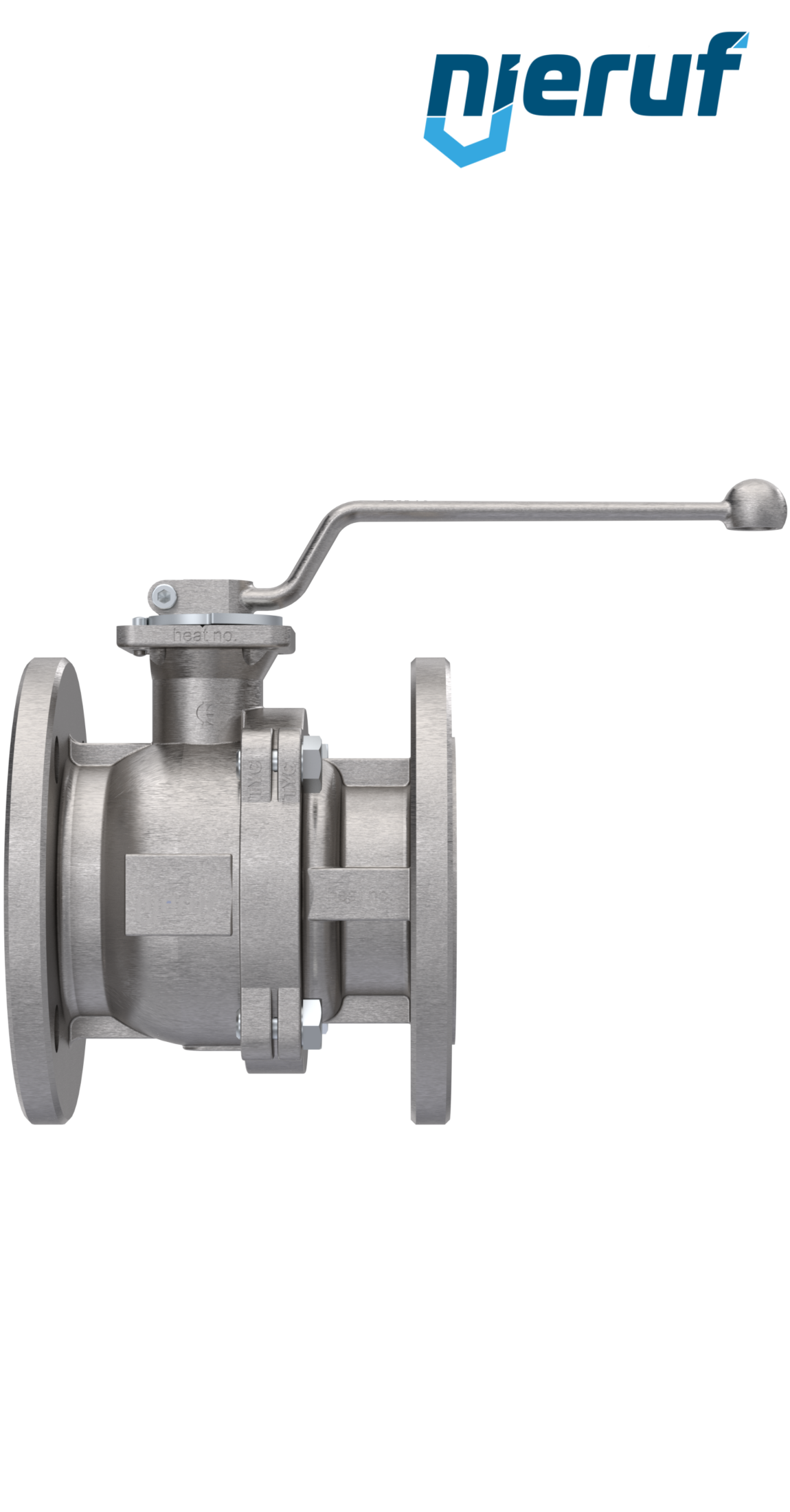

flange ball valve DN40 FK05 stainless steel 1.4408
- Delivery time
- 3 - 5 working days
Equipment
stem extension hub length 100 mm square 14mm AD02 stainless steel
€37.37 VAT included.
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541
€40.10 VAT included.
Questions about the article?
flange ball valve DN40 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / GF for liquid and gaseous media
| product | flange ball valve |
|---|---|
| type | FK05 |
| manufacturer | NieRuf |
| diameter | DN40 |
| connection | flange dimensions acc. to EN 1092-1 PN16 |
| Seal steam | PTFE/FKM |
| body seal | FKM/TFM |
| ball seal | PTFE/GF |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4408 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of stainless steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange ball valve DN40 FK05 stainless steel 1.4408
Article no.
: FK05000007
product:
flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN40
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
PTFE/FKM
body seal:
FKM/TFM
ball seal:
PTFE/GF
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE seal and is suitable for liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
