FK05040009

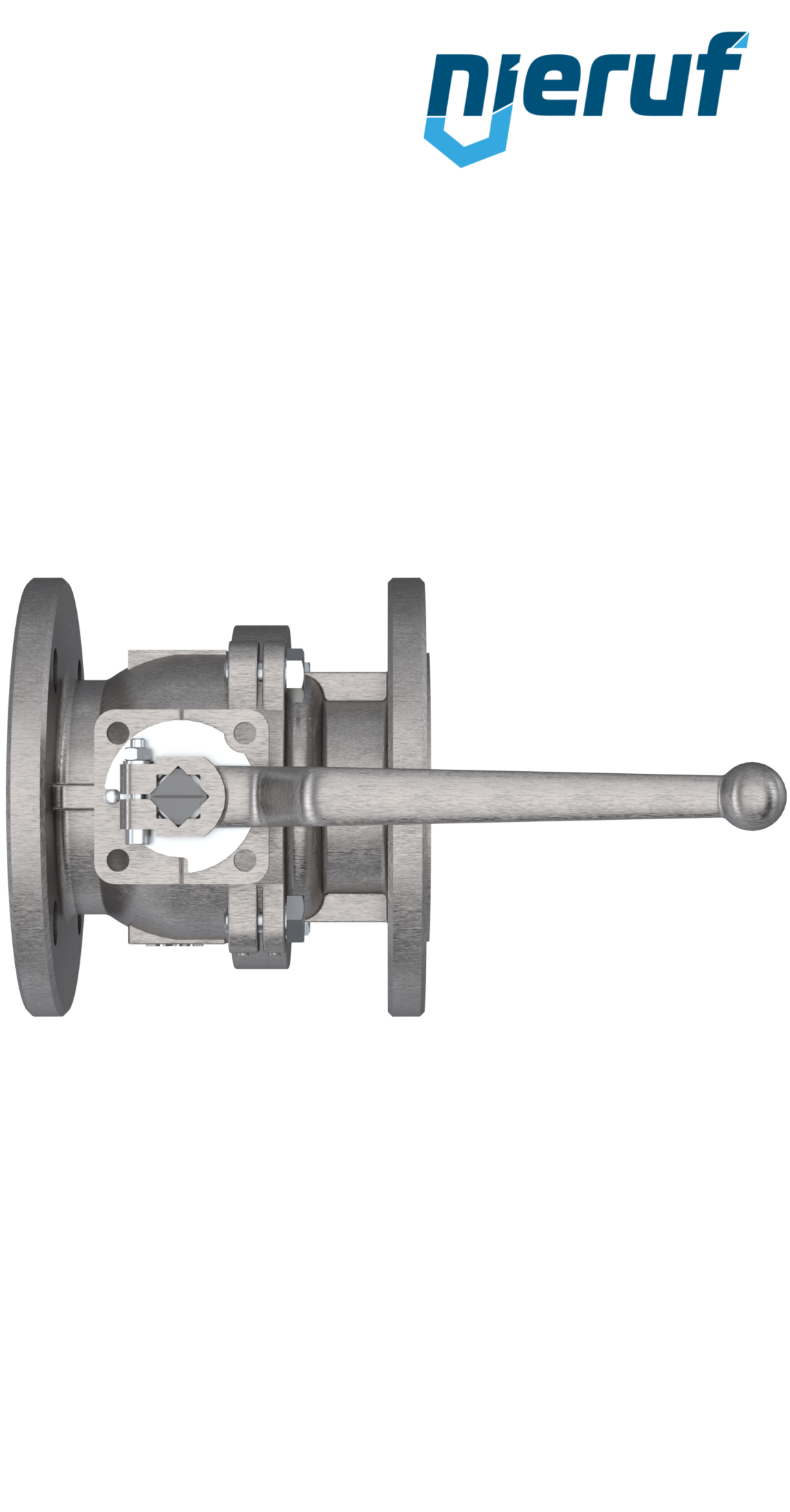

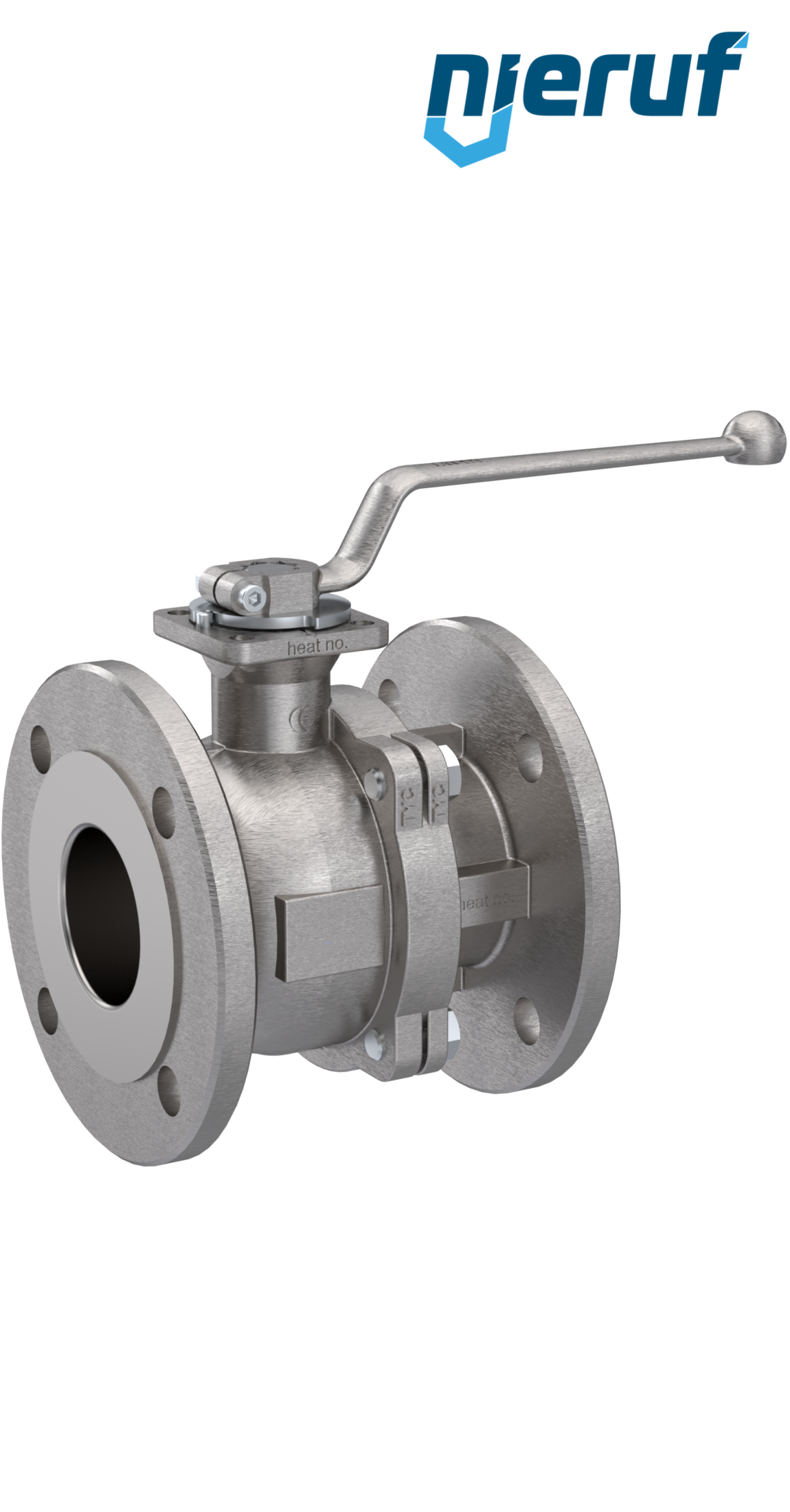

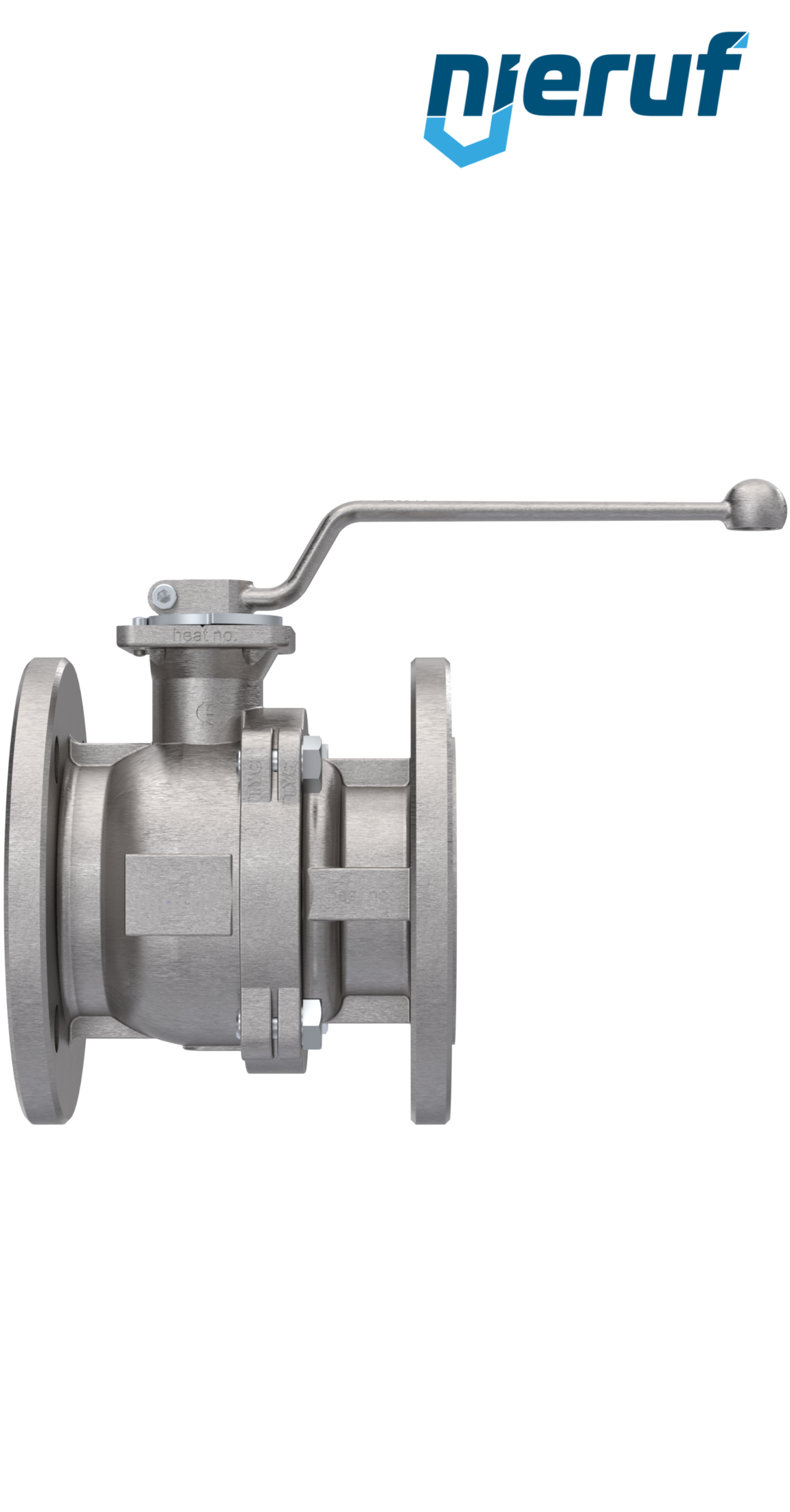

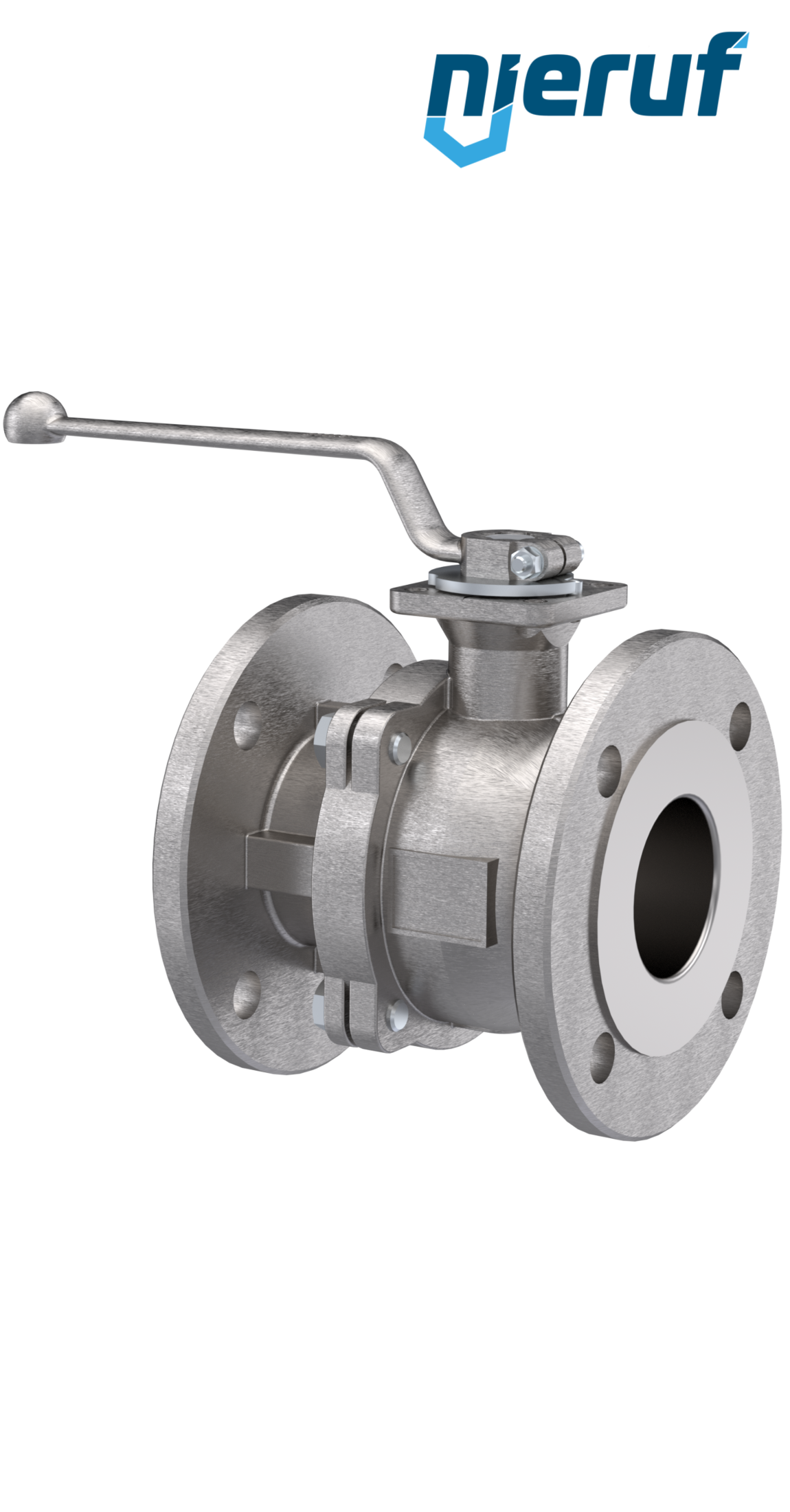

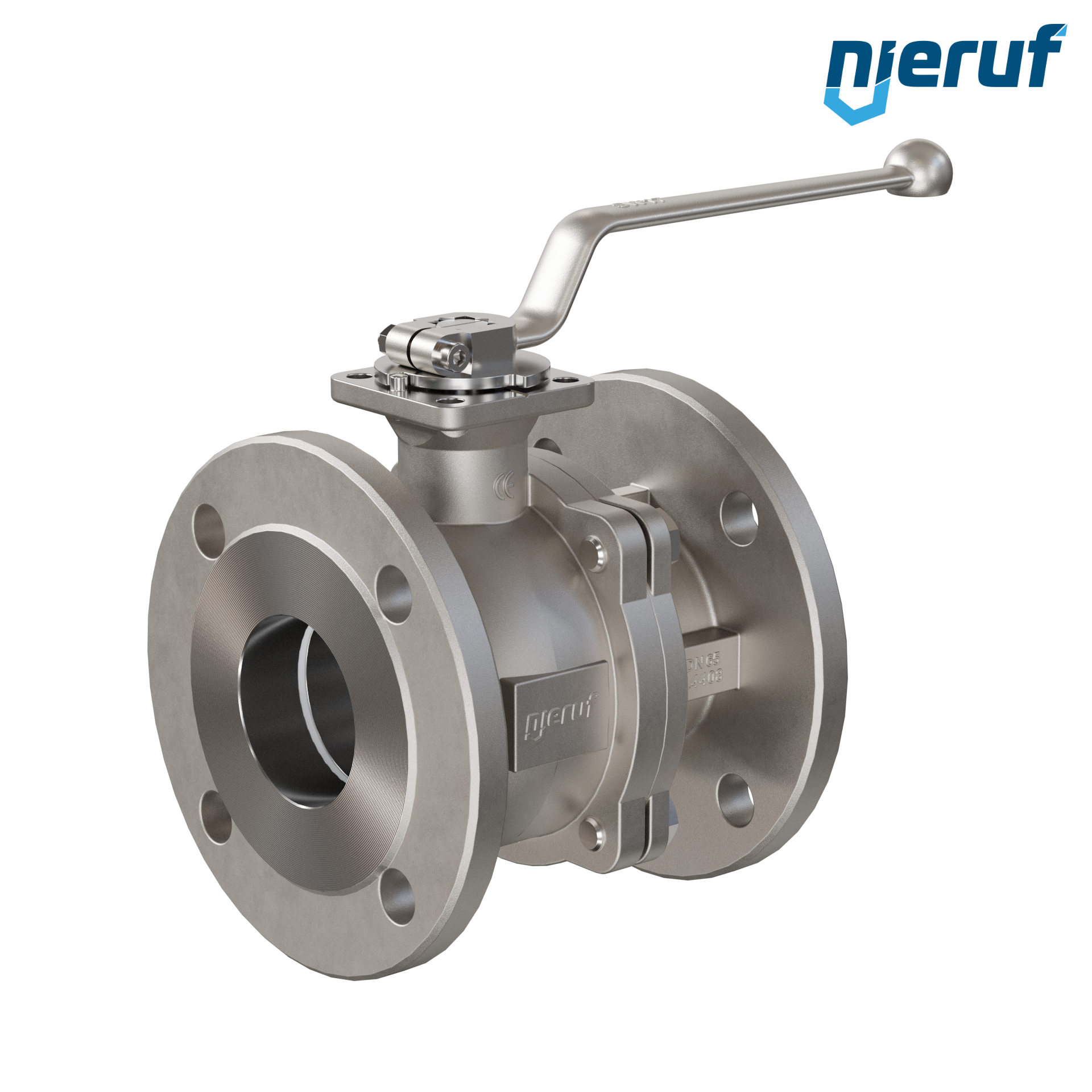

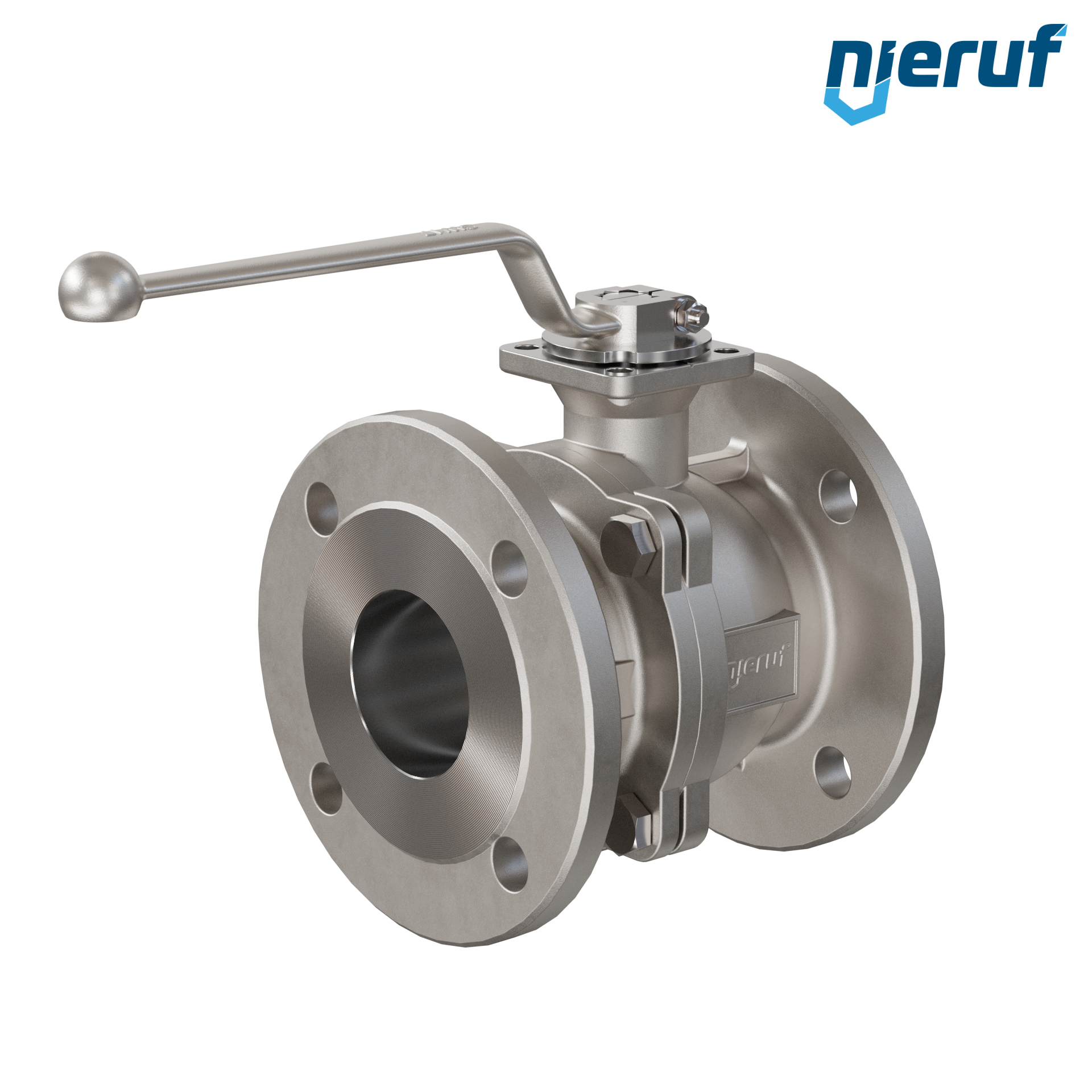

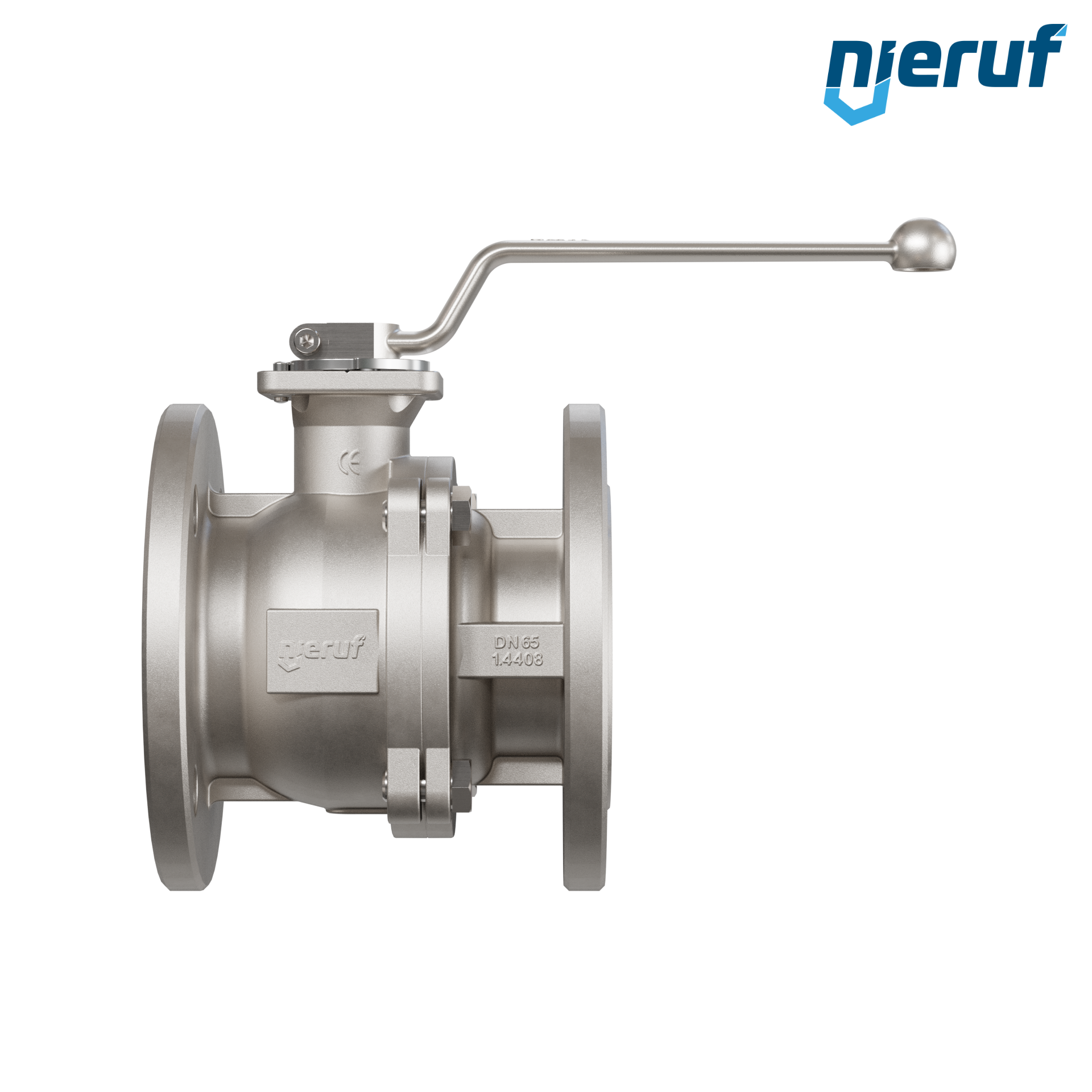

drinking-water-flange ball valve DN65 FK05 stainless steel 1.4408
Delivery time: 1 - 2 weeks
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
€10.00 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
drinking-water-flange ball valve DN65 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE for drinking water
| product: | drinking-water-flange ball valve |
|---|---|
| type: | FK05 |
| manufacturer: | NieRuf |
| diameter: | DN65 |
| connection: | flange dimensions acc. to EN 1092-1 PN16 |
| Seal steam: | PTFE/EPDM |
| body seal: | PTFE |
| ball seal: | PTFE |
| media: | liquid media, drinking water, DVGW-drinking water |
| temperature: | -20°C up to +180°C - depending on media and dimension |
| max. pressure: | PN16 |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4408 |
| length: | DIN EN 558 R 27 |
| actuator: | lever handle made of stainless steel |
| installation position: | any position |
| authorized for: | TA Luft, DVGW-drinking water |
| product description: | This high quality ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal with DVGW drinking water approval and is suitable for drinking water. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
drinking-water-flange ball valve DN65 FK05 stainless steel 1.4408
Article no.
: FK05040009
product:
drinking-water-flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN65
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
PTFE/EPDM
body seal:
PTFE
ball seal:
PTFE
media:
liquid media, drinking water, DVGW-drinking water
temperature:
-20°C up to +180°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
TA Luft, DVGW-drinking water
product description:
This high quality ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal with DVGW drinking water approval and is suitable for drinking water. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
