- Delivery time
- 1 - 2 weeks
Equipment
stem extension hub length 100 mm square 22mm AD02 stainless steel
€52.24 VAT included.
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Questions about the article?

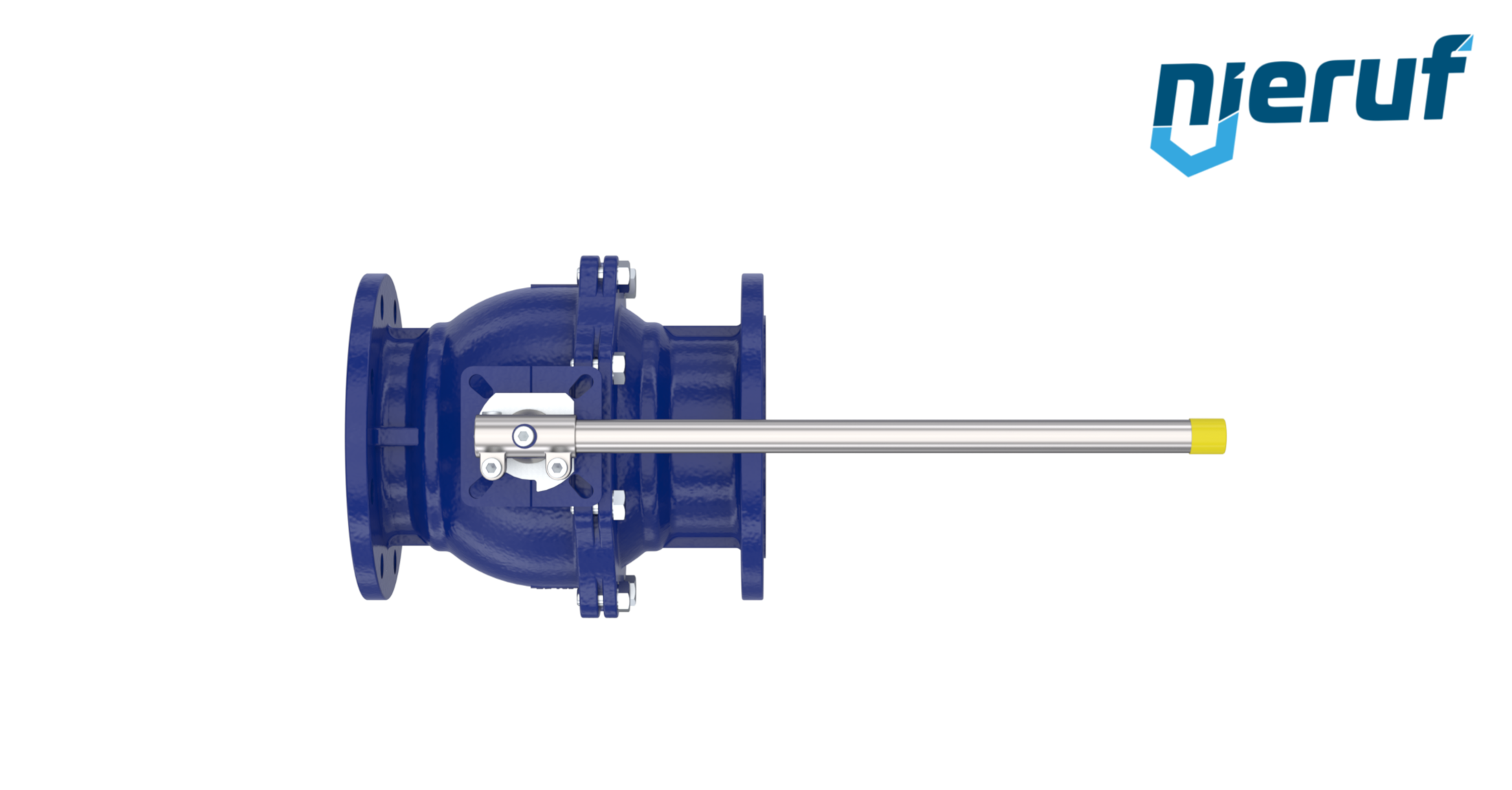

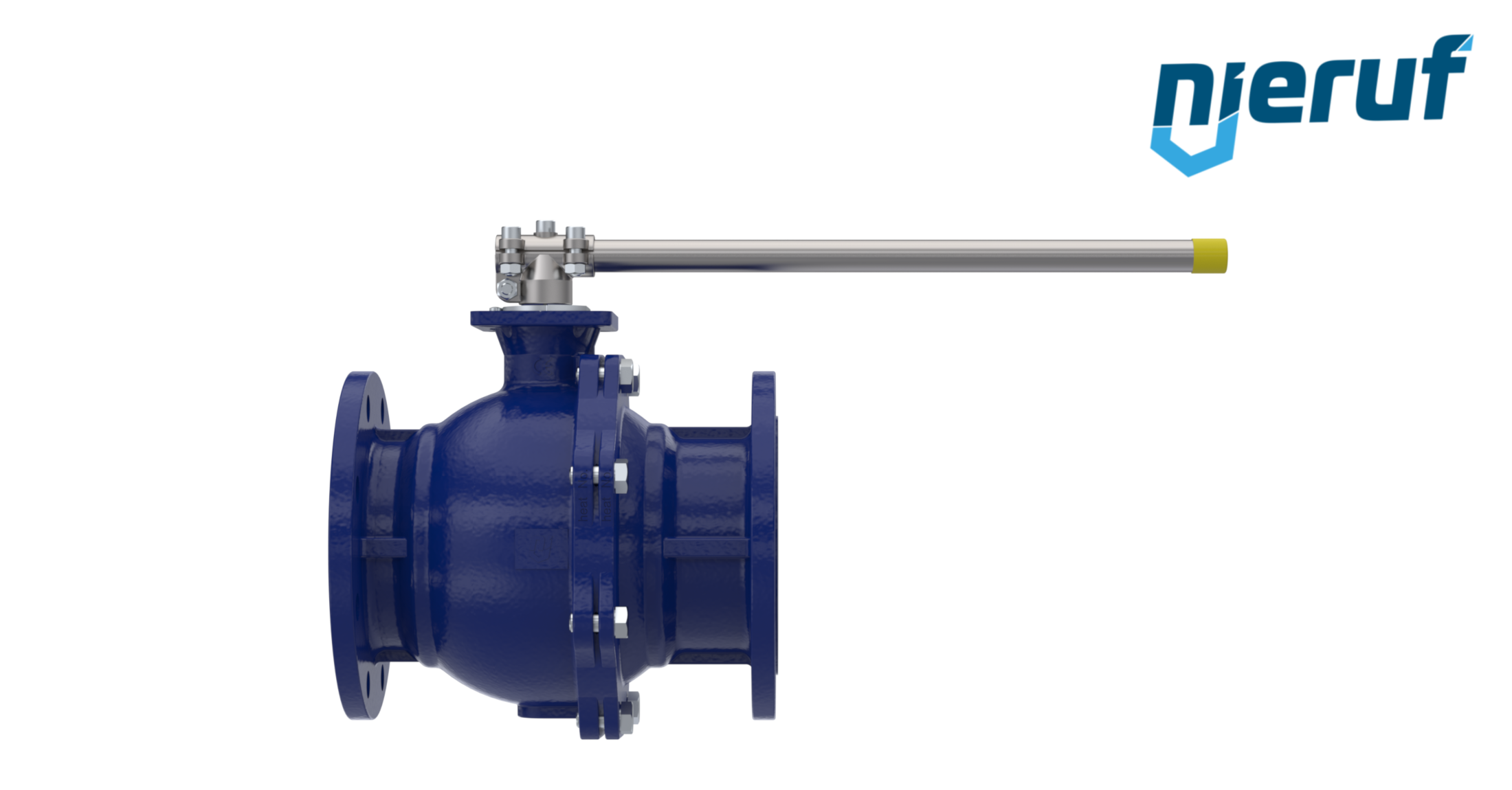

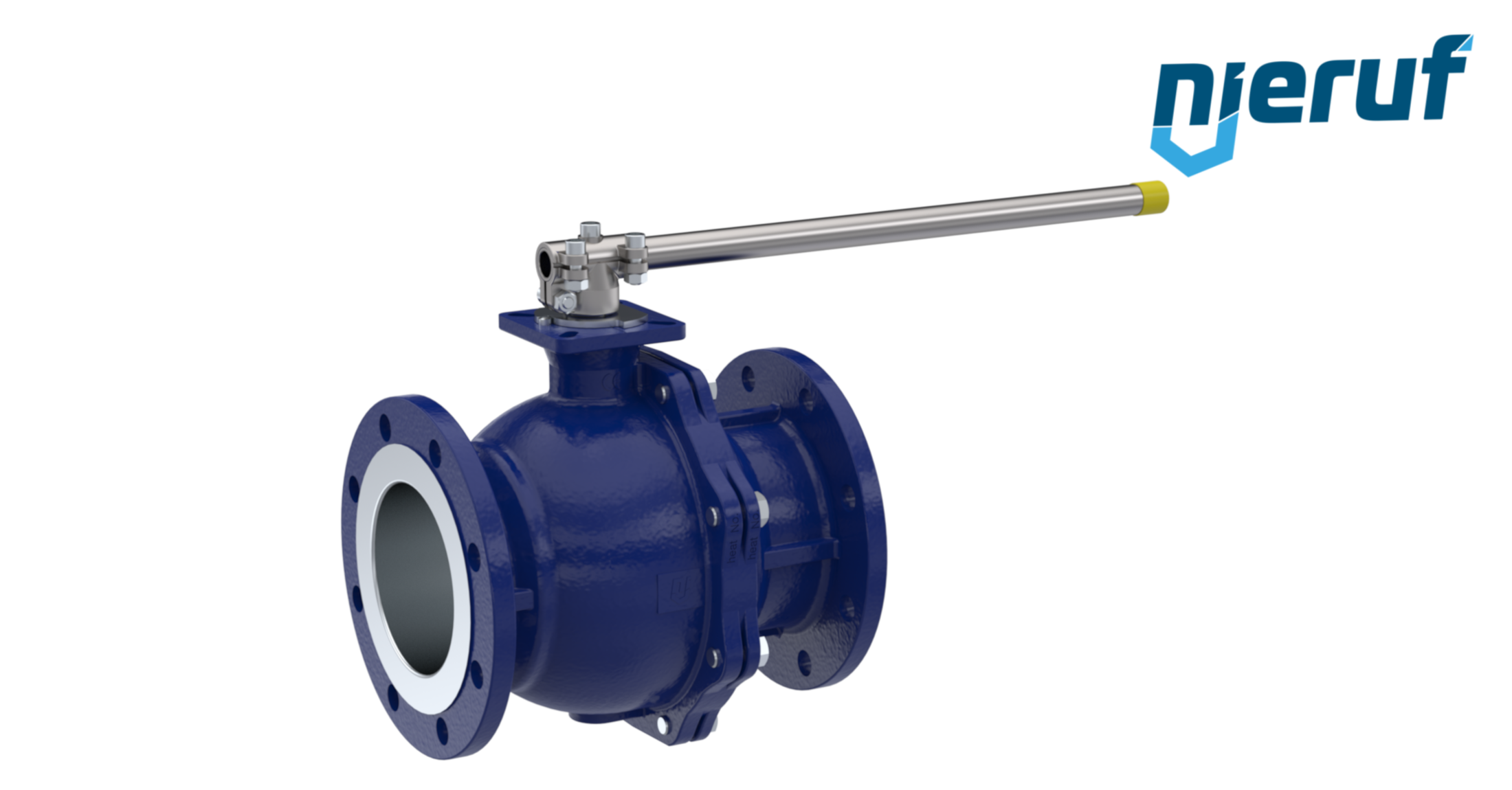

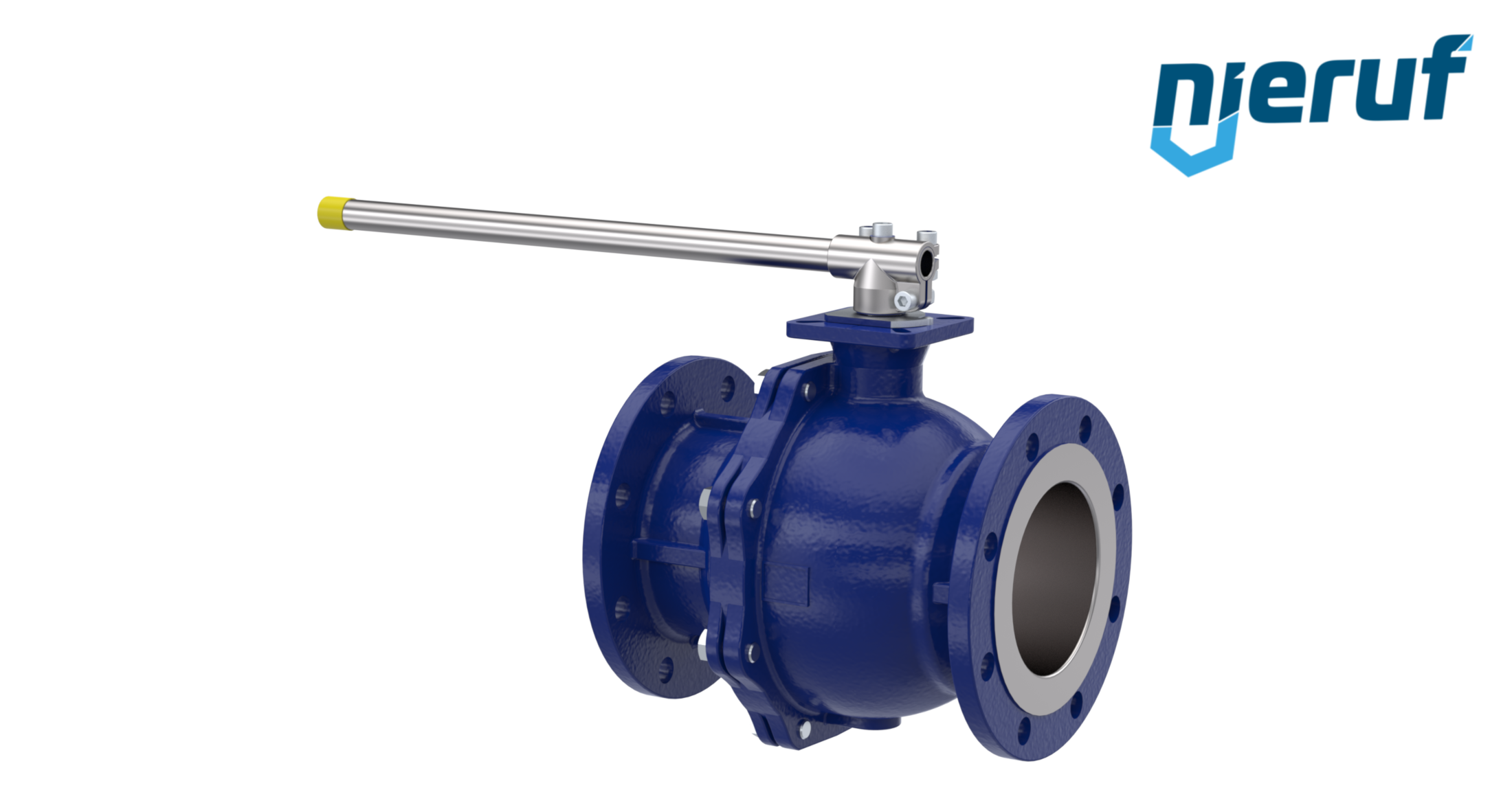

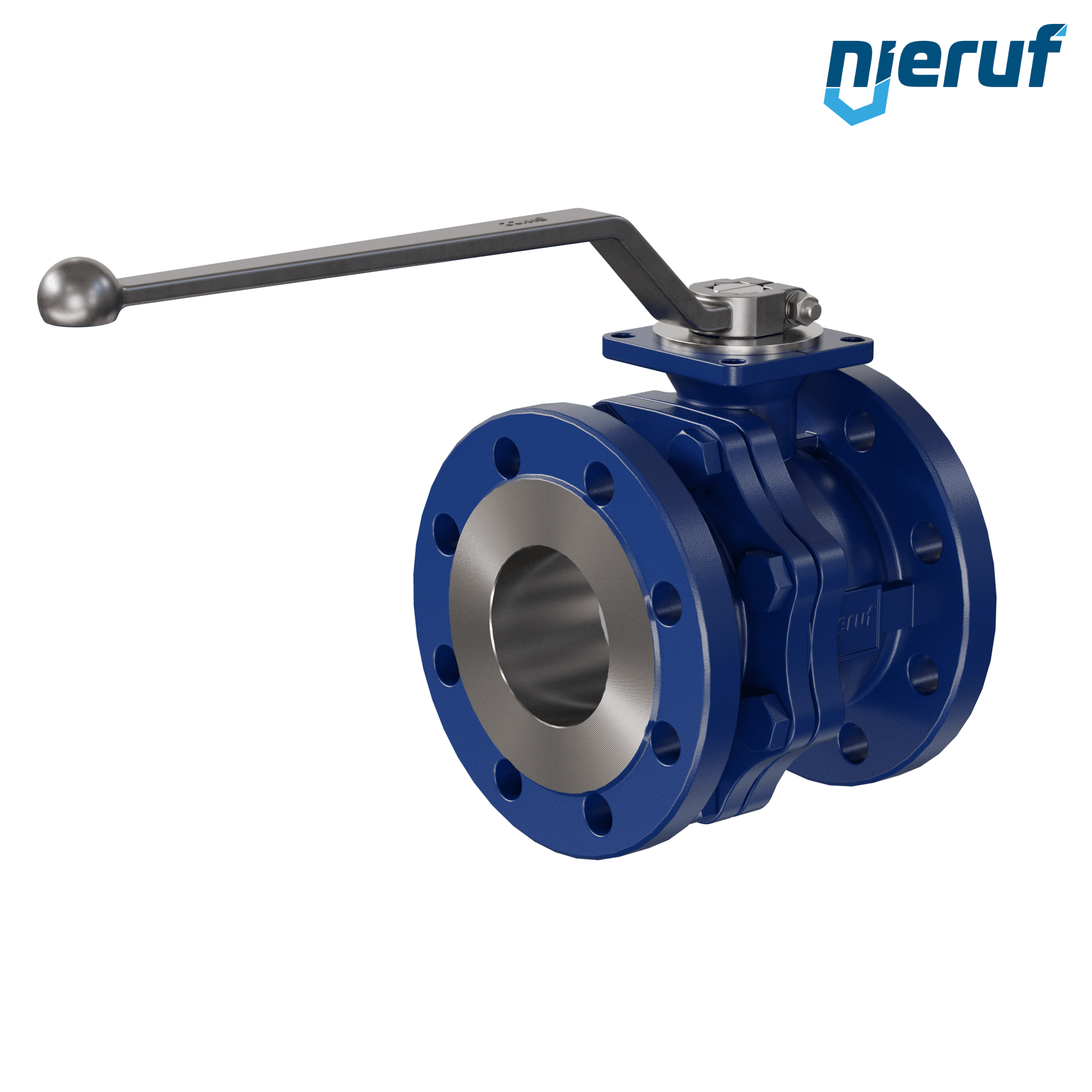

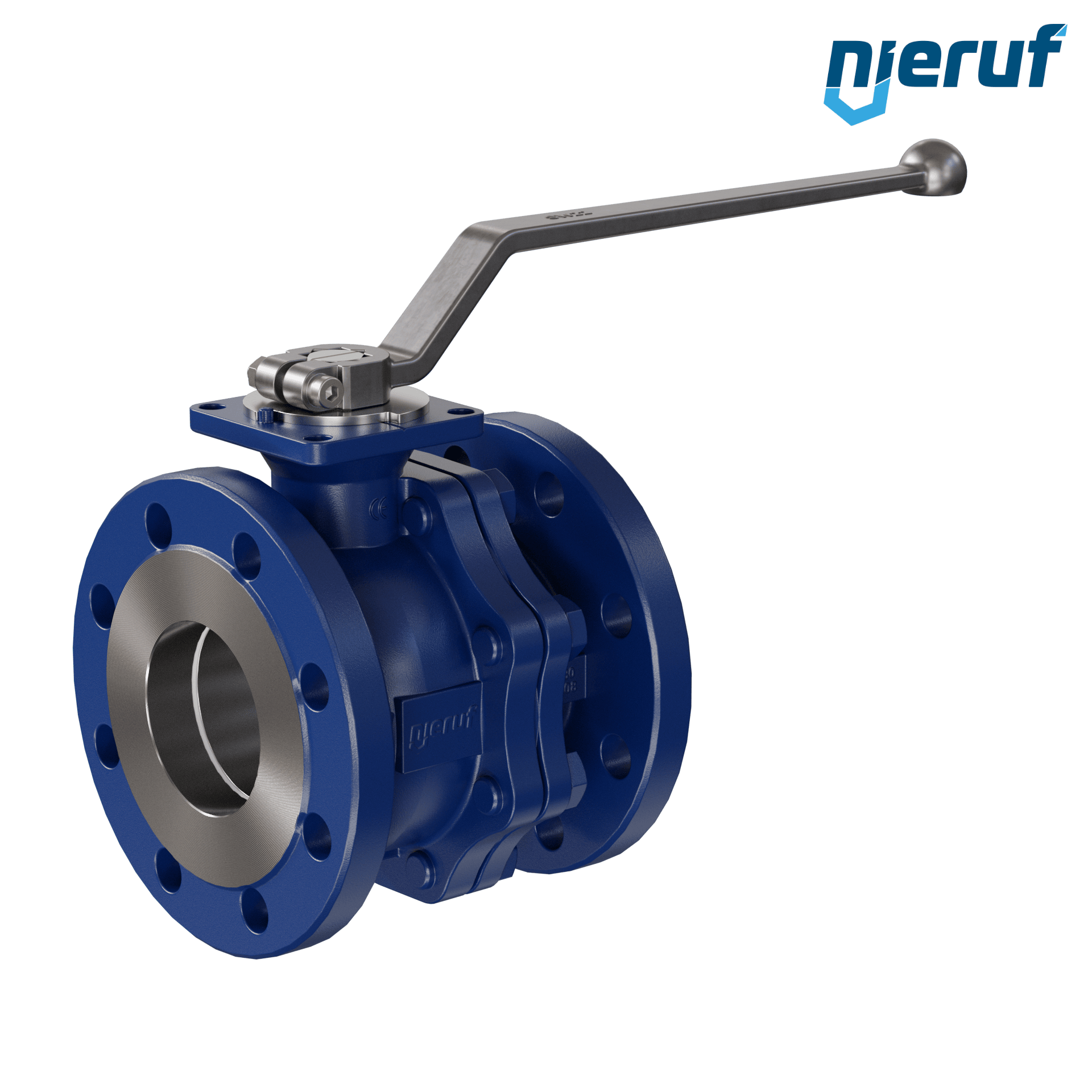

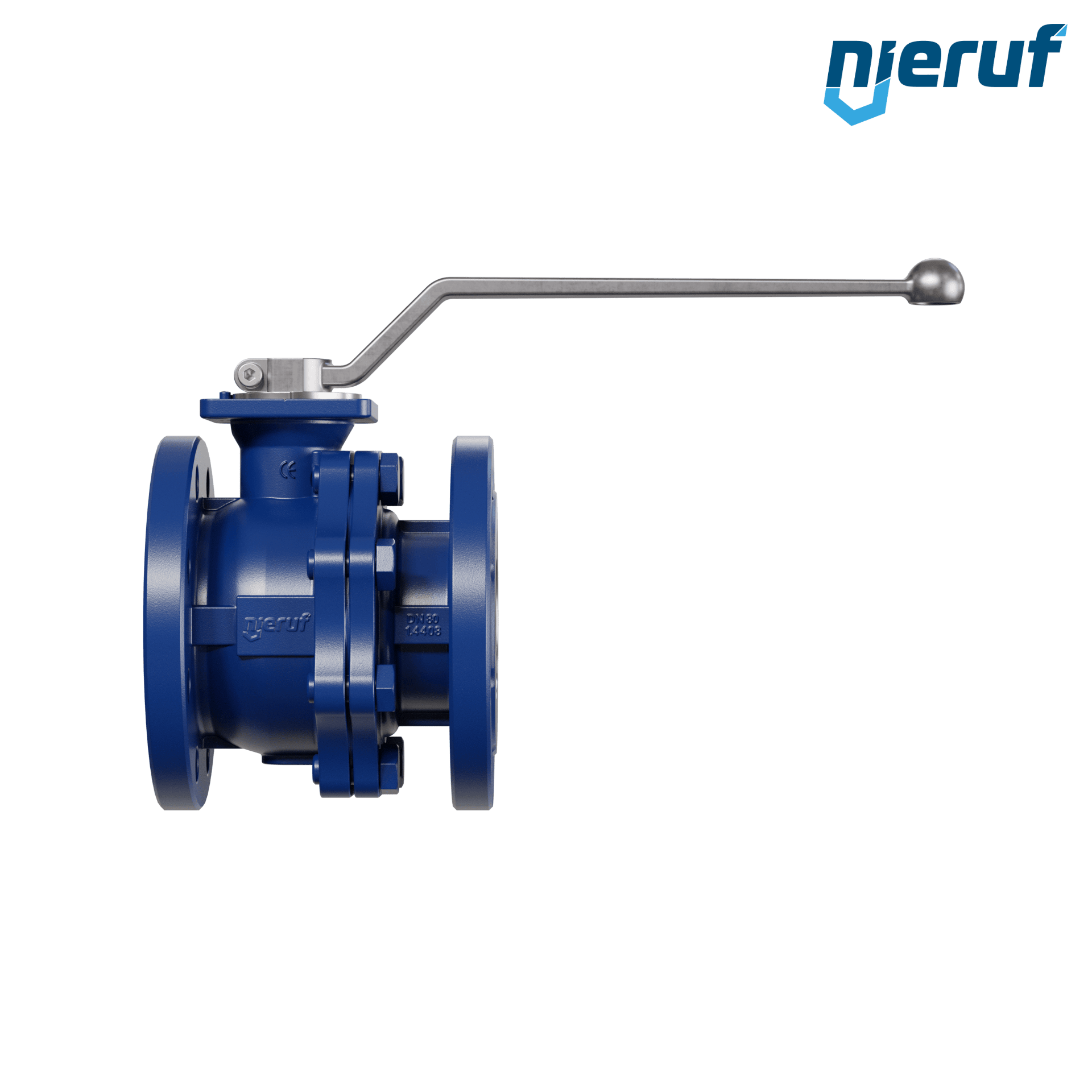

Fire safe-flange ball valve DN80 PN16 FK12 body carbon steel 1.0619 ball stainless steel 1.4408 seal PTFE / GF for liquid and gaseous media
| product | Fire safe-flange ball valve |
|---|---|
| type | FK12 |
| manufacturer | NieRuf |
| diameter | DN80 |
| connection | flange dimensions acc. to EN 1092-1 |
| Seal steam | FKM / PTFE / Graphite |
| ball seal | TFM |
| media | liquid and gaseous media |
| temperature | -20°C up to +180°C - depending on working pressure and media |
| max. pressure | PN16 |
| design | full port design |
| body material | carbon steel 1.0619 |
| ball material | stainless steel 1.4408 |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of steel |
| installation position | any position |
| authorized for | Fire Safe |
| product description | This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Fire safe-flange ball valve DN80 FK12 carbon steel 1.0619
Article no.
: FK12020010
product:
Fire safe-flange ball valve
type:
FK12
manufacturer:
NieRuf
diameter:
DN80
connection:
flange dimensions acc. to EN 1092-1
Seal steam:
FKM / PTFE / Graphite
ball seal:
TFM
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16
design:
full port design
body material:
carbon steel 1.0619
ball material:
stainless steel 1.4408
length:
DIN EN 558 R 27
actuator:
lever handle made of steel
installation position:
any position
authorized for:
Fire Safe
product description:
This high quality ball valve is made of carbon steel with blow out proof stem design. Two-piece body valve with mounting flange acc. to DIN ISO 5211. Stem extension is made of steel. The stem seal is 3 - side covered.
