FK05020010

Fire safe-flange ball valve DN80 FK05 stainless steel 1.4408

€1,162.70*

€1,383.61 VAT included.

Delivery time: 1 - 2 weeks

Delivery information

Equipment

FL01000110

Welding neck flange DN80 PN10/16 EN1092-1 11 B1 1.4541

€58.00*

€69.02 VAT included.


VS01000110

joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 stainless steel

€16.80*

€19.99 VAT included.


FD01000110

flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400

€4.20*

€5.00 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: FK05020010

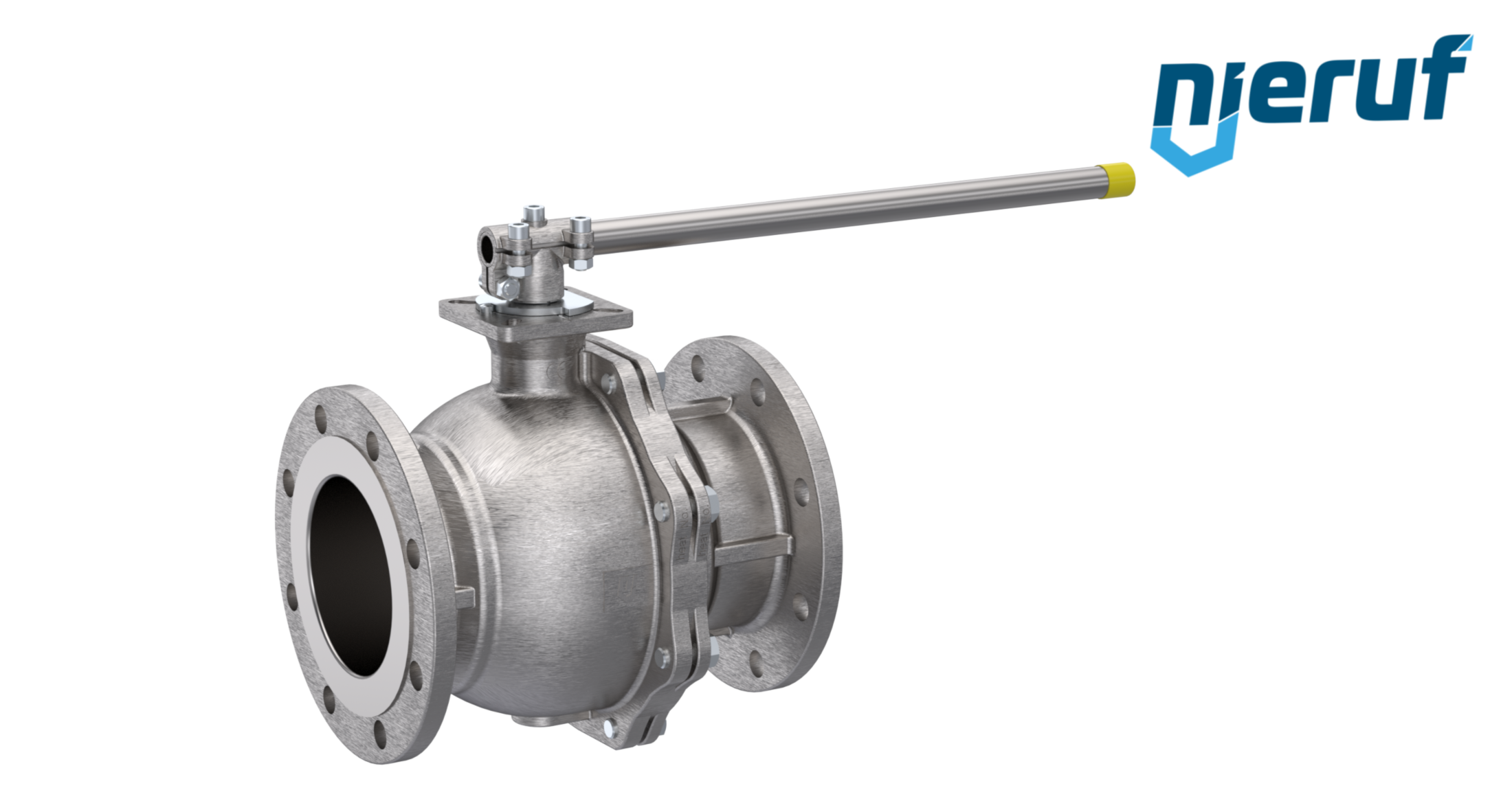

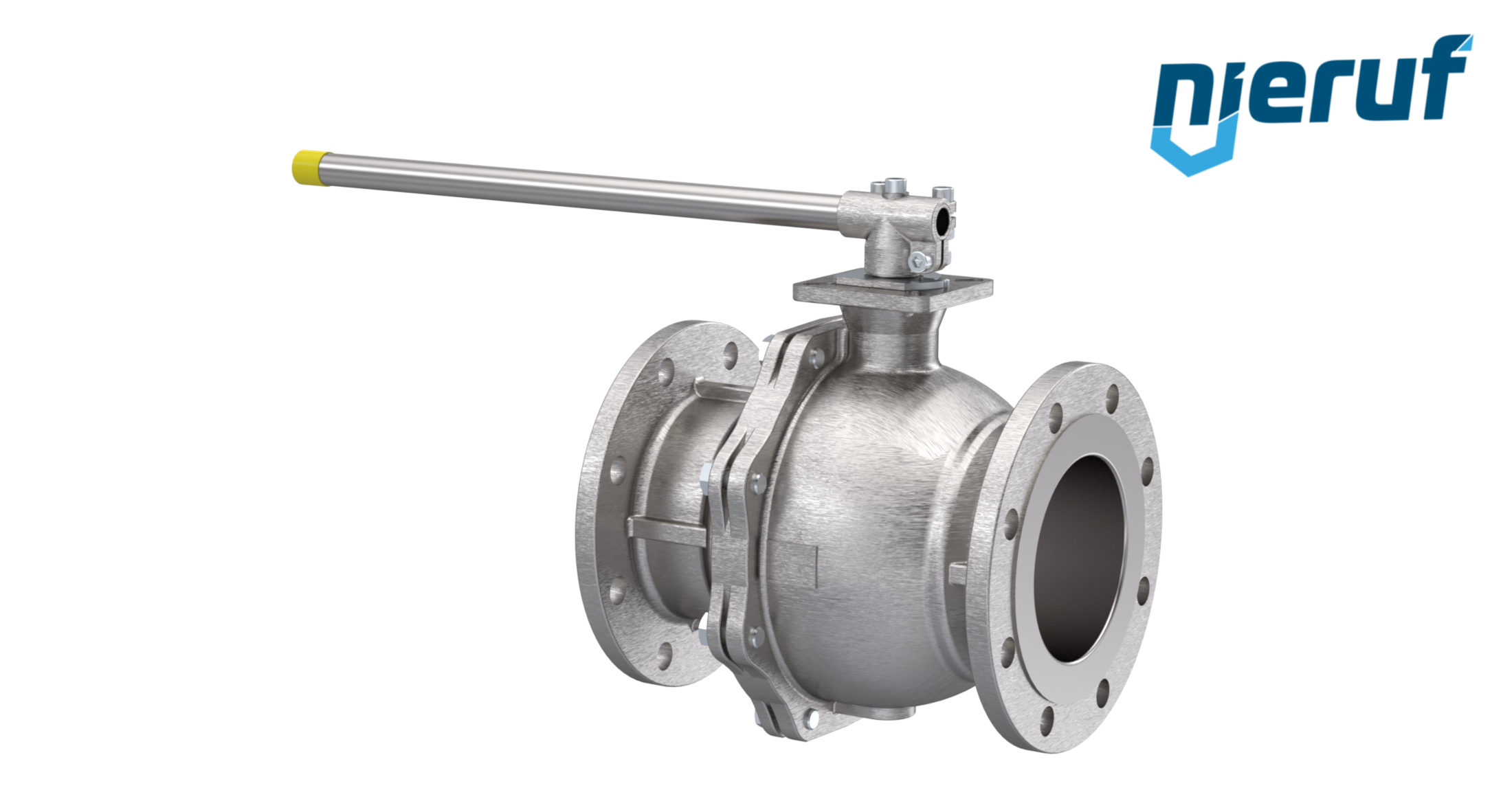

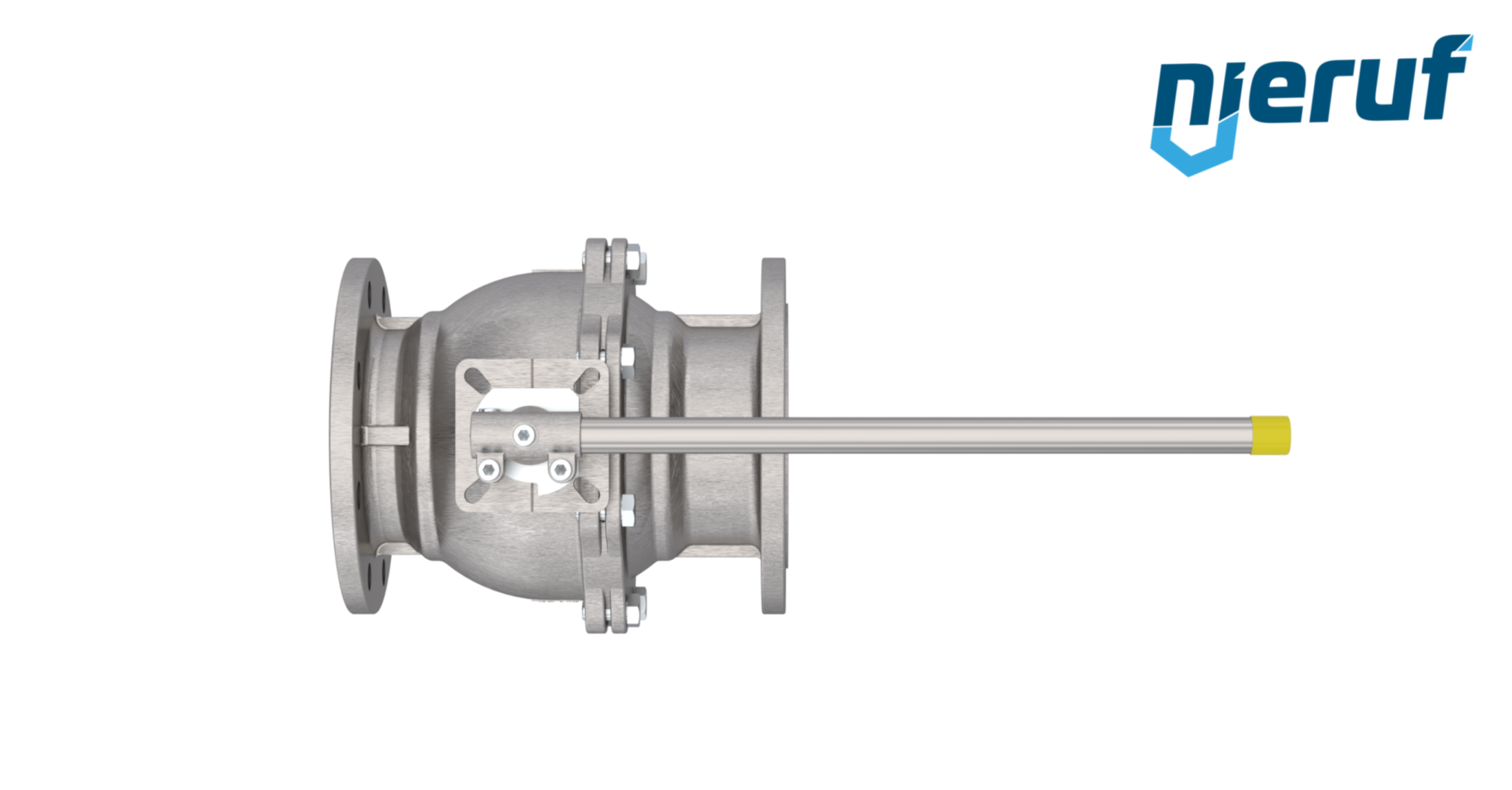

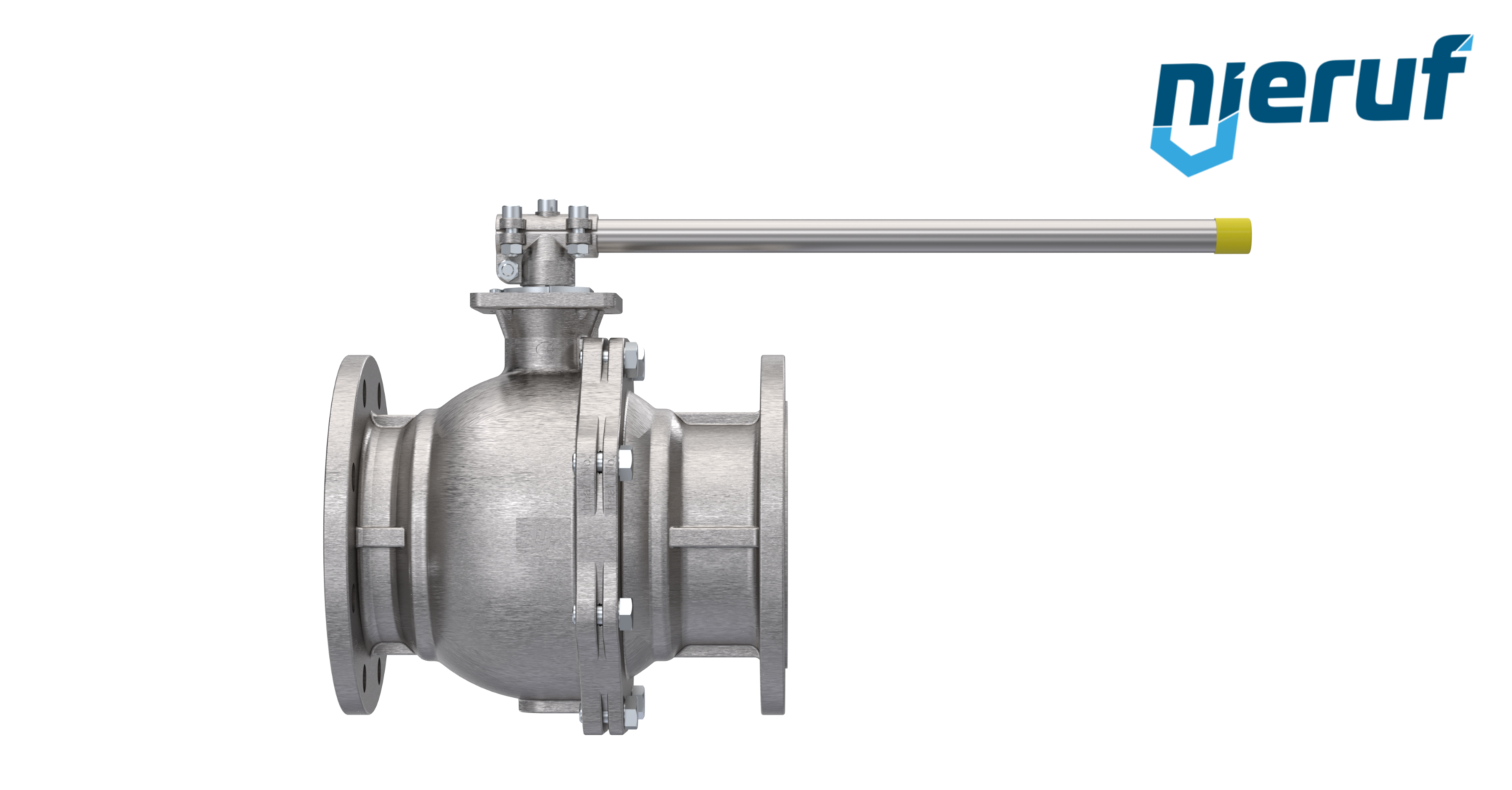

Fire safe-flange ball valve DN80 FK05 stainless steel 1.4408

Firse safe-flange ball valve DN80 PN16 FK05 body stainless steel 1.4408 ball stainless steel 1.4408 seal PTFE / GF for liquid and gaseous media

product: Fire safe-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN80
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: FKM/PTFE/Graphite
body seal: FKM/graphite
ball seal: TFM
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft, Fire Safe
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE/graphite seal and is suitable for liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. With Fire-Safe approval.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Fire safe-flange ball valve DN80 FK05 stainless steel 1.4408

Article no. : FK05020010
product: Fire safe-flange ball valve
type: FK05
manufacturer: NieRuf
diameter: DN80
connection: flange dimensions acc. to EN 1092-1 PN16
Seal steam: FKM/PTFE/Graphite
body seal: FKM/graphite
ball seal: TFM
media: liquid and gaseous media
temperature: -20°C up to +180°C - depending on media and dimension
max. pressure: PN16
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4408
length: DIN EN 558 R 27
actuator: lever handle made of stainless steel
installation position: any position
authorized for: TA Luft, Fire Safe
product description: This high quality ball valve is made of stainless steel and has a blow-out proof stem with FKM/PTFE/graphite seal and is suitable for liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. With Fire-Safe approval.
