PK05000003
ball valve with actuator DN15 PK05 pneumatic actuator double acting
- Delivery time
- 3 - 5 working days
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Positioner PS01 for pneumatic actuators double acting air volume less than 5 l
€847.16 VAT included.
Questions about the article?

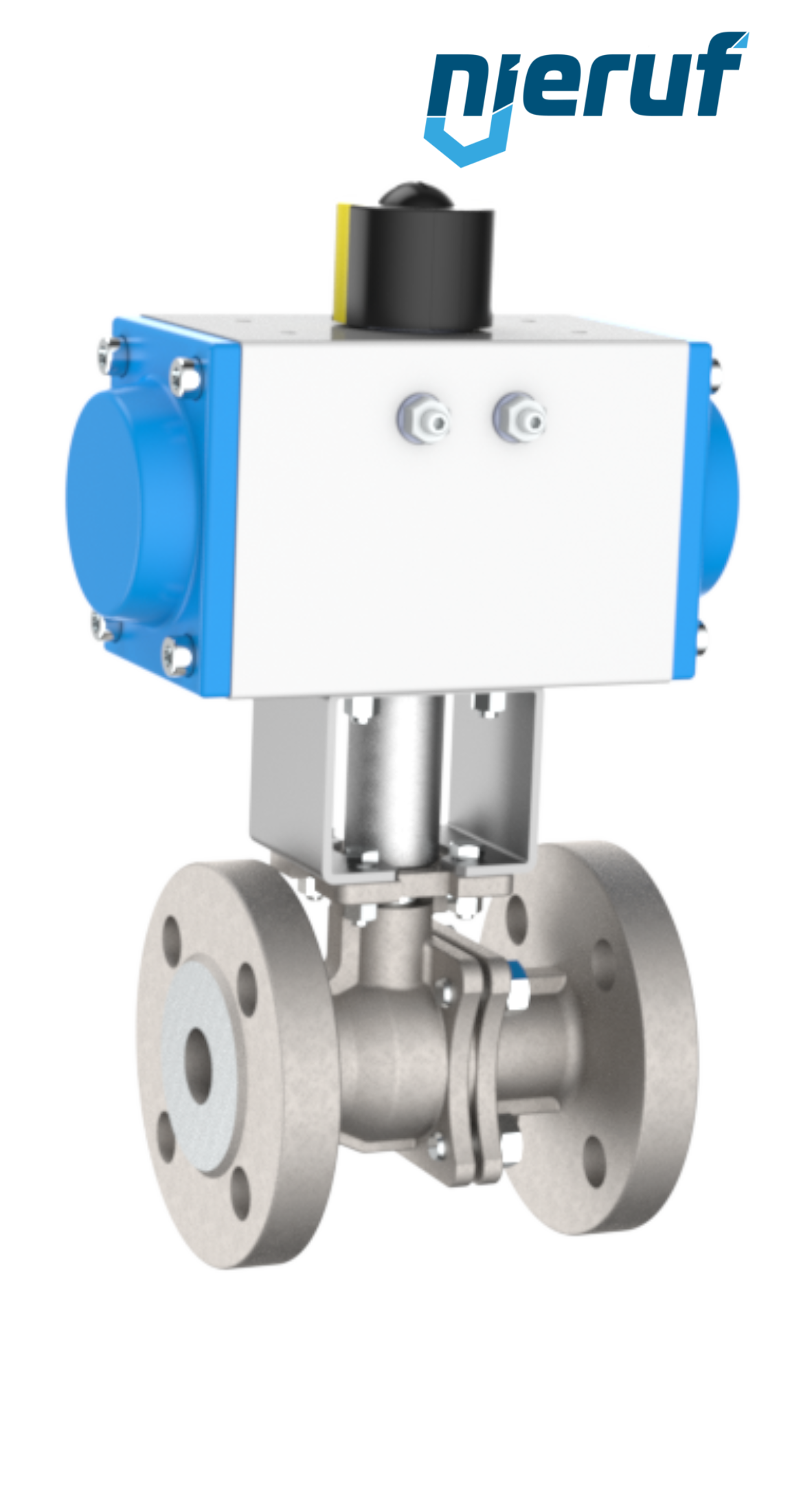

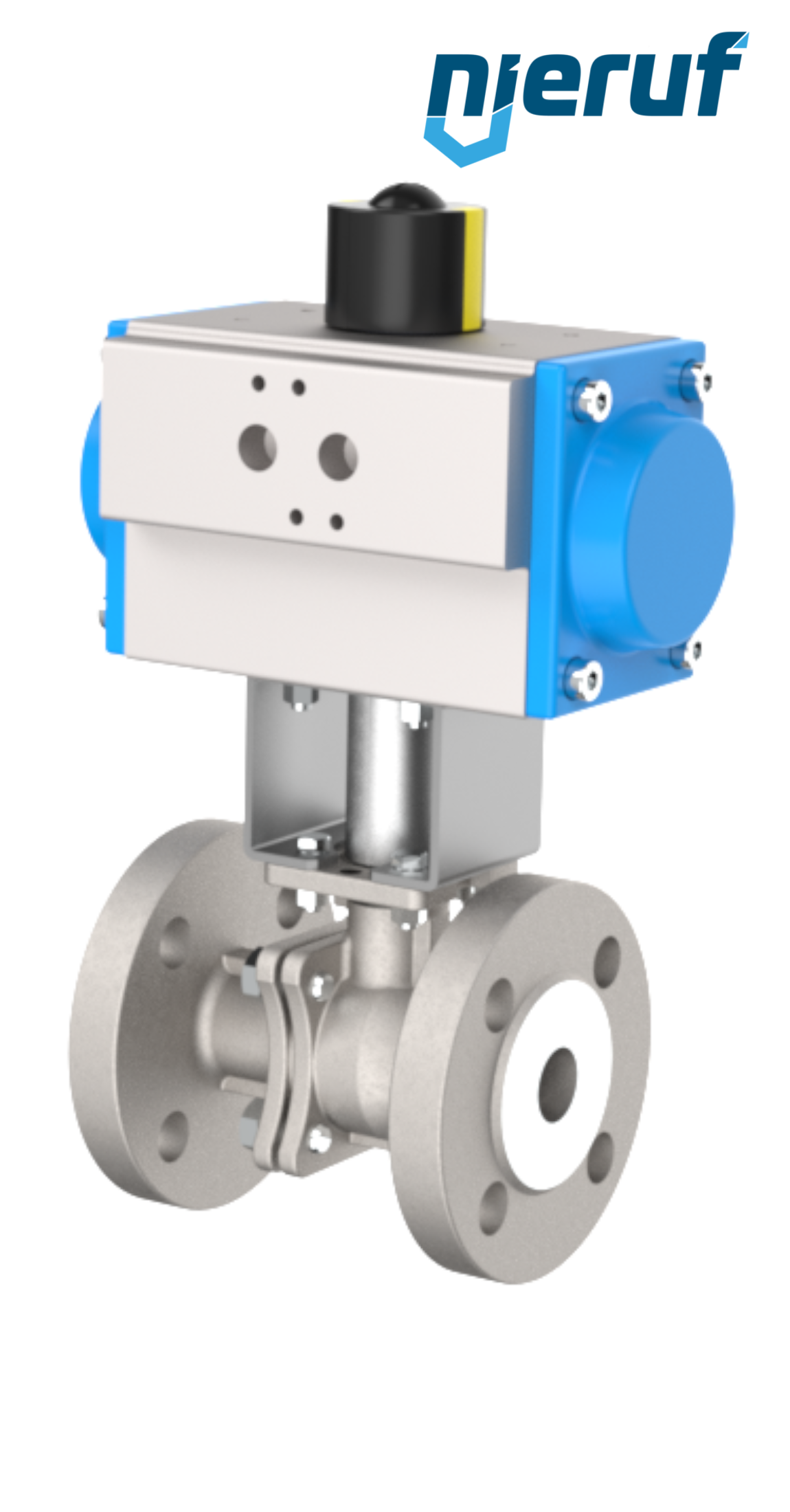

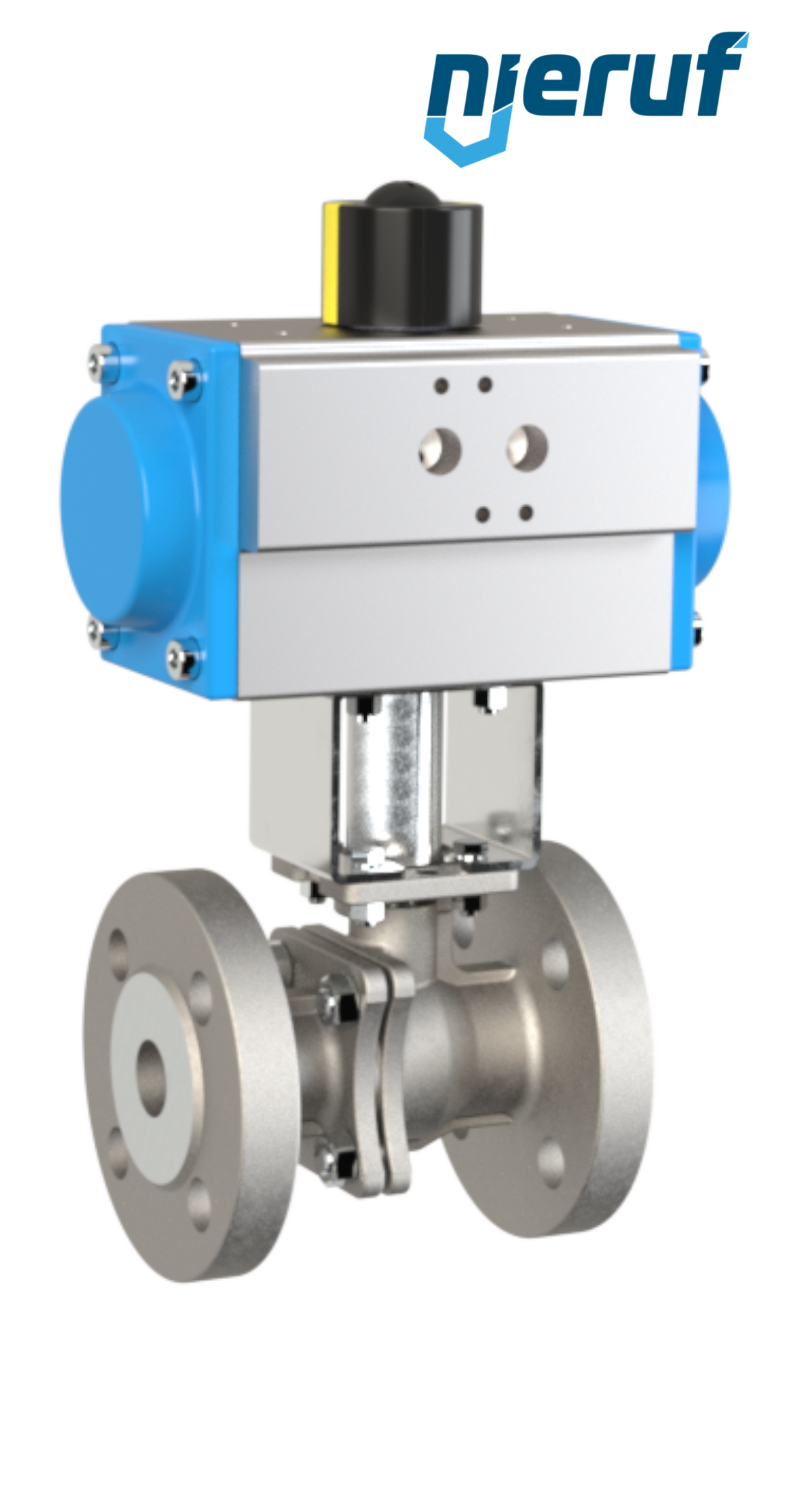

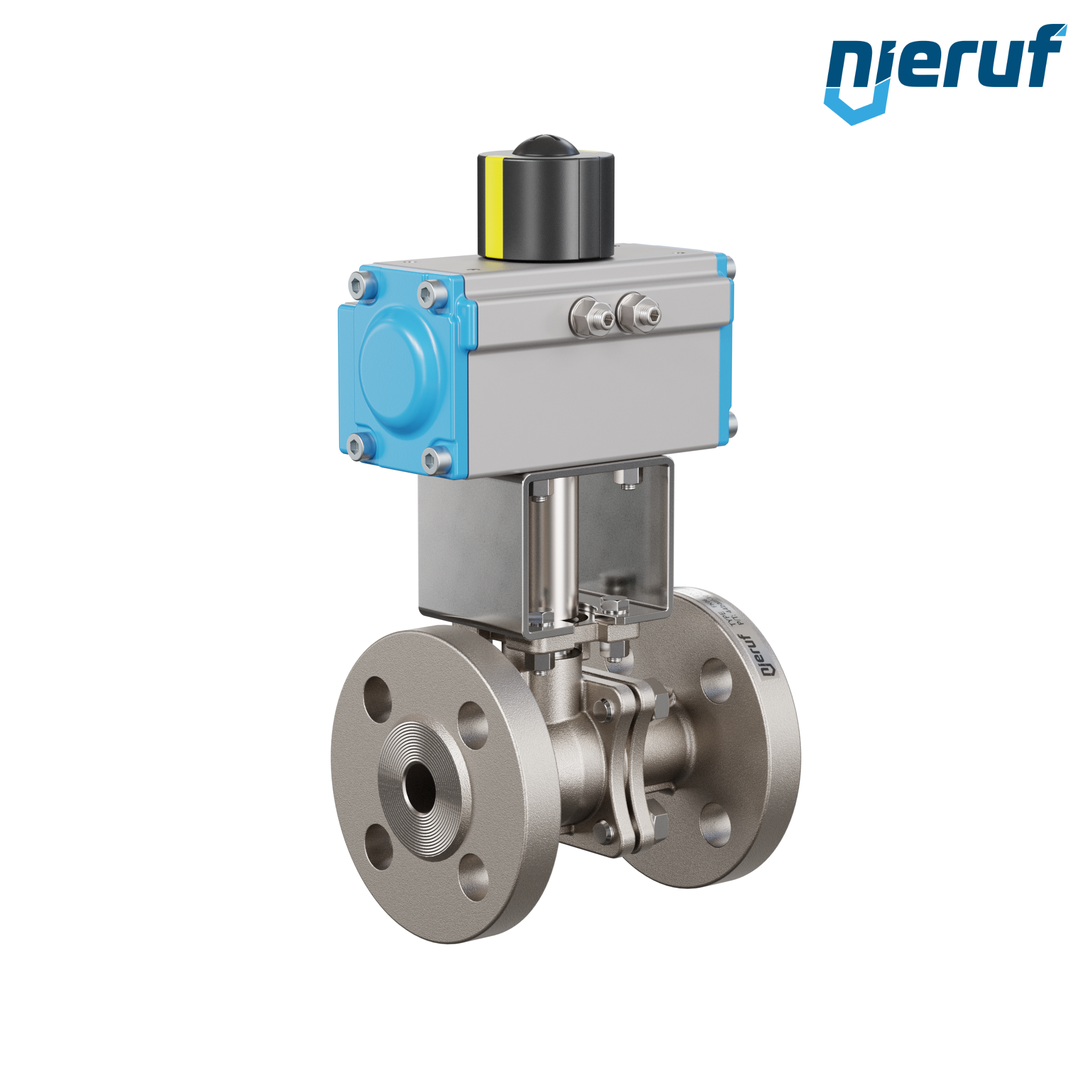

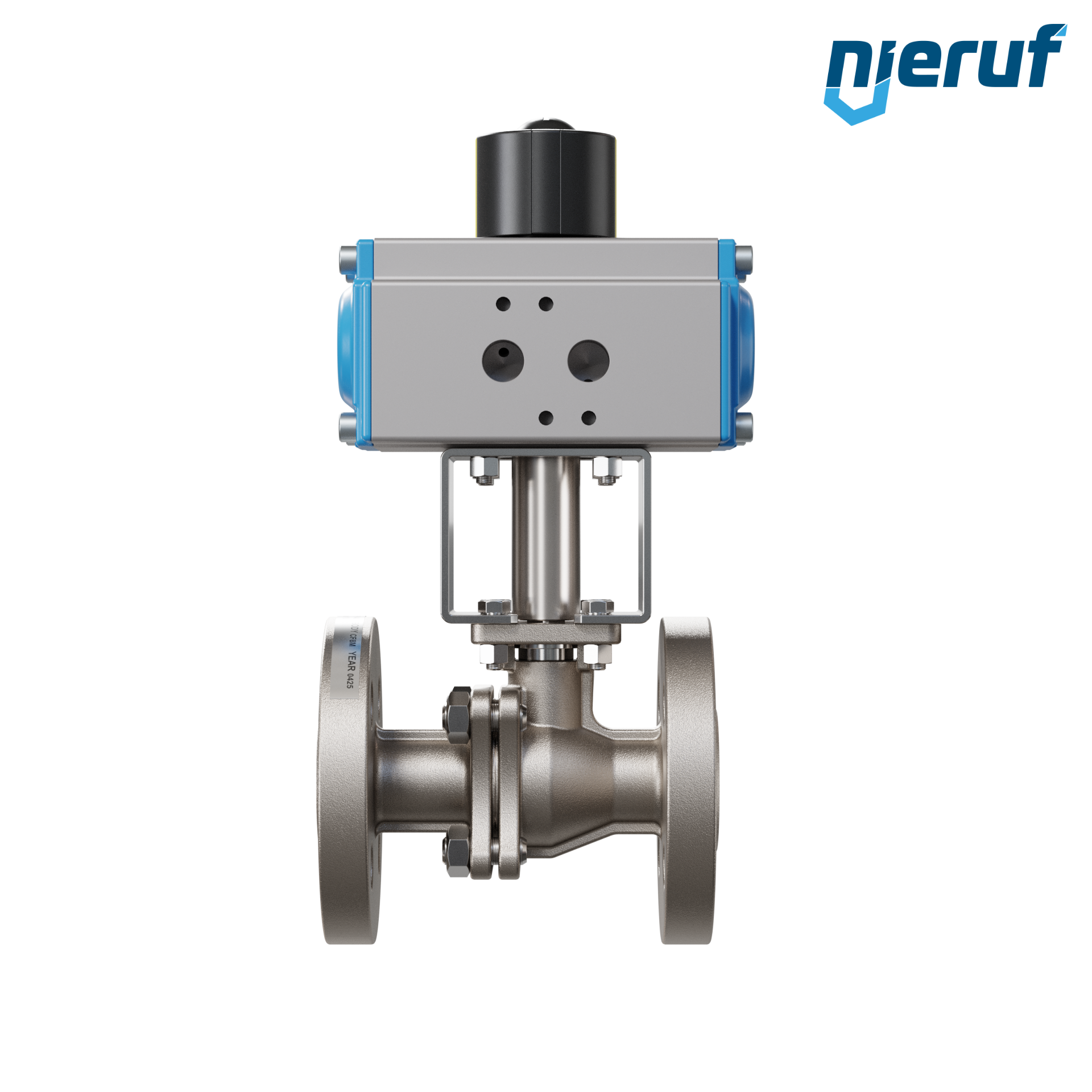

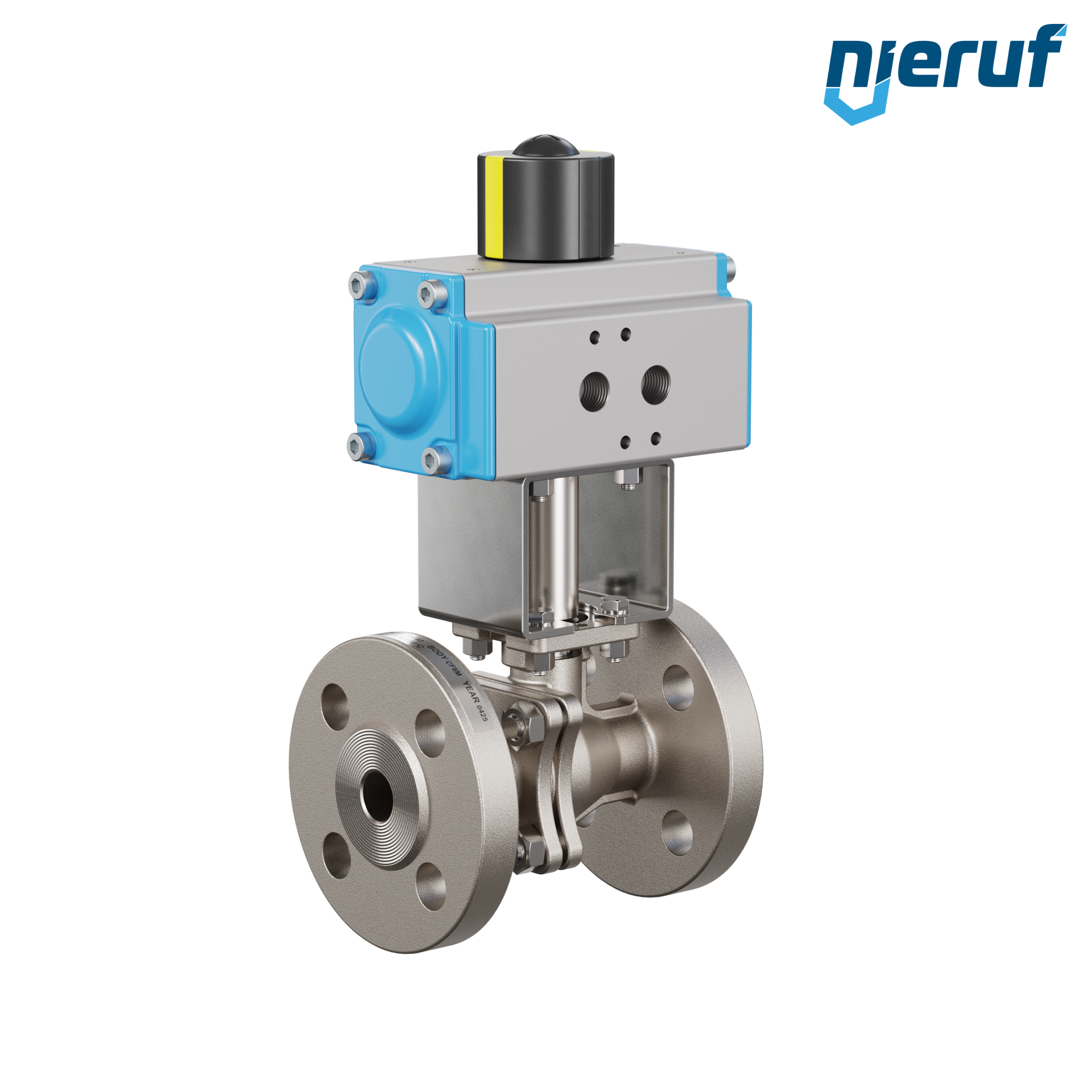

ball valve with actuator DN15 stainless steel 1.4408 PK05 pneumatic actuator GD040 made of aluminium (mode of function: GD = double acting)
| product | ball valve with actuator |
|---|---|
| type | PK05 |
| manufacturer | NieRuf |
| diameter | DN15 - 1/2" inch |
| connection | flange dimensions acc. DIN EN 1092-1 PN 40 |
| Seal steam | PTFE |
| media | liquid and gaseous media |
| temperature | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure | PN40 |
| design | flange ball valve with pneumatic actuator (double acting) |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4401 |
| ball seal | PTFE |
| length | DIN EN 558-1 L27 |
| actuator | pneumatic actuator GD040 made of aluminium (mode of function: GD = double acting) |
| actuator informations | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| product description | This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball-valve. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve with actuator DN15 PK05 pneumatic actuator double acting
Article no.
: PK05000003
product:
ball valve with actuator
type:
PK05
manufacturer:
NieRuf
diameter:
DN15 - 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 40
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN40
design:
flange ball valve with pneumatic actuator (double acting)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
ball seal:
PTFE
length:
DIN EN 558-1 L27
actuator:
pneumatic actuator GD040 made of aluminium (mode of function: GD = double acting)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description:
This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GD = double acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball-valve.
Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l
