PK05020003
ball valve with actuator DN15 PK05 pneumatic actuator single acting normally open
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

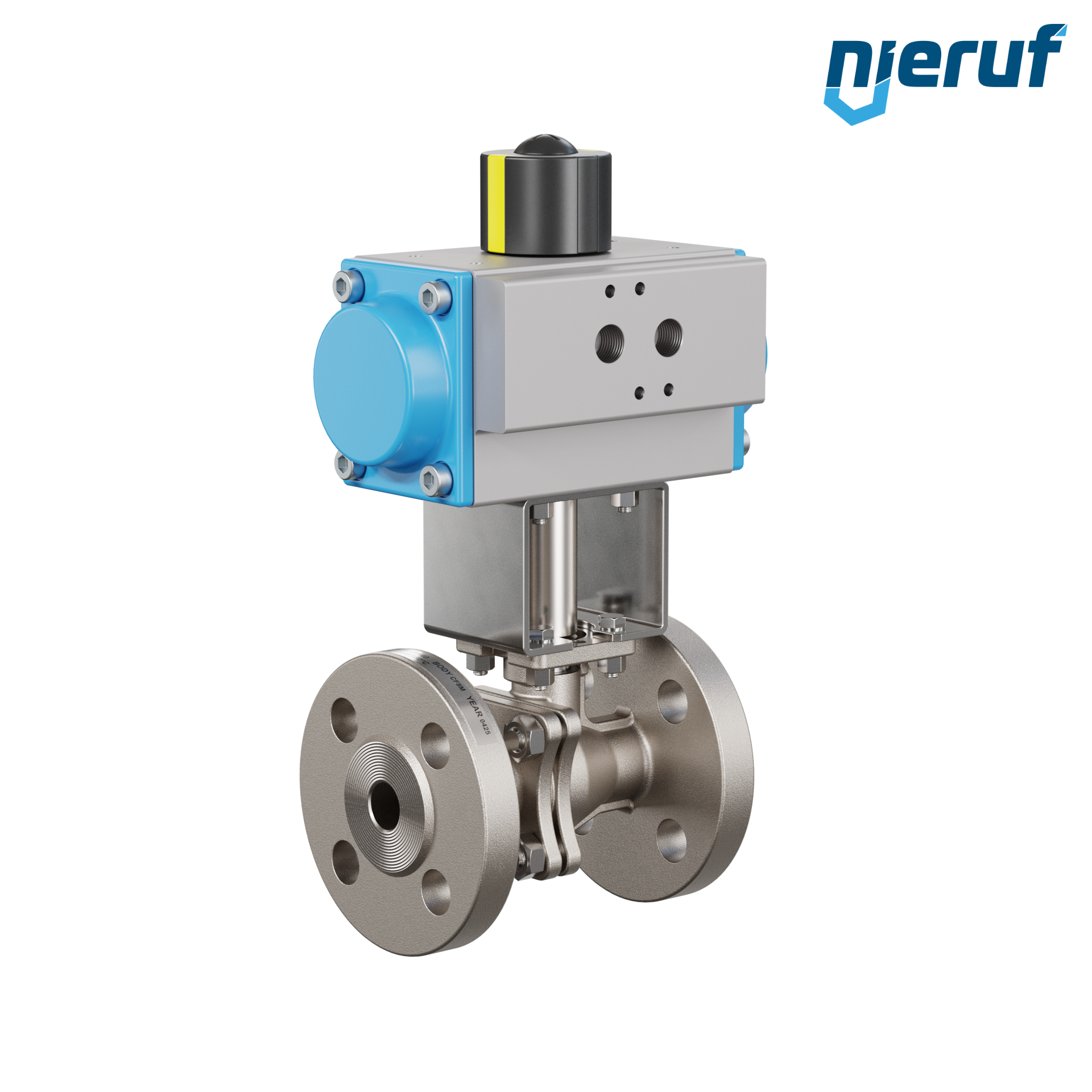

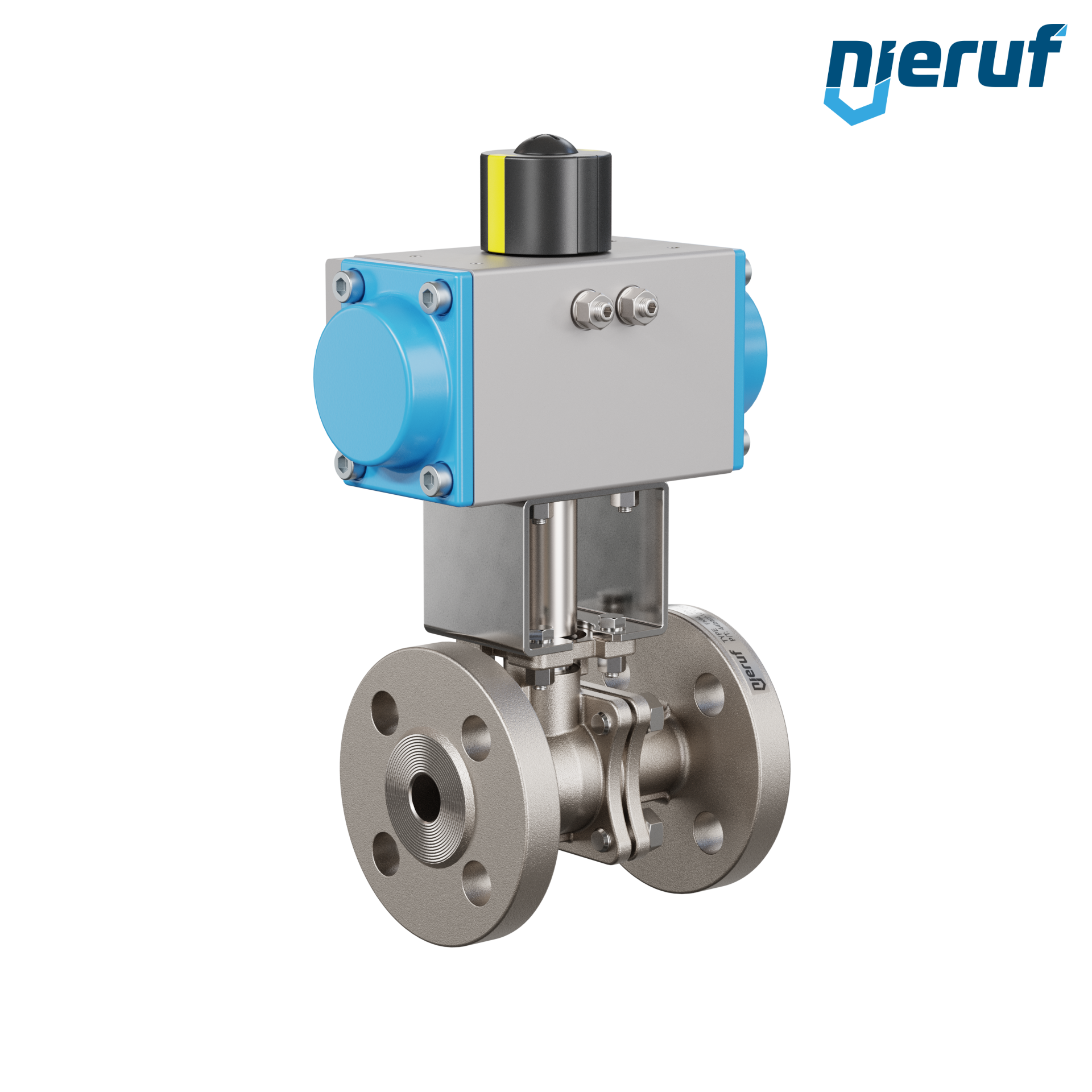

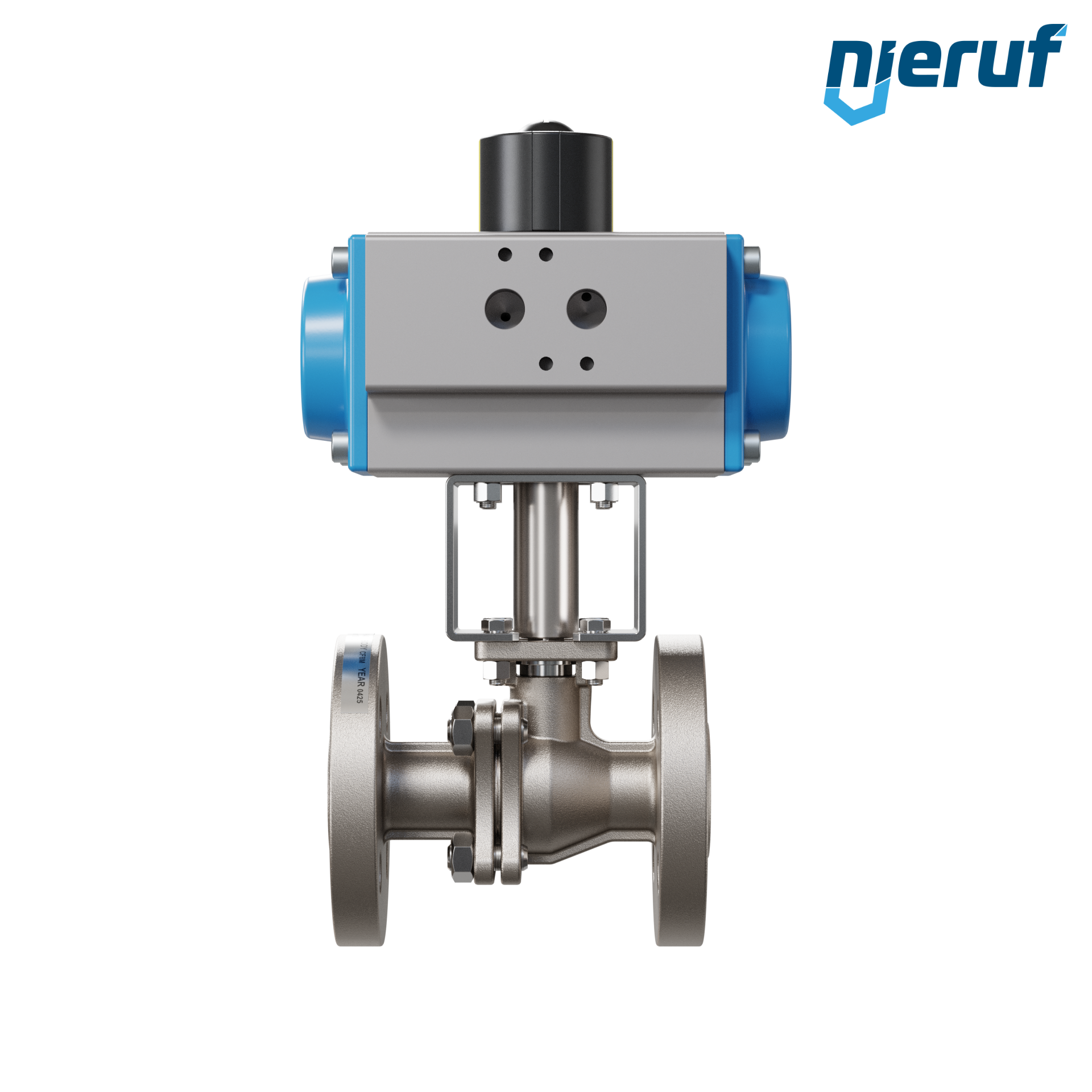

ball valve with actuator DN15 stainless steel 1.4408 PK05 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting - normally open)
| product: | ball valve with actuator |
|---|---|
| type: | PK05 |
| manufacturer: | NieRuf |
| diameter: | DN15 - 1/2" inch |
| connection: | flange dimensions acc. DIN EN 1092-1 PN 40 |
| Seal steam: | PTFE |
| media: | liquid and gaseous media |
| temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure: | PN40 |
| design: | flange ball valve with pneumatic actuator (single acting normally open) |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4401 |
| ball seal: | PTFE |
| length: | DIN EN 558-1 L27 |
| actuator: | pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting - normally open) |
| actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| product description: | This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve with actuator DN15 PK05 pneumatic actuator single acting normally open
Article no.
: PK05020003
product:
ball valve with actuator
type:
PK05
manufacturer:
NieRuf
diameter:
DN15 - 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 40
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN40
design:
flange ball valve with pneumatic actuator (single acting normally open)
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
ball seal:
PTFE
length:
DIN EN 558-1 L27
actuator:
pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting - normally open)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
product description:
This high quality automatic-stainless steel flange ball valve with pneumatic actuator (GS = single acting) need No bracket and no coupler. The pneumatic actuator will be mounted directly on the ball valve.
