PK04010013

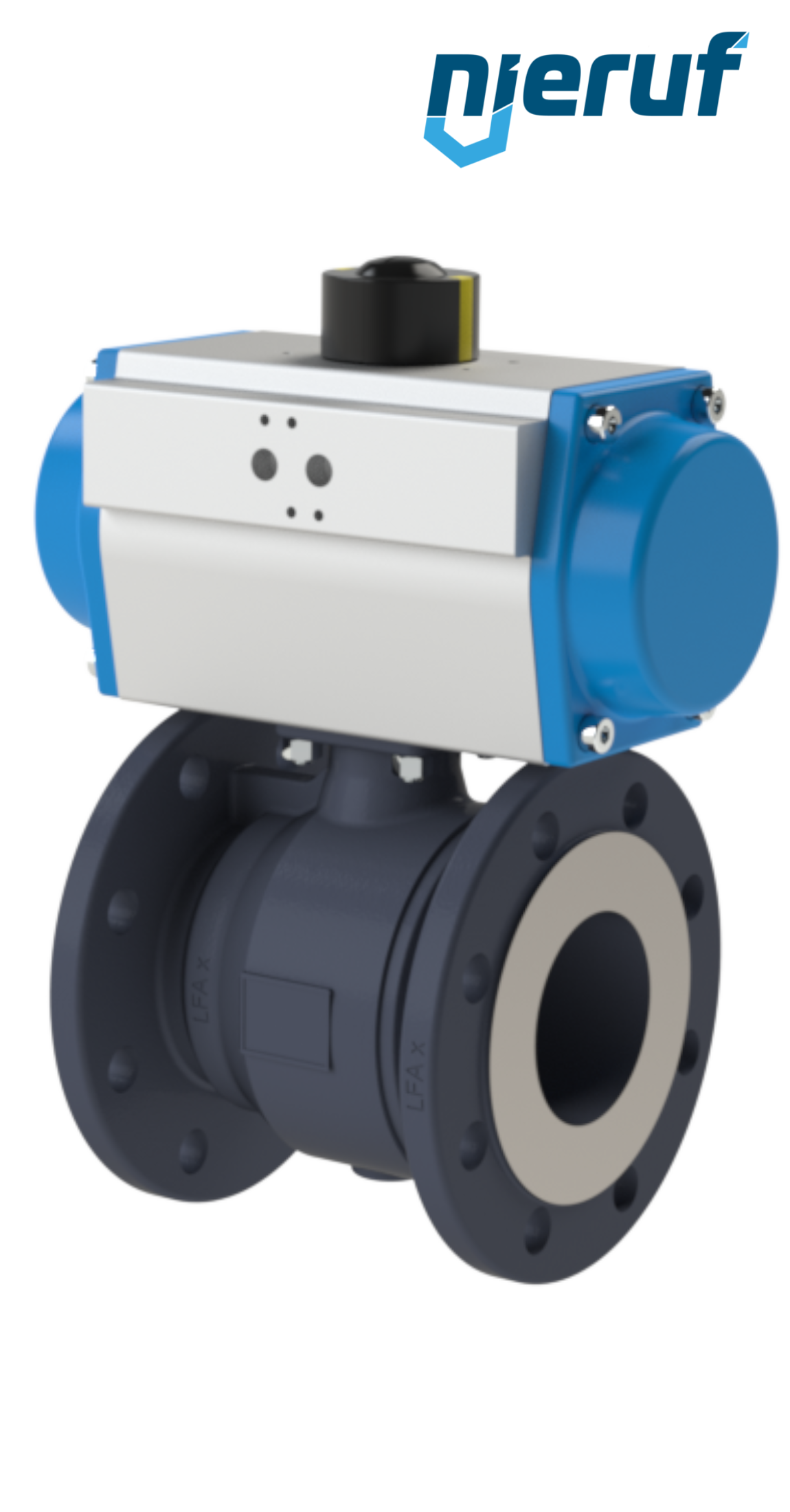

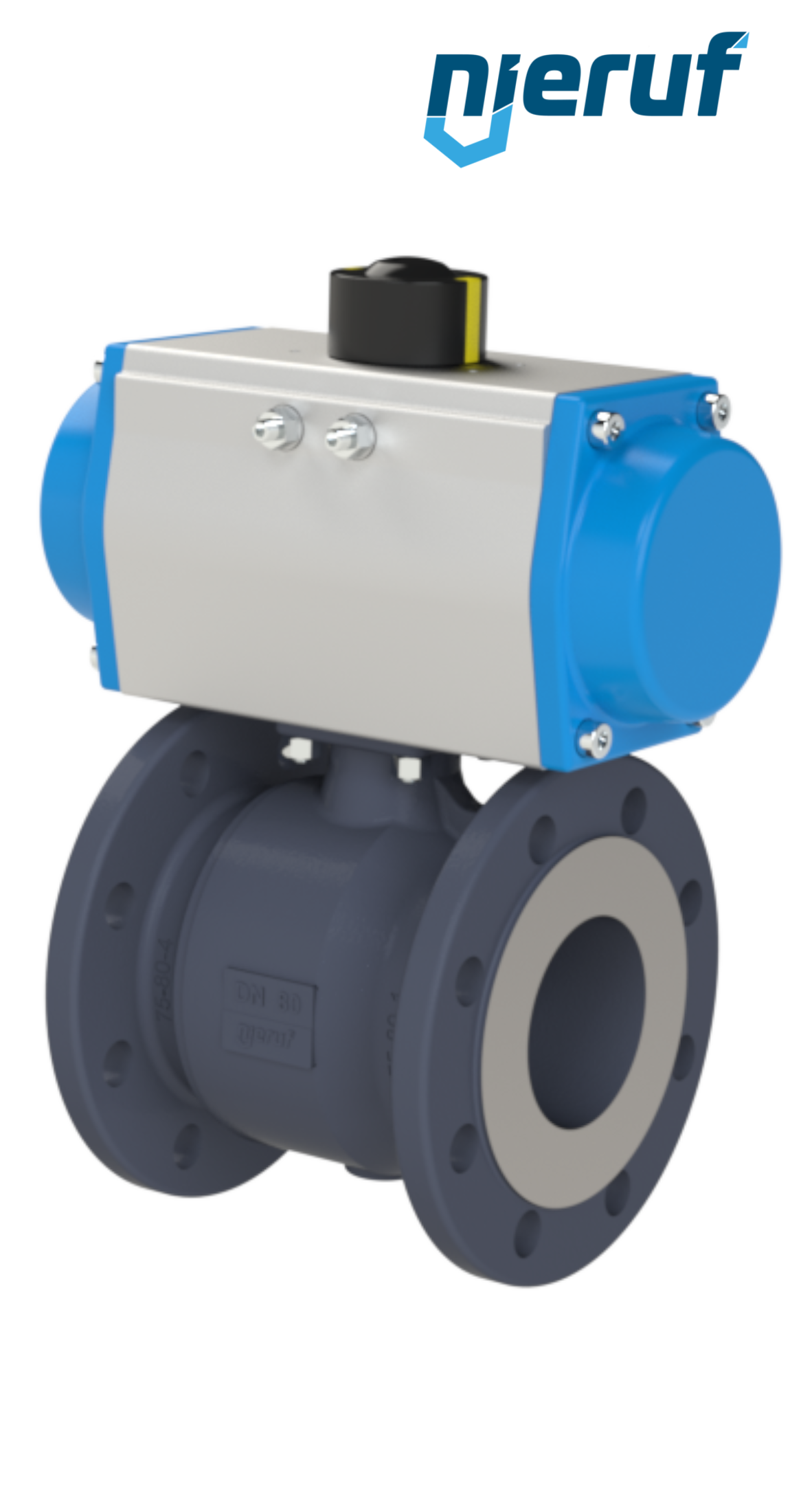

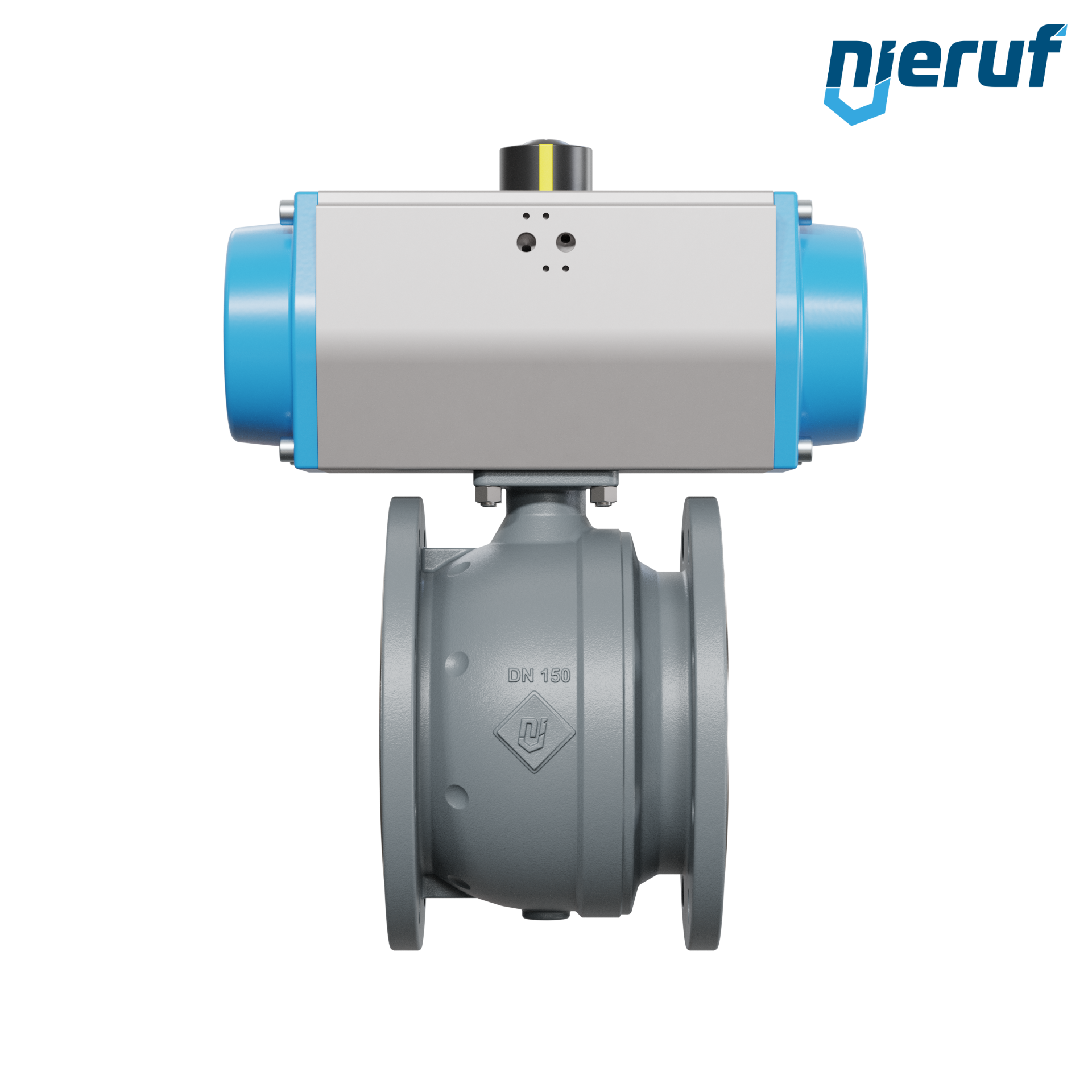

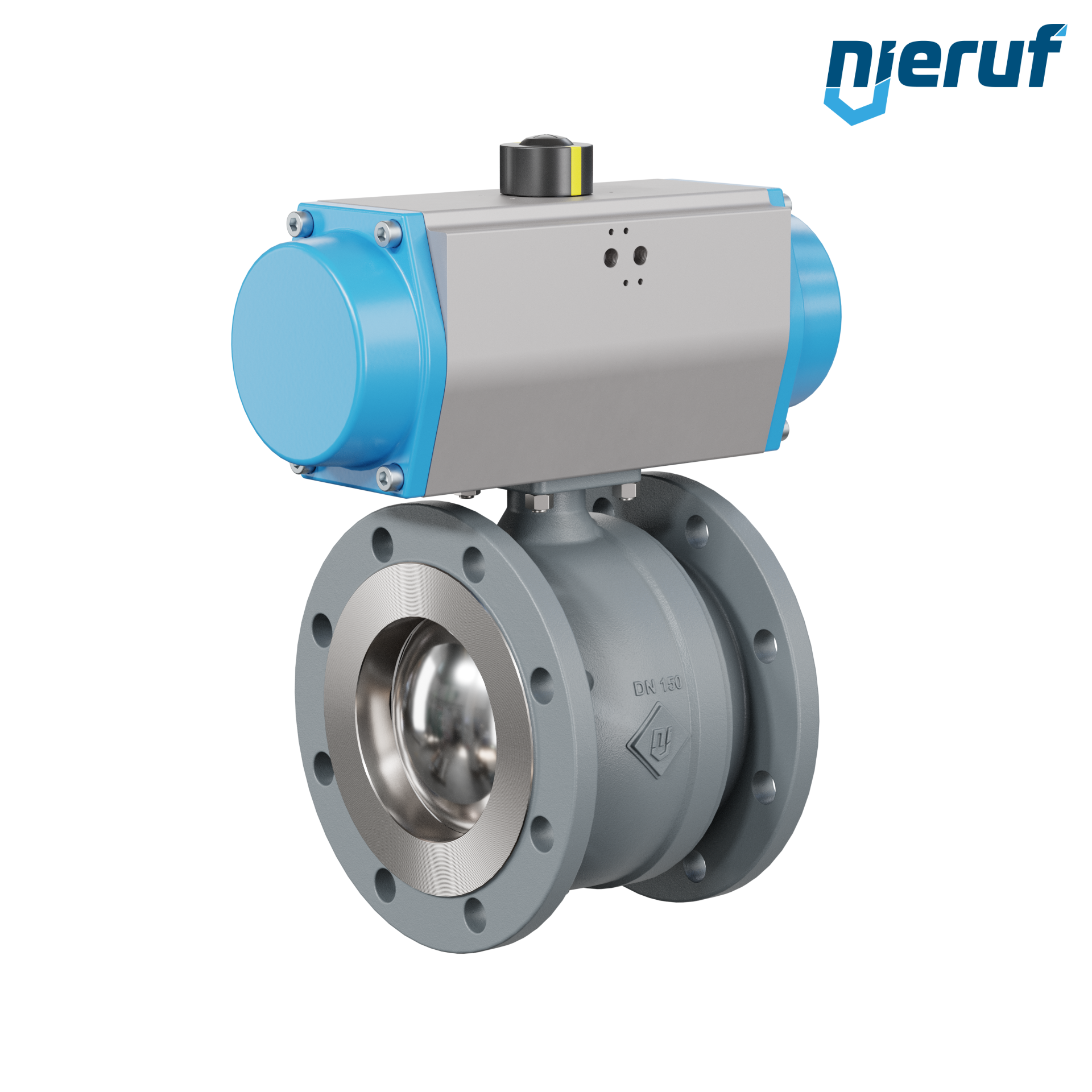

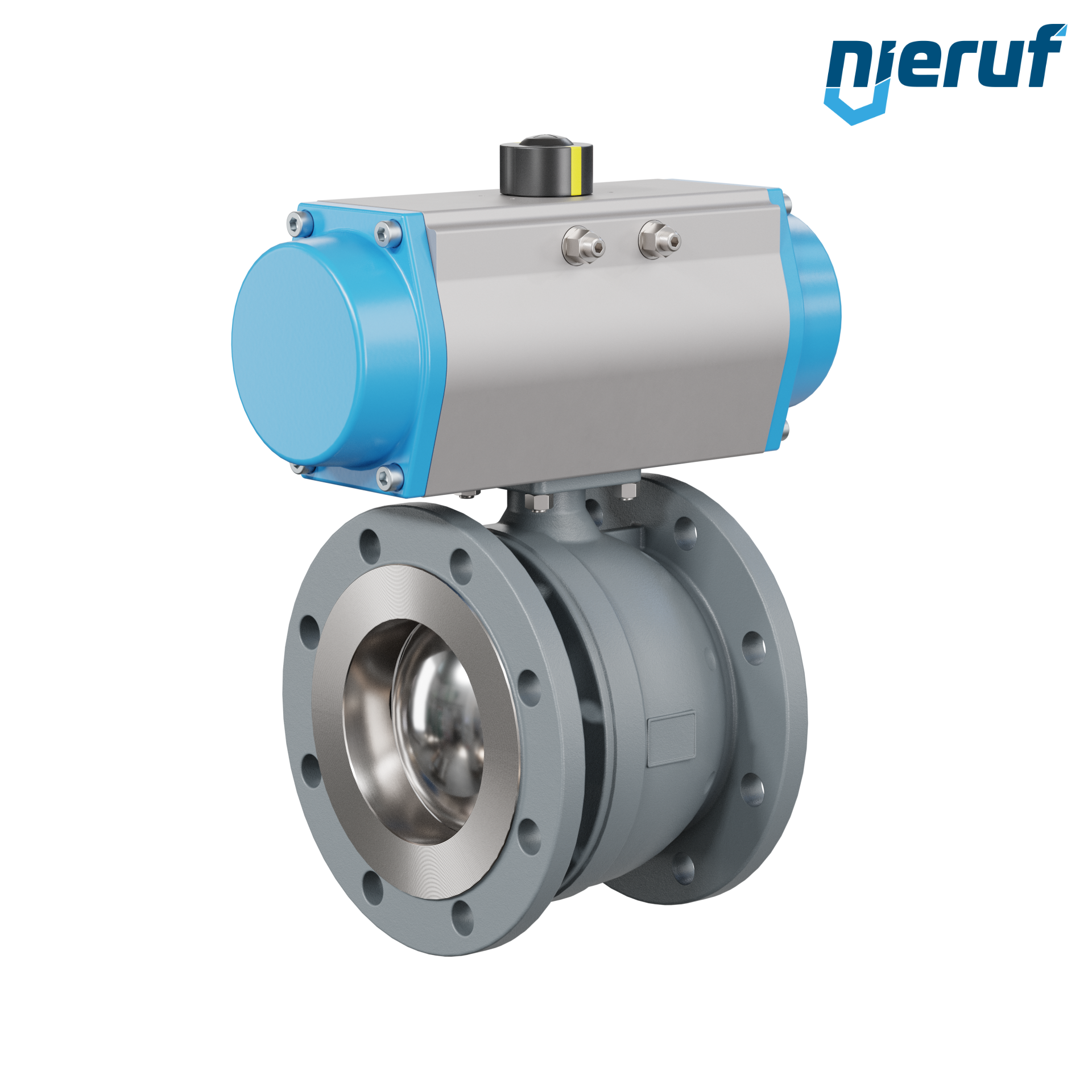

automatic-flange ball valve DN150 - 6" inch PK04 pneumatic actuator single acting
Delivery time: 3 - 5 working days
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€80.09 VAT included.
joint set flange/flange DN150 - 6" Inch for flange PN10/16/25 steel
€24.75 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
automatic-flange ball valve DN150 - 6" inch spheroidal cast iron GGG40 PK04 pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting)
| product: | automatic-flange ball valve |
|---|---|
| type: | PK04 |
| manufacturer: | NieRuf |
| diameter: | DN150 - 6" inch |
| connection: | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam: | Viton |
| media: | liquid and gaseous media |
| temperature: | ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| max. pressure: | PN16 |
| max. differentiel pressure: | 7 bar |
| design: | flange ball valve with pneumatic actuator (single acting normally closed) |
| body material: | spheroidal cast iron GGG40 |
| ball material: | chromed cast steel |
| ball seal: | PTFE + GF |
| length: | DIN EN 558-1 R14 |
| actuator: | pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally closed) |
| actuator informations: | Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010 |
| authorized for: | TA Luft |
| product description: | This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN150 - 6" inch PK04 pneumatic actuator single acting
Article no.
: PK04010013
product:
automatic-flange ball valve
type:
PK04
manufacturer:
NieRuf
diameter:
DN150 - 6" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
Viton
media:
liquid and gaseous media
temperature:
ball valve: -20°C up to +180°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
max. pressure:
PN16
max. differentiel pressure:
7 bar
design:
flange ball valve with pneumatic actuator (single acting normally closed)
body material:
spheroidal cast iron GGG40
ball material:
chromed cast steel
ball seal:
PTFE + GF
length:
DIN EN 558-1 R14
actuator:
pneumatic actuator GS140 made of aluminium (mode of function: GS = single acting - normally closed)
actuator informations:
Control pressure rate from 6 bar up to 8 bar / filtered air acc. to DIN ISO 8573-1: 2010
authorized for:
TA Luft
product description:
This high quality automatic-spheroidal graphite cast iron ball valves with pneumatic actuator (GS = single acting) with direct mounting of magnetic valves per Namur is also possible. Operating media of the actuator is filtered and oiled air
€8.45 VAT included.
€77.59 VAT included.
€47.60 VAT included.
€3.93 VAT included.
€37.60 VAT included.
€24.75 VAT included.
€80.09 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
