EK05000007
automatic-flange ball valve DN40 - 1 1/2" inch EK05 stainless steel 24V
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

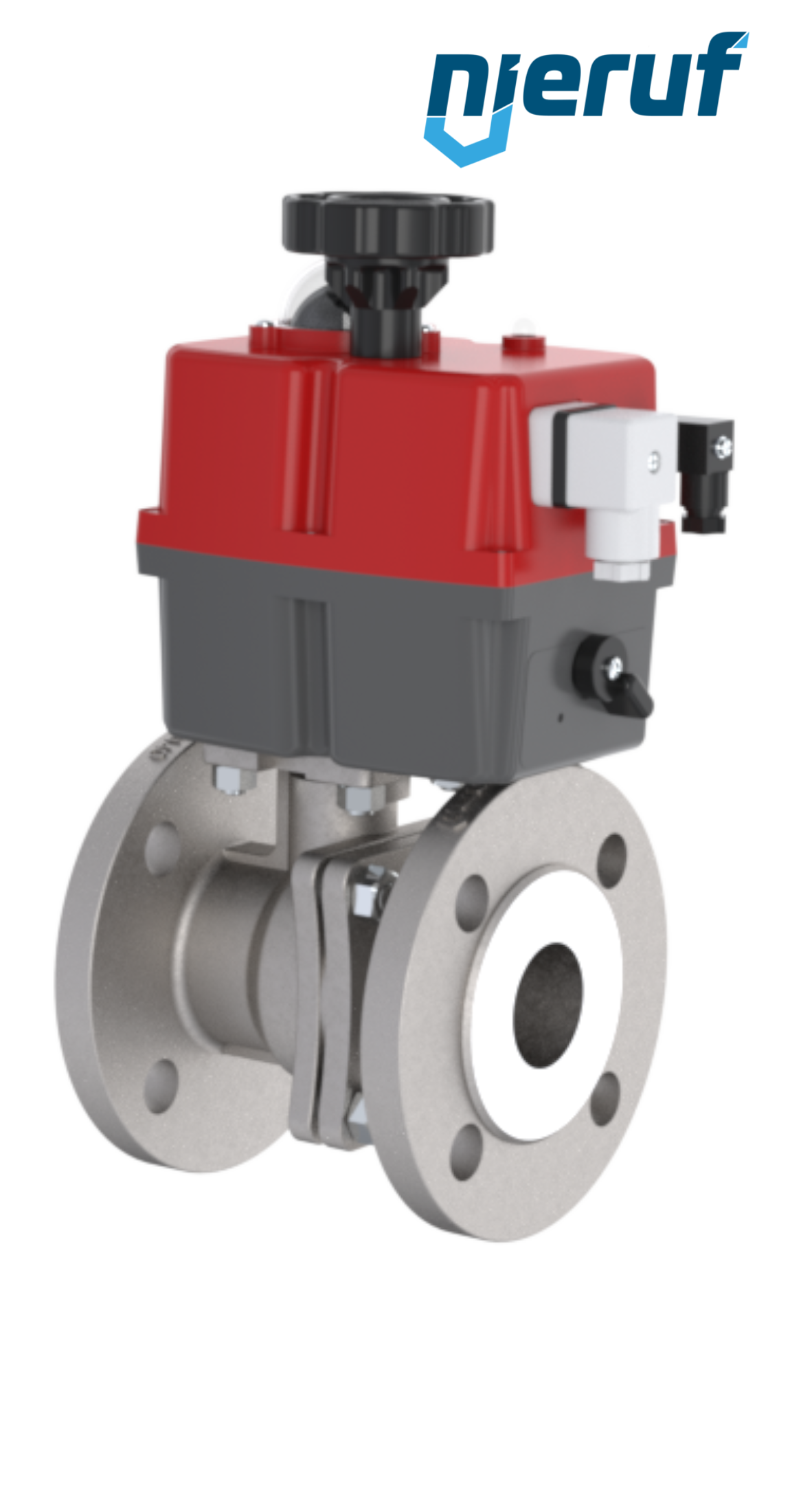

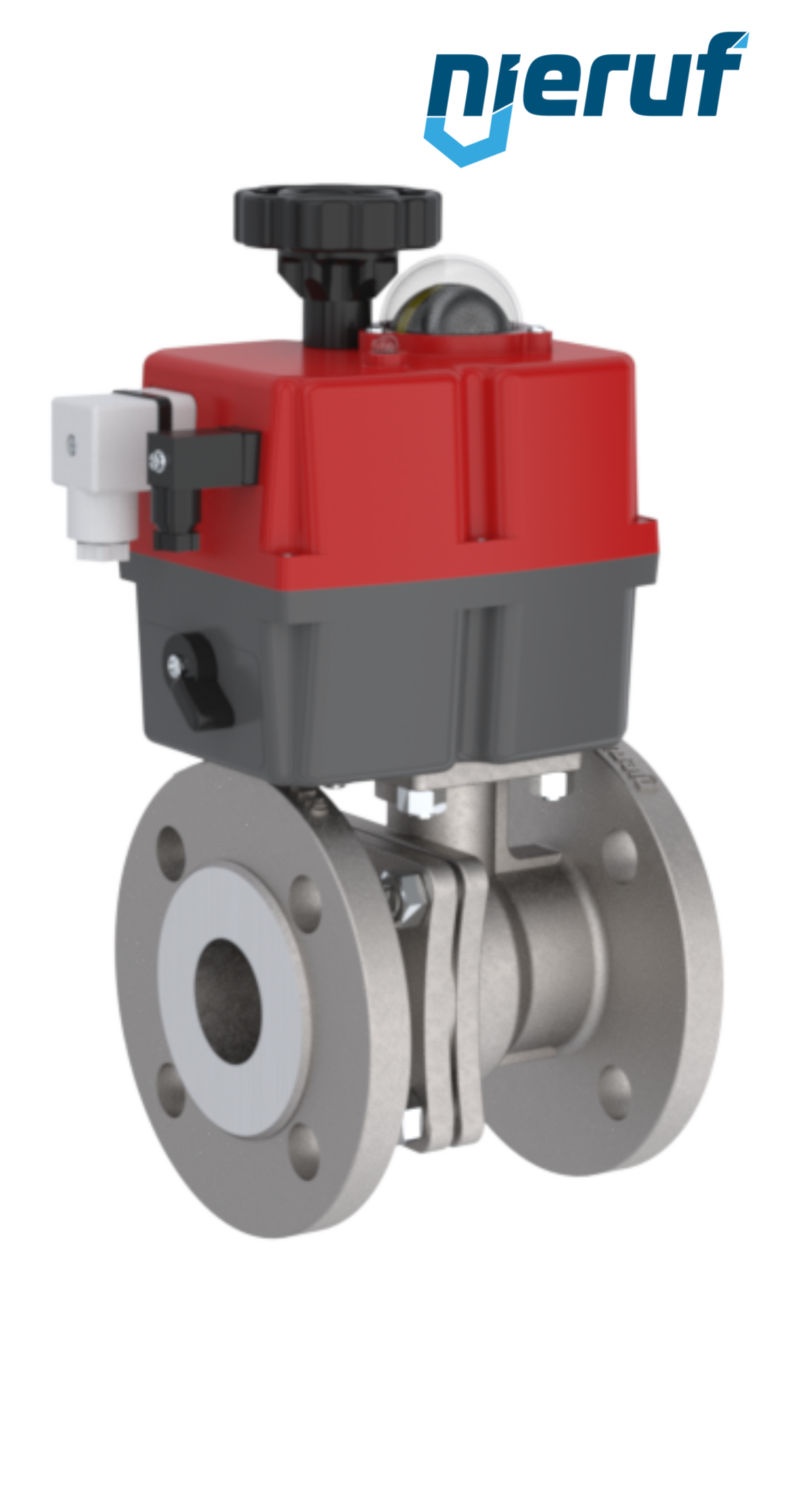

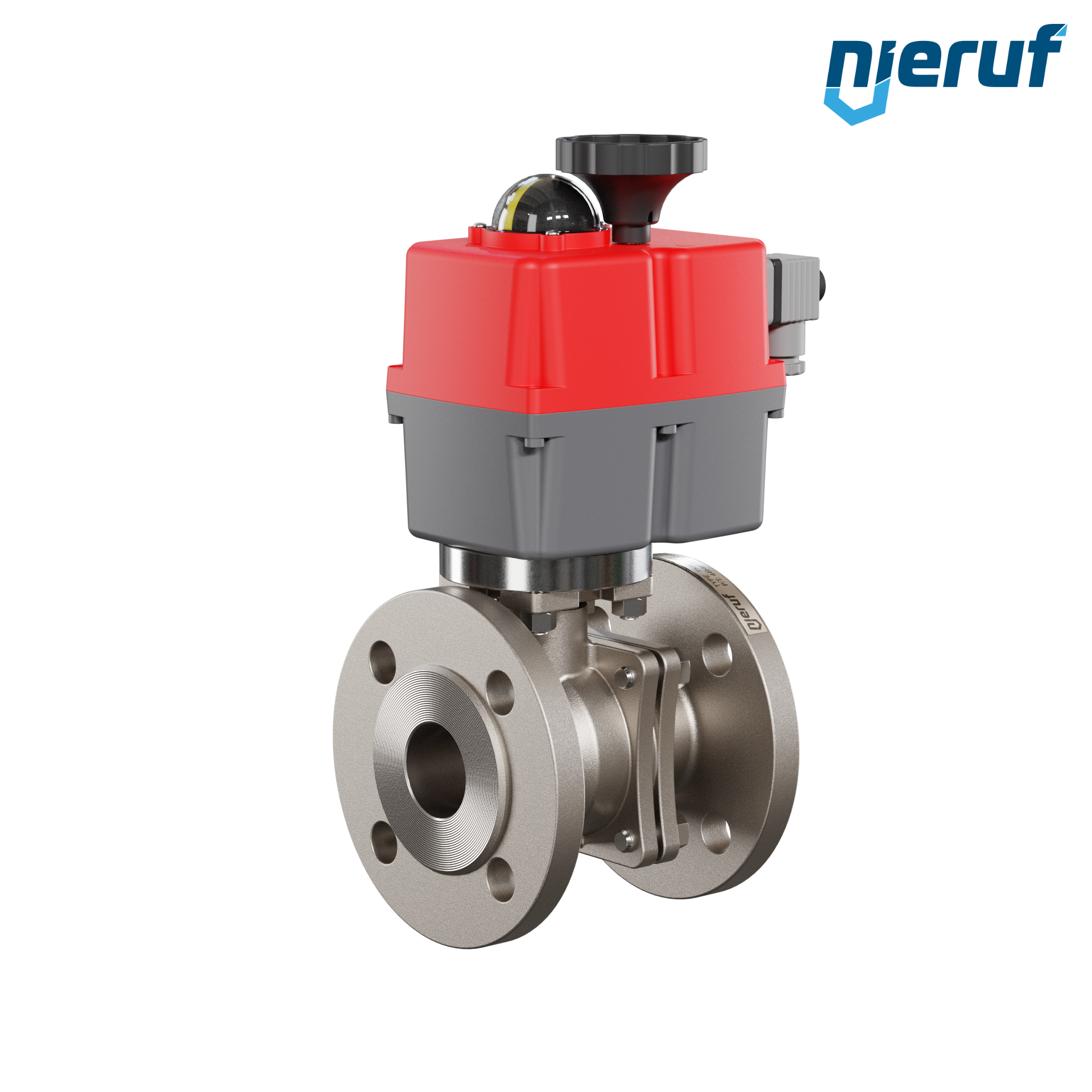

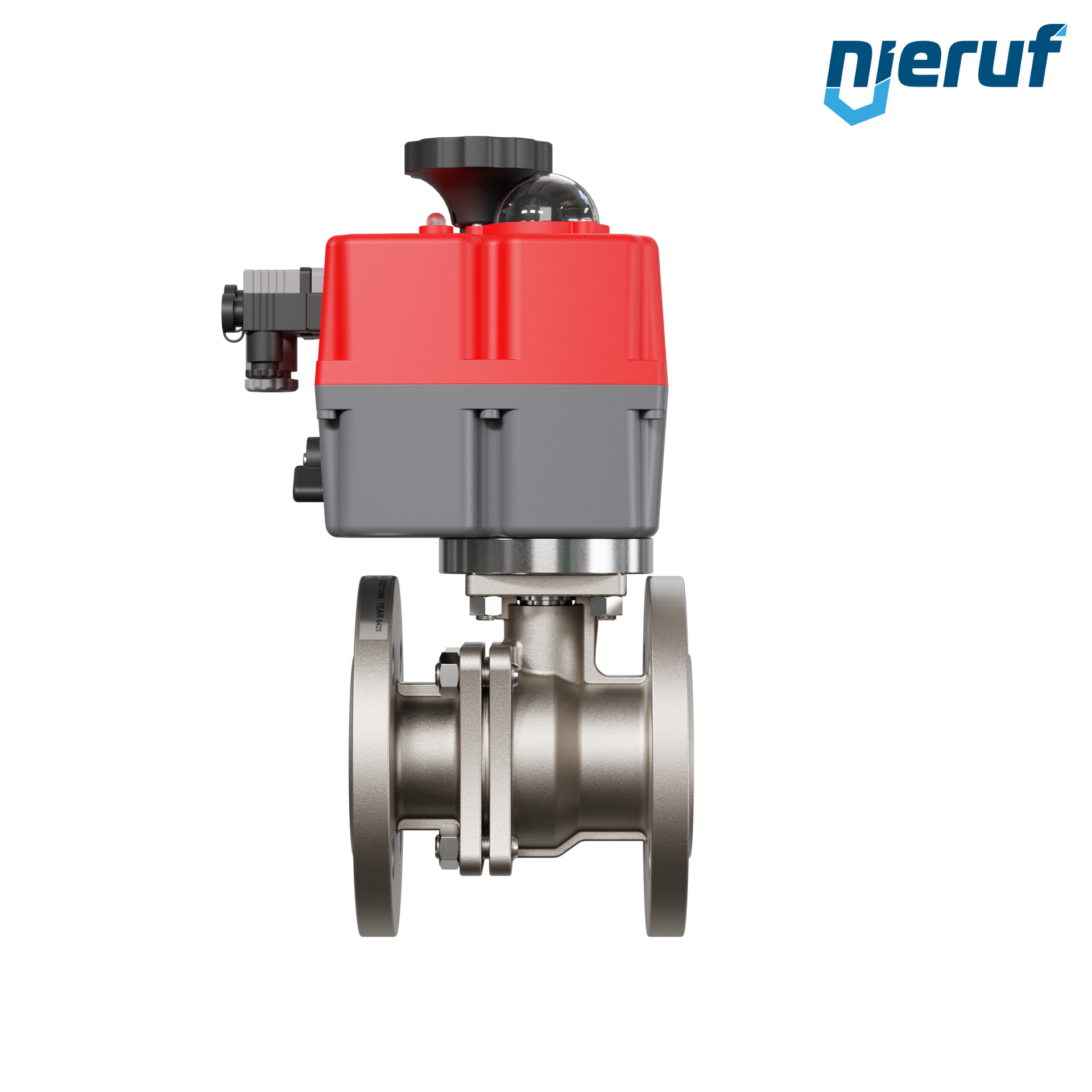

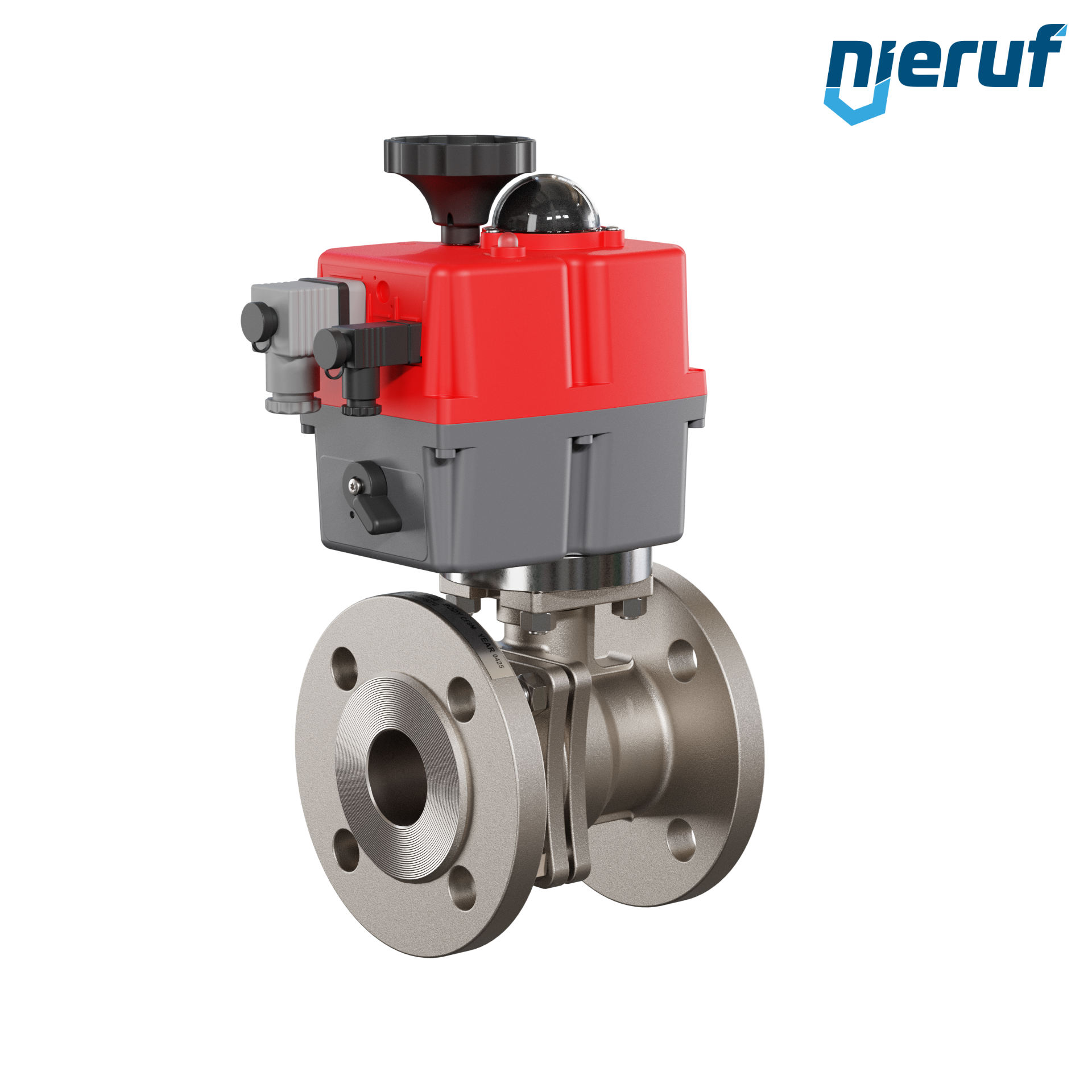

automatic-flange ball valve DN40 - 1 1/2" inch stainless steel 1.4408 EK05 24V
| product: | automatic-flange ball valve |
|---|---|
| type: | EK05 |
| manufacturer: | NieRuf |
| diameter: | DN40 - 1 1/2" inch |
| connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam: | PTFE + 15% GF |
| media: | liquid and gaseous media |
| temperature: | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure: | PN16 |
| design: | flange ball valve with actuator |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4401 |
| ball seal: | PTFE + GF |
| length: | DIN EN 558-1 |
| actuator: | electronic actuator S35 - series S for 24-240V AC/DC |
| actuator informations: | corrosion resistant synthetic body |
| installation position: | any position, not upside down |
| product description: | This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN40 - 1 1/2" inch EK05 stainless steel 24V
Article no.
: EK05000007
product:
automatic-flange ball valve
type:
EK05
manufacturer:
NieRuf
diameter:
DN40 - 1 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
PTFE + 15% GF
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with actuator
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
ball seal:
PTFE + GF
length:
DIN EN 558-1
actuator:
electronic actuator S35 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating.
