EK04010009
automatic-flange ball valve DN65 - 2 1/2" inch EK04 24-240V
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
€8.09 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

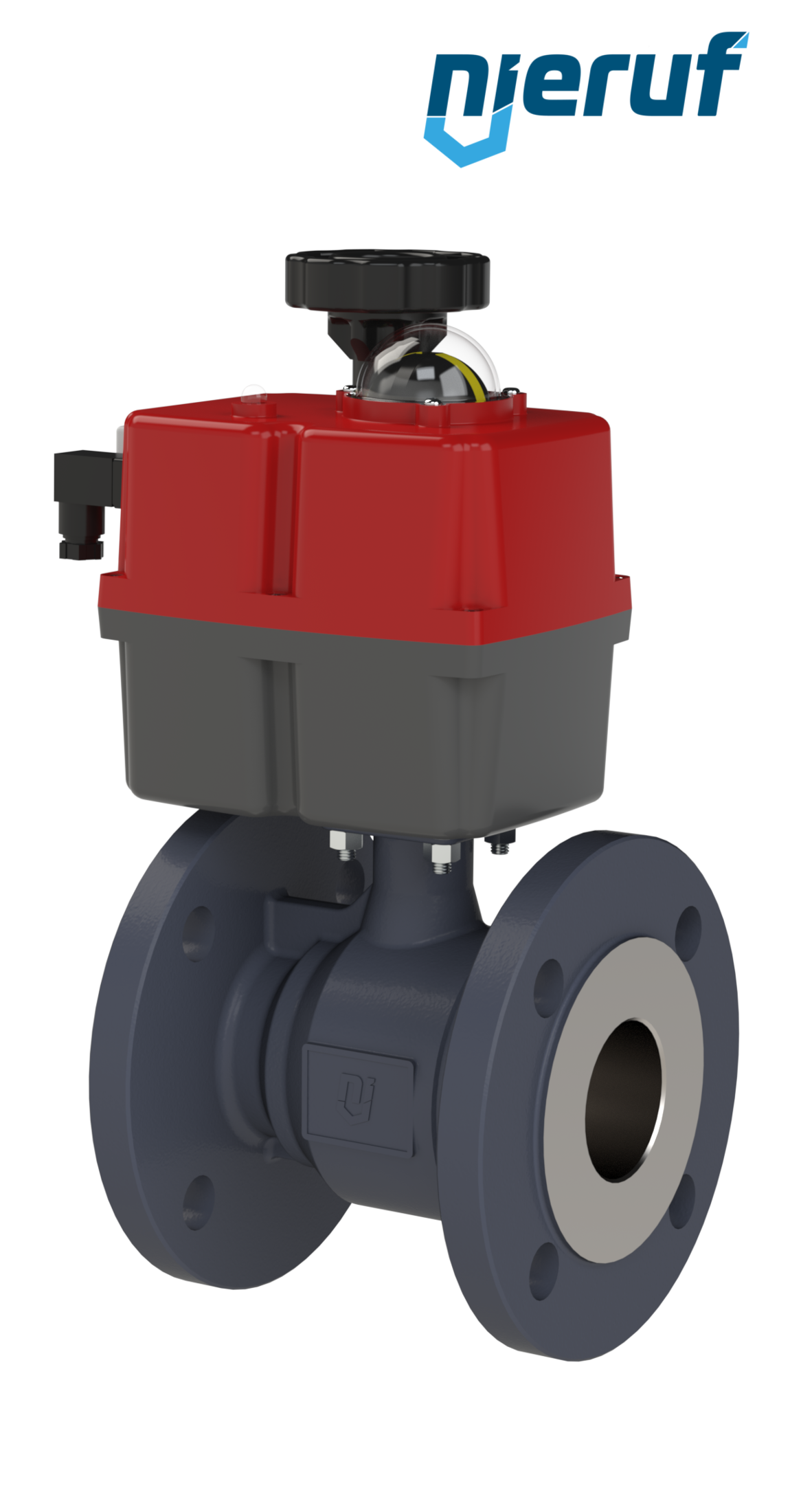

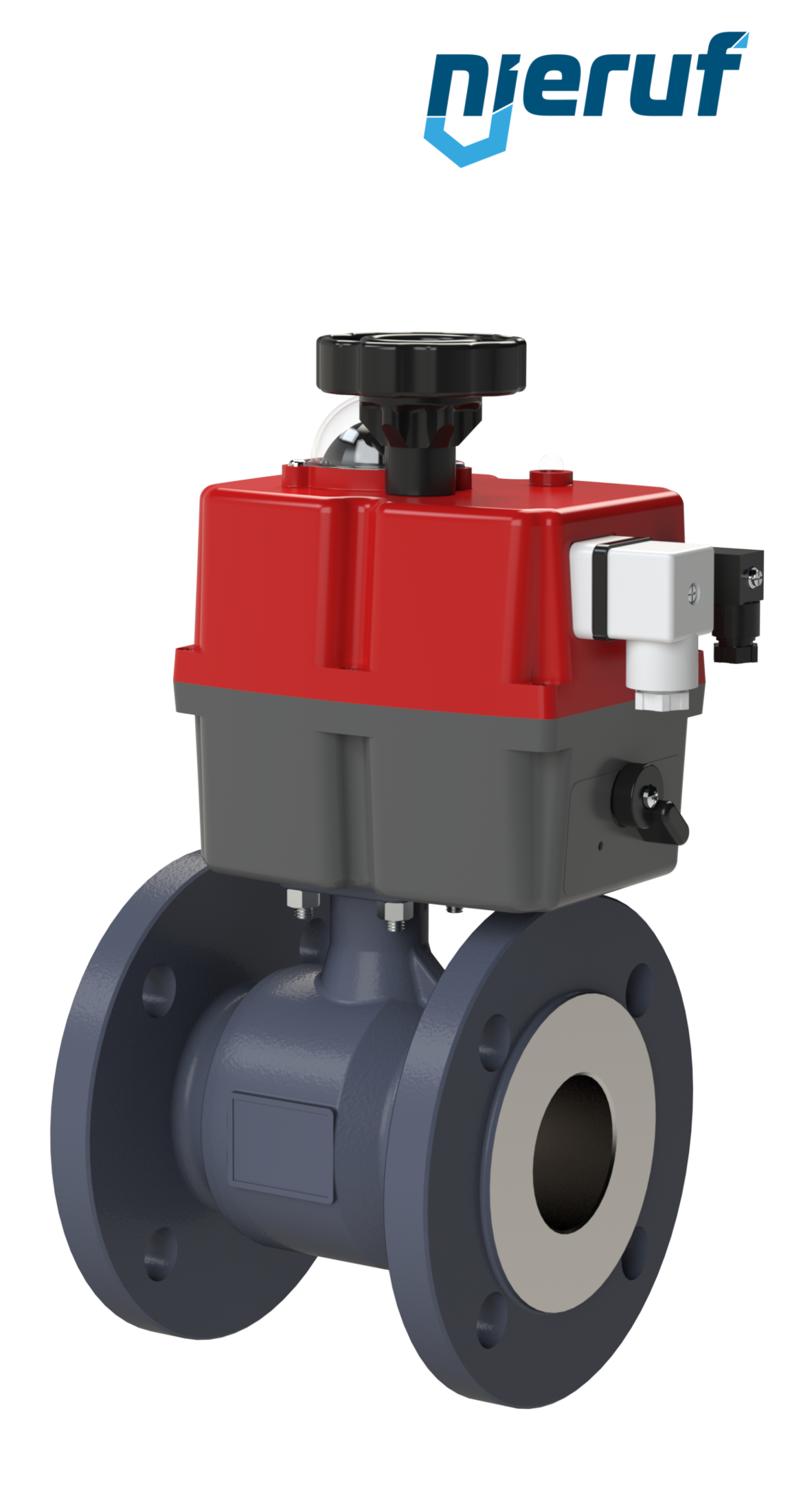

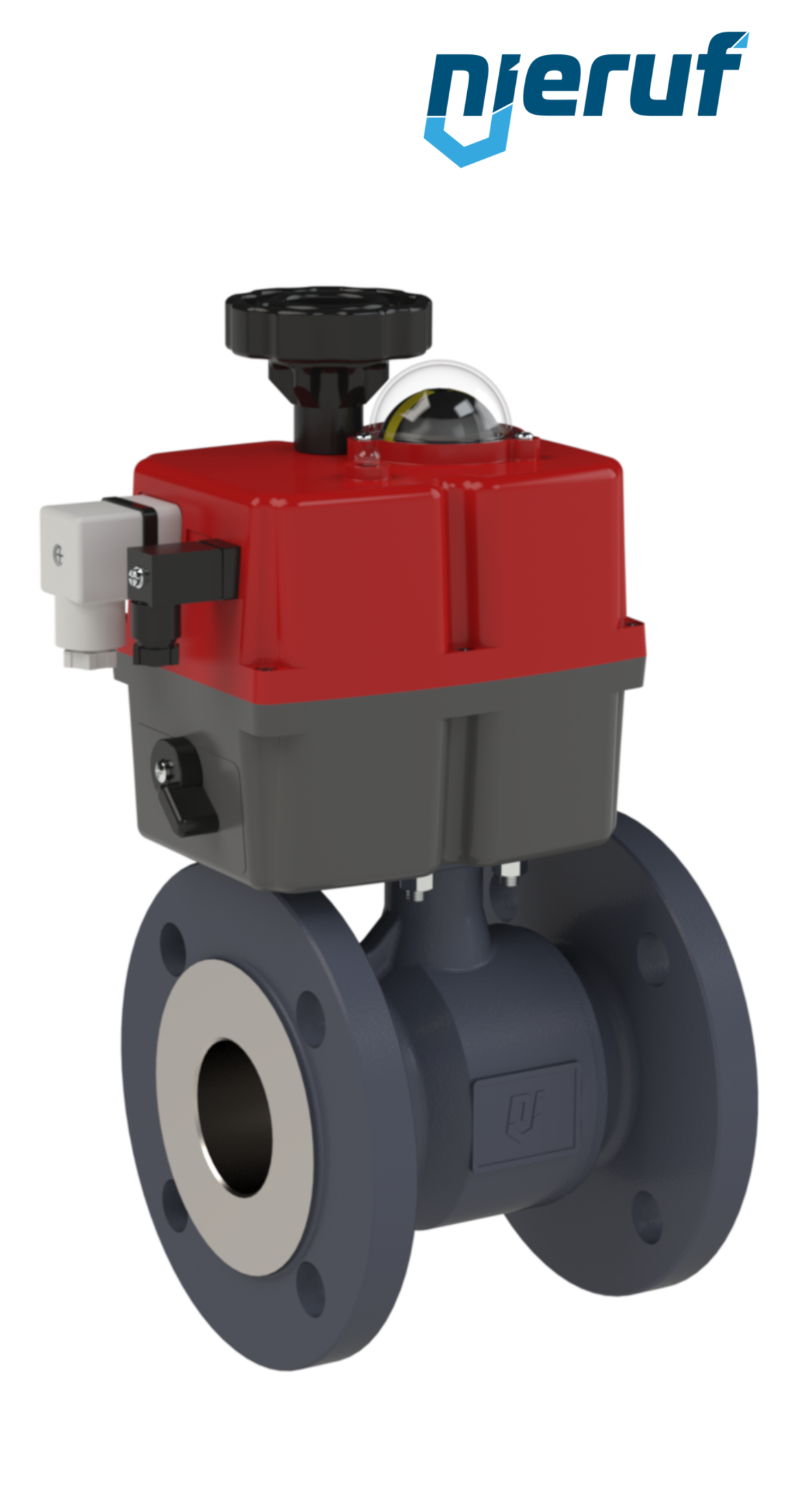

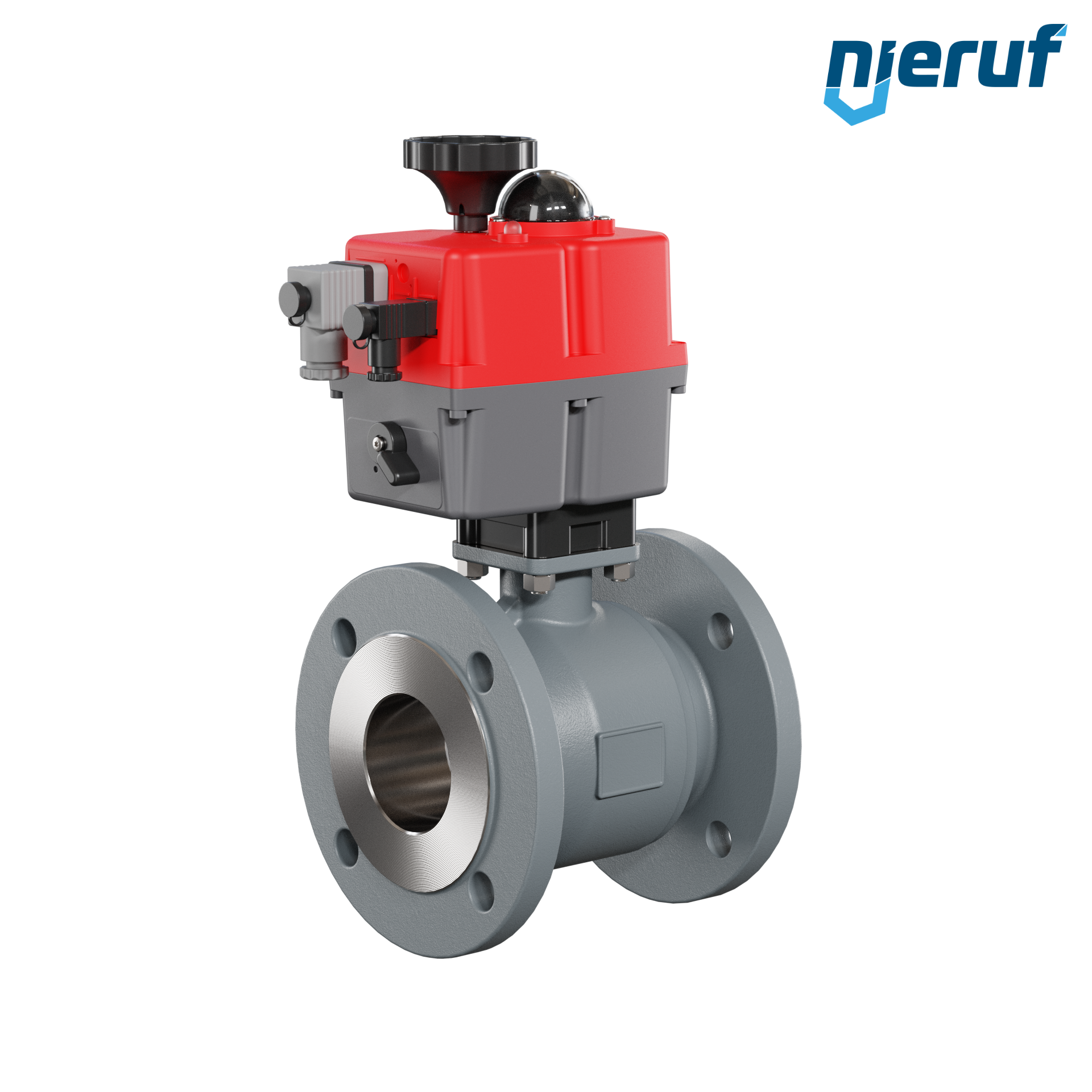

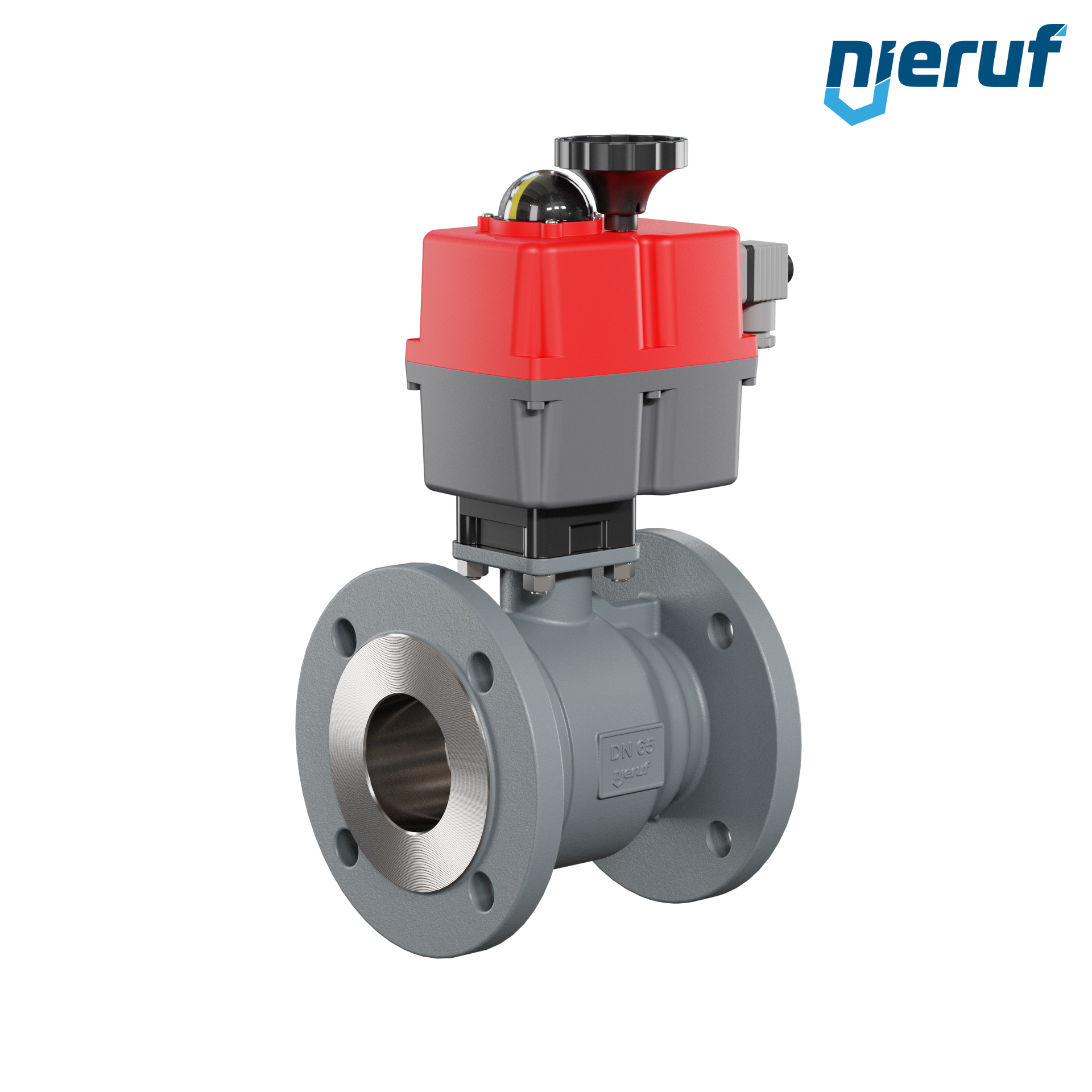

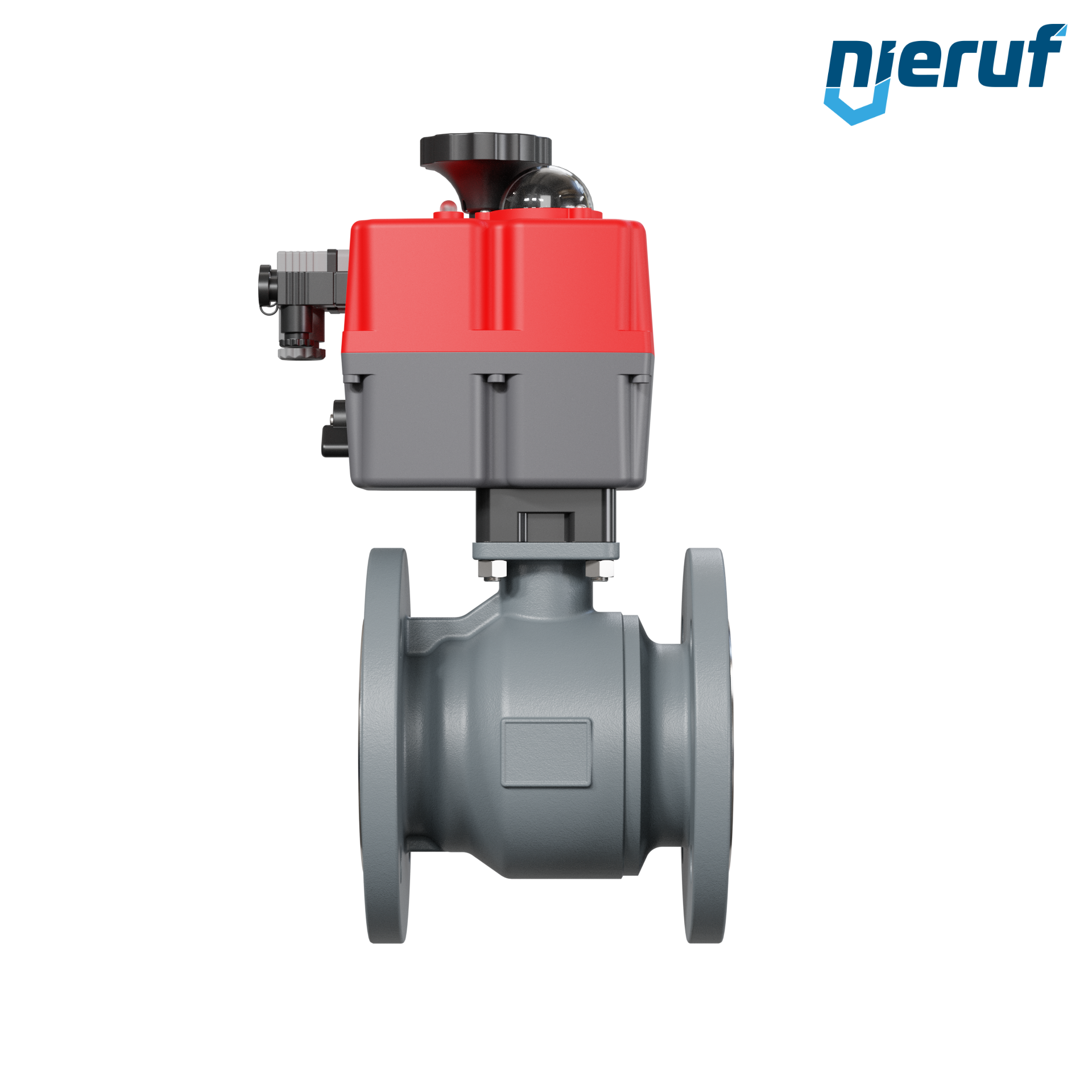

automatic-flange ball valve DN65 - 2 1/2" inch spheroidal graphite cast iron GJS400-15 EK04 electronic actuator S85 - series S for 24-240V AC/DC
| product: | automatic-flange ball valve |
|---|---|
| type: | EK04 |
| manufacturer: | NieRuf |
| diameter: | DN65 - 2 1/2" inch |
| connection: | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam: | O-rings FKM |
| media: | liquid and gaseous media |
| temperature: | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure: | PN16 |
| max. differentiel pressure: | max. 7 bar |
| design: | flange ball valve with actuator |
| body material: | spheroidal graphite cast iron 5.3103 |
| ball material: | steel chrome plated 1.0503 |
| ball seal: | PTFE + GF |
| length: | 170mm |
| actuator: | electronic actuator S55 - series S for 24-240V AC/DC |
| actuator informations: | corrosion resistant synthetic body |
| installation position: | any position, not upside down |
| product description: | This high quality automatic-flange spheroidal graphite cast iron ball valve with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN65 - 2 1/2" inch EK04 24-240V
Article no.
: EK04010009
product:
automatic-flange ball valve
type:
EK04
manufacturer:
NieRuf
diameter:
DN65 - 2 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
O-rings FKM
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
max. differentiel pressure:
max. 7 bar
design:
flange ball valve with actuator
body material:
spheroidal graphite cast iron 5.3103
ball material:
steel chrome plated 1.0503
ball seal:
PTFE + GF
length:
170mm
actuator:
electronic actuator S55 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-flange spheroidal graphite cast iron ball valve with electronic actuator (series S) with visual position indicator and emergency operating.
€4.28 VAT included.
€31.42 VAT included.
€8.09 VAT included.
