EK05000010

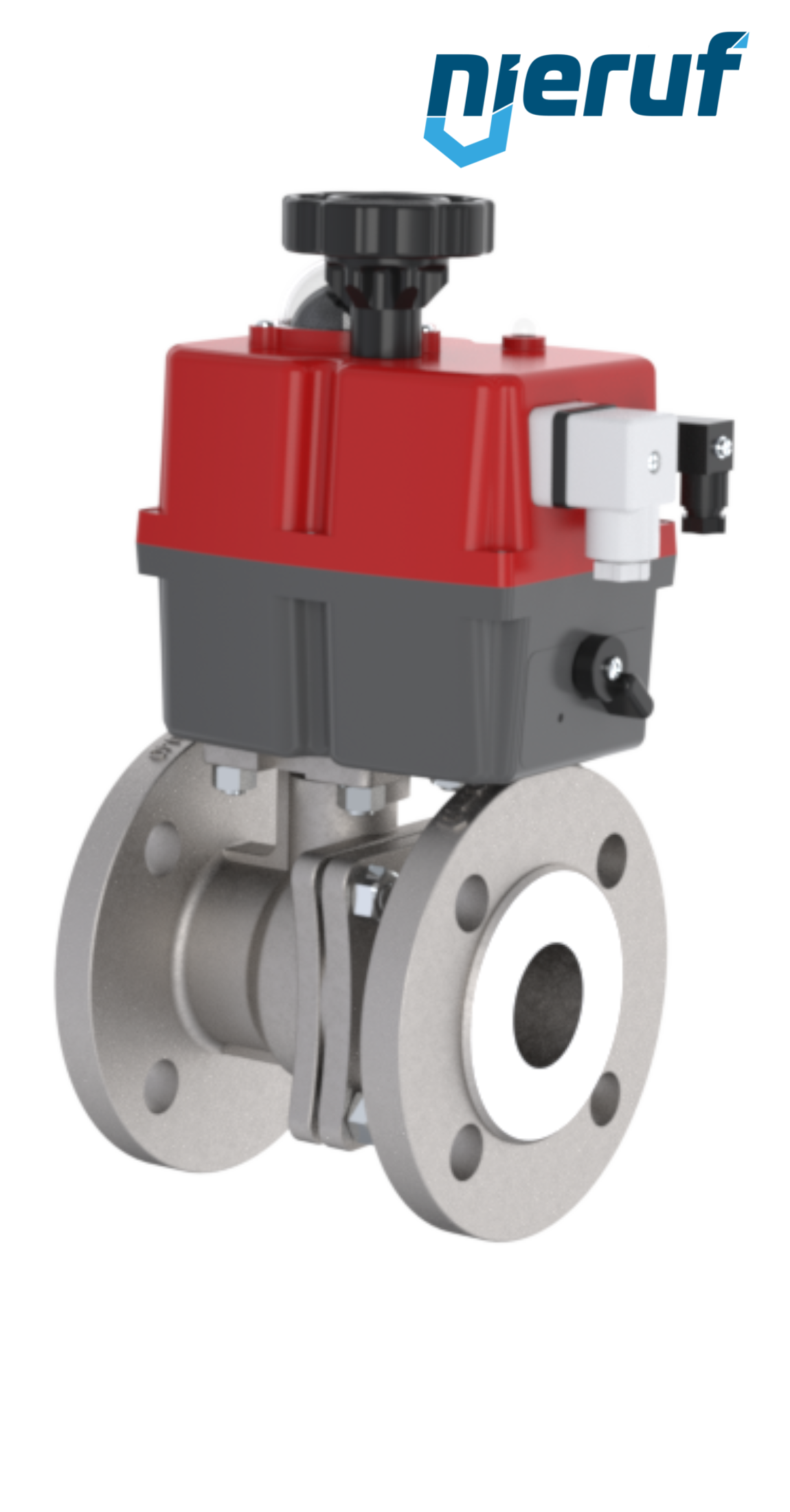

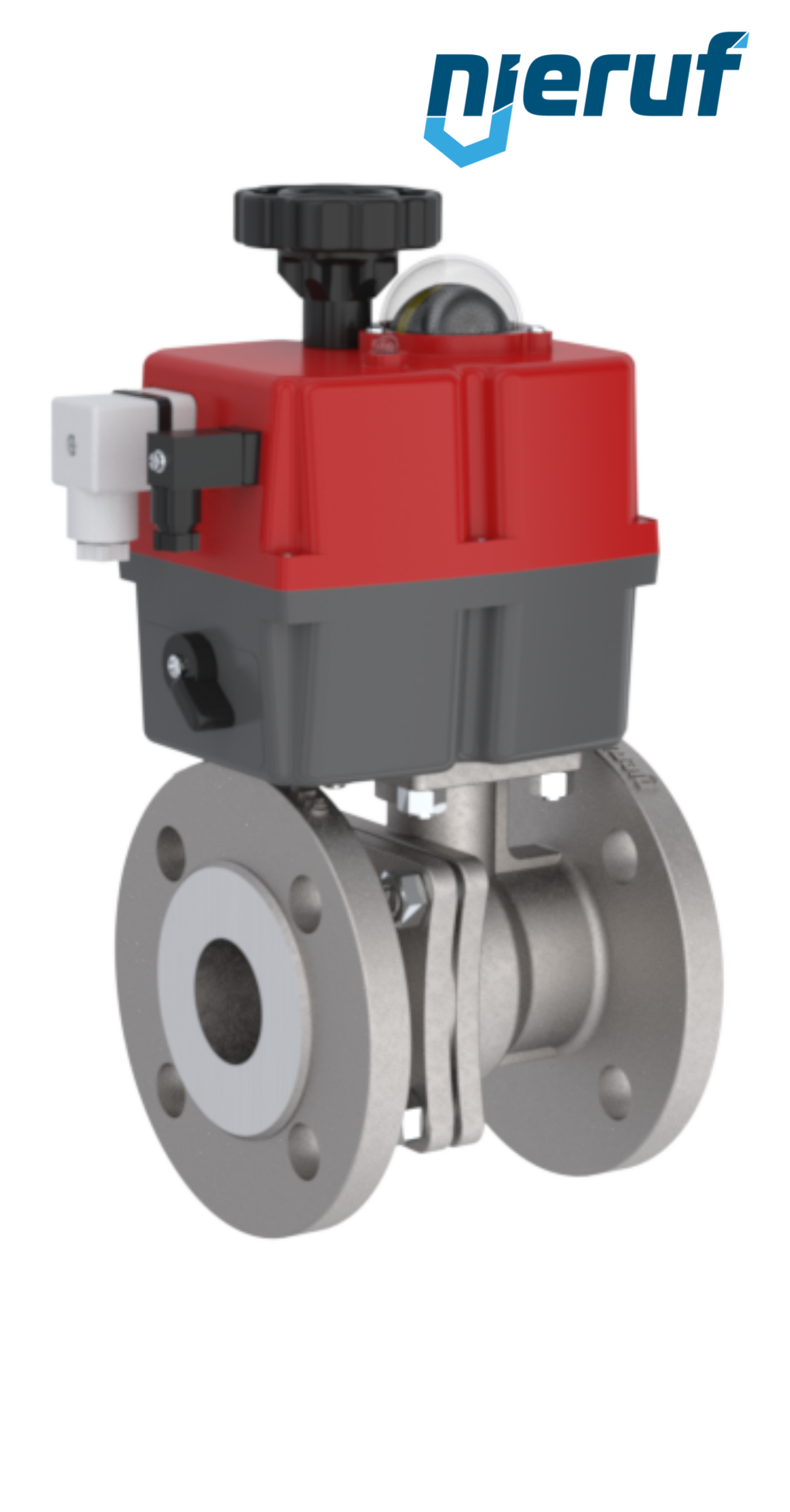

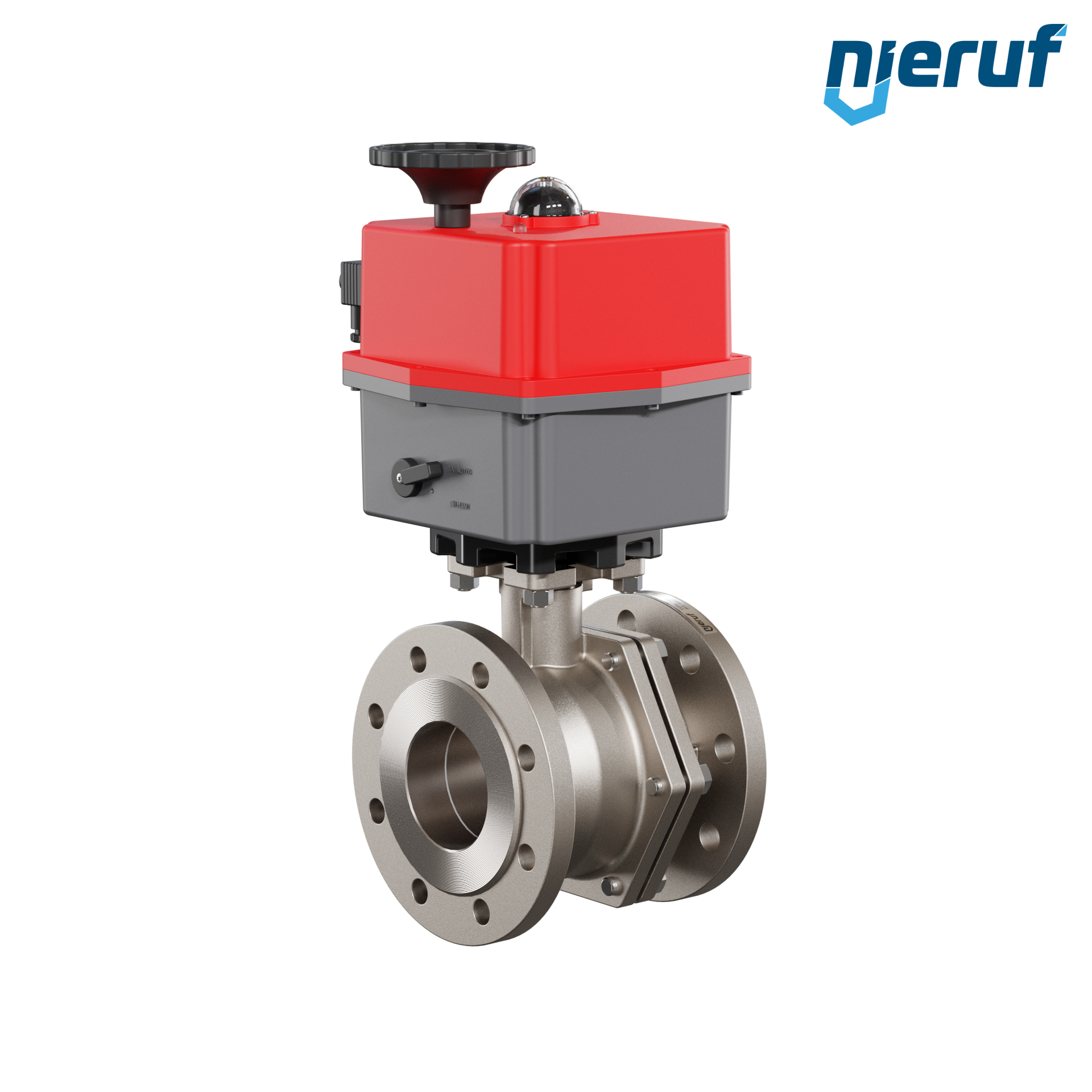

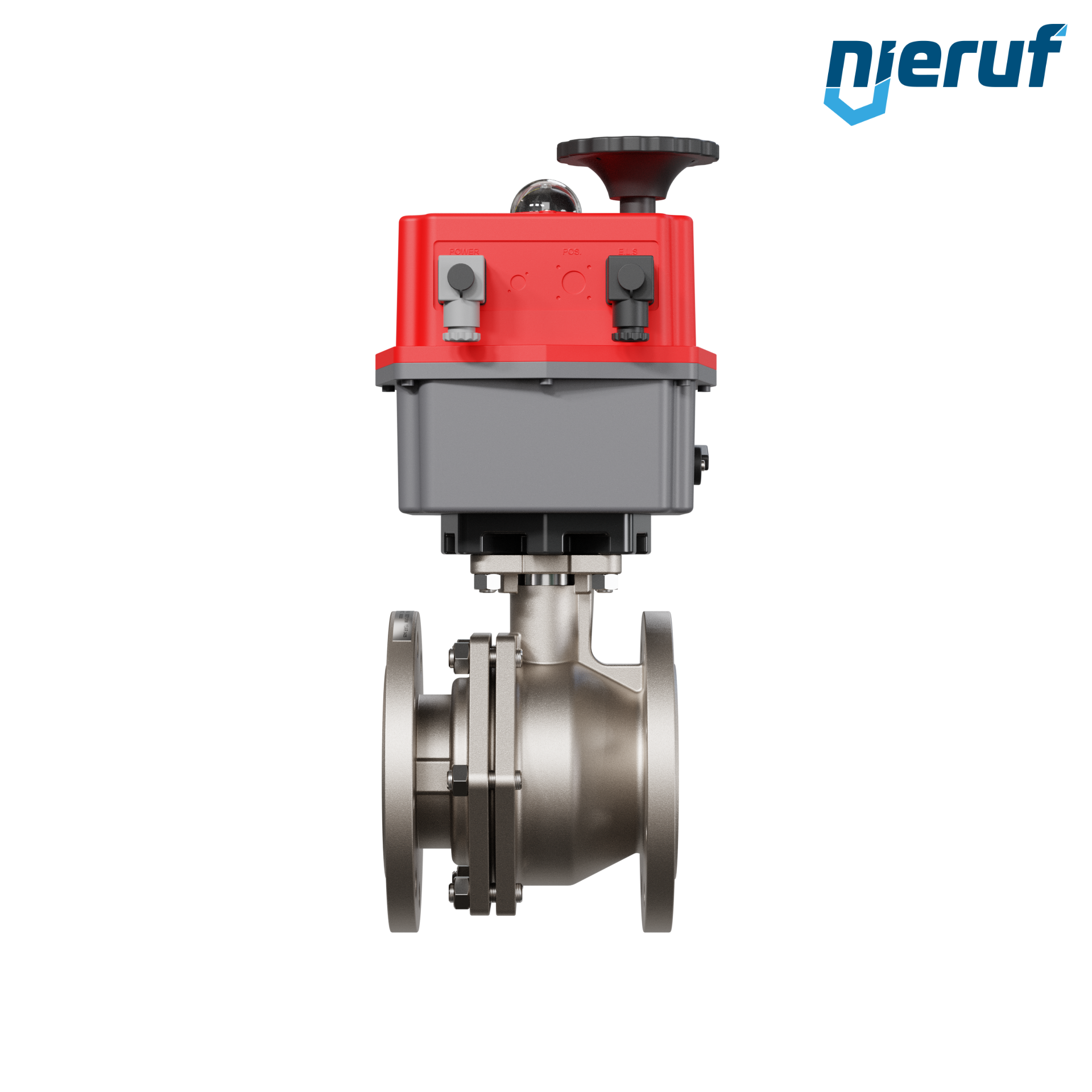

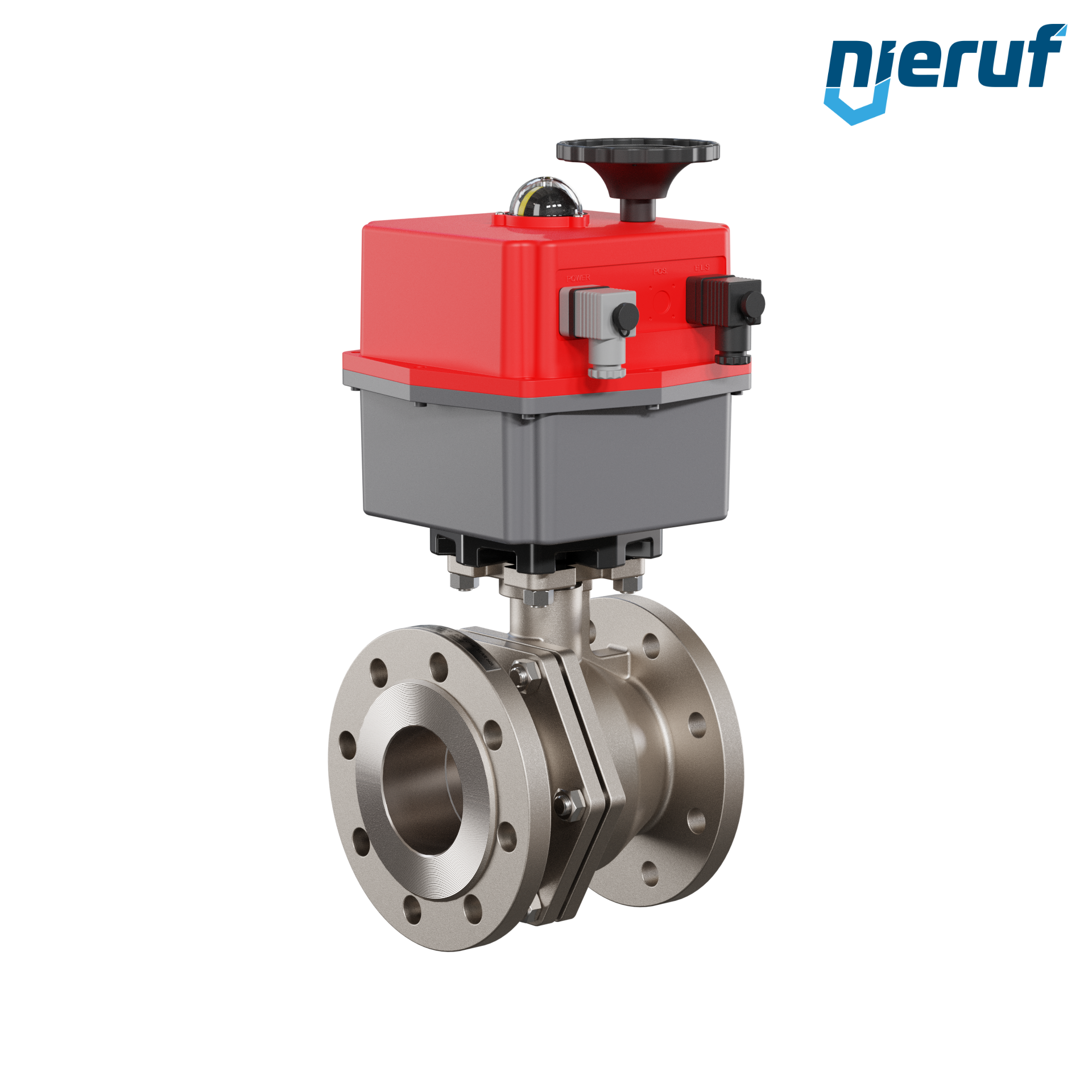

automatic-flange ball valve DN80 - 3" inch EK05 stainless steel 24V
- Delivery time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 12. March
Guaranteed delivery until Thursday, 13. March, 12 o'clock
Equipment
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
Questions about the article?
automatic-flange ball valve DN80 - 3" inch stainless steel 1.4408 EK05 electronic actuator S140 - series S for 24V AC/DC
| product | automatic-flange ball valve |
|---|---|
| type | EK05 |
| manufacturer | NieRuf |
| diameter | DN80 - 3" inch |
| connection | flange dimensions acc. DIN EN 1092-2 PN 16 |
| Seal steam | PTFE + 15% GF |
| media | liquid and gaseous media |
| temperature | ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure | PN16 |
| design | flange ball valve with actuator |
| body material | stainless steel 1.4408 |
| ball material | stainless steel 1.4401 |
| ball seal | PTFE + GF |
| length | DIN EN 558-1 |
| actuator | electronic actuator S140 - series S for 24-240V AC/DC |
| actuator informations | corrosion resistant synthetic body |
| installation position | any position, not upside down |
| product description | This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
automatic-flange ball valve DN80 - 3" inch EK05 stainless steel 24V
Article no.
: EK05000010
product:
automatic-flange ball valve
type:
EK05
manufacturer:
NieRuf
diameter:
DN80 - 3" inch
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
Seal steam:
PTFE + 15% GF
media:
liquid and gaseous media
temperature:
ball valve -20°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN16
design:
flange ball valve with actuator
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
ball seal:
PTFE + GF
length:
DIN EN 558-1
actuator:
electronic actuator S140 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-flange stainless-steel cast iron ball valve with electronic actuator (series S = multivoltage 24-240V AC/DC) with visual position indicator and emergency operating.
