SF04100103

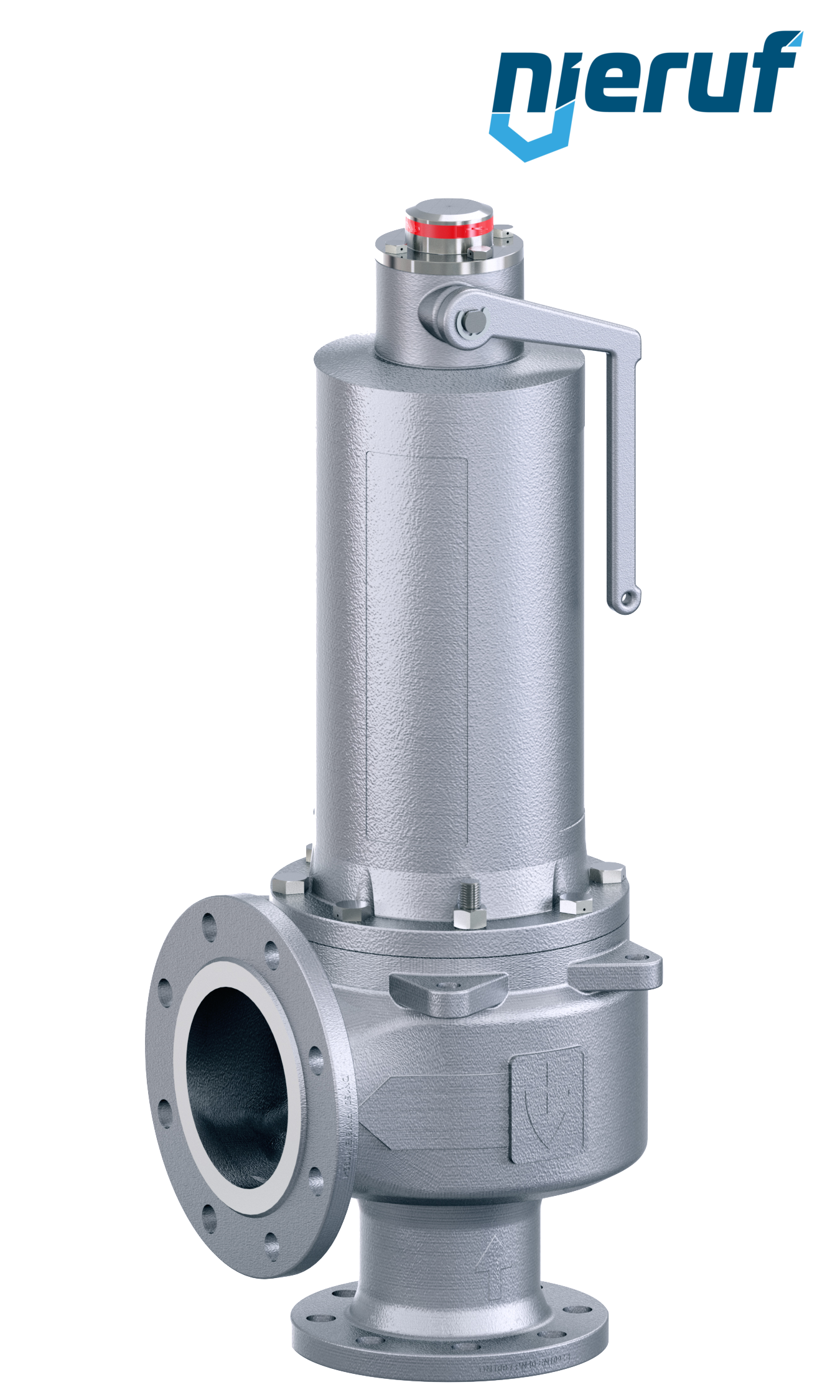

flange-safety valve DN15/DN25 SF04, stainless steel EPDM, with lifting device lever
- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Certificates
Questions about the article?
flange-safety valve DN15/DN25 SF04 for liquid and gaseous media made of stainless steel seal EPDM set pressure 0,2 - 40,0 bar with lifting device lever
| product | flange-safety valve |
|---|---|
| type | SF04 |
| manufacturer | NieRuf |
| diameter | DN15/DN25 |
| d0 | 14,0 mm |
| connection | flange acc. to DIN EN 1092-1 |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | -40°C up to +170°C |
| set pressure | 0,2 - 40,0 bar |
| design | angle-type |
| material | stainless steel |
| lifting | with lifting device lever |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 |
| product feature 2 | gastight cap, the environment is protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN15/DN25 SF04, stainless steel EPDM, with lifting device lever
Article no.
: SF04100103
product:
flange-safety valve
type:
SF04
manufacturer:
NieRuf
diameter:
DN15/DN25
d0:
14,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
EPDM
media:
liquid and gaseous media
temperature:
-40°C up to +170°C
set pressure:
0,2 - 40,0 bar
design:
angle-type
material:
stainless steel
lifting:
with lifting device lever
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3
product feature 2:
gastight cap, the environment is protected from being affected by the medium.
