SF04000008

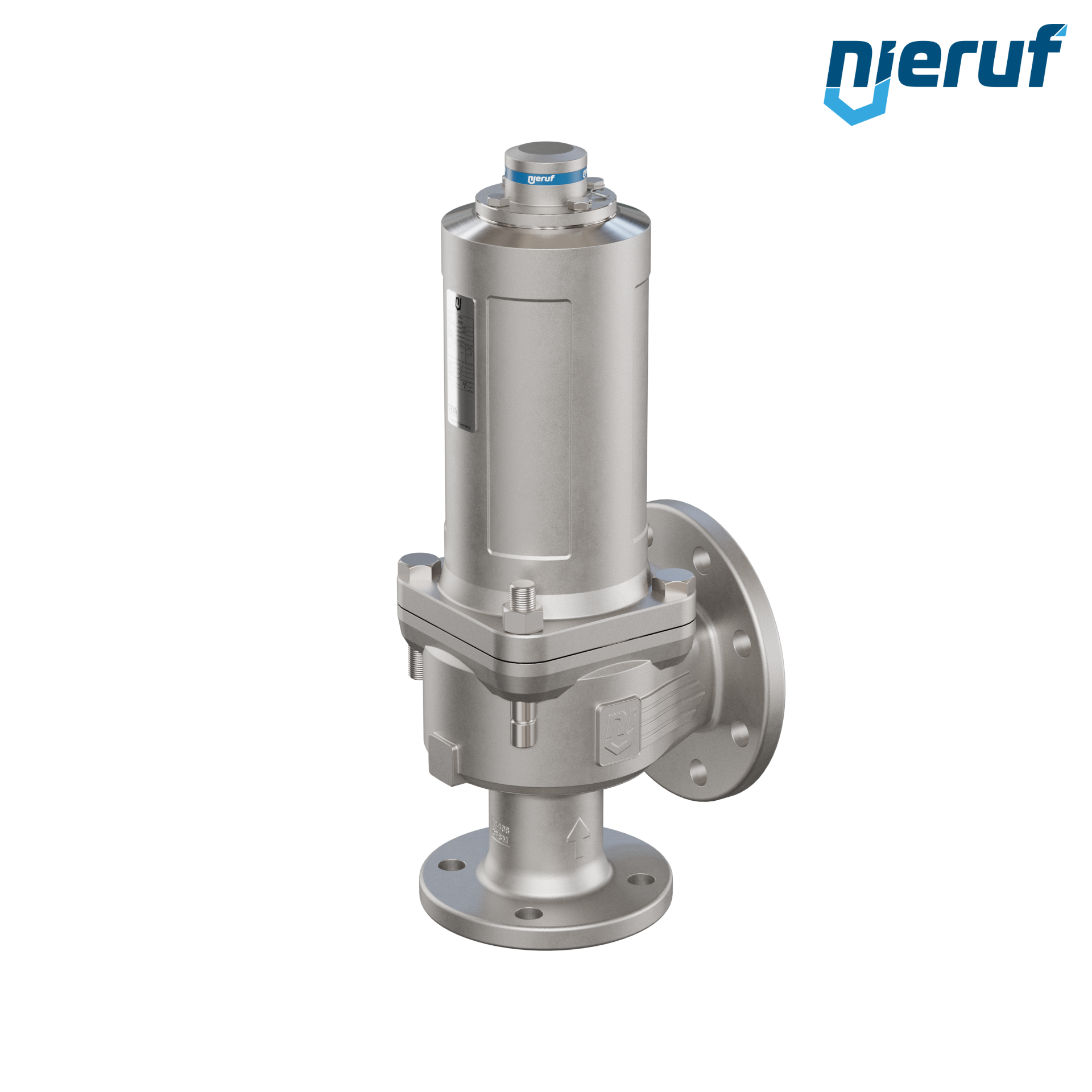

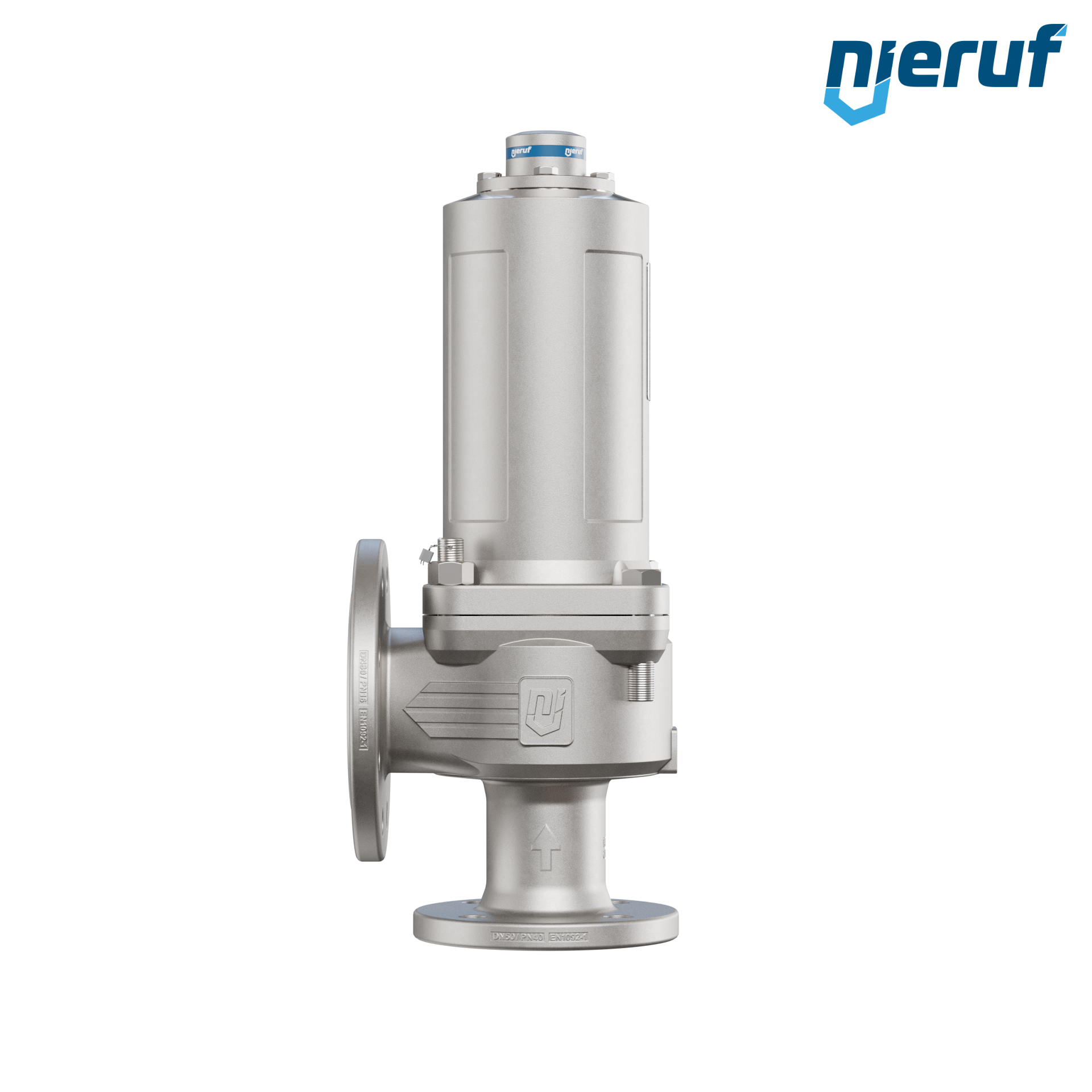

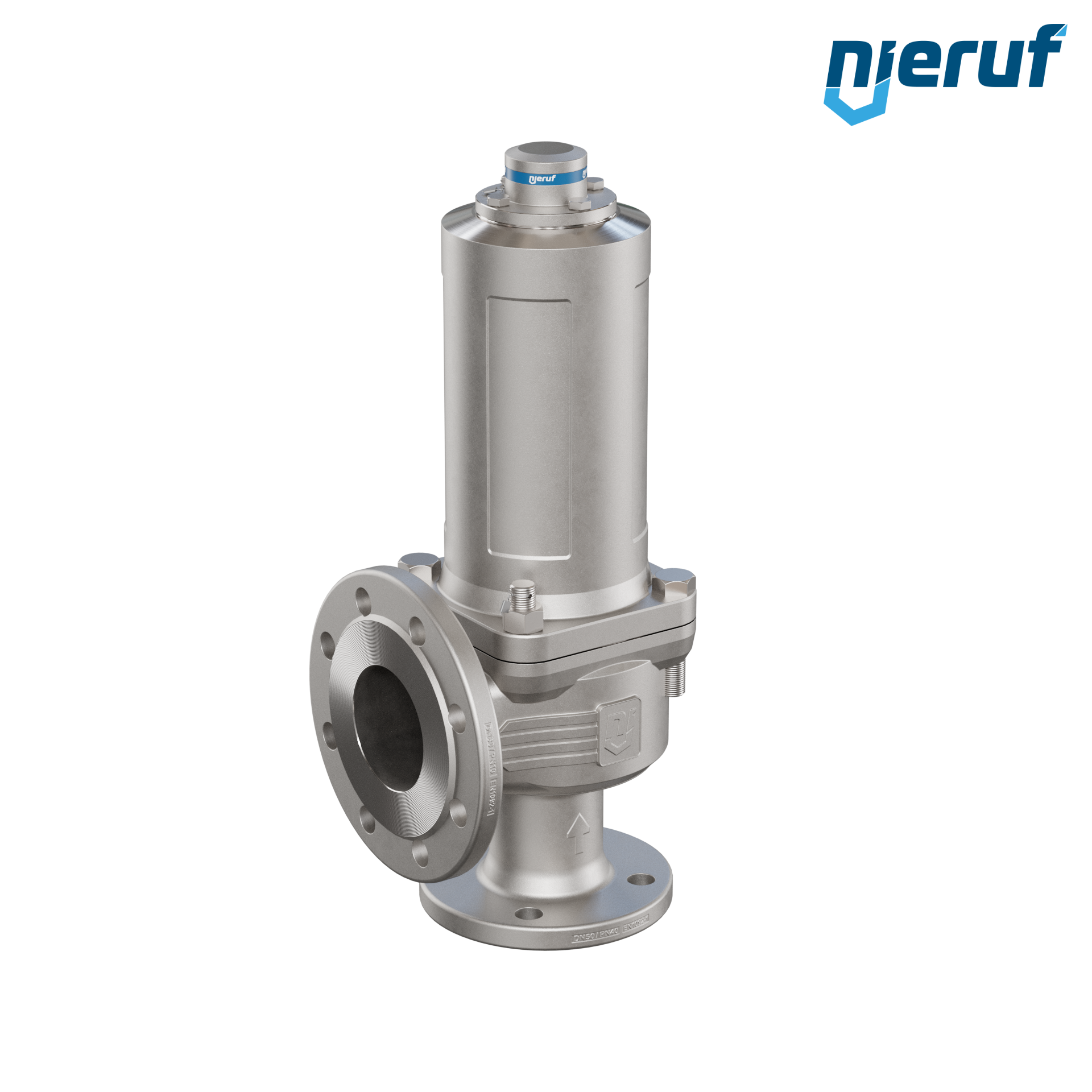

flange-safety valve DN50/DN80 SF04, stainless steel metal, without lifting device
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange-safety valve DN50/DN80 SF04 for liquid and gaseous media made of stainless steel seal metal set pressure 0,2 - 40,0 bar without lifting device
| product: | flange-safety valve |
|---|---|
| type: | SF04 |
| manufacturer: | NieRuf |
| diameter: | DN50/DN80 |
| d0: | 45,0 mm |
| connection: | flange acc. to DIN EN 1092-1 |
| seal: | metal |
| media: | liquid and gaseous media |
| temperature: | -60°C up to +400°C |
| set pressure: | 0,2 - 40,0 bar |
| design: | angle-type |
| material: | stainless steel |
| lifting: | without lifting device |
| type test approval: | TUV-SV-2094-D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| SIL - safety integrity level: | SIL 3 |
| product feature 2: | gastight cap, the environment is protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN50/DN80 SF04, stainless steel metal, without lifting device
Article no.
: SF04000008
product:
flange-safety valve
type:
SF04
manufacturer:
NieRuf
diameter:
DN50/DN80
d0:
45,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
metal
media:
liquid and gaseous media
temperature:
-60°C up to +400°C
set pressure:
0,2 - 40,0 bar
design:
angle-type
material:
stainless steel
lifting:
without lifting device
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3
product feature 2:
gastight cap, the environment is protected from being affected by the medium.
€3.57 VAT included.
€5.00 VAT included.
€10.00 VAT included.
€19.99 VAT included.
€17.37 VAT included.
€55.22 VAT included.
€29.99 VAT included.
