SF01020107

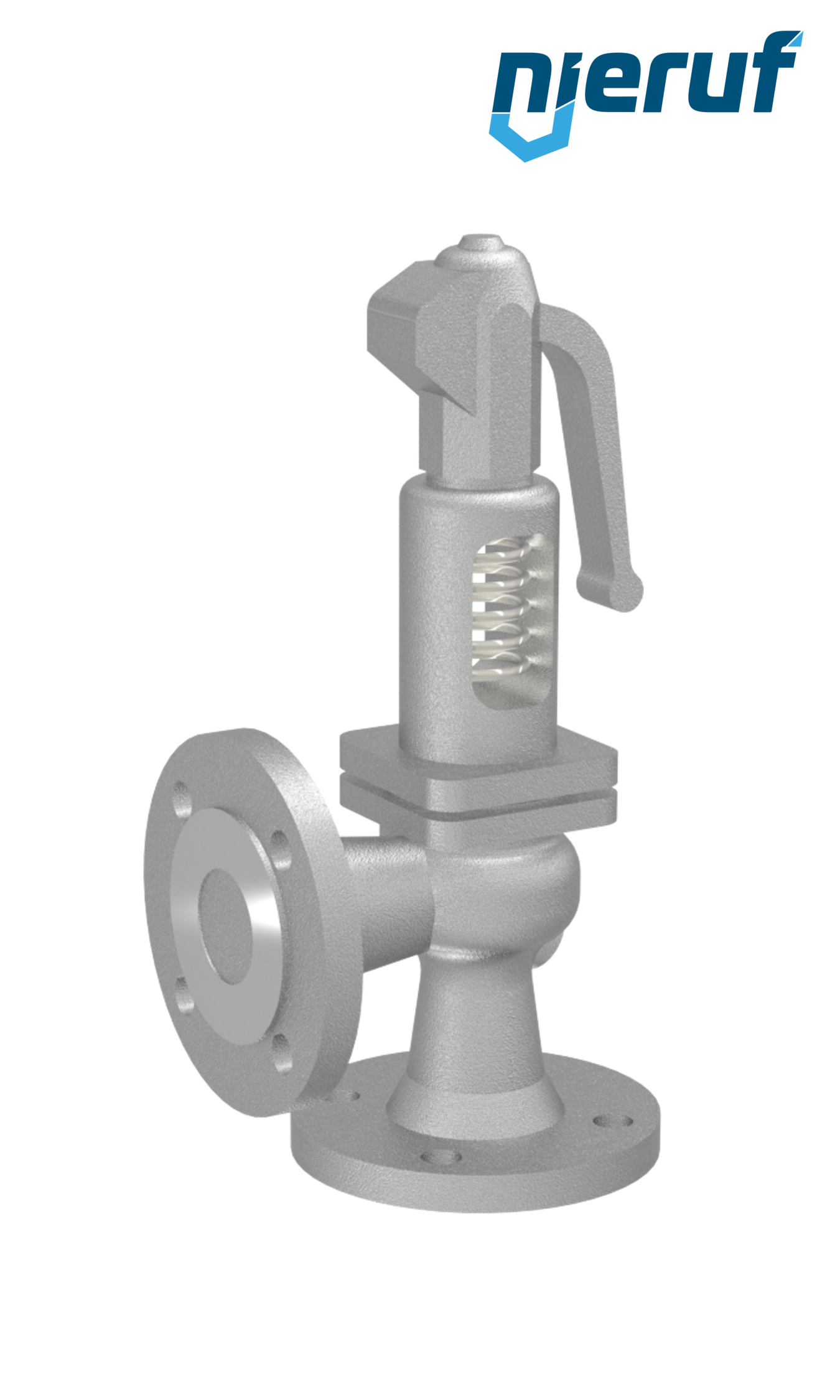

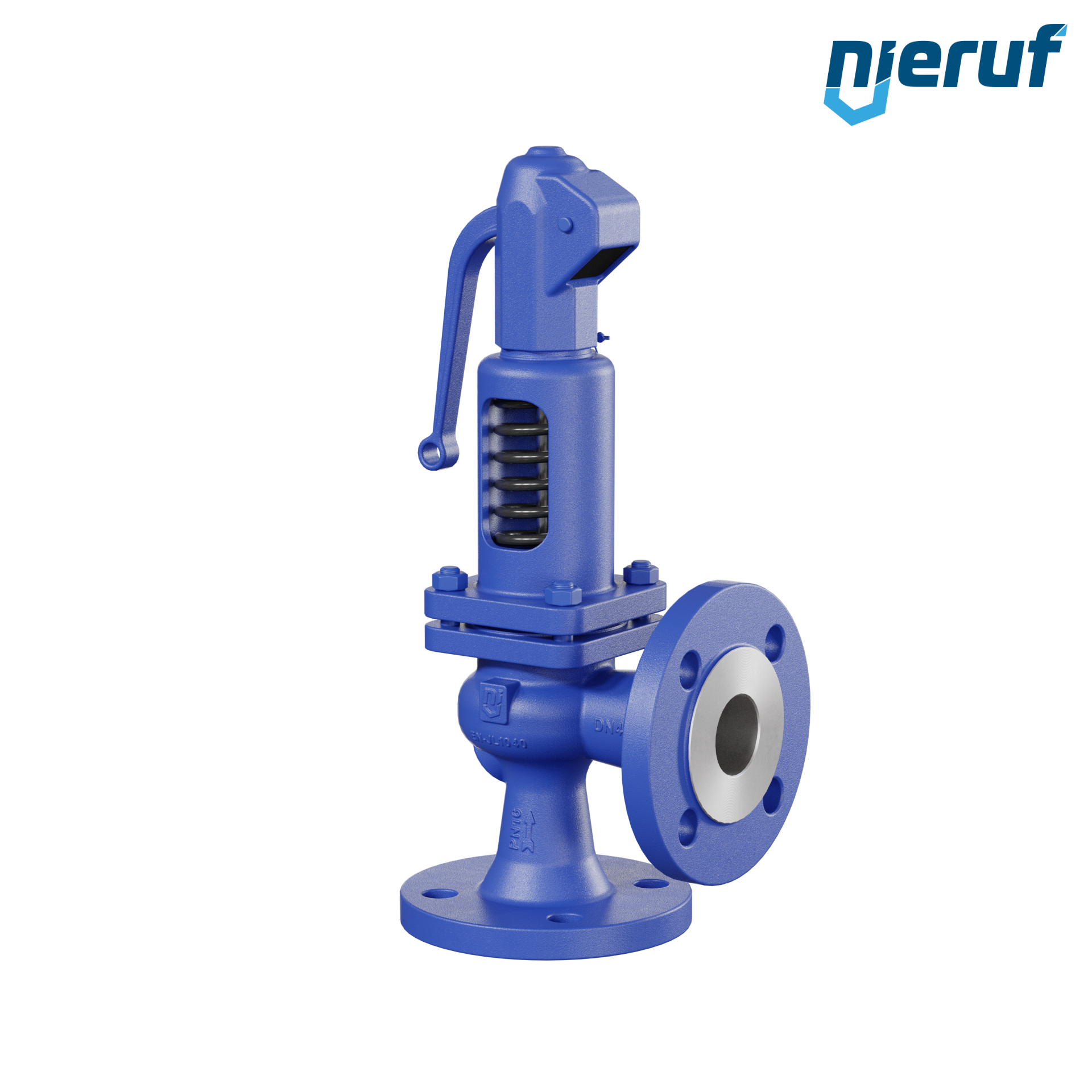

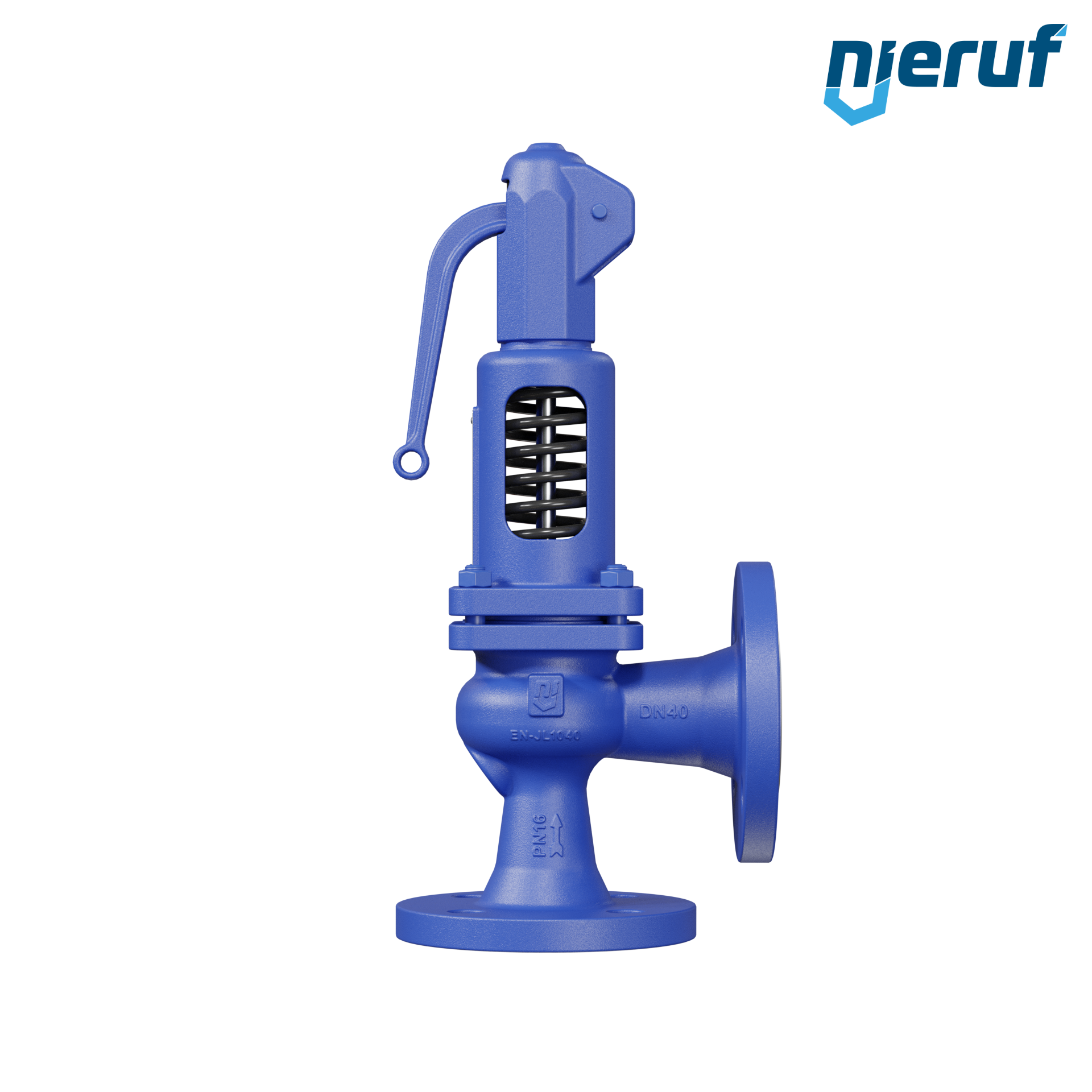

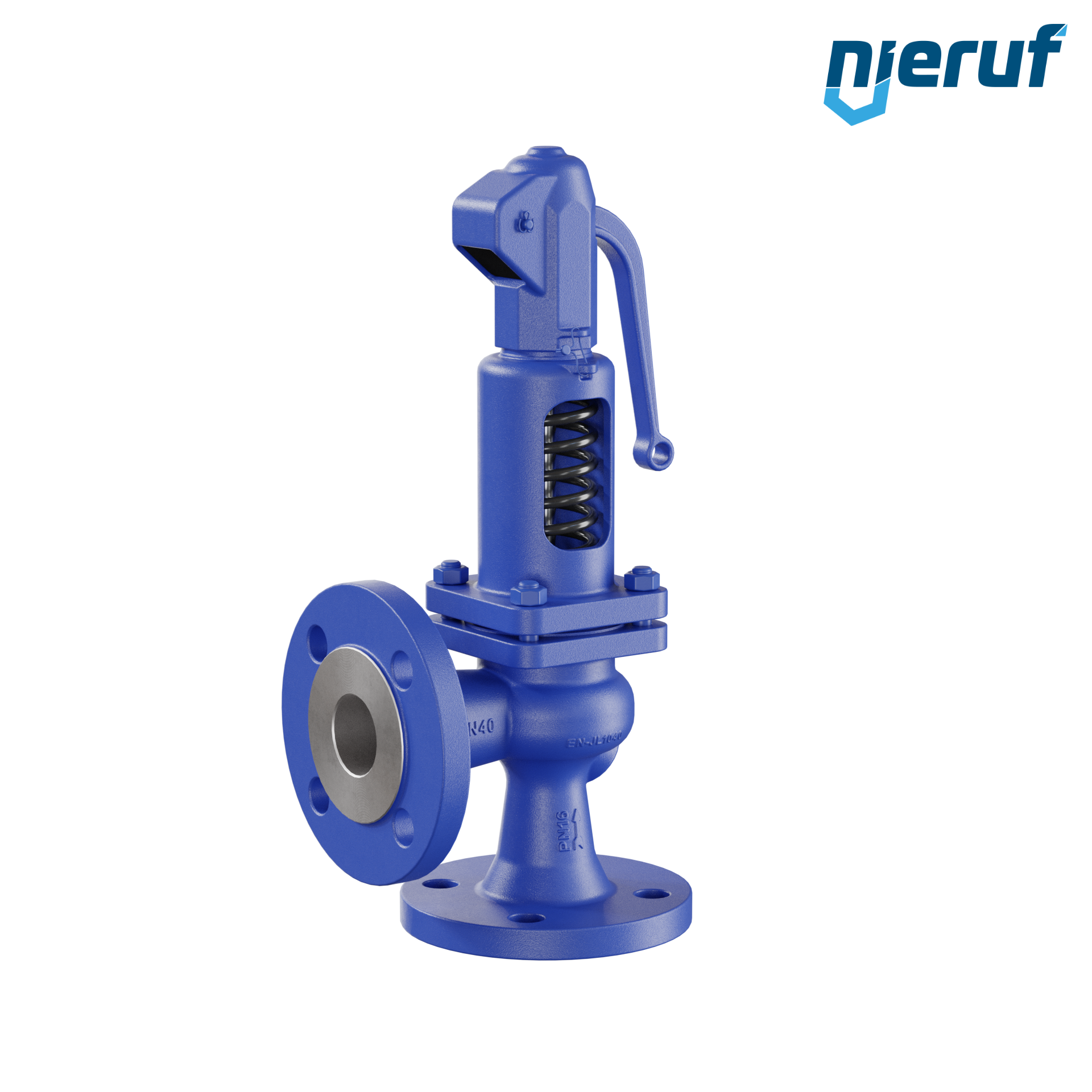

flange-safety valve DN40/DN40 SF0102, cast iron EN-JL1040 EPDM, with lever
Delivery time: 2 - 3 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange-safety valve DN40/DN40 EN-JL1040 with lever for gaseous media seal EPDM pressure 0,5 up to max. 16 bar
| product: | flange-safety valve |
|---|---|
| type: | SF0102 |
| manufacturer: | NieRuf |
| diameter: | DN40/DN40 |
| d0: | 20,0mm |
| connection: | flange acc. to DIN EN 1092-2 |
| seal: | EPDM |
| media: | gaseous media |
| temperature: | 0°C up to + 150°C |
| set pressure: | 0,5 up to max. 16 bar |
| design: | open lifting device and open bonnet |
| material: | cast iron EN-JL1040 |
| lifting: | with lever |
| type test approval: | TÜV-SV-811 D/G |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| product feature 1: | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN40/DN40 SF0102, cast iron EN-JL1040 EPDM, with lever
Article no.
: SF01020107
product:
flange-safety valve
type:
SF0102
manufacturer:
NieRuf
diameter:
DN40/DN40
d0:
20,0mm
connection:
flange acc. to DIN EN 1092-2
seal:
EPDM
media:
gaseous media
temperature:
0°C up to + 150°C
set pressure:
0,5 up to max. 16 bar
design:
open lifting device and open bonnet
material:
cast iron EN-JL1040
lifting:
with lever
type test approval:
TÜV-SV-811 D/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G
