SF01000208
flange-safety valve DN50/DN50 SF01, cast iron EN-JL1040 FPM, with lever
Delivery time: 2 - 3 weeks
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

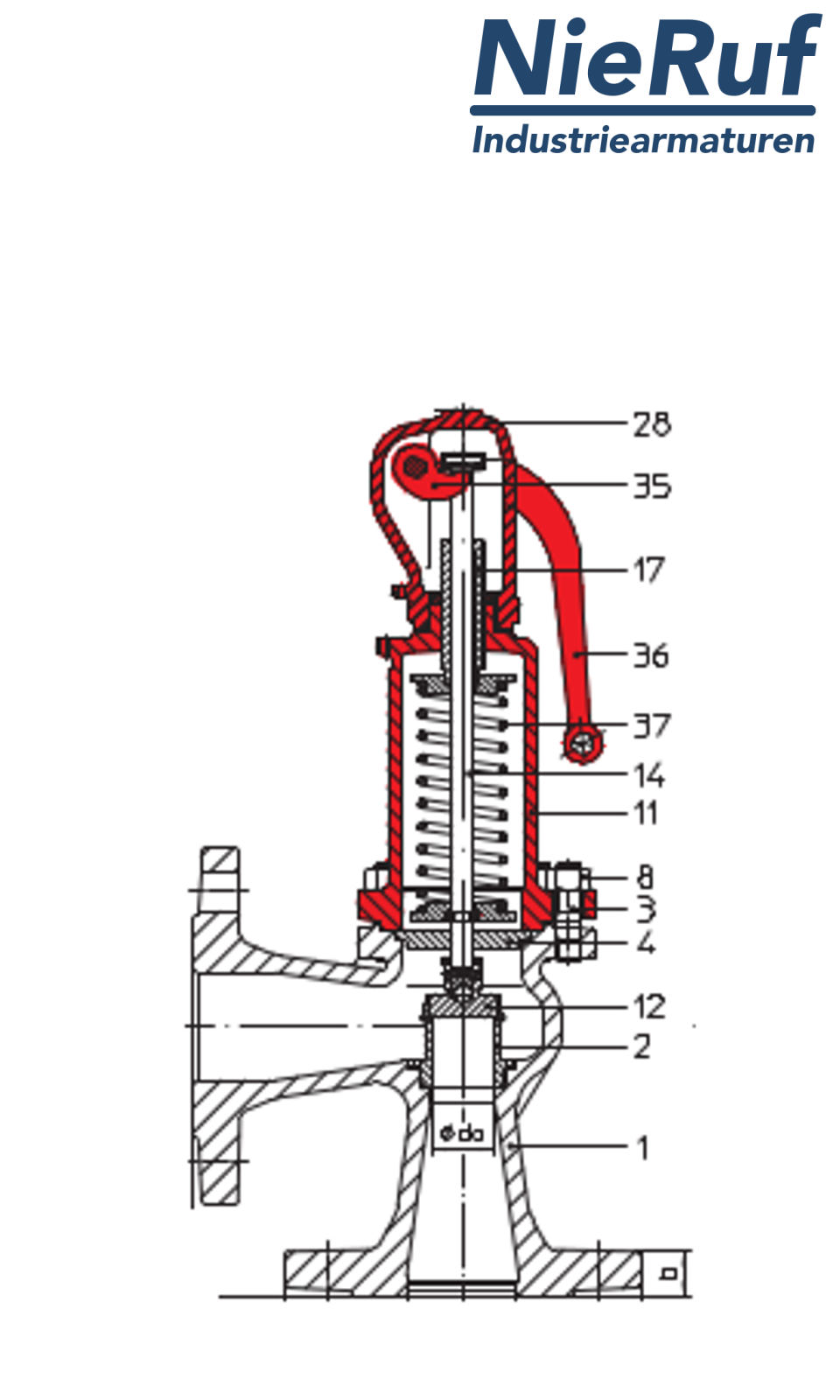

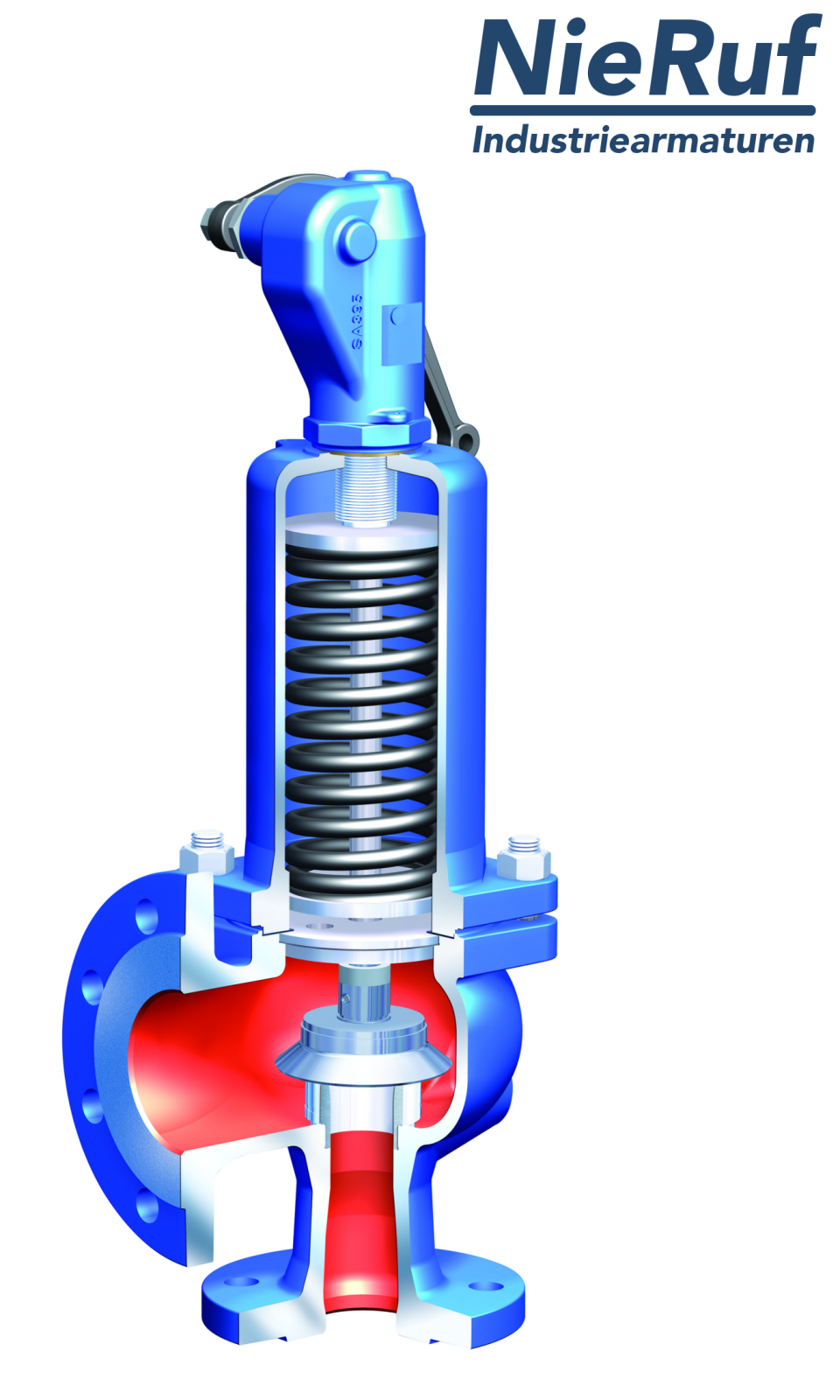

flange-safety valve DN50/DN50 made of cast iron EN-JL1040 seal FPM pressure 0,5 up to max. 16 bar lifting with lever
| product: | flange-safety valve |
|---|---|
| type: | SF01 |
| manufacturer: | NieRuf |
| diameter: | DN50/DN50 |
| d0: | 29,0 mm |
| connection: | flange acc. to DIN EN 1092-2 |
| seal: | FPM |
| media: | liquid and gaseous media |
| temperature: | 0°C up to + 180°C |
| set pressure: | 0,5 up to max. 16 bar |
| design: | closed lifting device and closed bonnet |
| material: | cast iron EN-JL1040 |
| lifting: | with lever |
| type test approval: | TÜV-SV-811 D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| product feature 1: | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN50/DN50 SF01, cast iron EN-JL1040 FPM, with lever
Article no.
: SF01000208
product:
flange-safety valve
type:
SF01
manufacturer:
NieRuf
diameter:
DN50/DN50
d0:
29,0 mm
connection:
flange acc. to DIN EN 1092-2
seal:
FPM
media:
liquid and gaseous media
temperature:
0°C up to + 180°C
set pressure:
0,5 up to max. 16 bar
design:
closed lifting device and closed bonnet
material:
cast iron EN-JL1040
lifting:
with lever
type test approval:
TÜV-SV-811 D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
