SF02000111

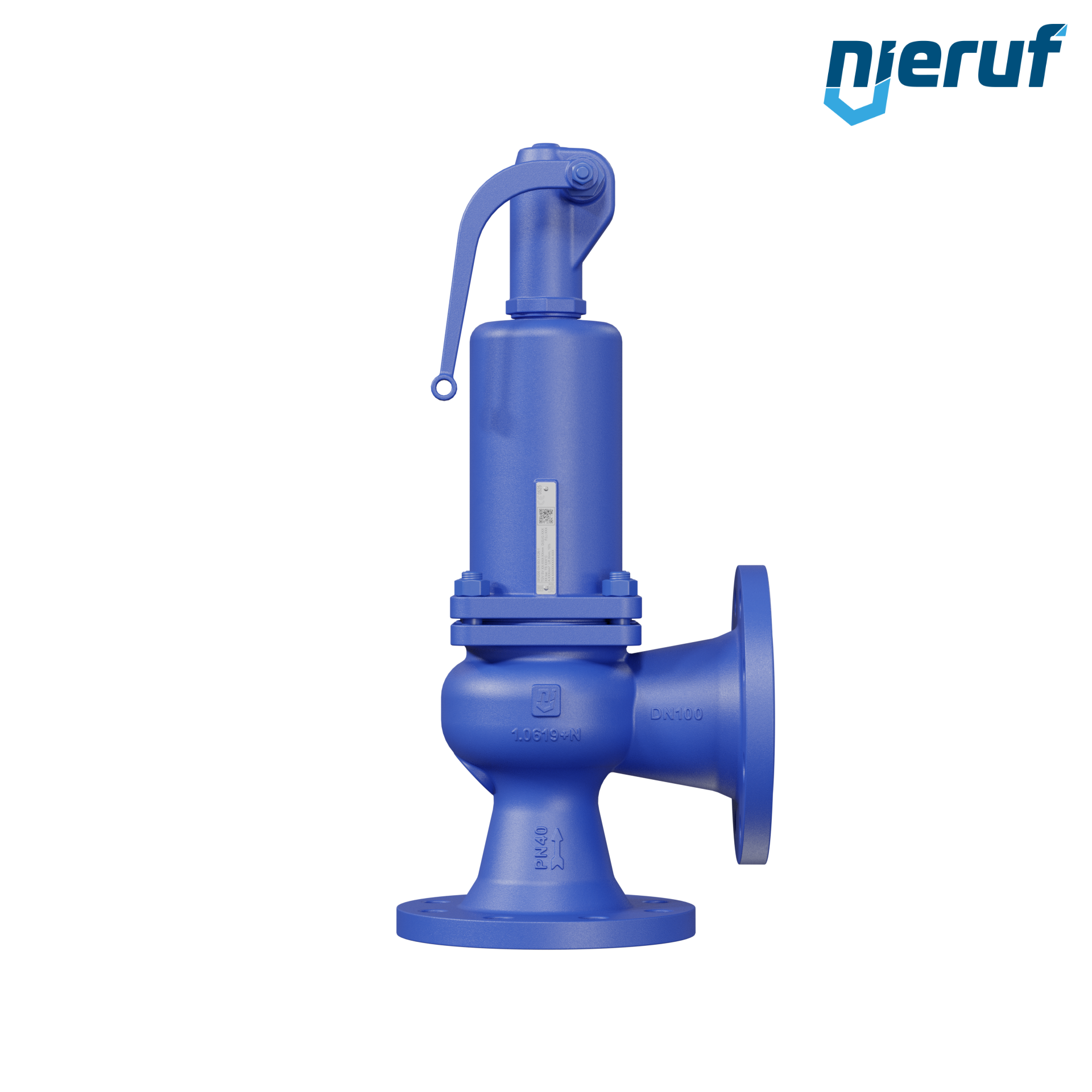

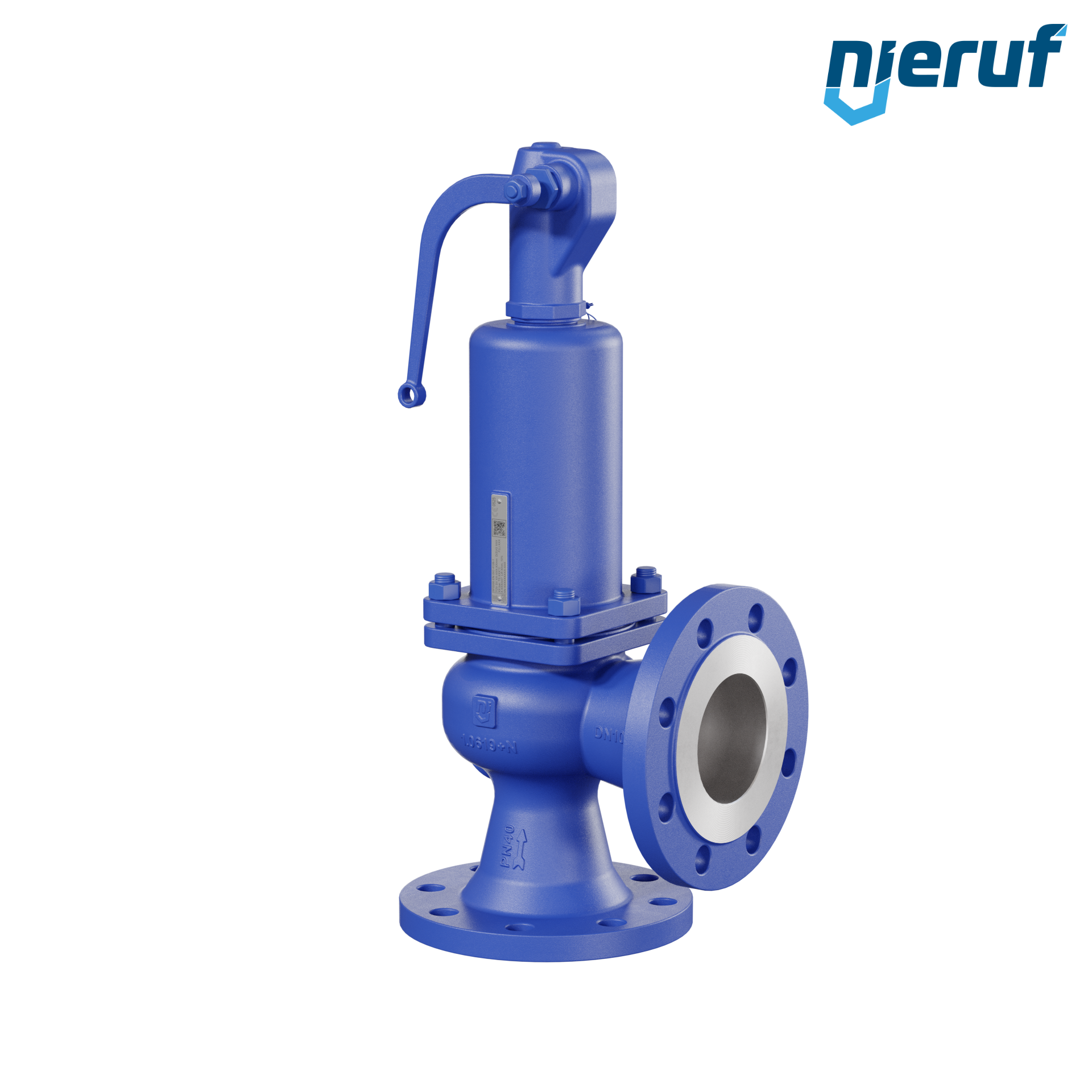

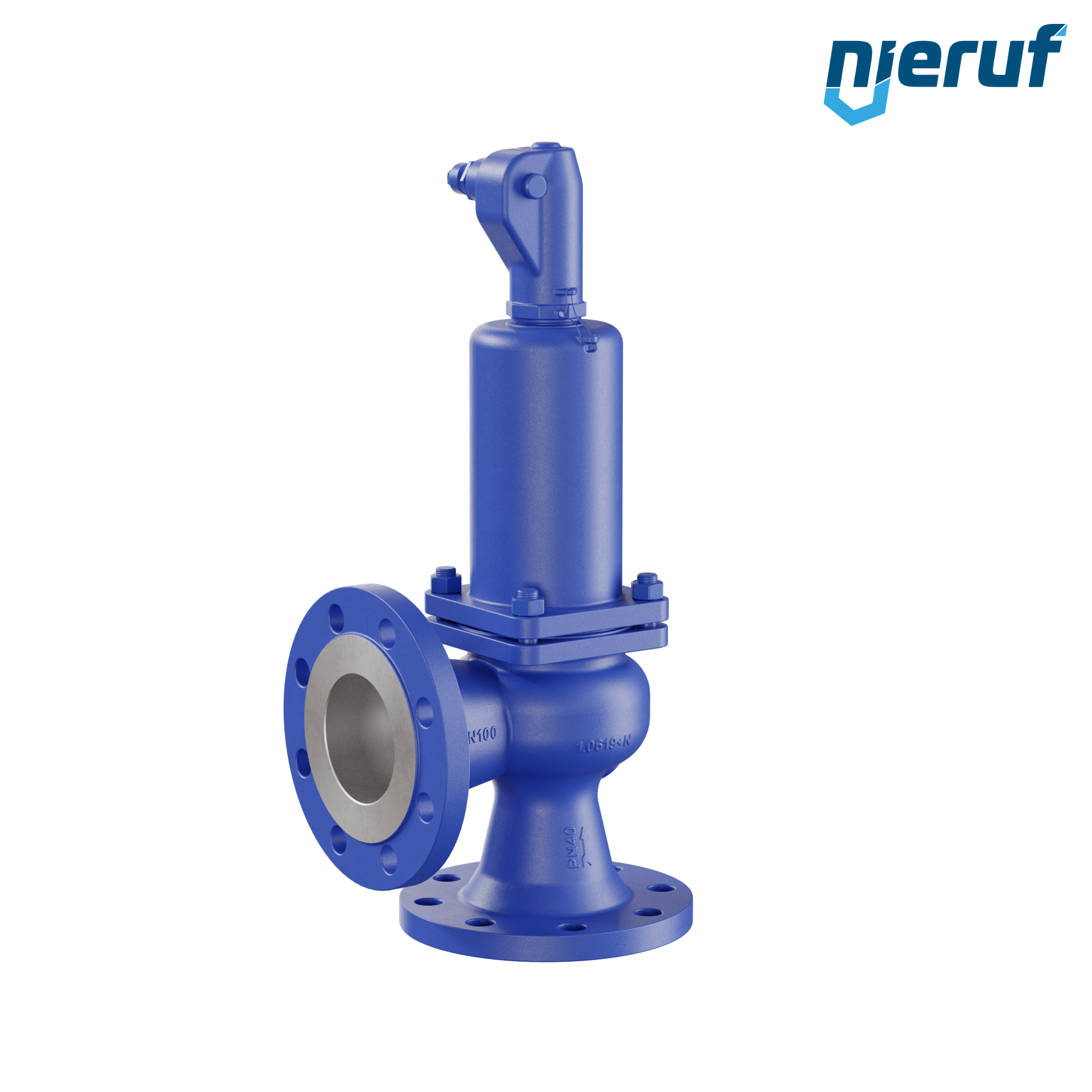

flange-safety valve DN100/DN100 SF02, cast steel 1.0619+N EPDM, with lever
Delivery time: 2 - 3 weeks
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange-safety valve DN100/DN100 pressure 0,5 up to max. 40 bar closed lifting device and closed bonnet for liquid and gaseous media
| product: | flange-safety valve |
|---|---|
| type: | SF02 |
| manufacturer: | NieRuf |
| diameter: | DN100/DN100 |
| d0: | 55,0 mm |
| connection: | flange acc. to DIN EN 1092-1 |
| seal: | EPDM |
| media: | liquid and gaseous media |
| temperature: | 0°C up to + 150°C |
| set pressure: | 0,5 up to max. 40 bar |
| design: | closed lifting device and closed bonnet |
| material: | cast steel 1.0619+N |
| lifting: | with lever |
| type test approval: | TÜV-SV-811 D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| product feature 1: | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN100/DN100 SF02, cast steel 1.0619+N EPDM, with lever
Article no.
: SF02000111
product:
flange-safety valve
type:
SF02
manufacturer:
NieRuf
diameter:
DN100/DN100
d0:
55,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
EPDM
media:
liquid and gaseous media
temperature:
0°C up to + 150°C
set pressure:
0,5 up to max. 40 bar
design:
closed lifting device and closed bonnet
material:
cast steel 1.0619+N
lifting:
with lever
type test approval:
TÜV-SV-811 D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
€9.04 VAT included.
€27.61 VAT included.
€62.59 VAT included.
€173.50 VAT included.
€102.94 VAT included.
