SF02010004

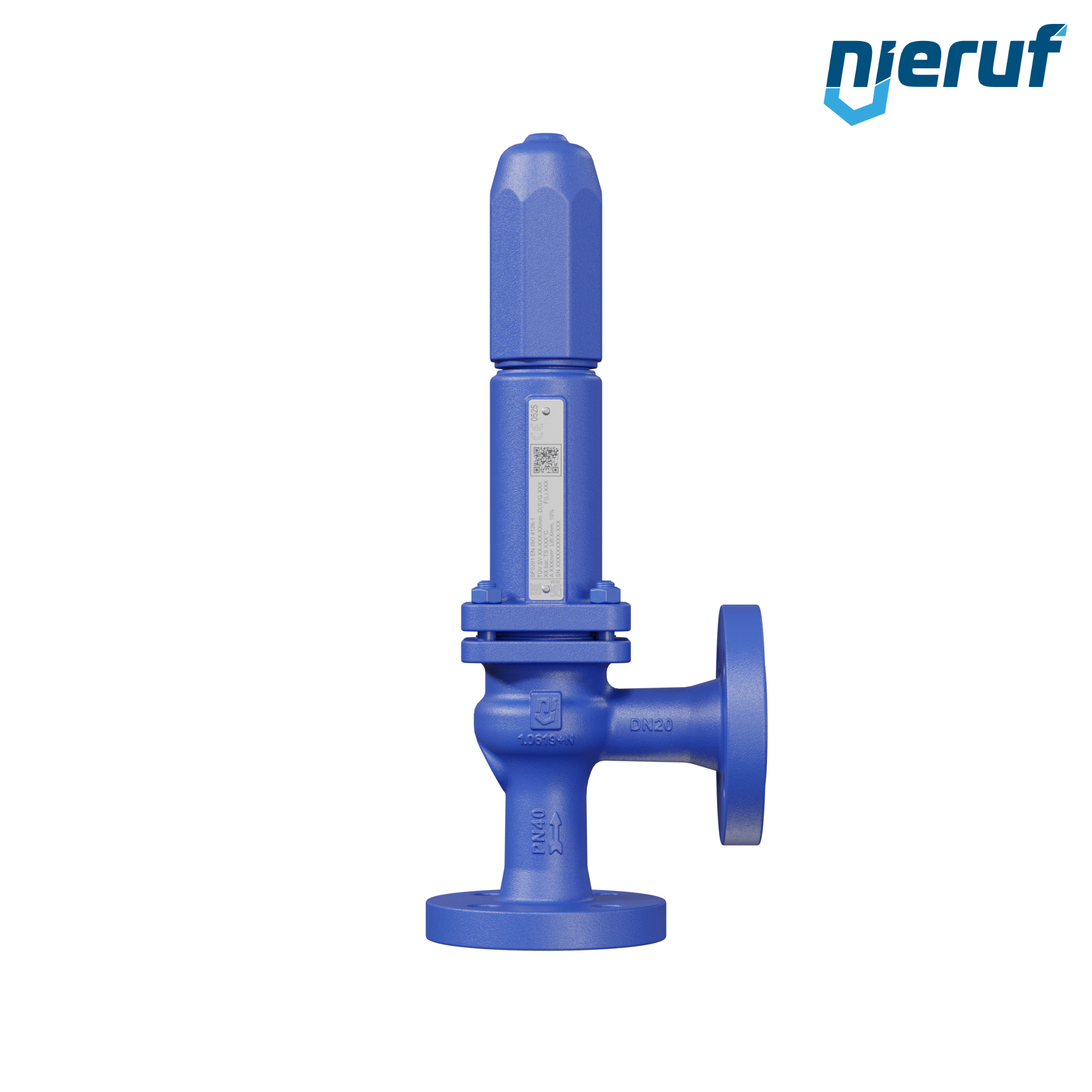

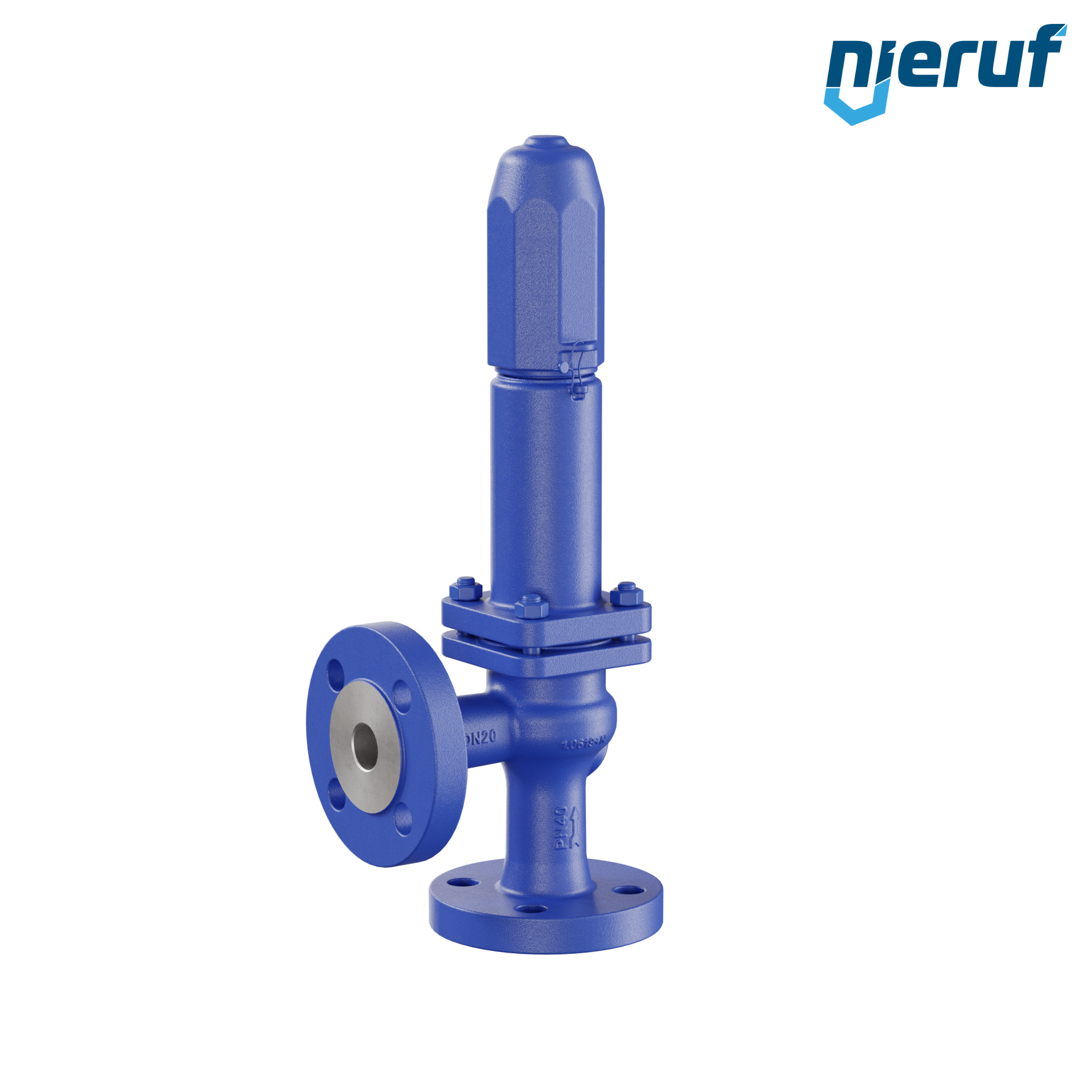

flange-safety valve DN20/DN20 SF0201, cast steel 1.0619+N metal, without lever
Delivery time: 2 - 3 weeks
Equipment
Flange DN20 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€14.40 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange-safety valve DN20/DN20 pressure 0,3 up to max. 40 bar without lever for liquid and gaseous media made of cast steel 1.0619+N seal metal
| product: | flange-safety valve |
|---|---|
| type: | SF0201 |
| manufacturer: | NieRuf |
| diameter: | DN20/DN20 |
| d0: | 12,0 mm |
| connection: | flange acc. to DIN EN 1092-1 |
| seal: | metal |
| media: | liquid and gaseous media |
| temperature: | - 10°C up to + 450°C |
| set pressure: | 0,3 up to max. 40 bar |
| design: | gastight cap and closed bonnet |
| material: | cast steel 1.0619+N |
| lifting: | without lever |
| type test approval: | TÜV-SV-811 D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| product feature 1: | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN20/DN20 SF0201, cast steel 1.0619+N metal, without lever
Article no.
: SF02010004
product:
flange-safety valve
type:
SF0201
manufacturer:
NieRuf
diameter:
DN20/DN20
d0:
12,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
metal
media:
liquid and gaseous media
temperature:
- 10°C up to + 450°C
set pressure:
0,3 up to max. 40 bar
design:
gastight cap and closed bonnet
material:
cast steel 1.0619+N
lifting:
without lever
type test approval:
TÜV-SV-811 D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F
