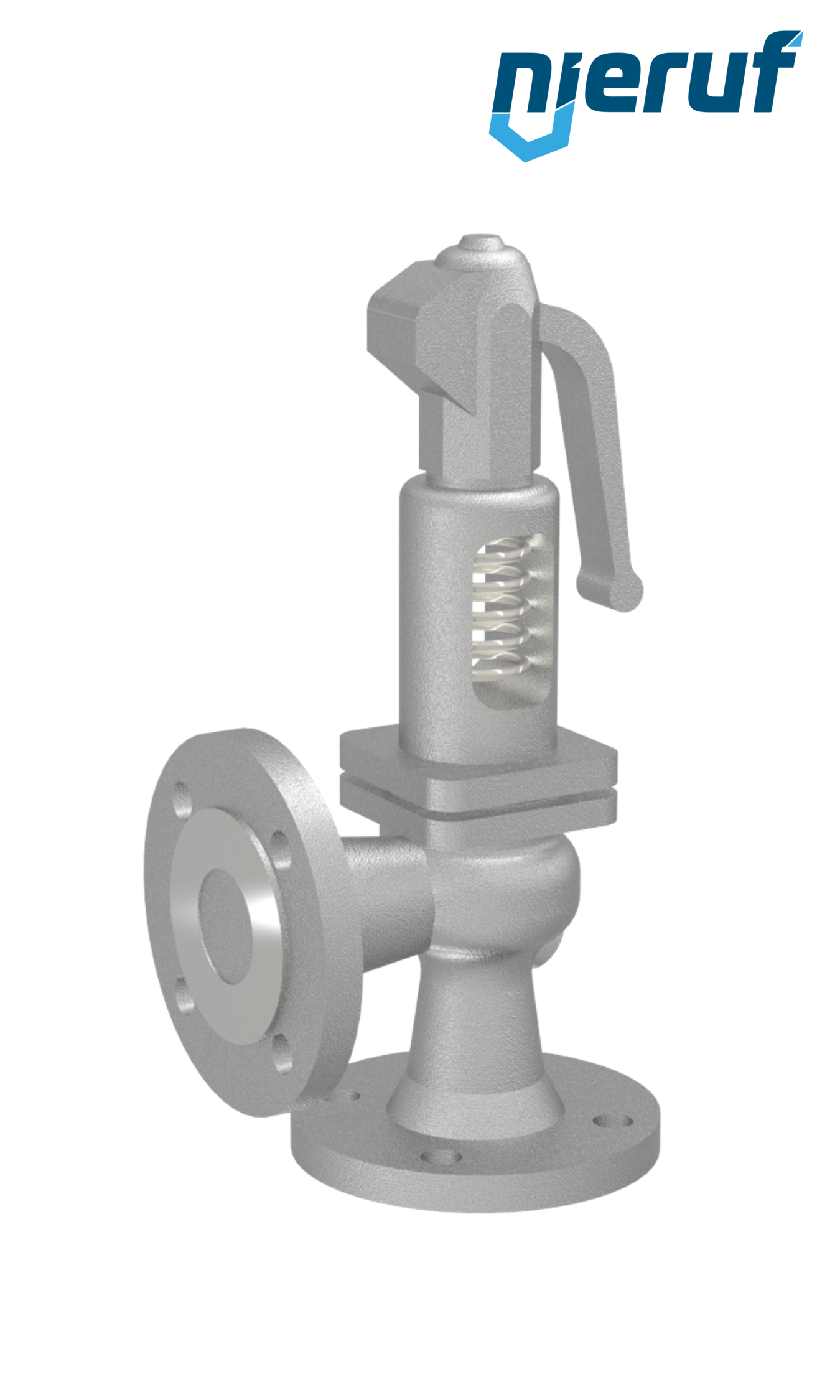

flange-safety valve DN80/DN80 SF0202 for gaseous media made of cast steel seal EPDM pressure 0,5 up to max. 40 bar 0°C up to + 150°C
| product | flange-safety valve |
|---|---|
| type | SF0202 |
| manufacturer | NieRuf |
| diameter | DN80/DN80 |
| d0 | 44,0 mm |
| connection | flange acc. to DIN EN 1092-1 |
| seal | EPDM |
| media | gaseous media |
| temperature | 0°C up to + 150°C |
| set pressure | 0,5 up to max. 40 bar |
| design | open lifting device and open bonnet |
| material | cast steel |
| lifting | with lever |
| type test approval | TÜV-SV-811 D/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| product feature 1 | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-safety valve DN80/DN80 SF0202, cast steel EPDM, with lever
Article no.
: SF02020110
product:
flange-safety valve
type:
SF0202
manufacturer:
NieRuf
diameter:
DN80/DN80
d0:
44,0 mm
connection:
flange acc. to DIN EN 1092-1
seal:
EPDM
media:
gaseous media
temperature:
0°C up to + 150°C
set pressure:
0,5 up to max. 40 bar
design:
open lifting device and open bonnet
material:
cast steel
lifting:
with lever
type test approval:
TÜV-SV-811 D/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
product feature 1:
safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G
