SF03010004

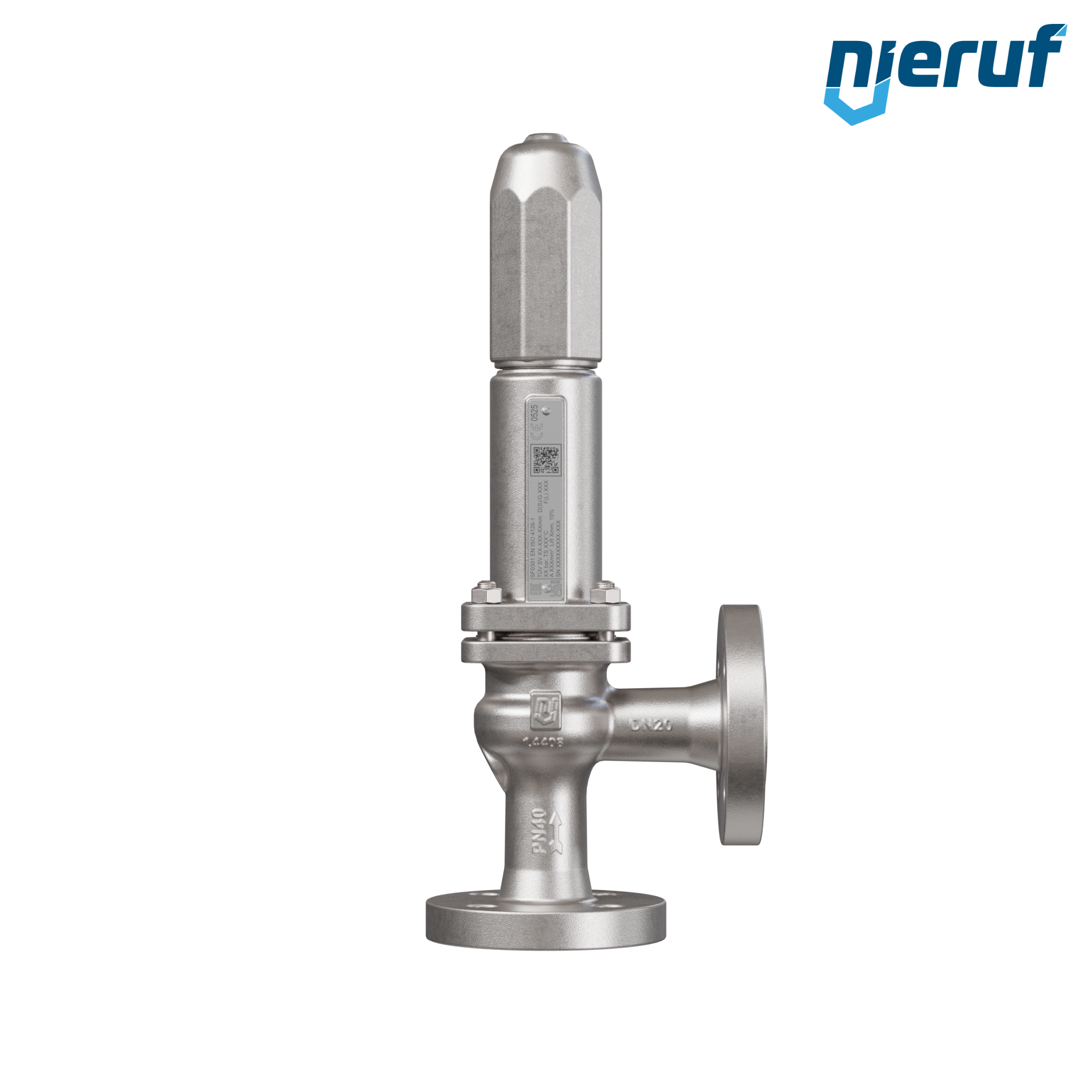

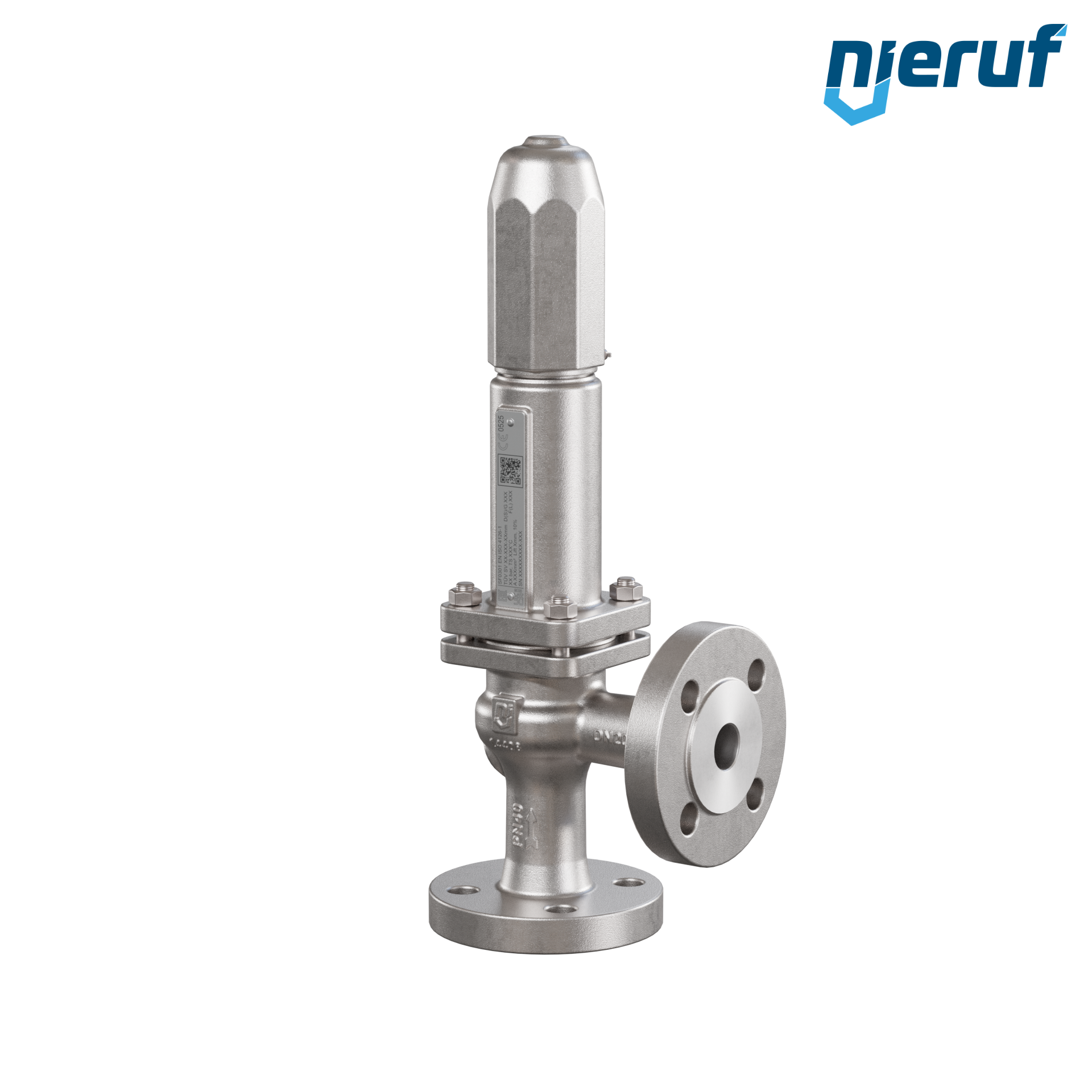

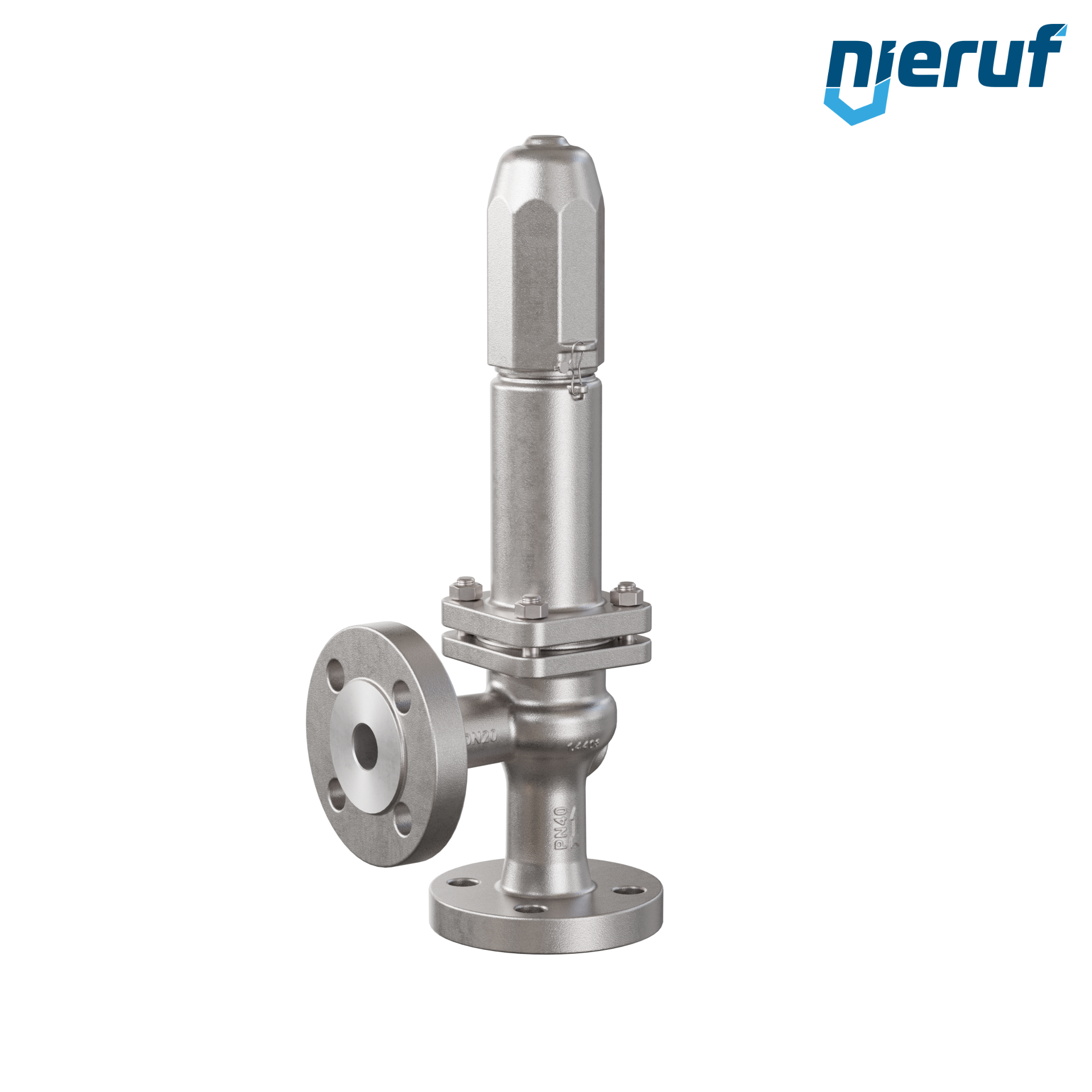

flange-safety valve DN20/DN20 SF0301, stainless steel metal, without lever
Delivery time: 2 - 3 weeks
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€26.78 VAT included.
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
DN20 flange-safety valve gastight cap and closed bonnet for liquid and gaseous media made of stainless steel pressure 0,3 up to max. 40 bar
| product: | flange-safety valve |
|---|---|
| type: | SF0301 |
| manufacturer: | NieRuf |
| diameter: | DN20/DN20 |
| d0: | 12,0 mm |
| connection: | flange acc. to DIN EN 1092-1 |
| seal: | metal |
| media: | liquid and gaseous media |
| temperature: | - 60°C up to + 400°C |
| set pressure: | 0,3 up to max. 40 bar |
| design: | gastight cap and closed bonnet |
| material: | stainless steel |
| lifting: | without lever |
| type test approval: | TÜV-SV-811 D/G/F |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | vertical, spindle standing upwards |
| product feature 1: | safety valve, spring loaded, direct loaded. Standard safety valve (acc. VdTÜV-leaflet 811): TÜV-SV-811 D/G and TÜV-SV-811 F |
