FD01000211
flange seal DN100 PN25/40 115x168x2 Klingersil C 4400
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you

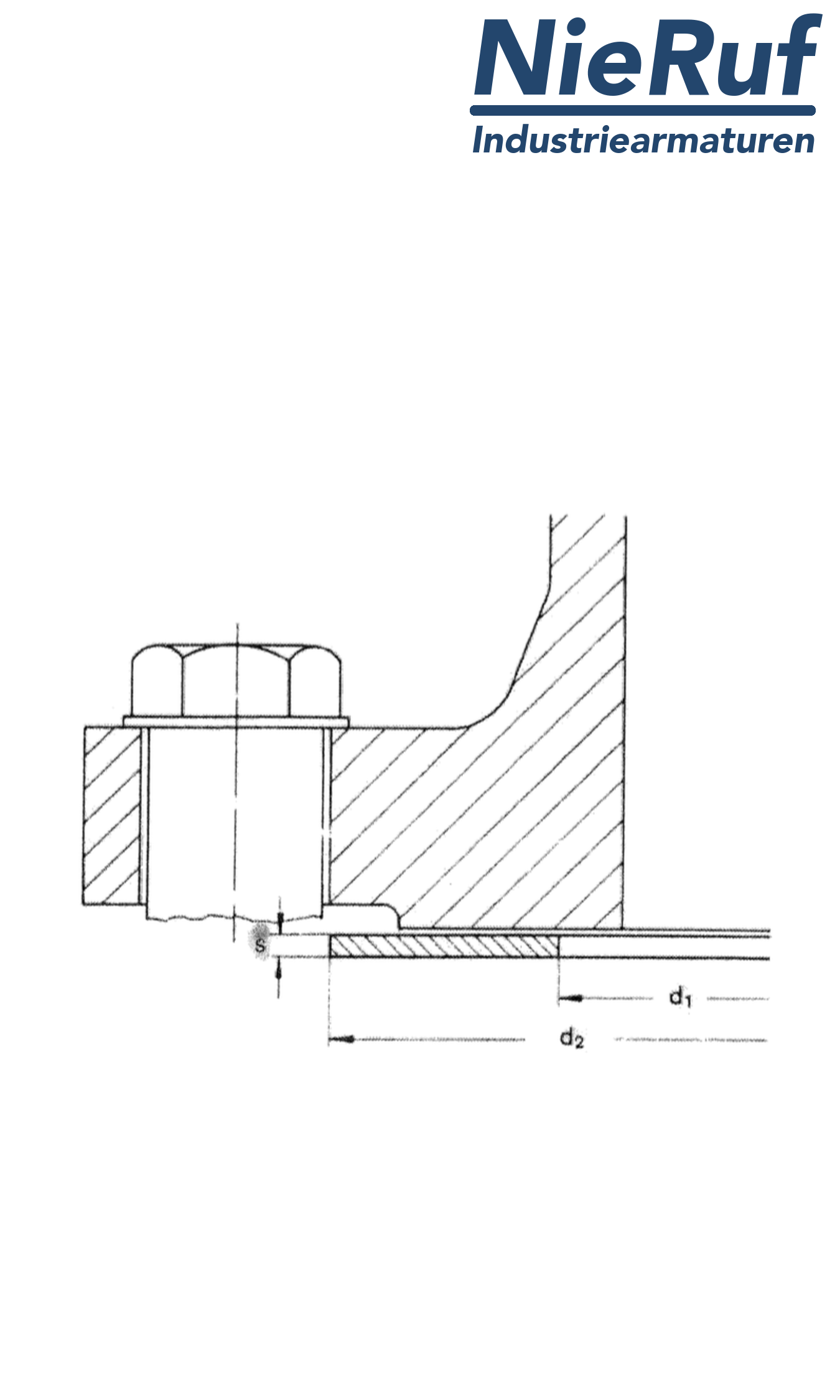

flange seal DN100 168x115x2 PN25/40 made of Klingersil C 4400 acc. rule EN1514-1 IBC
| product: | flange seal |
|---|---|
| type: | FD01 |
| manufacturer: | NieRuf |
| diameter: | DN100 |
| connection: | PN25/40 |
| material: | Klingersil C 4400 |
| norm: | EN1514-1 |
| form: | IBC |
| Design: | flange seal |
| d1: | 115 |
| d2: | 168 |
| S: | 2 |
| Dimension tolerance: | acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm |
| temerature: | -100°C up to +160°C, max. +400°C with 0 bar pressure |
| approval: | DVGW, BAM, TA-Luft, ÖVGW, SVGW |
| suitable for: | oil, gas, steam |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange seal DN100 PN25/40 115x168x2 Klingersil C 4400
Article no.
: FD01000211
product:
flange seal
type:
FD01
manufacturer:
NieRuf
diameter:
DN100
connection:
PN25/40
material:
Klingersil C 4400
norm:
EN1514-1
form:
IBC
Design:
flange seal
d1:
115
d2:
168
S:
2
Dimension tolerance:
acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm
temerature:
-100°C up to +160°C, max. +400°C with 0 bar pressure
approval:
DVGW, BAM, TA-Luft, ÖVGW, SVGW
suitable for:
oil, gas, steam
