FS01010011

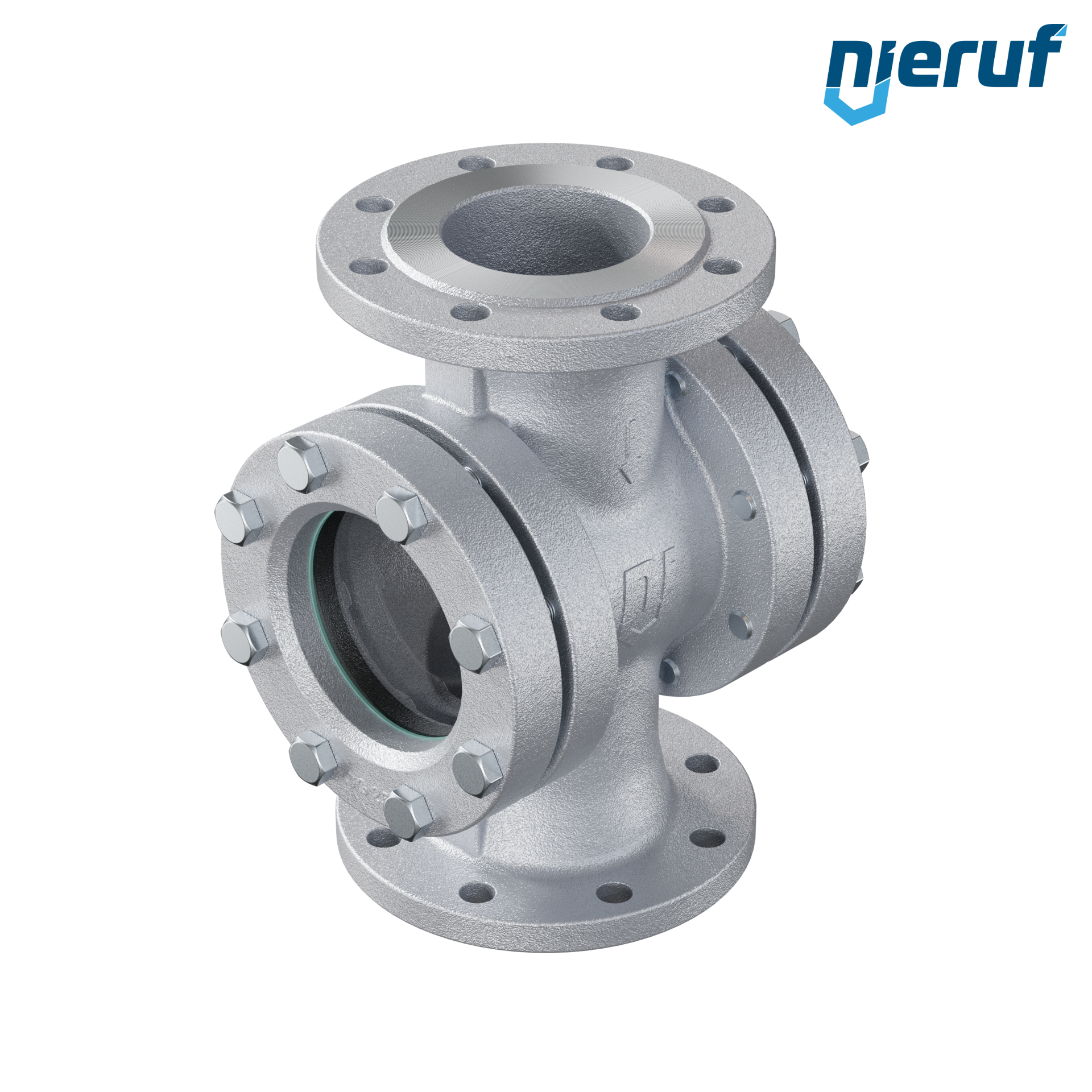

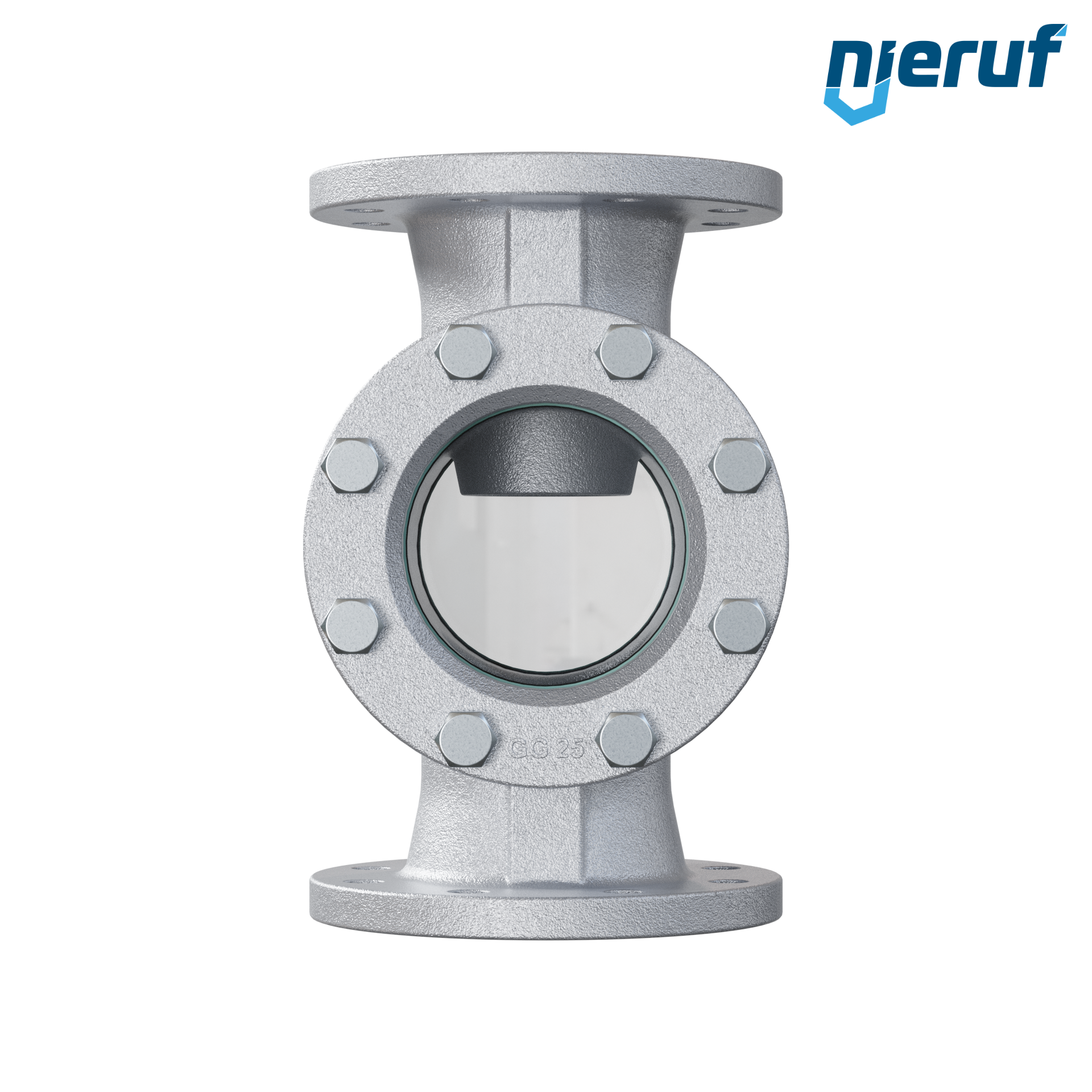

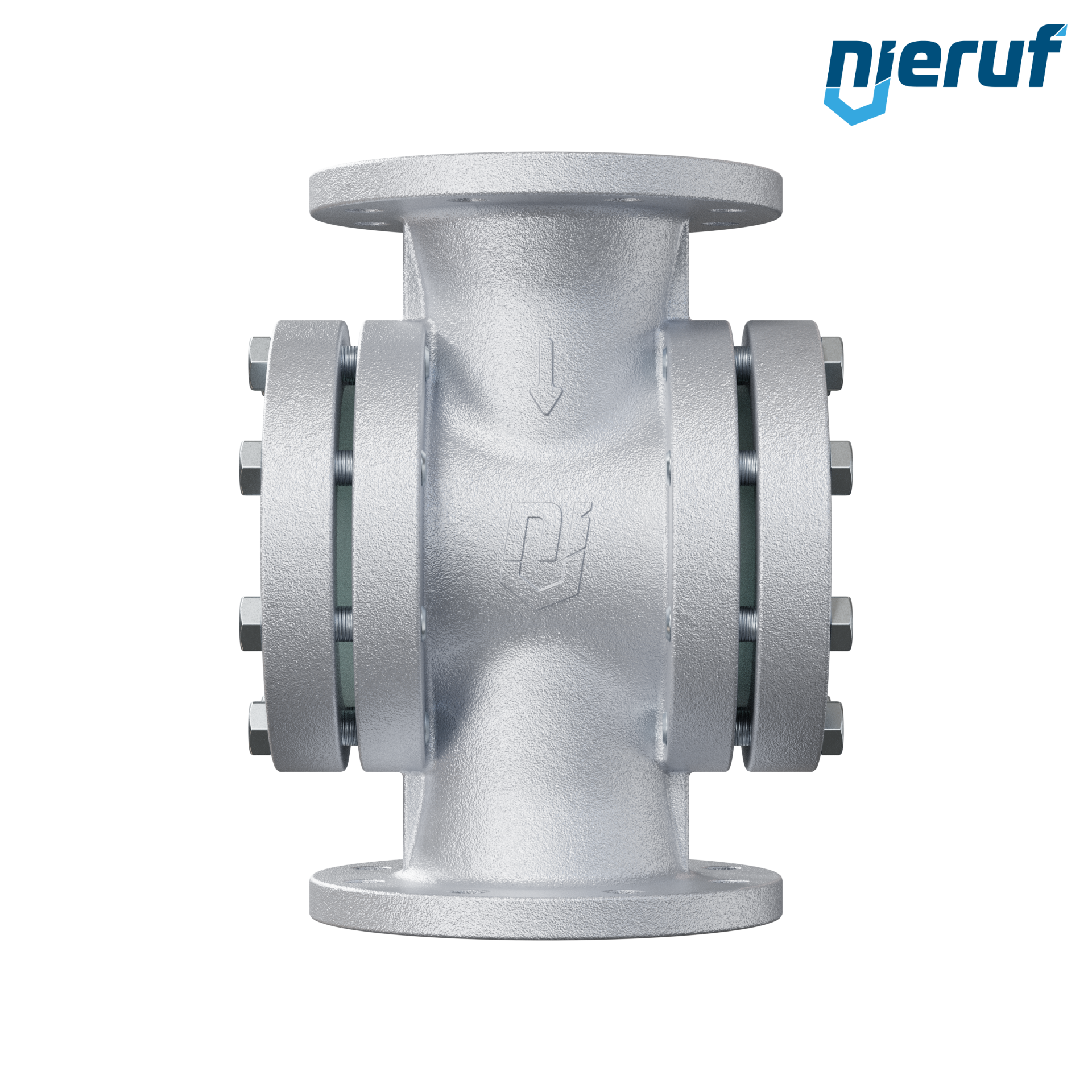

flange sight flow indicator DN100 - 4" Inch grey cast iron GG25 soda lime glass
- Delivery time
- 2 - 3 weeks
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 steel
€16.18 VAT included.
Questions about the article?
Downloads
flange sight flow indicator DN100 - 4" Inch Typ FS01 grey cast iron GG25 soda lime glass graphit max 16 bar
| product | flange sight flow indicator |
|---|---|
| type | FS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | DN100 - 4" Inch |
| connection | flange PN16 |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | min -10°C up to max + 150°C |
| max. working pressure | max 16 bar |
| requirements | DIN 3237 |
| installation position | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN100 - 4" Inch grey cast iron GG25 soda lime glass
Article no.
: FS01010011
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN100 - 4" Inch
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 16 bar
requirements:
DIN 3237
installation position:
any position
