FS01010214

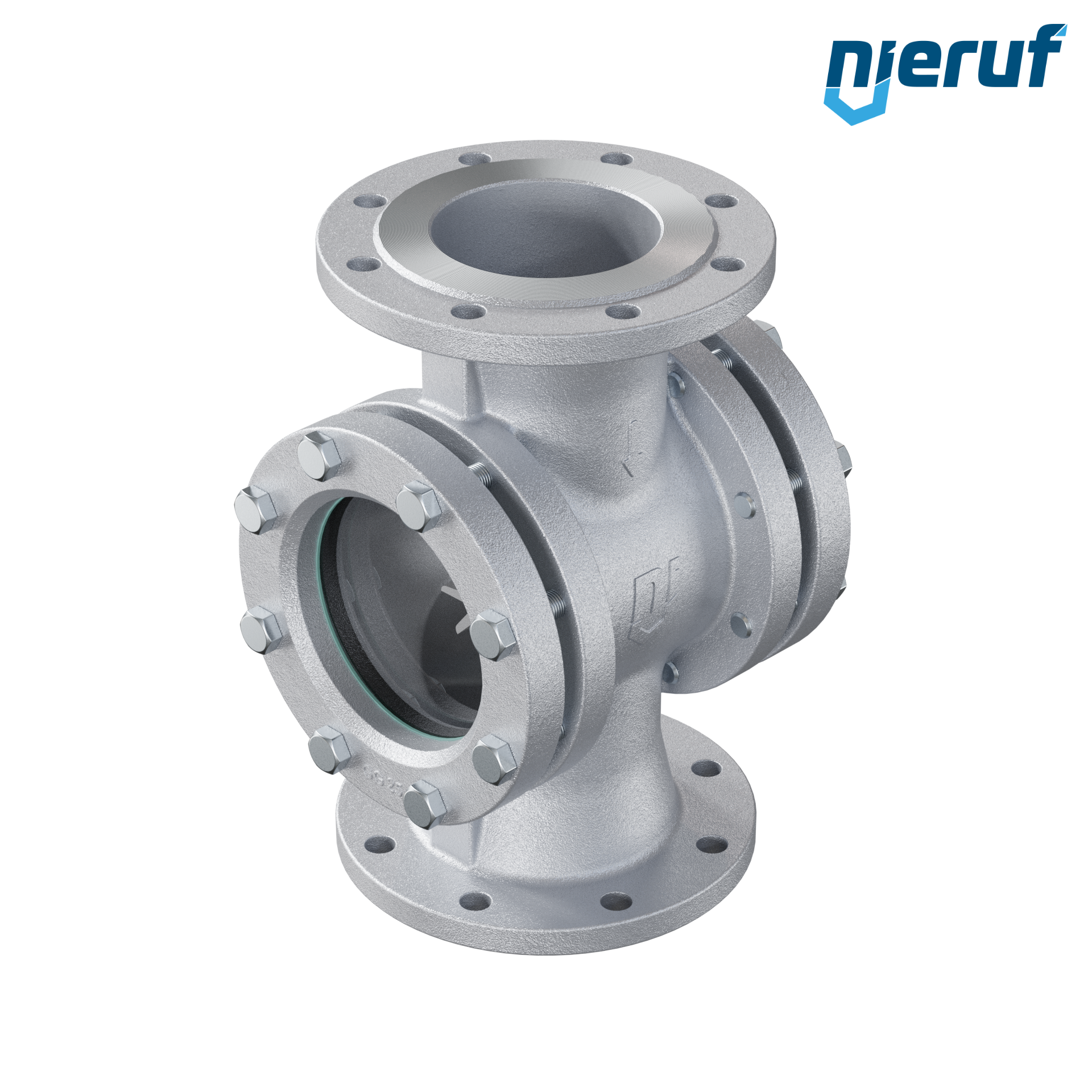

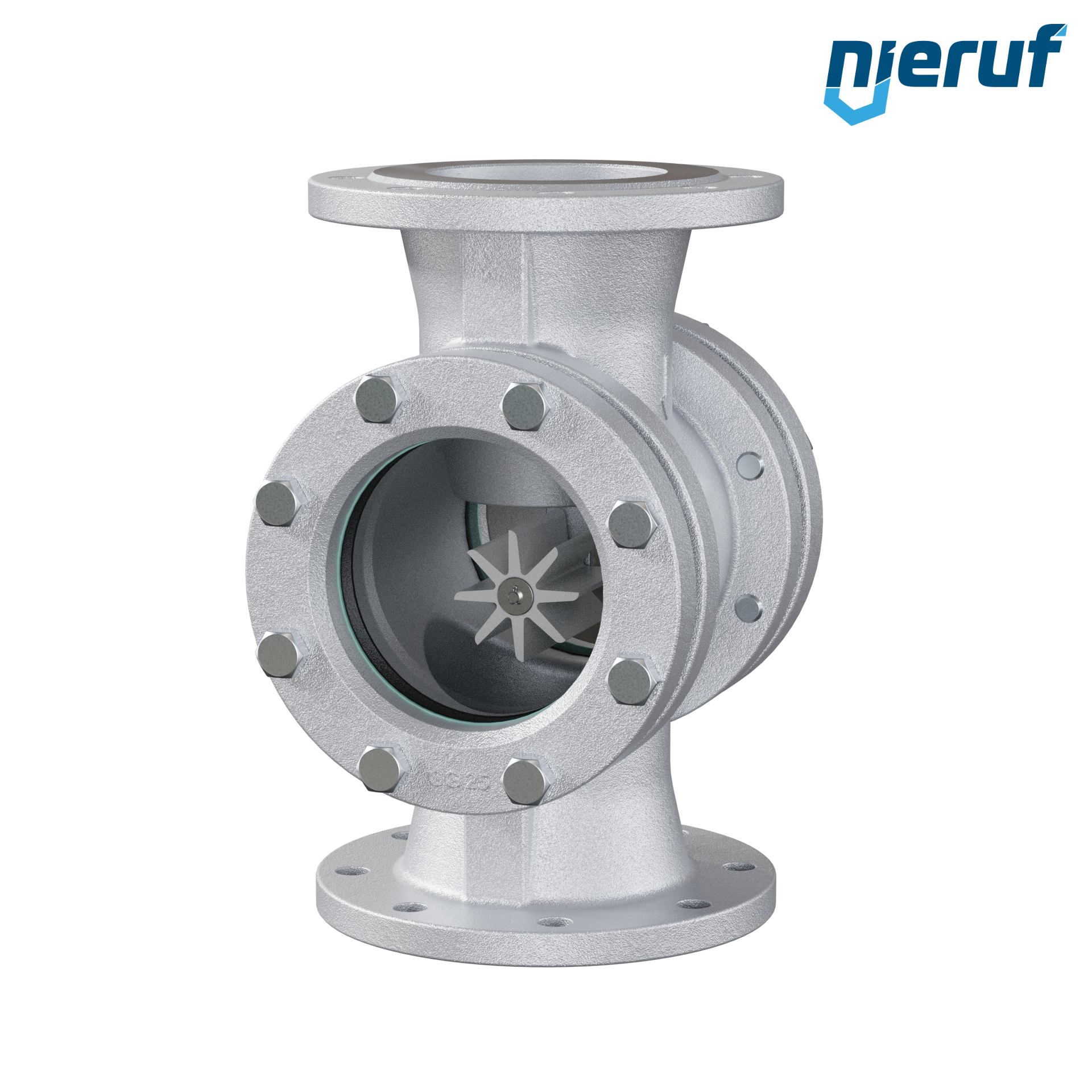

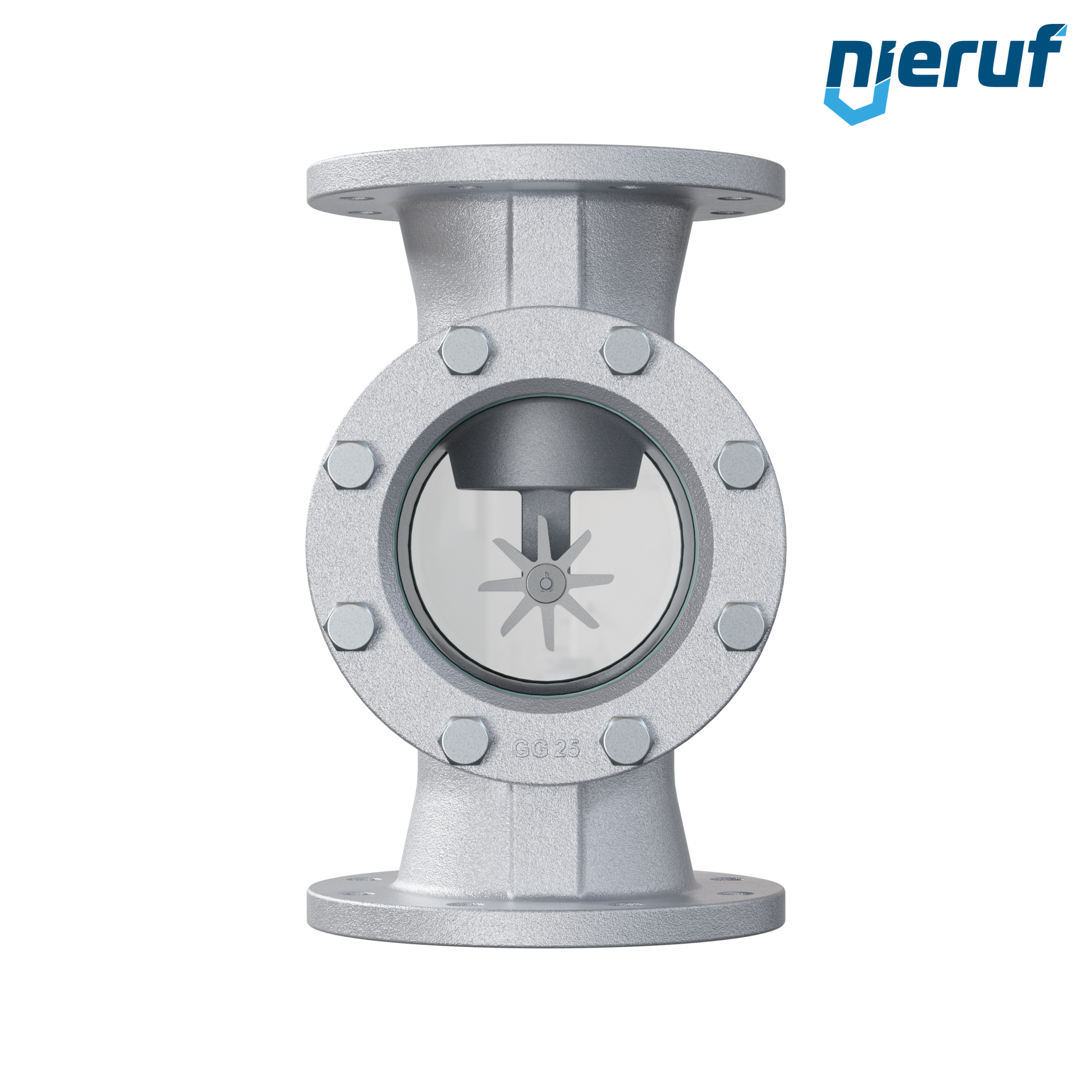

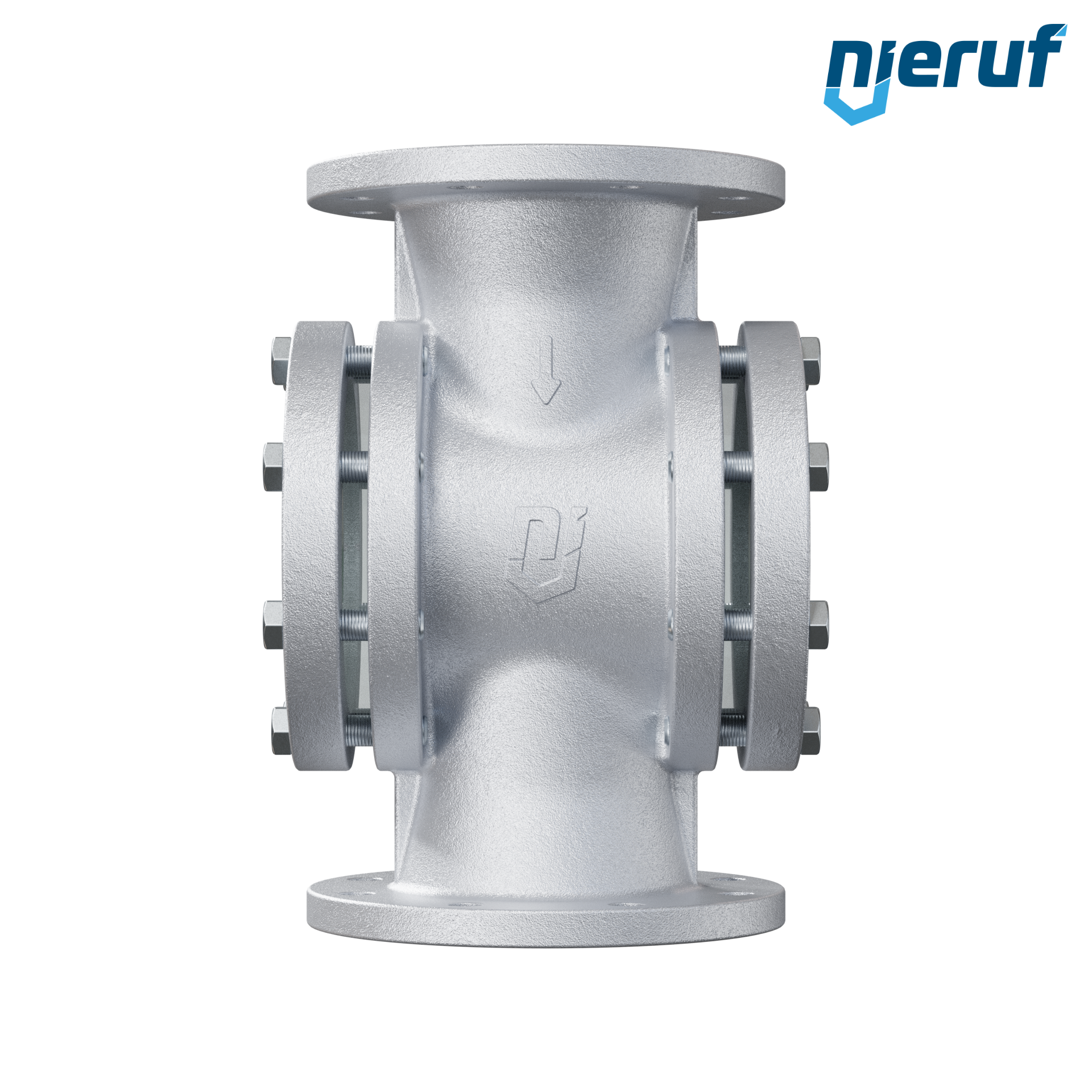

flange sight flow indicator DN200 - 8" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner
Delivery time: 2 - 3 weeks
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 steel
€27.61 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
flange sight flow indicator DN200 soda lime glass Typ FS01 grey cast iron GG25 graphit max 10 bar design with PTFE-spinner
| product: | flange sight flow indicator |
|---|---|
| type: | FS01 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN200 - 8" Inch |
| connection: | flange PN16 |
| body material: | grey cast iron GG25 |
| cover material: | grey cast iron GG25 |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid media |
| temperature: | min -10°C up to max + 150°C |
| max. working pressure: | max 10 bar |
| requirements: | DIN 3237 |
| installation position: | any position |
| product feature: | design with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN200 - 8" Inch grey cast iron GG25 soda lime glass design with PTFE-spinner
Article no.
: FS01010214
product:
flange sight flow indicator
type:
FS01
manufacturer:
NieRuf
design:
straightway form
diameter:
DN200 - 8" Inch
connection:
flange PN16
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 10 bar
requirements:
DIN 3237
installation position:
any position
product feature:
design with PTFE-spinner
€25.35 VAT included.
€101.39 VAT included.
€27.61 VAT included.
€366.52 VAT included.
€503.49 VAT included.
