FS02010007
flange sight flow indicator DN40 - 1 1/2" Inch GS - C25 soda lime glass
Delivery time: 2 - 3 weeks
Equipment
joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 steel
€8.09 VAT included.
Flange DN40 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€22.02 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

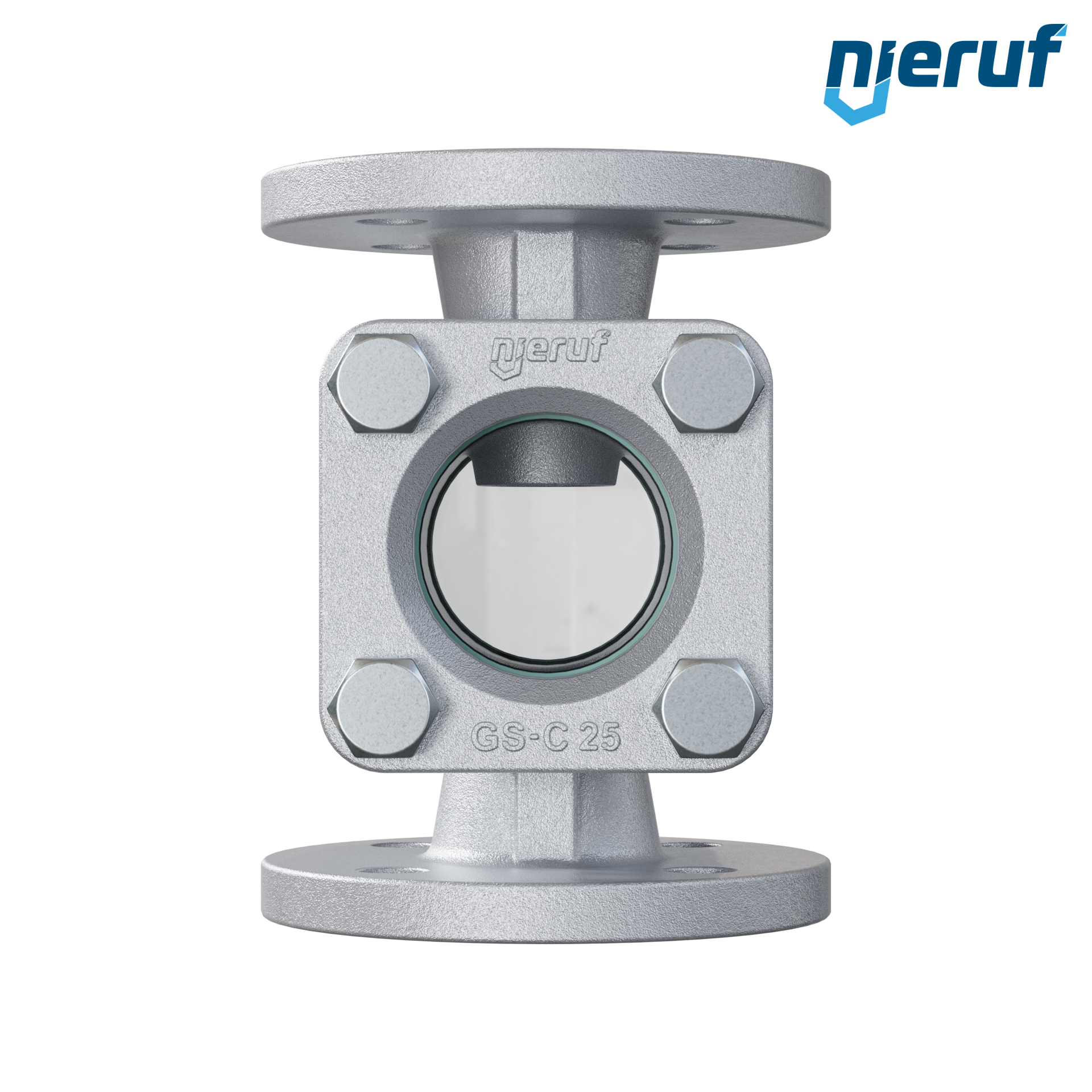

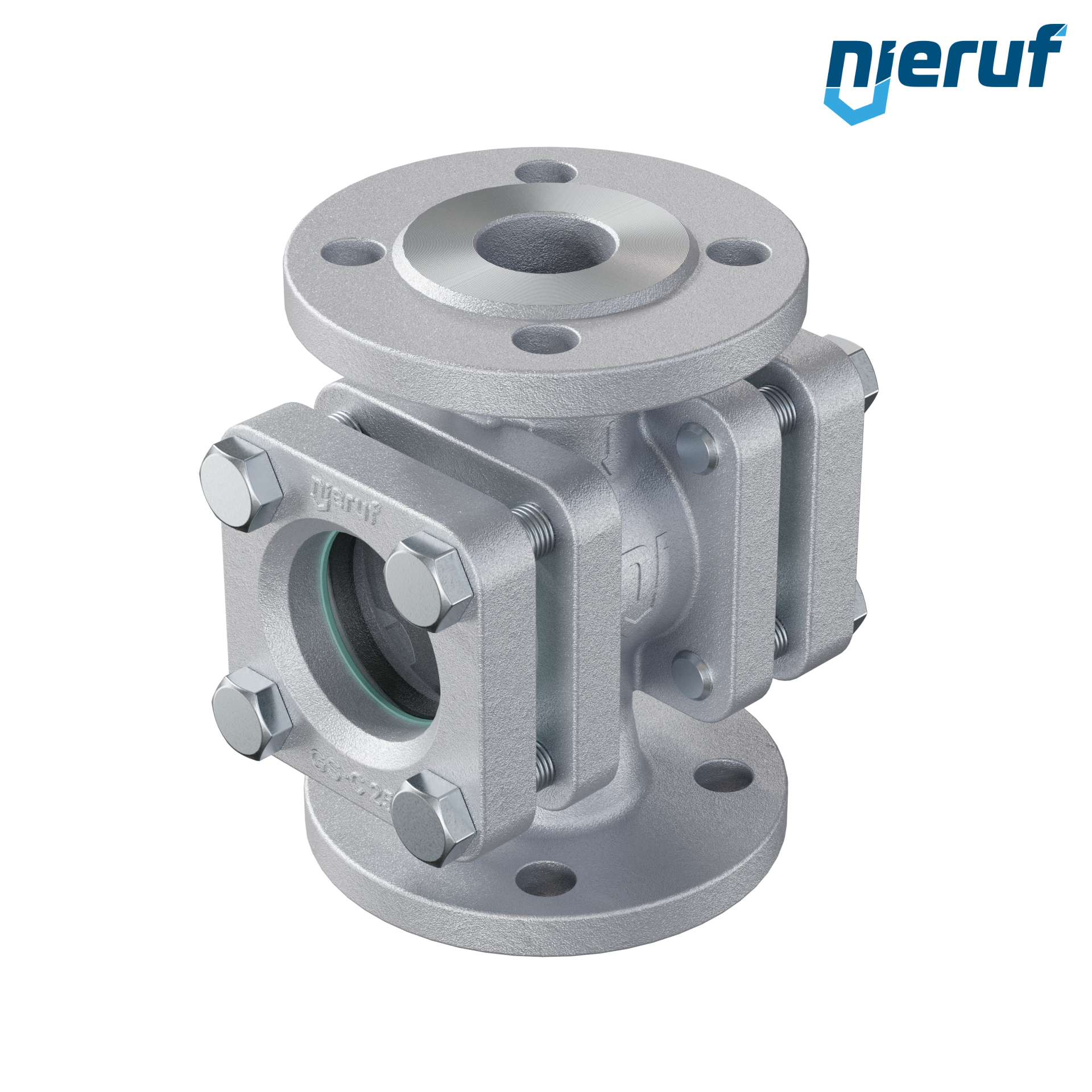

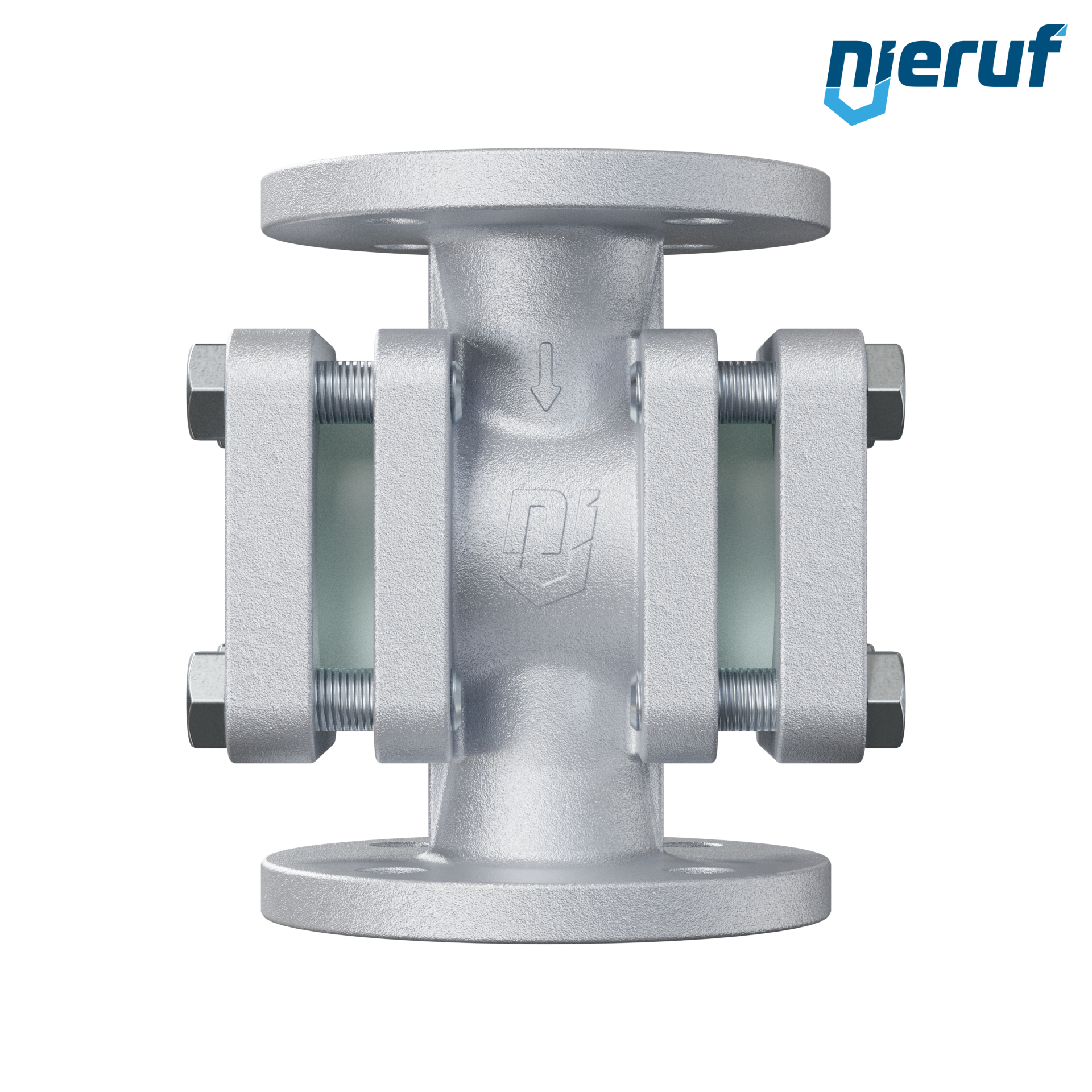

flange sight flow indicator DN40 Typ FS02 GS - C25 soda lime glass graphit max 16 bar
| product: | flange sight flow indicator |
|---|---|
| type: | FS02 |
| manufacturer: | NieRuf |
| design: | straightway form |
| diameter: | DN40 - 1 1/2" Inch |
| connection: | flange PN16 |
| body material: | GS - C25 |
| cover material: | GS - C25 |
| glass: | soda lime glass |
| seal: | graphit |
| media: | liquid and gaseous media |
| temperature: | min -10°C up to max + 150°C |
| max. working pressure: | max 16 bar |
| requirements: | DIN 3237 |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange sight flow indicator DN40 - 1 1/2" Inch GS - C25 soda lime glass
Article no.
: FS02010007
product:
flange sight flow indicator
type:
FS02
manufacturer:
NieRuf
design:
straightway form
diameter:
DN40 - 1 1/2" Inch
connection:
flange PN16
body material:
GS - C25
cover material:
GS - C25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
min -10°C up to max + 150°C
max. working pressure:
max 16 bar
requirements:
DIN 3237
installation position:
any position
€2.86 VAT included.
€22.02 VAT included.
€8.09 VAT included.
€12.38 VAT included.
€45.58 VAT included.
€14.04 VAT included.
