SZ07000003
flange-strainer DN15 PN10/16 cast iron for steam
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN15 - 1/2" Inch for flange PN10/16/25/40 steel
€3.81 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

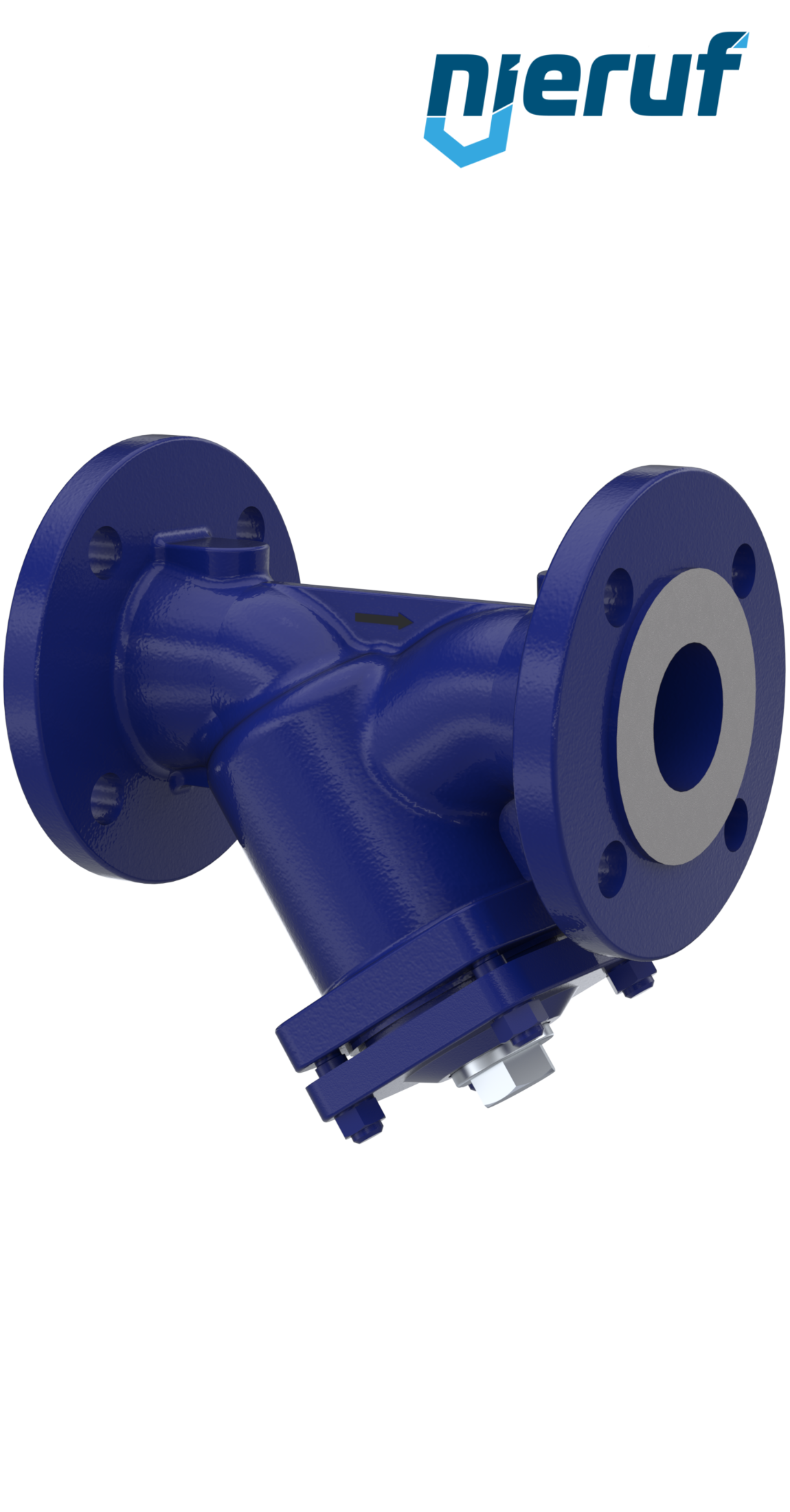

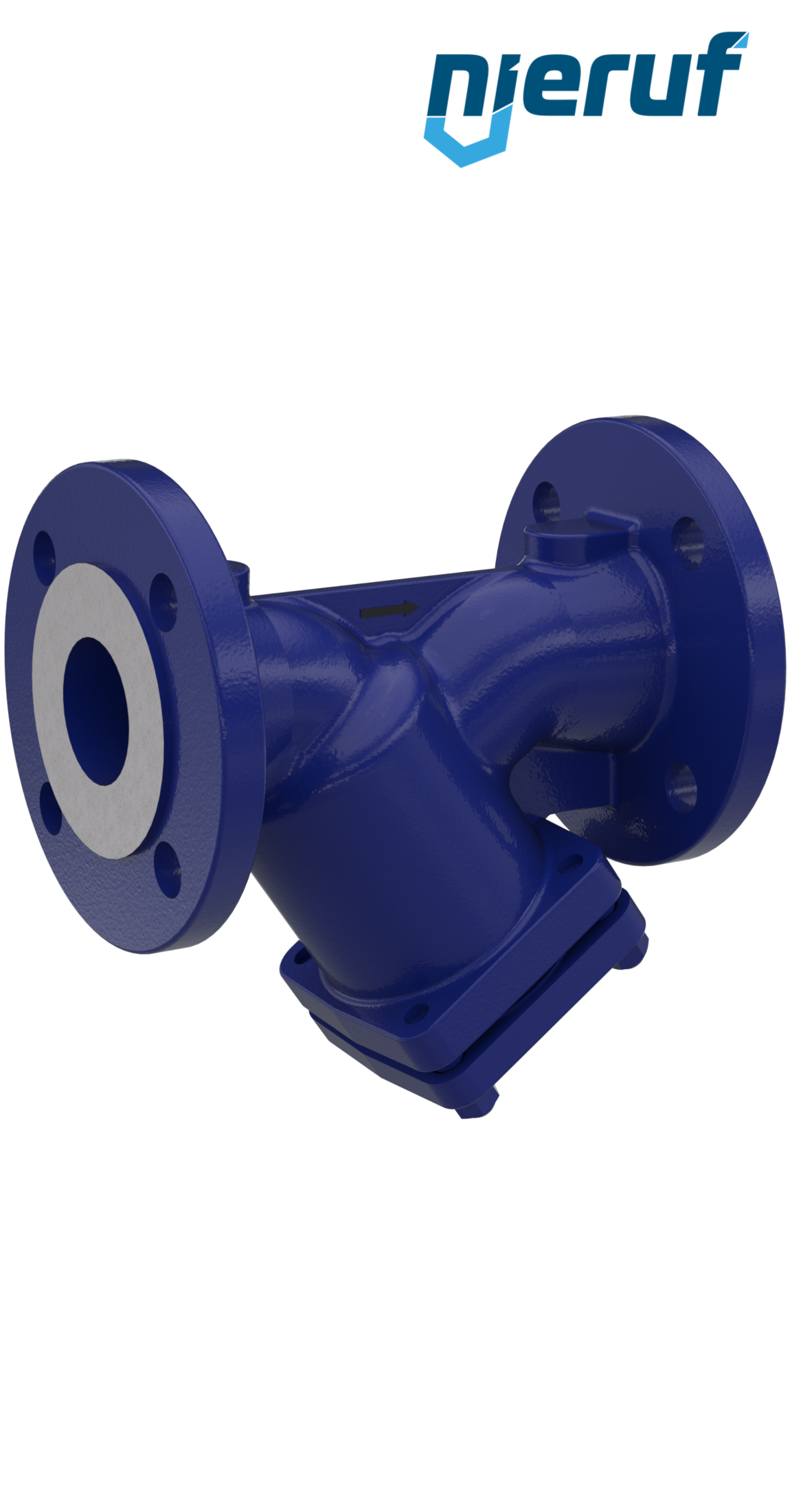

strainer DN15 made of cast iron (blue painting) for steam flange PN10/16 temperature up to +300°C 1 mm mesh
| product: | steam strainer |
|---|---|
| type: | SZ07 |
| manufacturer: | NieRuf |
| design: | Y-strainer with draining cap |
| diameter: | DN15 |
| connection: | flange acc. DIN EN 1029-2 |
| pressure: | PN16 |
| material: | cast iron GG25 blue painting |
| mesh-material: | stainless steel 1.4301 |
| cap material: | C35E |
| seal: | graphite |
| media: | liquid and gaseous media, steam |
| temperature: | -10°C up to +300°C |
| norm: | Directive 2014/68/EU: product excluded from directive (article 4, § 3) |
| mesh: | 1,0 mm |
| installation position: | horizontal or vertical position with descendant fluid |
| product feature: | Y-strainer flange for steam made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
flange-strainer DN15 PN10/16 cast iron for steam
Article no.
: SZ07000003
product:
steam strainer
type:
SZ07
manufacturer:
NieRuf
design:
Y-strainer with draining cap
diameter:
DN15
connection:
flange acc. DIN EN 1029-2
pressure:
PN16
material:
cast iron GG25 blue painting
mesh-material:
stainless steel 1.4301
cap material:
C35E
seal:
graphite
media:
liquid and gaseous media, steam
temperature:
-10°C up to +300°C
norm:
Directive 2014/68/EU: product excluded from directive (article 4, § 3)
mesh:
1,0 mm
installation position:
horizontal or vertical position with descendant fluid
product feature:
Y-strainer flange for steam made of cast iron with draining cap and removable stainless steel filter, horizontal or vertical position.
