SK012100505

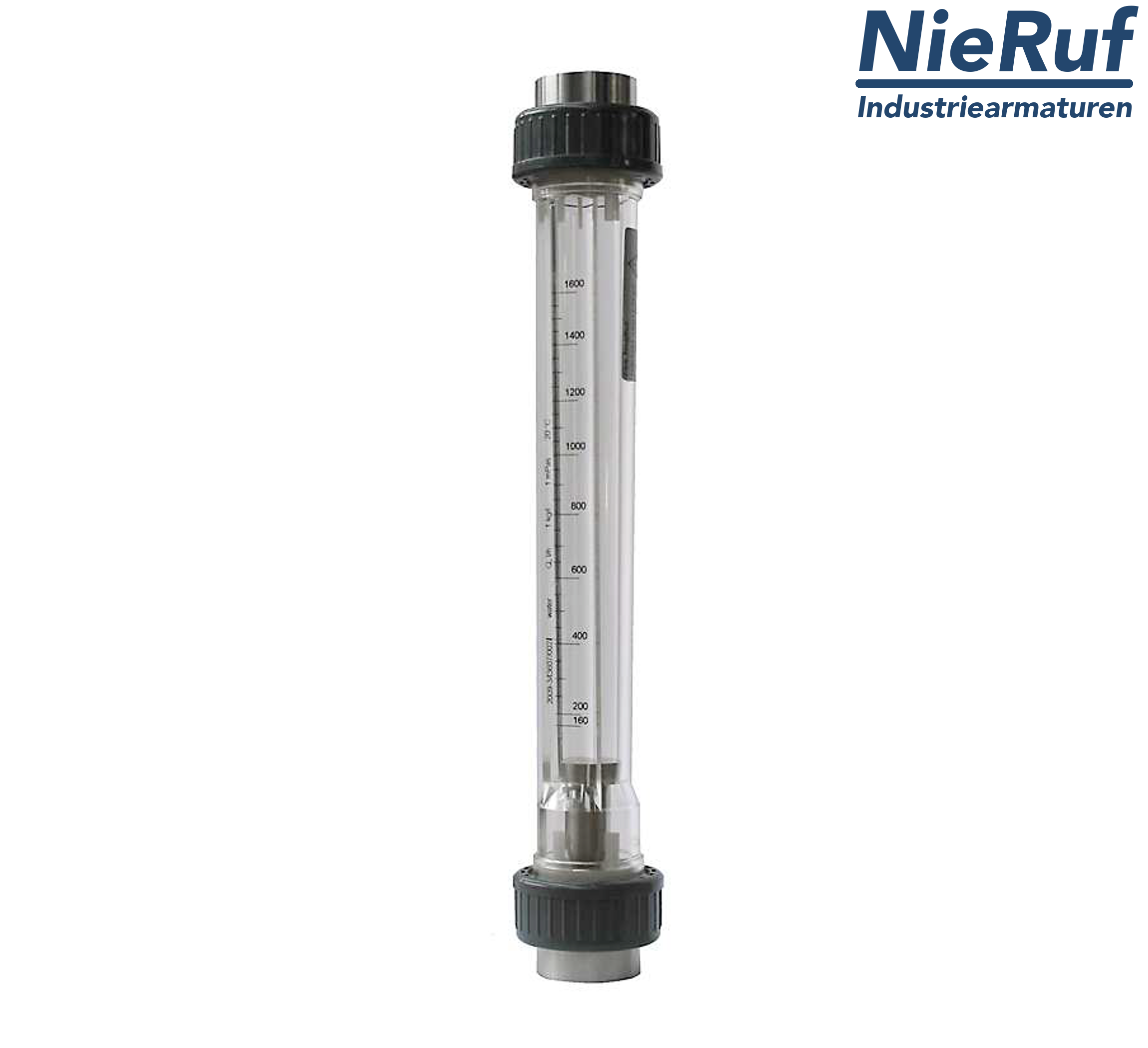

Variable area flowmeter 1" inch 2800.0 - 28000 l/h air FKM
Delivery time: 1 - 2 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Variable area flowmeter Measuring range 2800.0 - 28000 l/h, connection 1" inch FKM female thread DIN ISO 228 for air
| product: | Variable area flowmeter |
|---|---|
| type: | SK01 |
| manufacturer: | NieRuf |
| diameter: | 1" inch |
| connection: | female thread DIN ISO 228 |
| connection material: | PVC |
| body material: | Trogamid plastic |
| seal: | FKM |
| float material: | aluminum |
| float version design: | standard |
| media: | air |
| mark: | Different media are available upon request |
| mark 2: | standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s |
| pressure loss float: | 7 mbar |
| temperature: | max. +60 °C |
| Measuring range: | 2800.0 - 28000 l/h |
| unit of scale: | l/h |
| working pressure: | 10 bar |
| accuracy: | G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2) |
| installation position: | vertically upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Variable area flowmeter 1" inch 2800.0 - 28000 l/h air FKM
Article no.
: SK012100505
product:
Variable area flowmeter
type:
SK01
manufacturer:
NieRuf
diameter:
1" inch
connection:
female thread DIN ISO 228
connection material:
PVC
body material:
Trogamid plastic
seal:
FKM
float material:
aluminum
float version design:
standard
media:
air
mark:
Different media are available upon request
mark 2:
standard meassuring scale: pabs=1,013 bar, at T=0°C, ρ=1,293 kg/m3, v=0,0181 mPa⋅s
pressure loss float:
7 mbar
temperature:
max. +60 °C
Measuring range:
2800.0 - 28000 l/h
unit of scale:
l/h
working pressure:
10 bar
accuracy:
G 2,5 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position:
vertically upwards
