FM01000104
point level switch G 3/4" inch FM01 valve plug 10 - 30 V DC
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

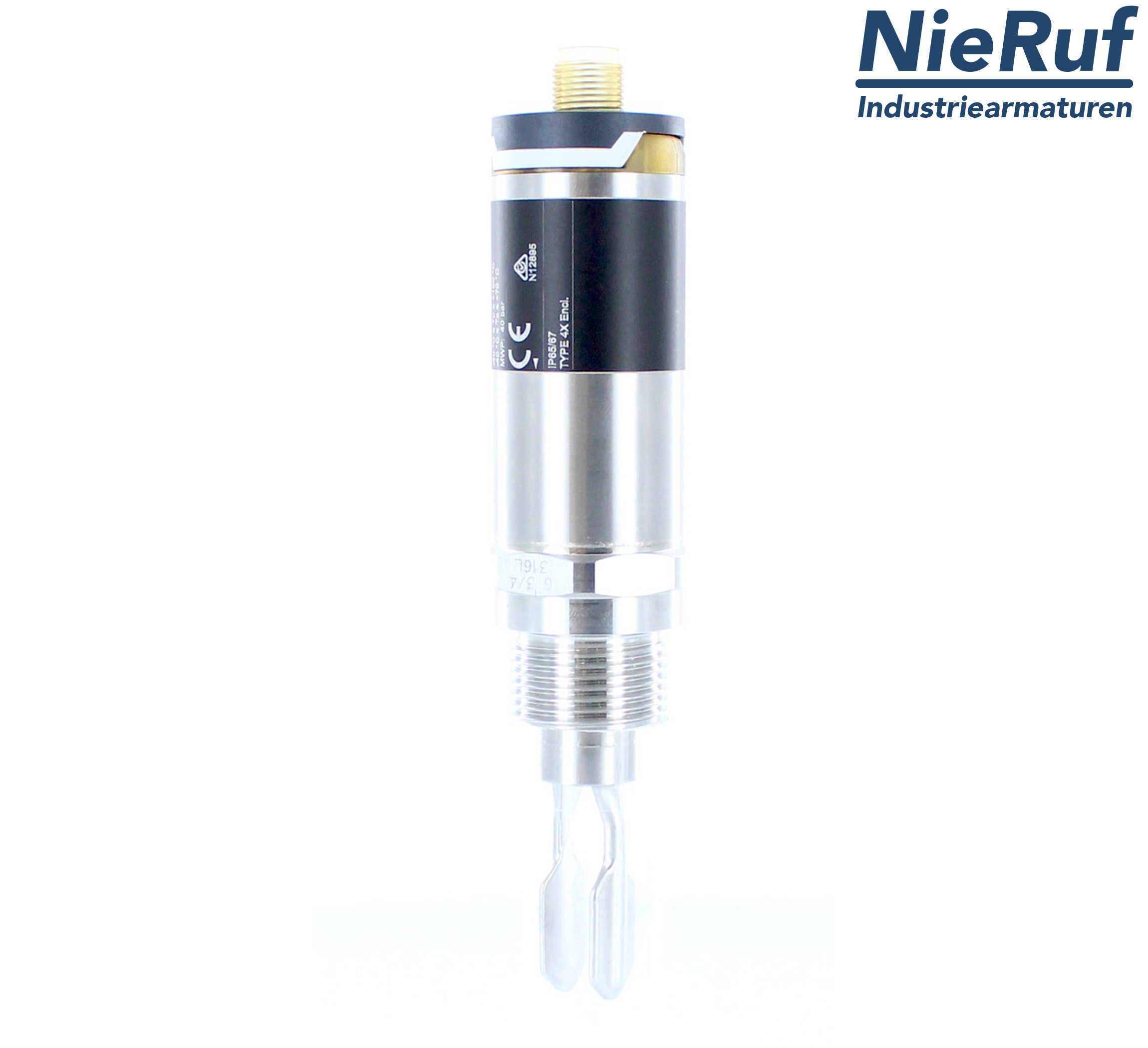

point level switch for fluids G 3/4" inch with valve plug (inclusive) 10 - 30 V DC made of stainless steel with fork in compact design Type FM01
| product: | fluid level gauge |
|---|---|
| type: | FM01 |
| manufacturer: | NieRuf |
| diameter: | G 3/4" inch |
| body: | stainless steel |
| response time: | 0,5s at covering, 1s at release |
| temperature: | -40°C - +100°C |
| temperature ambiente: | -40°C - +70°C |
| material density: | >0,7 g/cm^3 |
| sensor: | fork |
| max. working pressure: | 40 bar |
| medium: | for liquids |
| design: | compact |
| electrical output: | 10 - 30 V DC |
| Connection: | valve plug |
| operating capacity: | 200mA DC, 250mA AC/DC |
| current consumption: | <15mA DC, <3,8 AC/DC |
| product description: | Fluid-level-gauge or point level switch made of stainless steel |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
point level switch G 3/4" inch FM01 valve plug 10 - 30 V DC
Article no.
: FM01000104
product:
fluid level gauge
type:
FM01
manufacturer:
NieRuf
diameter:
G 3/4" inch
body:
stainless steel
response time:
0,5s at covering, 1s at release
temperature:
-40°C - +100°C
temperature ambiente:
-40°C - +70°C
material density:
>0,7 g/cm^3
sensor:
fork
max. working pressure:
40 bar
medium:
for liquids
design:
compact
electrical output:
10 - 30 V DC
Connection:
valve plug
operating capacity:
200mA DC, 250mA AC/DC
current consumption:
<15mA DC, <3,8 AC/DC
product description:
Fluid-level-gauge or point level switch made of stainless steel
