GK06010006
ball valve made of carbon steel DN32 - 1 1/4" inch GK06
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

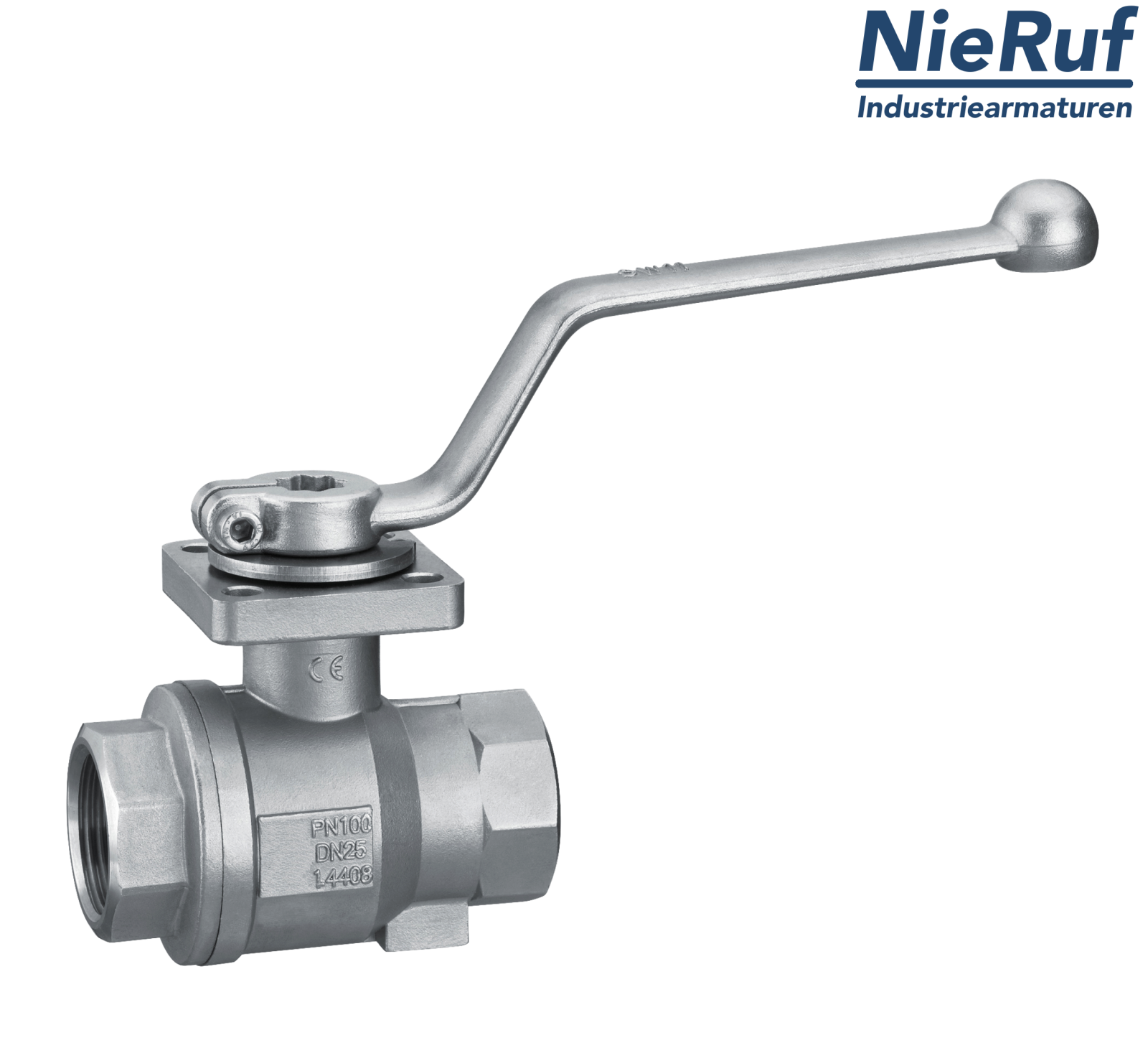

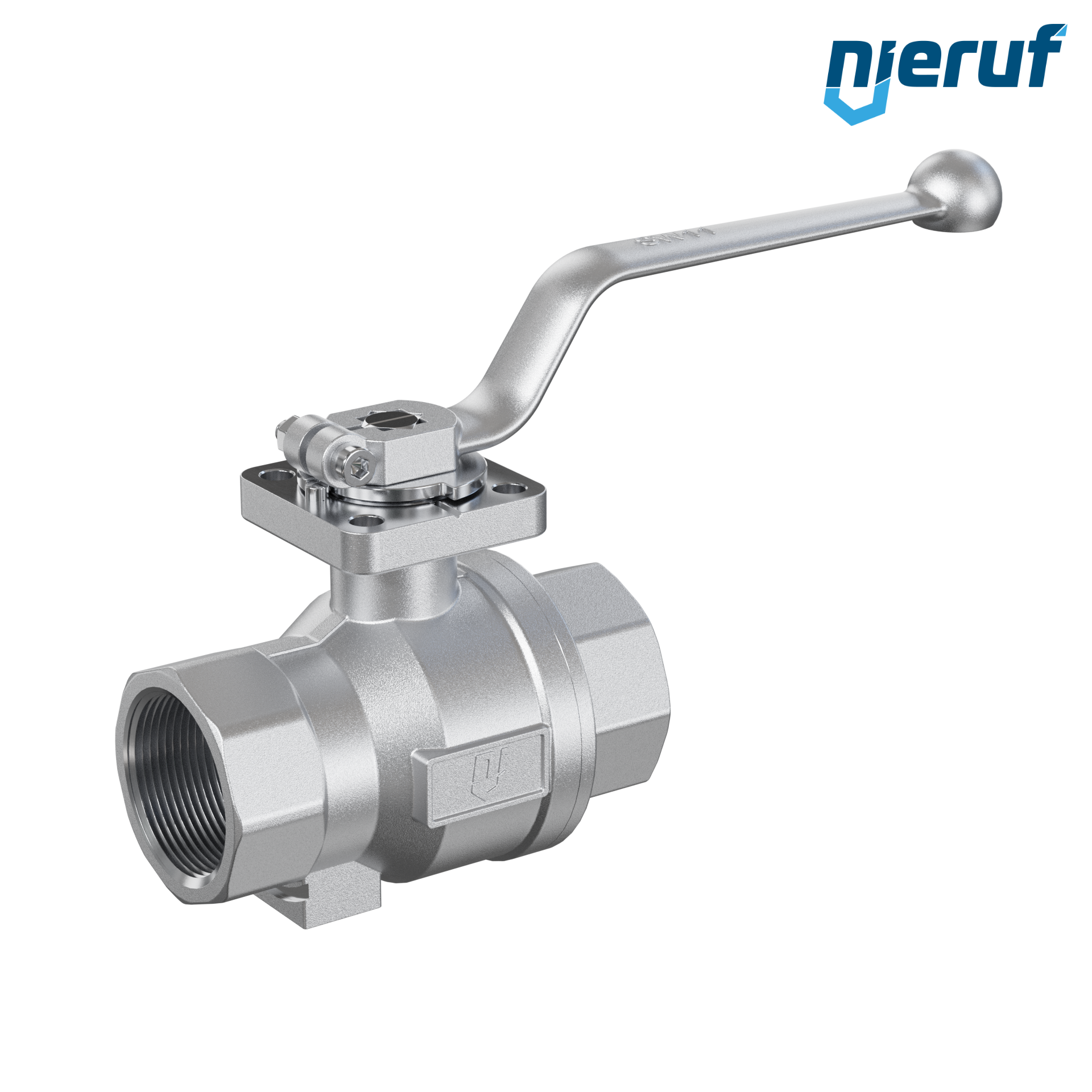

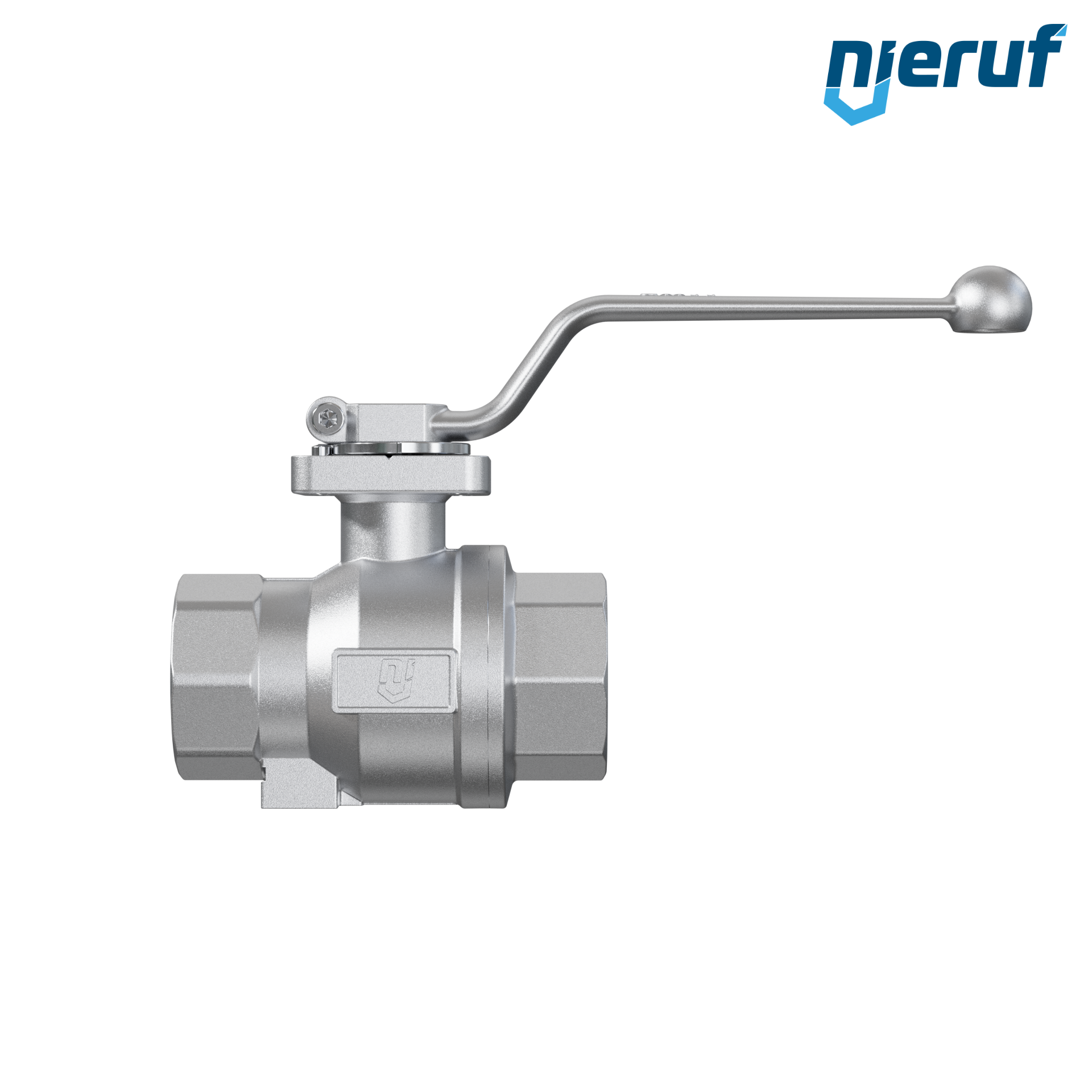

ball valve made of carbon steel DN32 - 1 1/4" inch full port design seal made of PTFE for liquid and gaseous media
| product: | ball valve made of carbon steel |
|---|---|
| type: | GK06 |
| manufacturer: | NieRuf |
| diameter: | DN32 - 1 1/4" inch |
| connection: | female thread |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +215°C - depending on working pressure and media |
| max. pressure: | PN100 |
| design: | full port design |
| body material: | carbon steel 1.0619 zinc plated |
| ball material: | stainless steel 1.4408 |
| length: | 110mm |
| actuator: | lever handle made of steel 1.0619 zinc plated |
| installation position: | any position |
| authorized for: | TA Luft |
| product description: | This two-piece ball valve "screwed design" is made of carbon steel with mounting flange (DIN ISO 5211) with floating ball is suitable for direct actuator mounting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of carbon steel DN32 - 1 1/4" inch GK06
Article no.
: GK06010006
product:
ball valve made of carbon steel
type:
GK06
manufacturer:
NieRuf
diameter:
DN32 - 1 1/4" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +215°C - depending on working pressure and media
max. pressure:
PN100
design:
full port design
body material:
carbon steel 1.0619 zinc plated
ball material:
stainless steel 1.4408
length:
110mm
actuator:
lever handle made of steel 1.0619 zinc plated
installation position:
any position
authorized for:
TA Luft
product description:
This two-piece ball valve "screwed design" is made of carbon steel with mounting flange (DIN ISO 5211) with floating ball is suitable for direct actuator mounting
€7.02 VAT included.
€9.28 VAT included.
