GK06000008
High pressure ball valve DN50 - 2" inch GK06
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

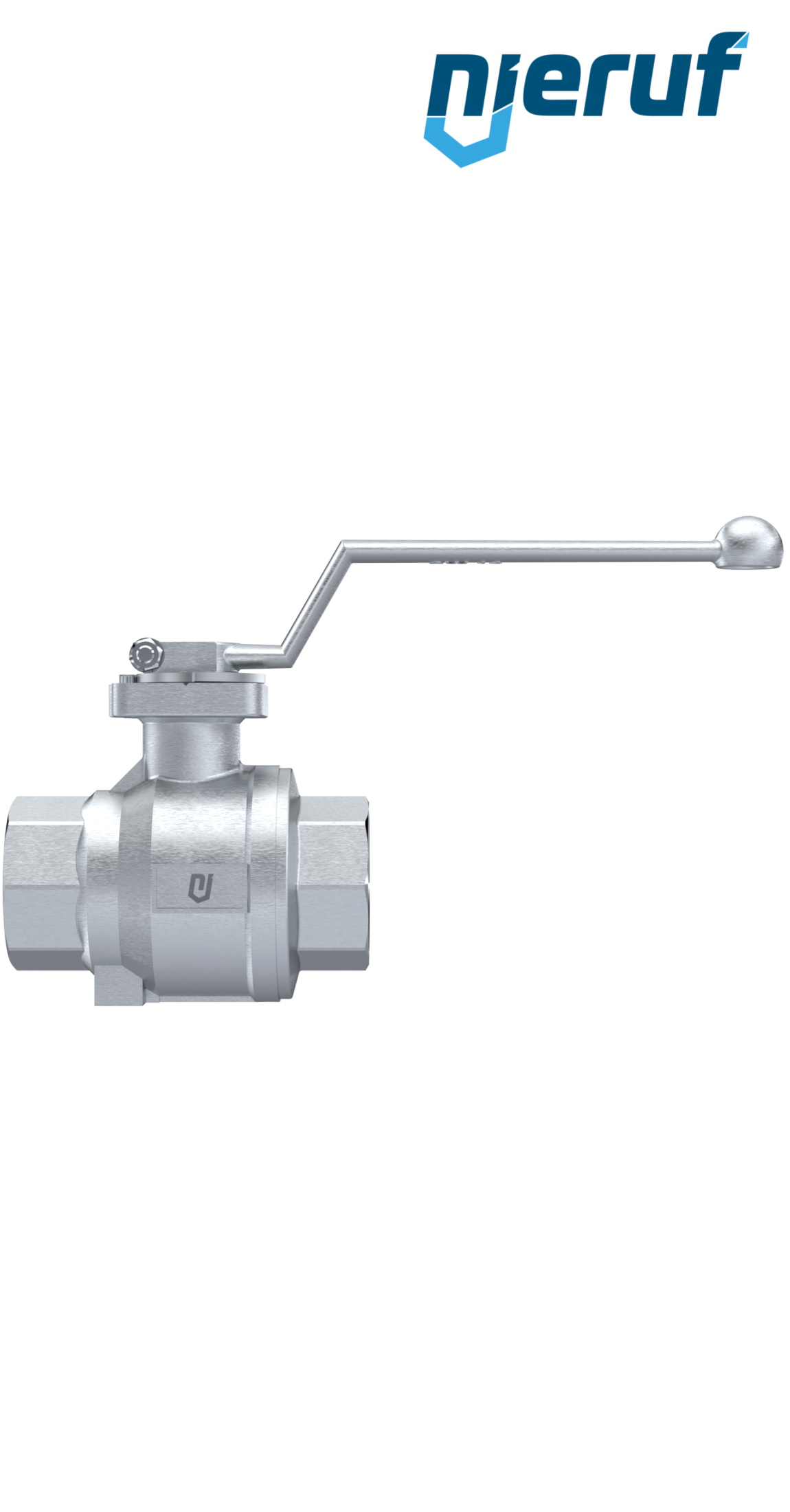

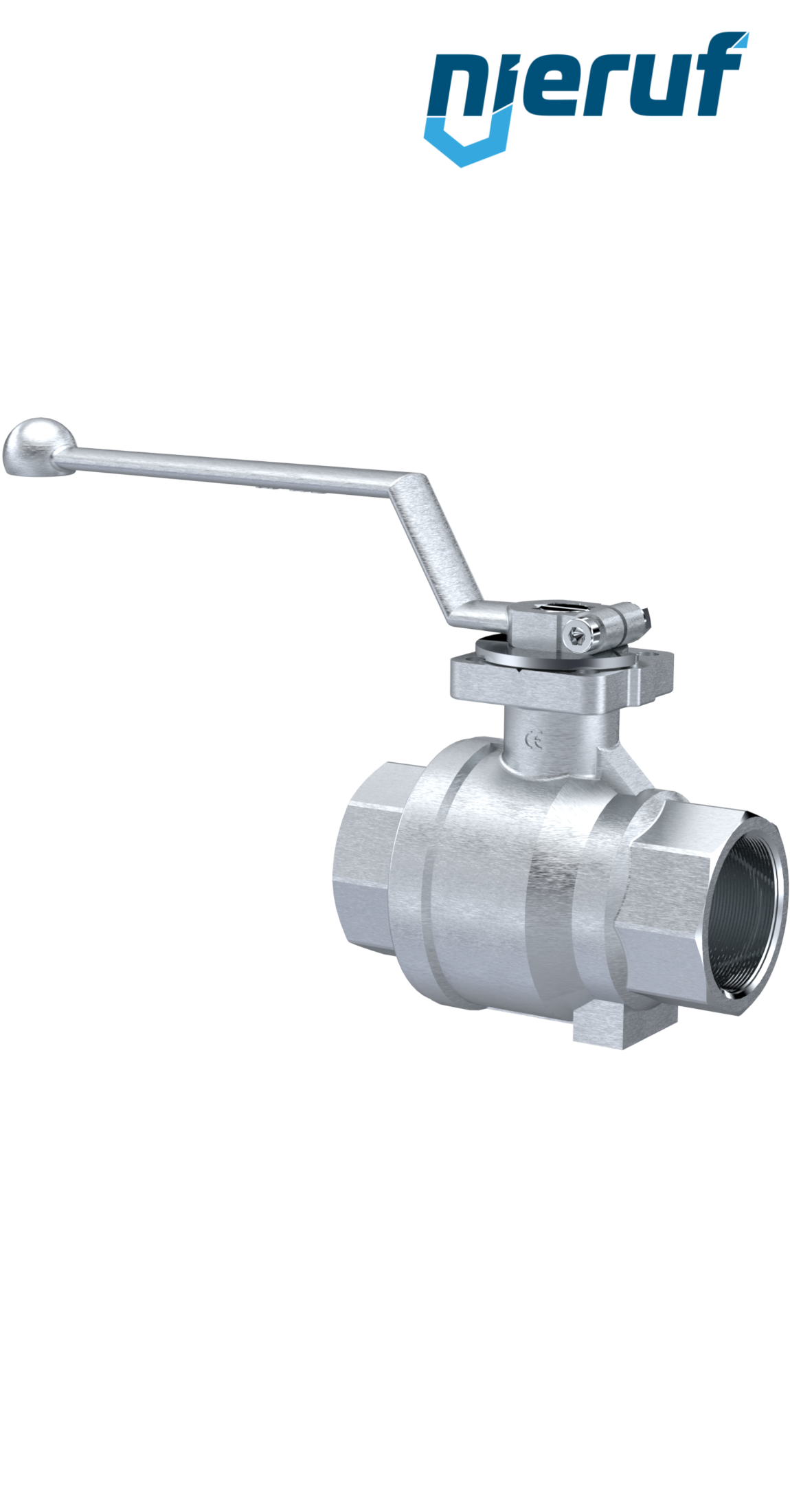

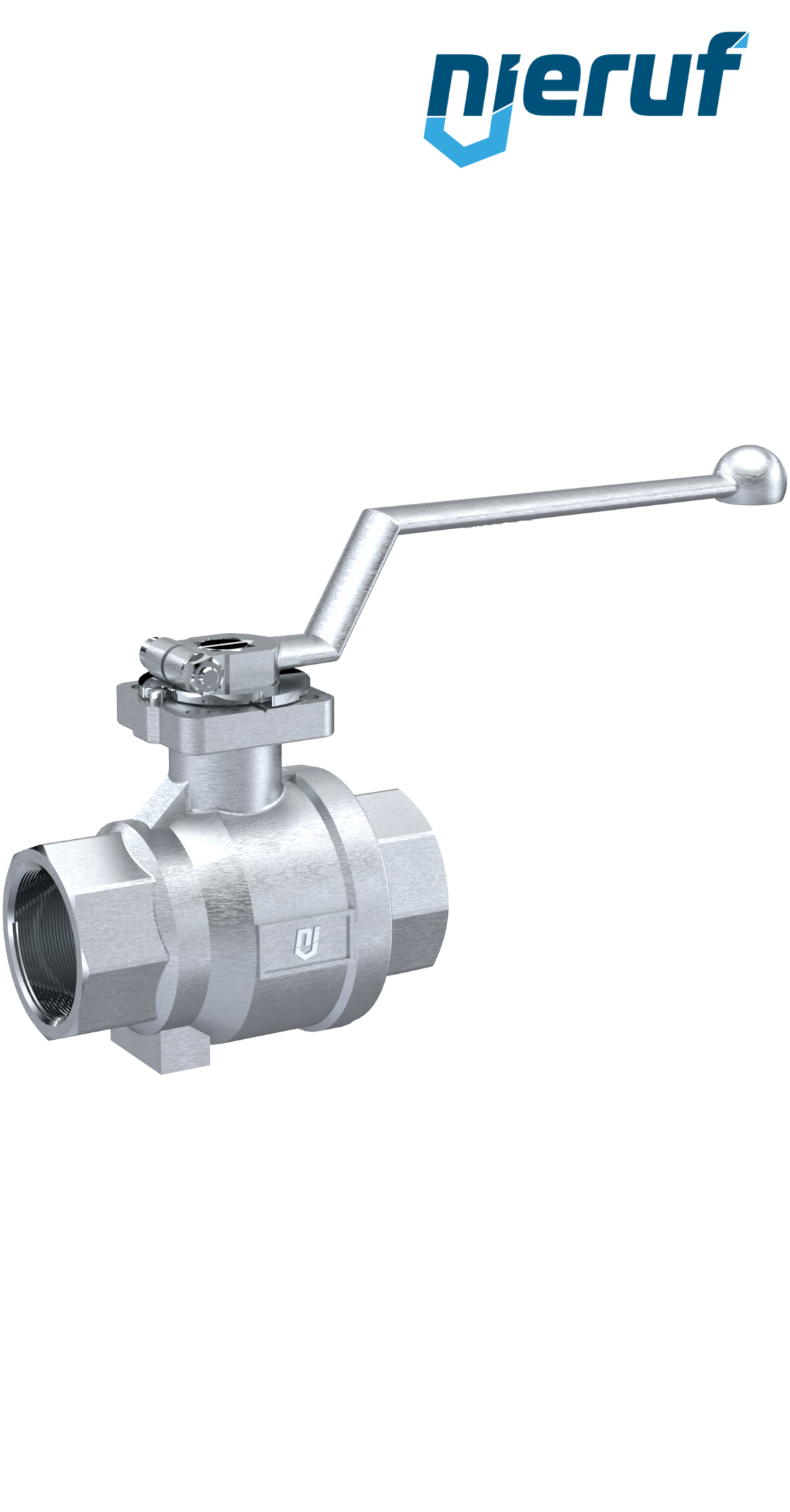

High pressure ball valve DN50 - 2" inch full port design seal made of PTFE / Viton for liquid and gaseous media
| product: | High pressure ball valve |
|---|---|
| type: | GK06 |
| manufacturer: | NieRuf |
| diameter: | DN50 - 2" inch |
| connection: | female thread |
| Seal steam: | PTFE / Viton |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +215°C - depending on working pressure and media |
| max. pressure: | PN100 |
| design: | full port design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4408 |
| length: | 140mm |
| actuator: | hand lever made of stainless steel |
| installation position: | any position |
| product description: | This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. This two - piece ball valve "screwed design" has a mounting flange acc. to DIN ISO 5211 and is suitable for direct actuator mounting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
High pressure ball valve DN50 - 2" inch GK06
Article no.
: GK06000008
product:
High pressure ball valve
type:
GK06
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
female thread
Seal steam:
PTFE / Viton
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +215°C - depending on working pressure and media
max. pressure:
PN100
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
140mm
actuator:
hand lever made of stainless steel
installation position:
any position
product description:
This high quality sleeve ball valve is made of stainless steel with floating ball and blow out proof stem design. This two - piece ball valve "screwed design" has a mounting flange acc. to DIN ISO 5211 and is suitable for direct actuator mounting
