EV10120001
Hige pressure solenoid valve G 1/4" Inch stainless steel EV10 FKM 230V 50Hz
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you

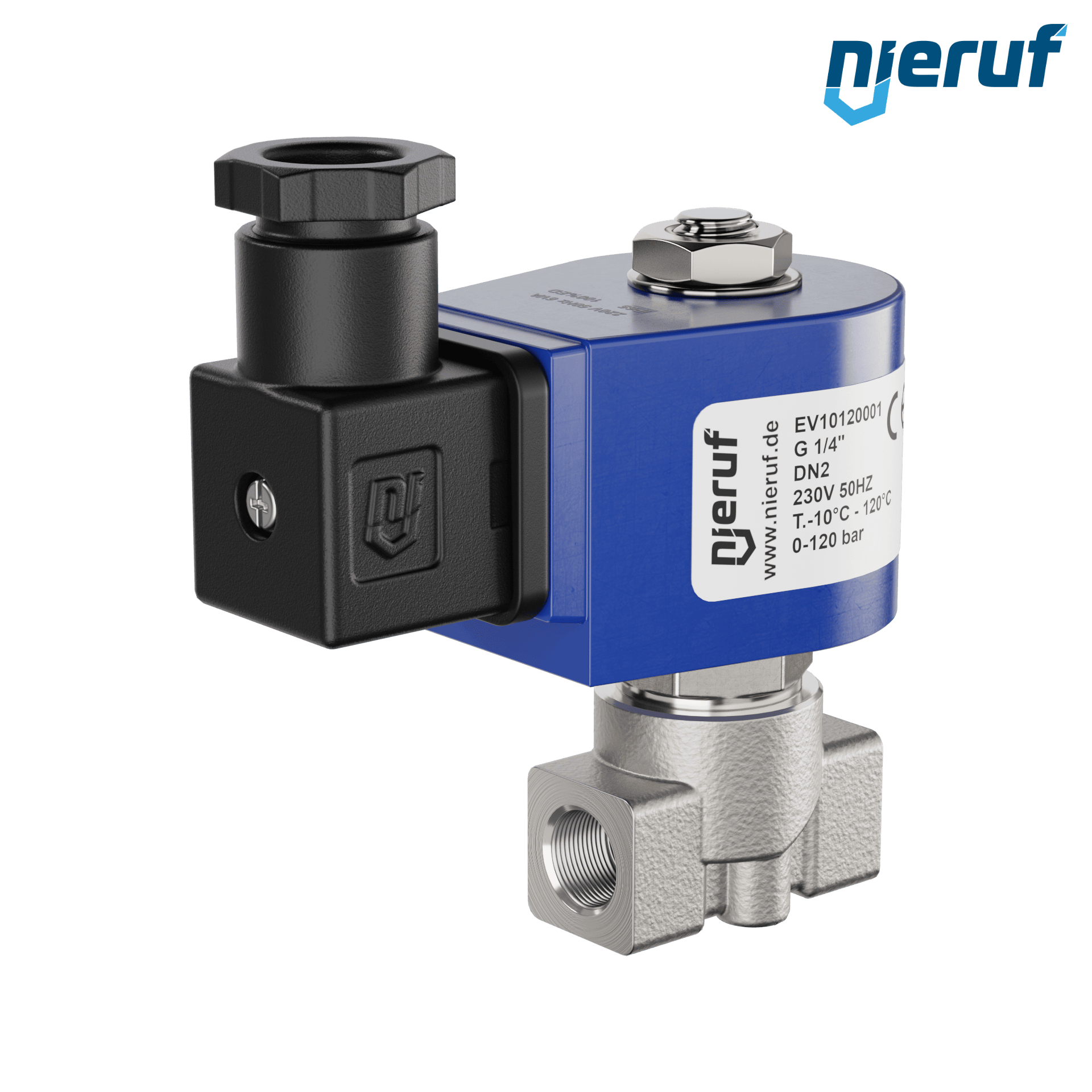

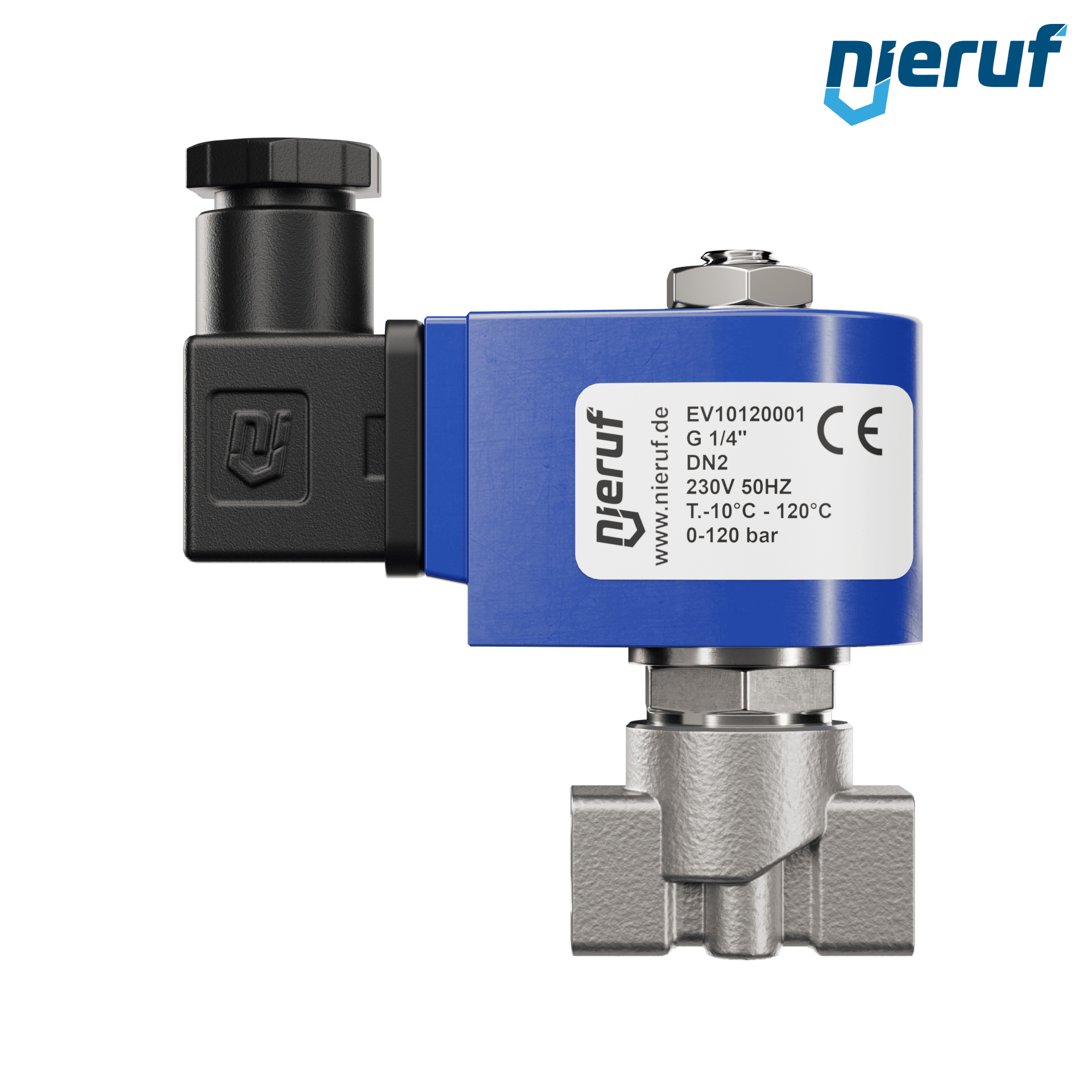

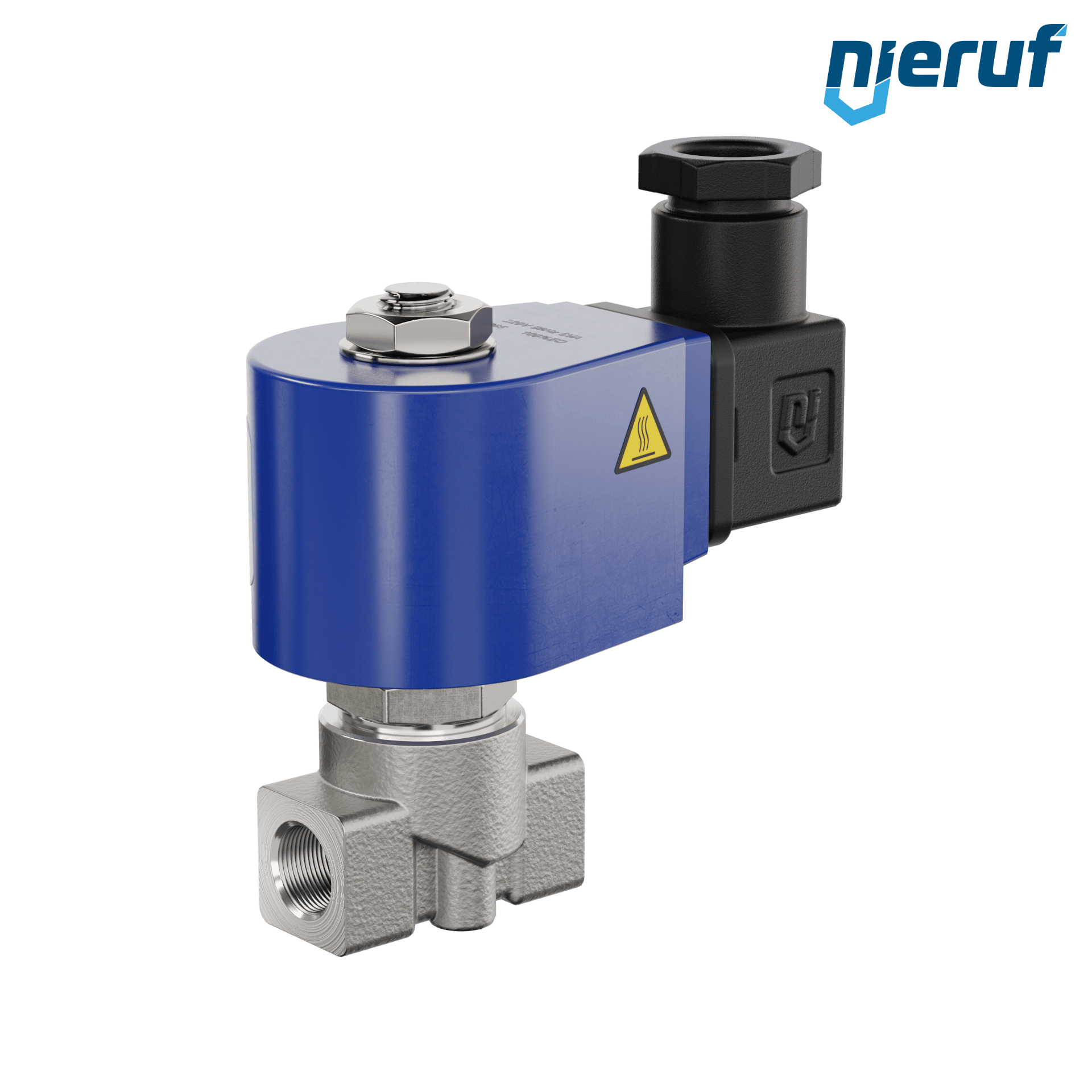

2/2 Ways hige pressure solenoid valve G 1/4" Inch made of stainless steel 1.4408 seal FKM direct operated nominal voltage 230V 50Hz pressure 0.0 - 120 bar
| product: | Solenoid valve |
|---|---|
| type: | EV10 |
| manufacturer: | NieRuf |
| design: | seat valve |
| diameter: | DN2,0 |
| connection: | G 1/4" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 0.12 m³/h |
| function: | NC - normally closed |
| control: | direct acting |
| material: | stainless steel 1.4408 |
| seal: | FKM |
| voltage: | 230V 50Hz |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 6 VA |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +120°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0.0 - 120 bar |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Hige pressure solenoid valve G 1/4" Inch stainless steel EV10 FKM 230V 50Hz
Article no.
: EV10120001
product:
Solenoid valve
type:
EV10
manufacturer:
NieRuf
design:
seat valve
diameter:
DN2,0
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
0.12 m³/h
function:
NC - normally closed
control:
direct acting
material:
stainless steel 1.4408
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
6 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 120 bar
installation position:
any position, solenoid preferably standing
