DM24030105
mbar pressure reducing valve DN25 DM24 female thread NPT stainless steel EPDM 150 - 500 mbar
Delivery time: 2 - 3 weeks
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you

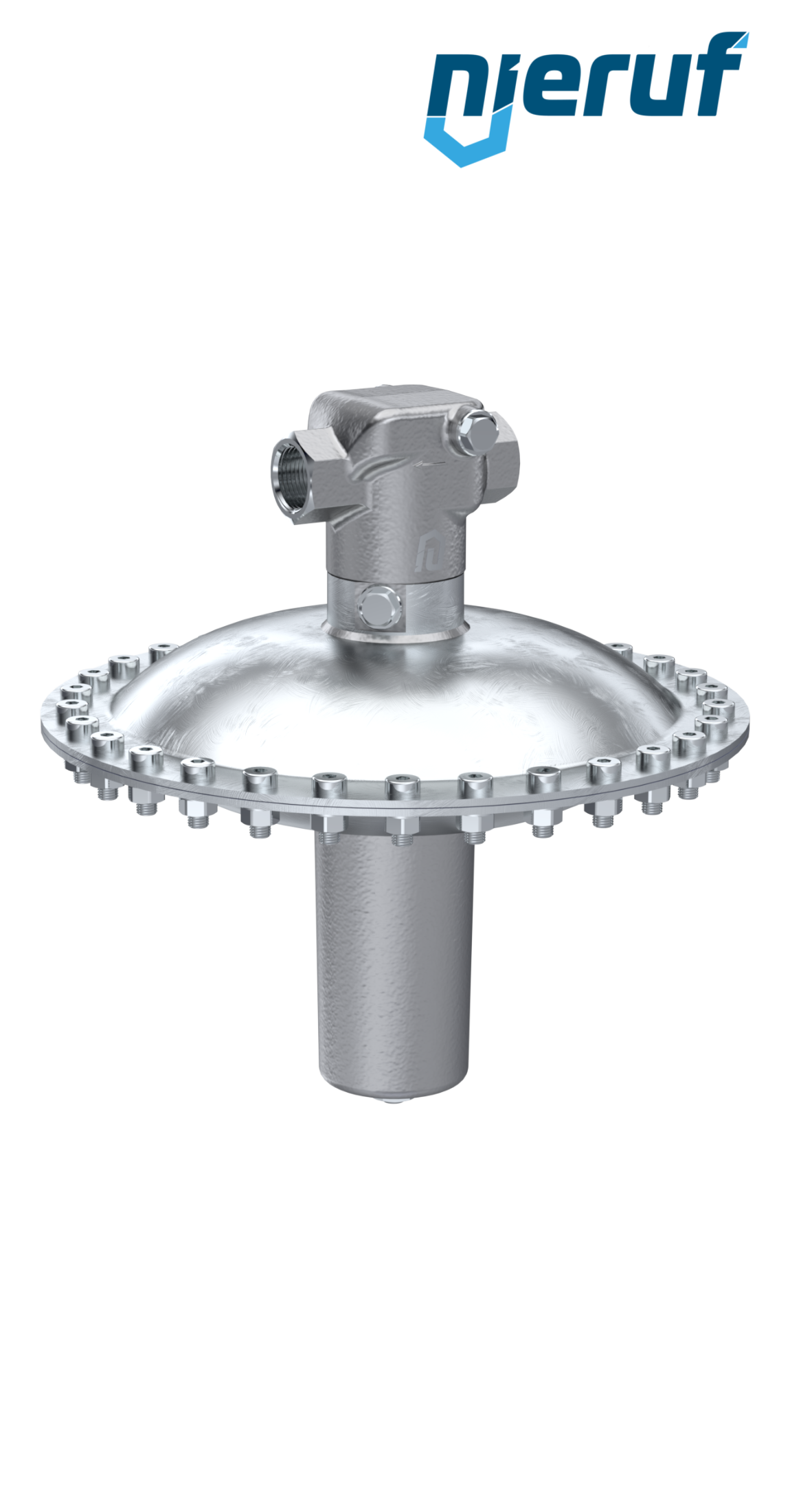

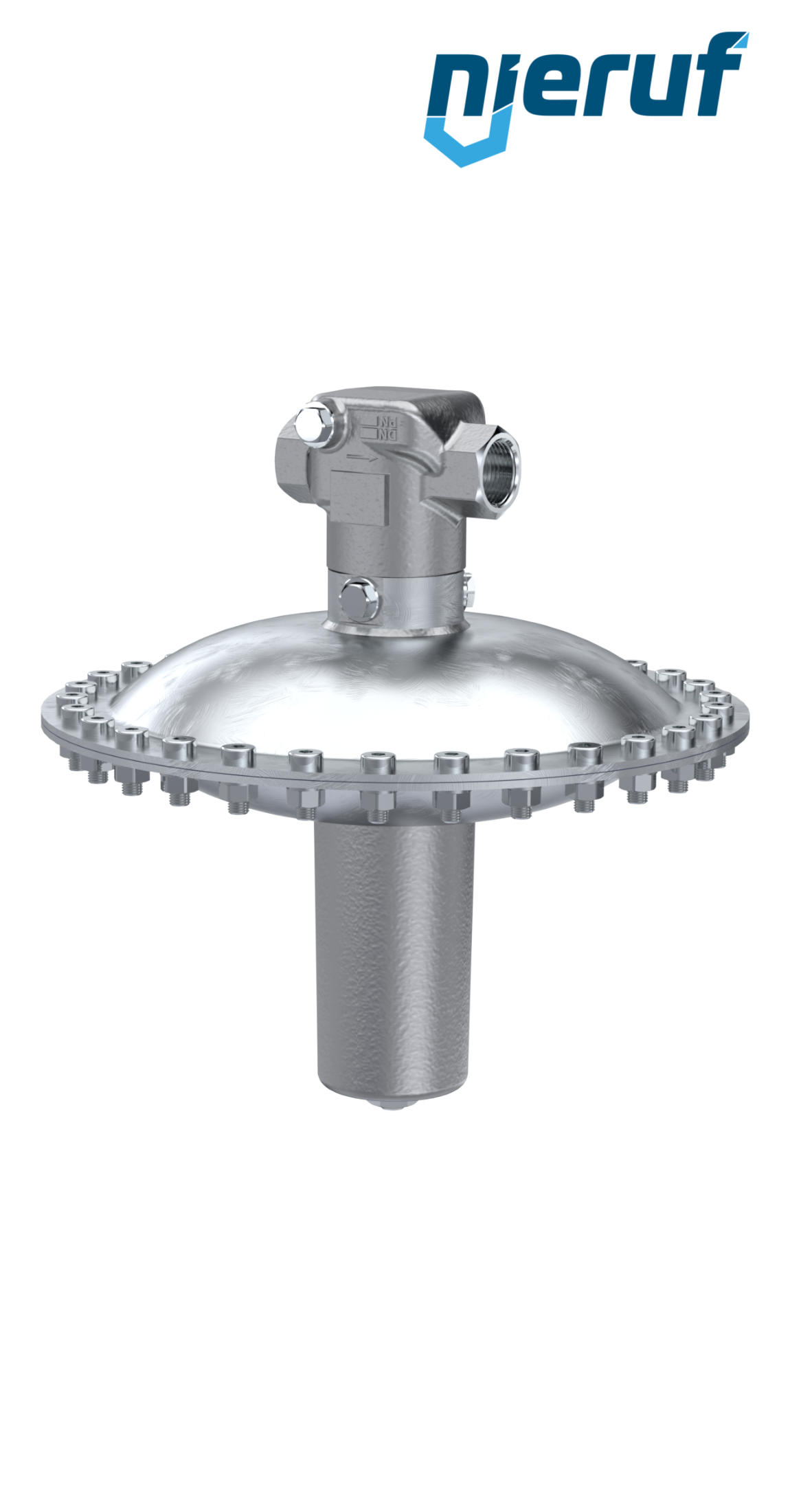

mbar pressure reducing valve DN25 made of stainless steel with female thread NPT for liquid and neutral gaseous media and EPDM seal, set pressure 150 - 500 mbar
| product: | mbar pressure reducing valve |
|---|---|
| type: | DM24 |
| manufacturer: | NieRuf |
| diameter: | DN25 |
| connection: | female thread NPT |
| material: | stainless steel |
| seal: | EPDM |
| media: | liquid and neutral gaseous media |
| temperature: | -30°C up to +120°C |
| range of adjustment: | 150 - 500 mbar |
| max. inlet pressure: | 0,5 - 10 bar |
| design: | straightway form |
| installation position: | horizontal, bonnet pointing downwards |
| product feature: | This version meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
mbar pressure reducing valve DN25 DM24 female thread NPT stainless steel EPDM 150 - 500 mbar
Article no.
: DM24030105
product:
mbar pressure reducing valve
type:
DM24
manufacturer:
NieRuf
diameter:
DN25
connection:
female thread NPT
material:
stainless steel
seal:
EPDM
media:
liquid and neutral gaseous media
temperature:
-30°C up to +120°C
range of adjustment:
150 - 500 mbar
max. inlet pressure:
0,5 - 10 bar
design:
straightway form
installation position:
horizontal, bonnet pointing downwards
product feature:
This version meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant.
