UV15050107

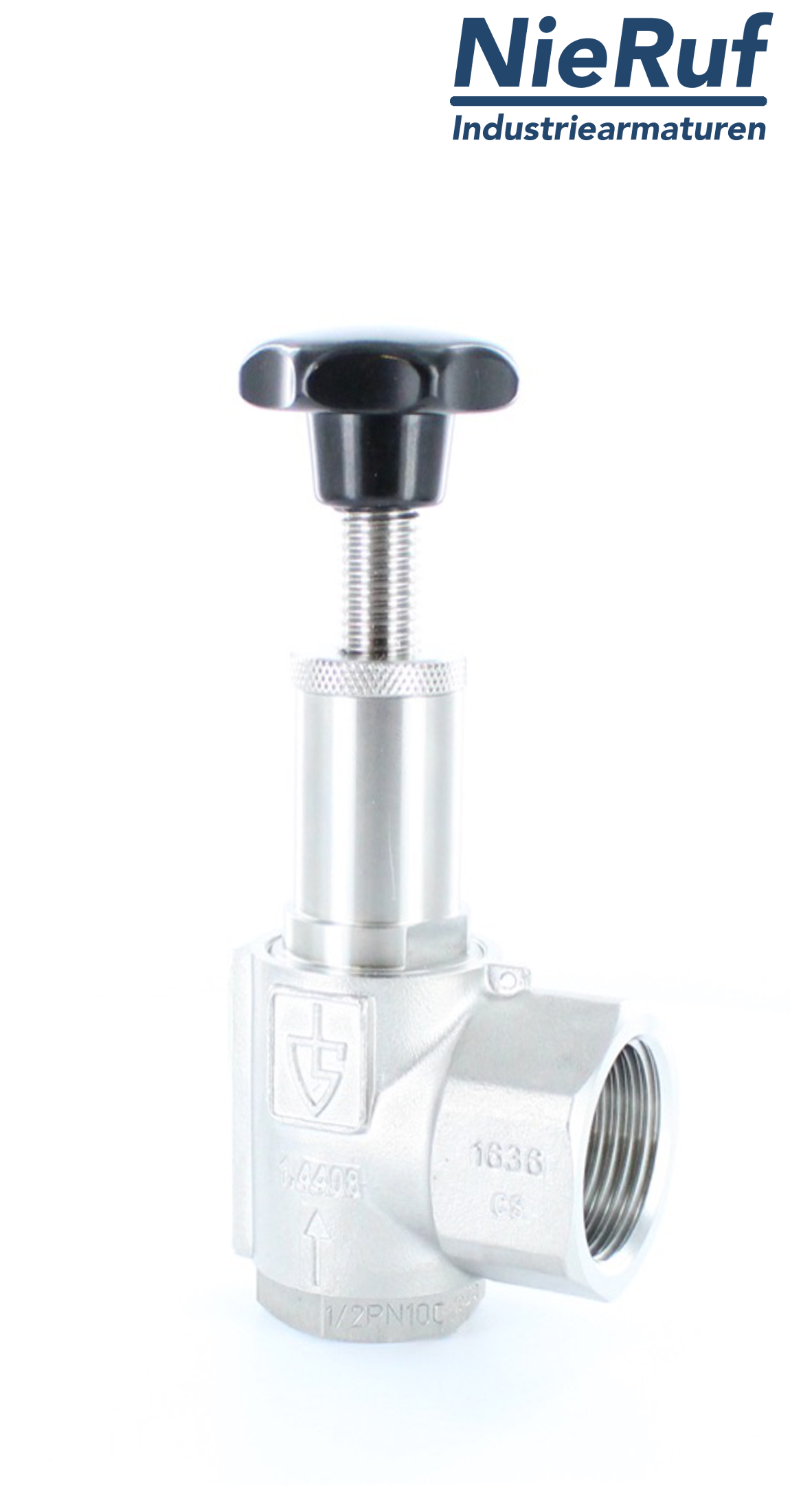

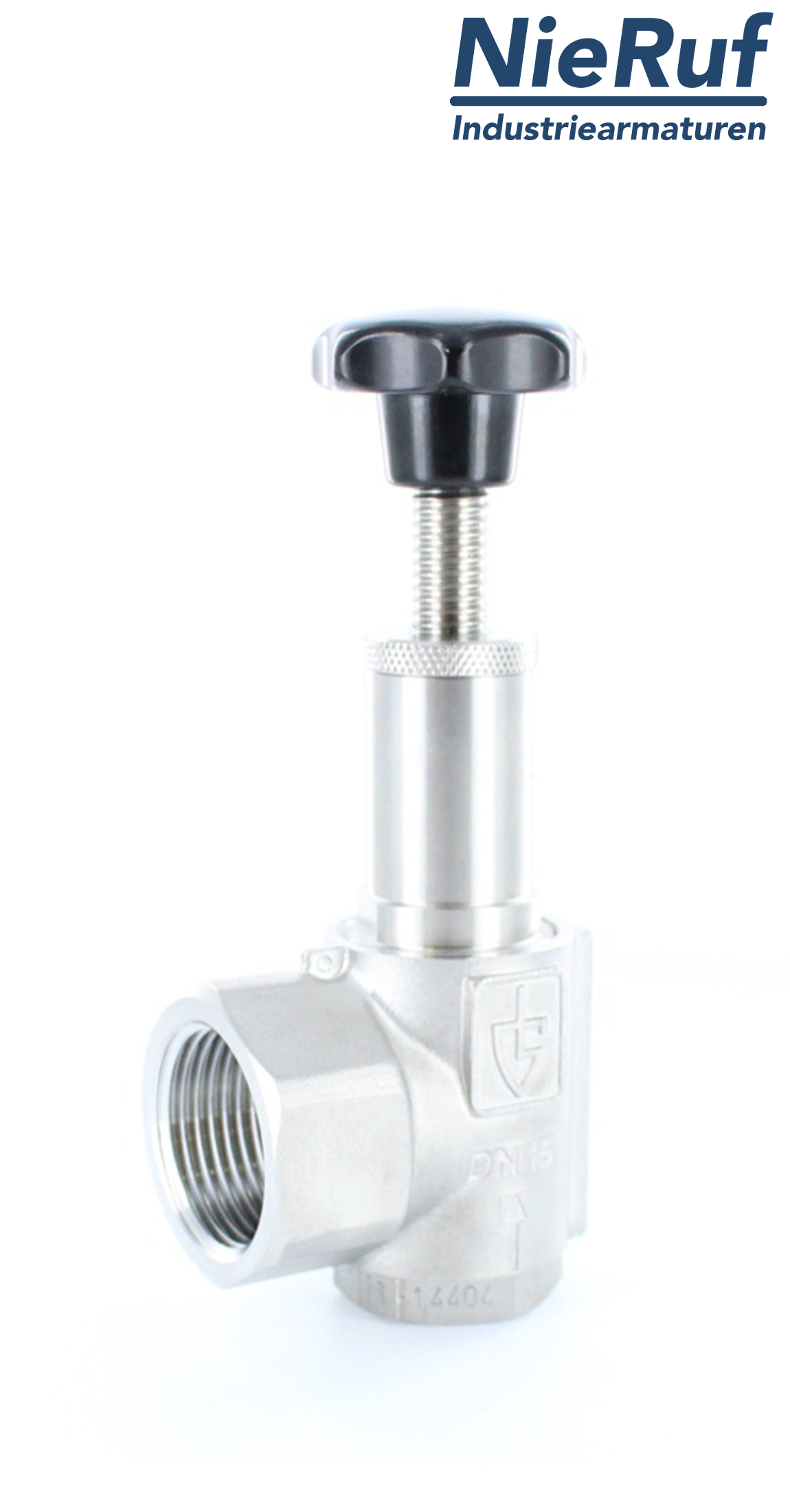

angle-type overflow valve 1 1/2" inch male UV15 stainless steel 5,6 - 11,0 bar
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
angle-type overflow valve 1 1/2" inch male type UV15 stainless steel 5,6 - 11,0 bar seal PTFE for liquid and gaseous media counter pressure compensated up to 4 bar
| product: | angle-type overflow valve |
|---|---|
| type: | UV15 |
| manufacturer: | NieRuf |
| diameter: | 1 1/2" inch male |
| connection: | male thread BSP-P |
| leakage: | 2" inch fm |
| seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -60°C to +225°C |
| range of adjustment: | 5,6 - 11,0 bar |
| design: | with an bellow, for counter pressure up to 4 bar |
| material: | stainless steel 1.4408 / AISI 316L |
| installation position: | preferably vertical |
| SIL - safety integrity level: | SIL 3 |
| product feature: | Counter-pressure compensated up to 4 bar. Adjusted by the customer in the corresponding spring range using the hand wheel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type overflow valve 1 1/2" inch male UV15 stainless steel 5,6 - 11,0 bar
Article no.
: UV15050107
product:
angle-type overflow valve
type:
UV15
manufacturer:
NieRuf
diameter:
1 1/2" inch male
connection:
male thread BSP-P
leakage:
2" inch fm
seal:
PTFE
media:
liquid and gaseous media
temperature:
-60°C to +225°C
range of adjustment:
5,6 - 11,0 bar
design:
with an bellow, for counter pressure up to 4 bar
material:
stainless steel 1.4408 / AISI 316L
installation position:
preferably vertical
SIL - safety integrity level:
SIL 3
product feature:
Counter-pressure compensated up to 4 bar. Adjusted by the customer in the corresponding spring range using the hand wheel.
€12.38 VAT included.
€45.58 VAT included.
€14.04 VAT included.
