UV13020306

piston overflow valve DN 32 UV13 cast iron 1.0619+N 1,0 - 3,0 bar

€1,830.80*

€2,178.65 VAT included.

Delivery time
1 - 2 weeks

Equipment

VS01010106

joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 steel

€6.80*

€8.09 VAT included.


FL01020106

Flange DN32 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare

€15.00*

€17.85 VAT included.


MM03000201

pressure gauge G 1/4" axial 50 mm steel MM03 0 - 4,0 bar

€10.60*

€12.61 VAT included.


FD01000106

flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400

€4.20*

€5.00 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

Certified

Certified

Product number: UV13020306

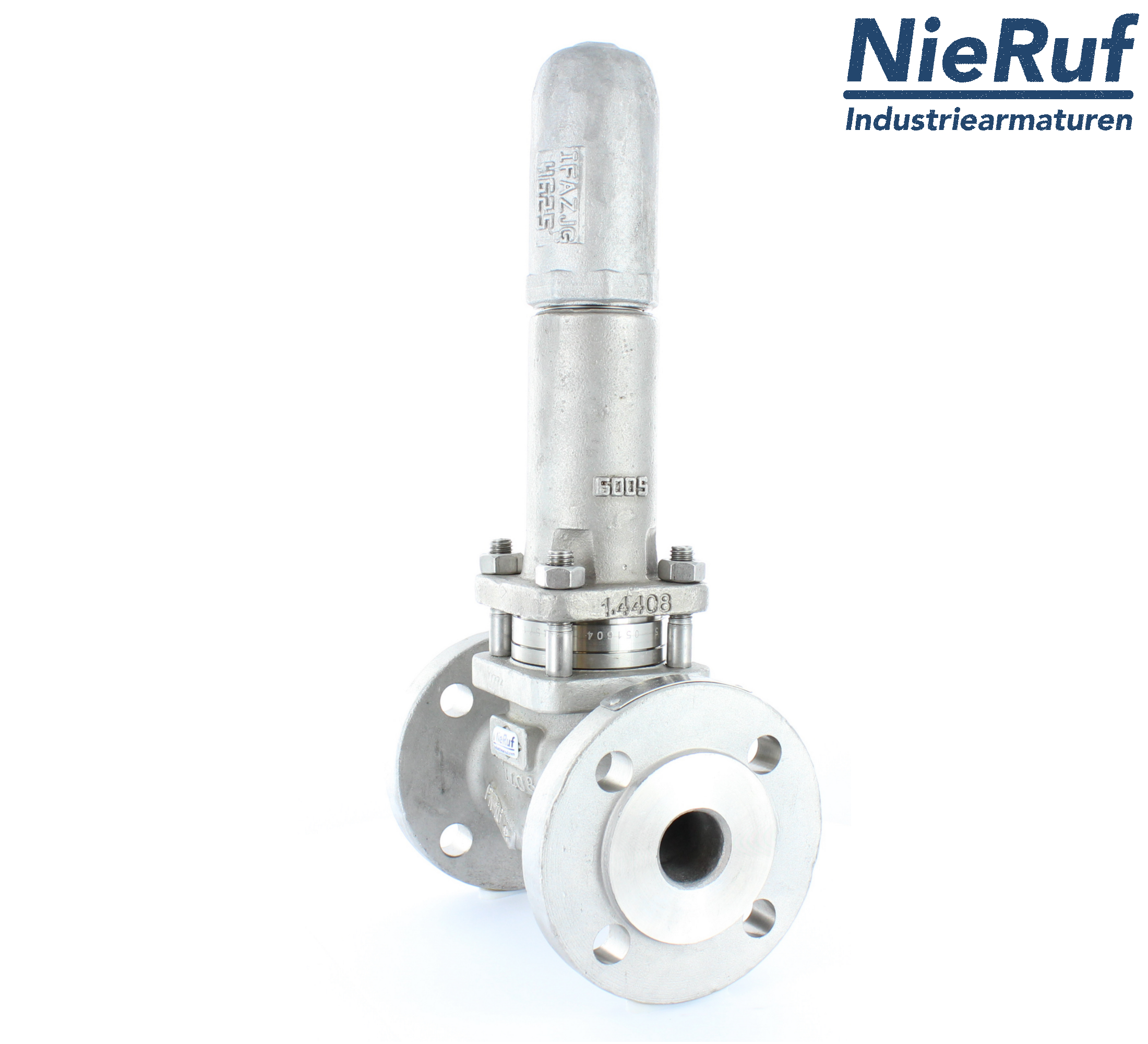

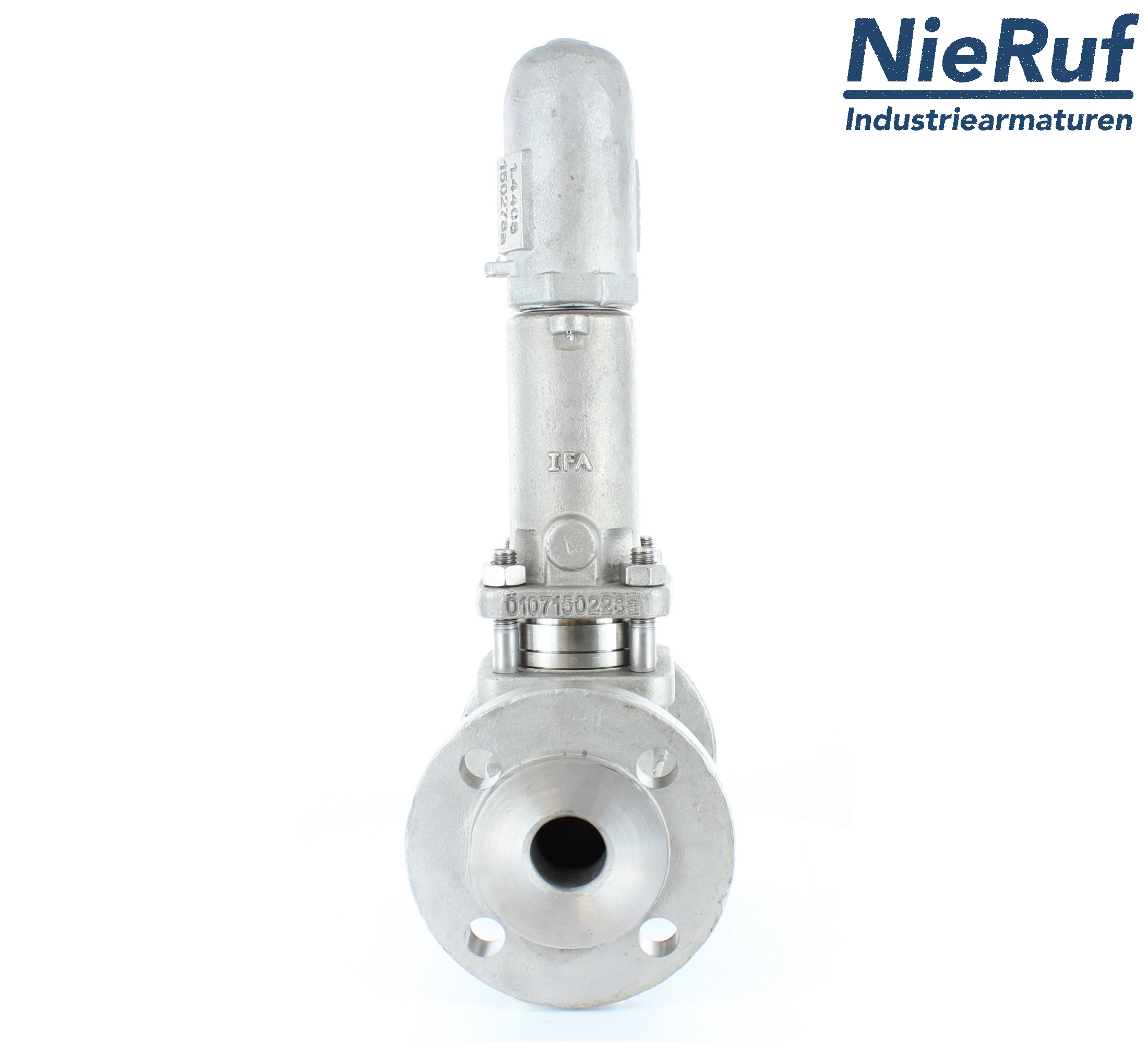

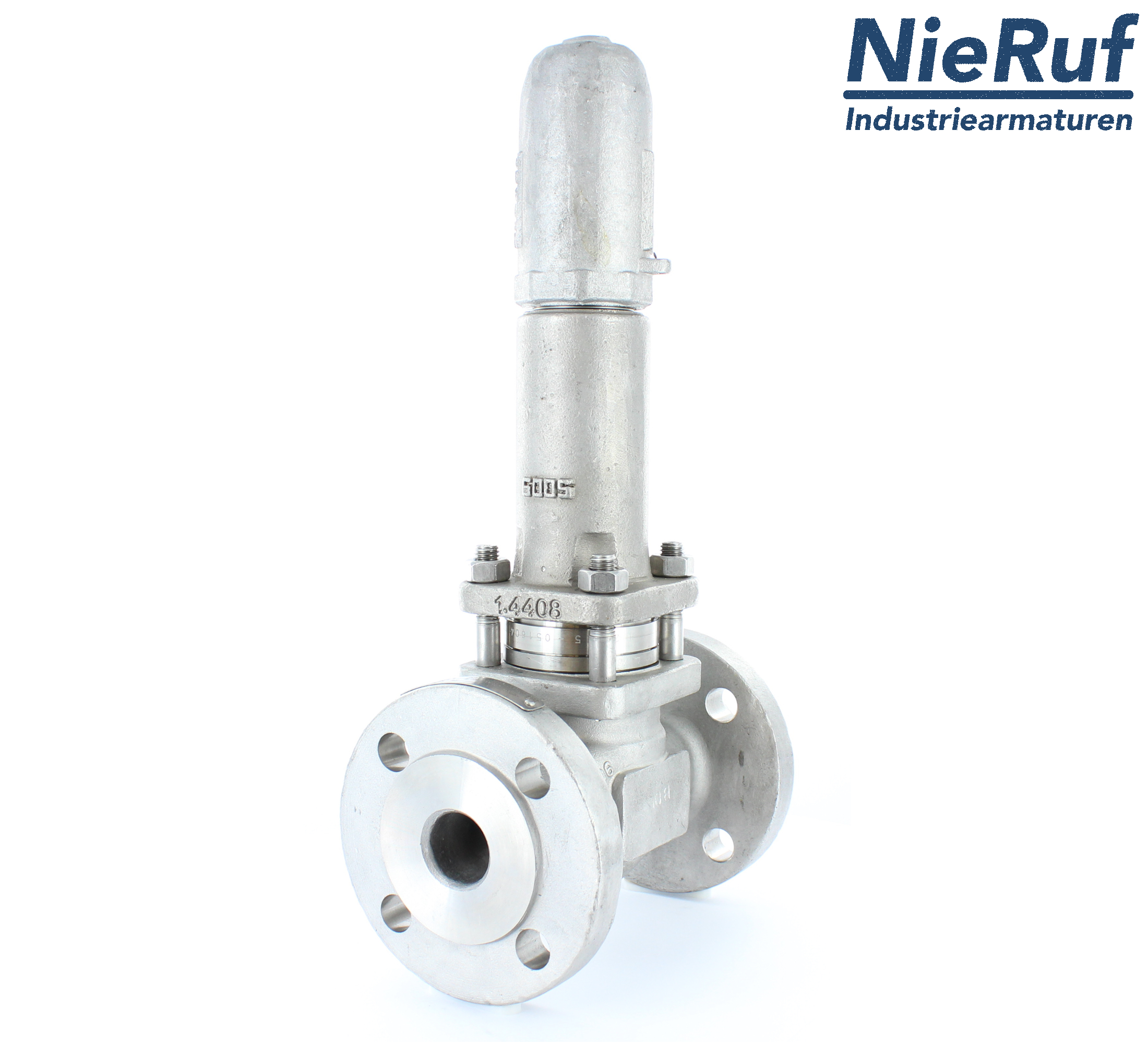

piston overflow valve DN 32 UV13 cast iron 1.0619+N 1,0 - 3,0 bar

piston overflow valve DN 32 type UV13 made of cast iron 1.0619+N pressure range 1,0 - 3,0 bar seal metall for liquid and gaseous media

product piston overflow valve
type UV13
manufacturer NieRuf
diameter DN 32
connection flange connection DIN 1092-1 PN16
seal metall
media liquid and gaseous media
temperature -10°C to +450°C
range of adjustment 1,0 - 3,0 bar
design straight through, spring loaded
material cast iron 1.0619+N
plug unit 1.4201+QT
approval TA - Air TÜV-Test-No. 922-9241371
installation position upright, bonnet showing upwards
product feature Spring operated Overflow valve with proportional operating characteristics.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

piston overflow valve DN 32 UV13 cast iron 1.0619+N 1,0 - 3,0 bar

Article no. : UV13020306
product: piston overflow valve
type: UV13
manufacturer: NieRuf
diameter: DN 32
connection: flange connection DIN 1092-1 PN16
seal: metall
media: liquid and gaseous media
temperature: -10°C to +450°C
range of adjustment: 1,0 - 3,0 bar
design: straight through, spring loaded
material: cast iron 1.0619+N
plug unit: 1.4201+QT
approval: TA - Air TÜV-Test-No. 922-9241371
installation position: upright, bonnet showing upwards
product feature: Spring operated Overflow valve with proportional operating characteristics.
