SC01010007

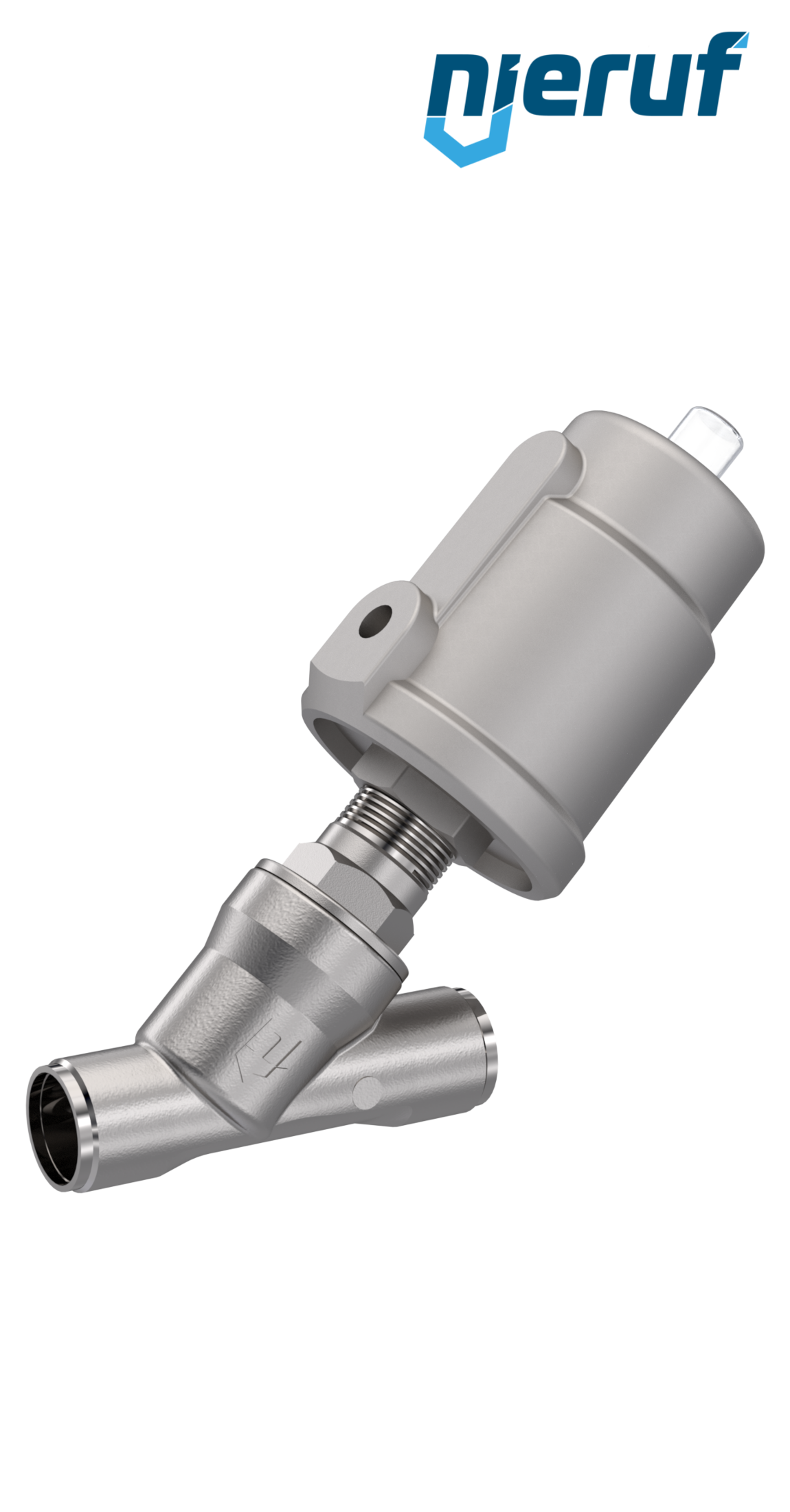

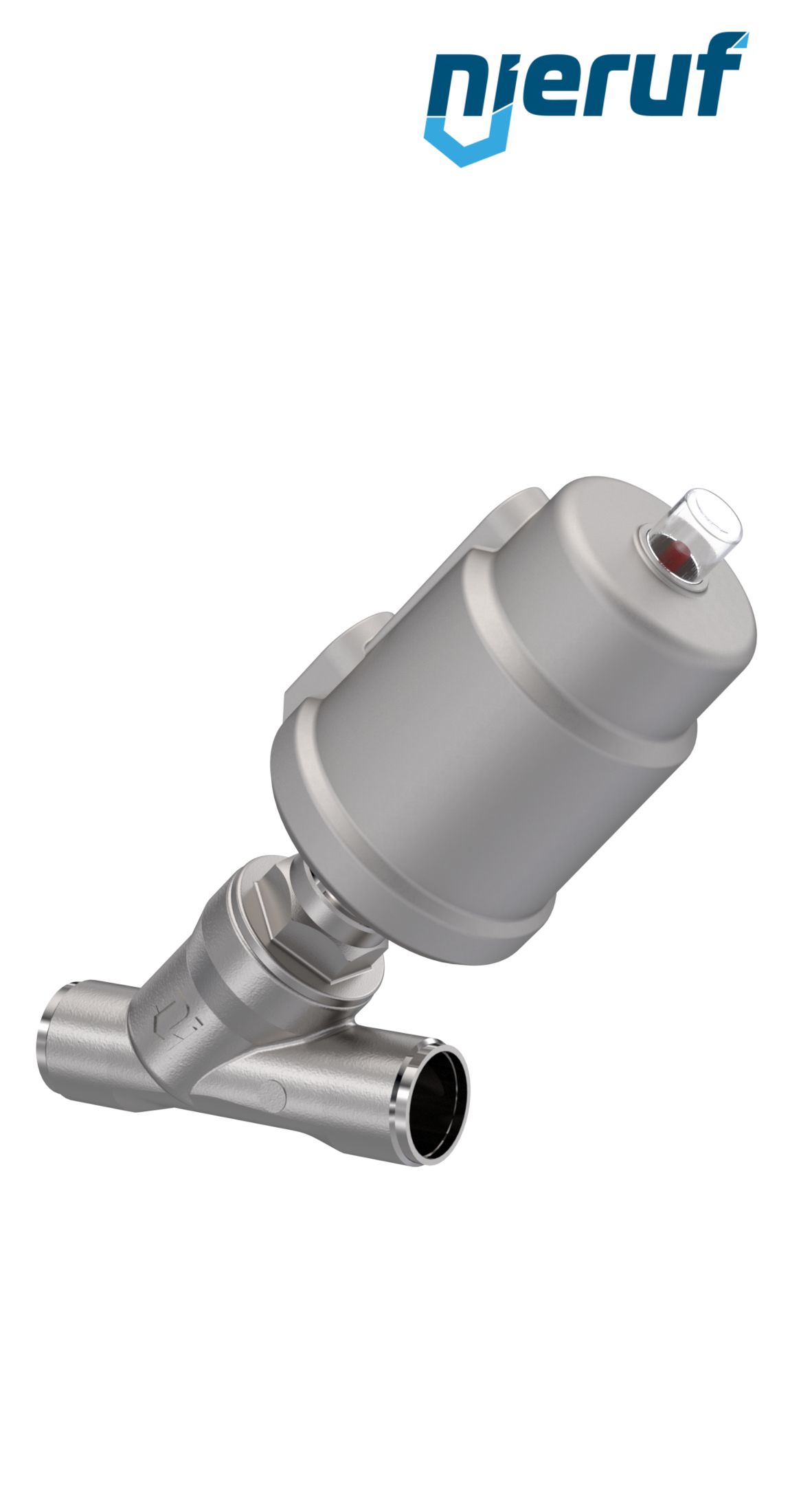

piston-operated angle seat valve G 1 1/2" inch welding end SC01 stainless steel
- Delivery time
- 3 - 5 working days
Equipment
Questions about the article?
NIERUF-SERVICE
piston-operated angle seat valve type SC01 G 1 1/2" inch welding end DN40 closing with flow direction made of stainless steel 1.4408
| product | piston-operated angle seat valve |
|---|---|
| type | SC01 |
| manufacturer | NieRuf |
| design | angle seat valve with actuator |
| diameter | DN40 |
| connection | G 1 1/2" inch |
| type of connection | welding end |
| flow rate | 32,9 m³/h |
| function | NC - normally closed |
| working function | closing with flow direction |
| control | air min 3.0 to 10.0 bar |
| material | stainless steel 1.4408 |
| seal | PTFE |
| actuator | 63 mm |
| signal | with optical position indicator |
| media | liquid and gaseous media |
| temperature | -10°C up to +60°C |
| temperature media | -10°C up to +180°C |
| max. pressure | 0 - 16 bar |
| installation position | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston-operated angle seat valve G 1 1/2" inch welding end SC01 stainless steel
Article no.
: SC01010007
product:
piston-operated angle seat valve
type:
SC01
manufacturer:
NieRuf
design:
angle seat valve with actuator
diameter:
DN40
connection:
G 1 1/2" inch
type of connection:
welding end
flow rate:
32,9 m³/h
function:
NC - normally closed
working function:
closing with flow direction
control:
air min 3.0 to 10.0 bar
material:
stainless steel 1.4408
seal:
PTFE
actuator:
63 mm
signal:
with optical position indicator
media:
liquid and gaseous media
temperature :
-10°C up to +60°C
temperature media:
-10°C up to +180°C
max. pressure:
0 - 16 bar
installation position:
any position
