SC01000005

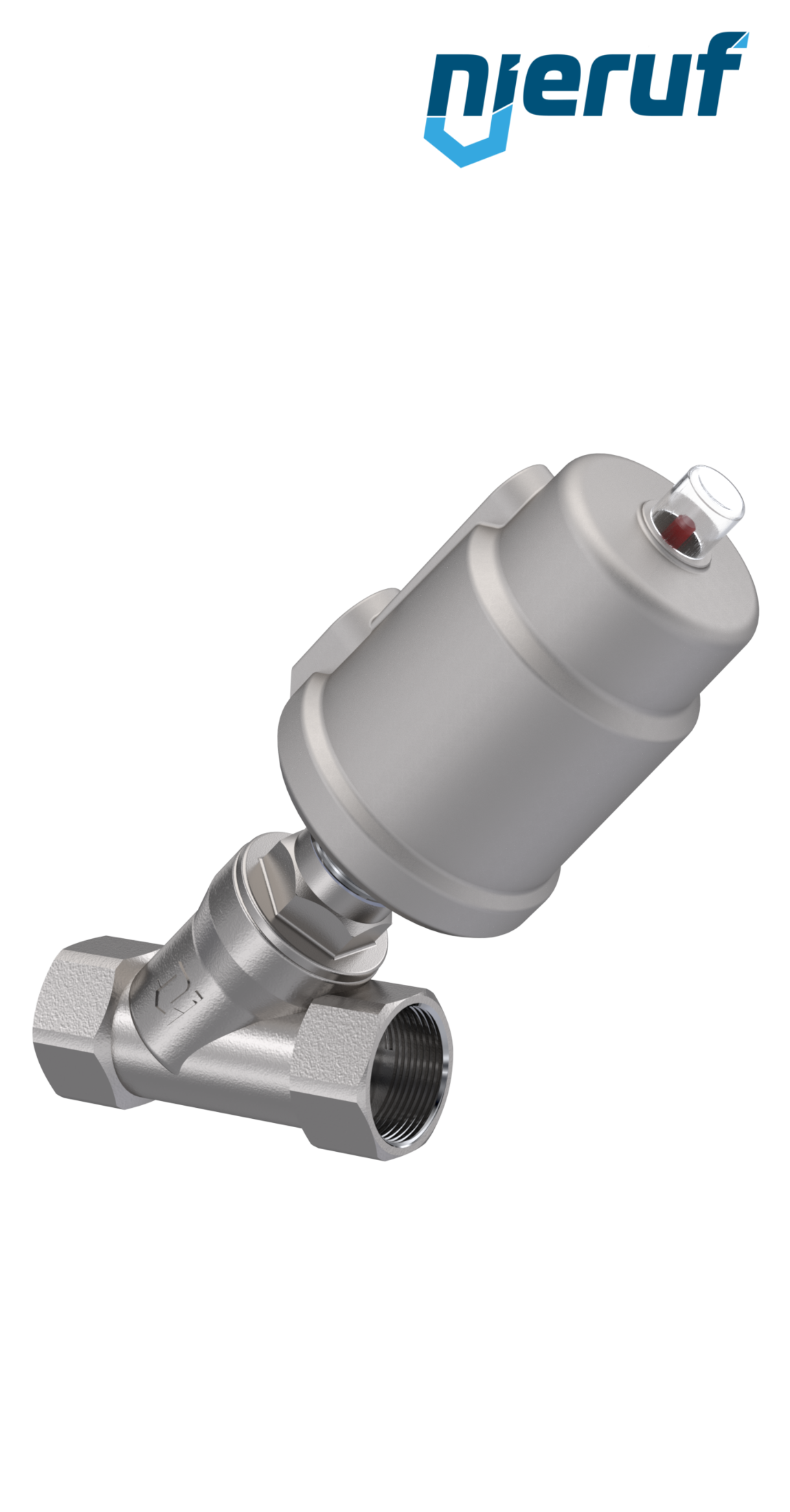

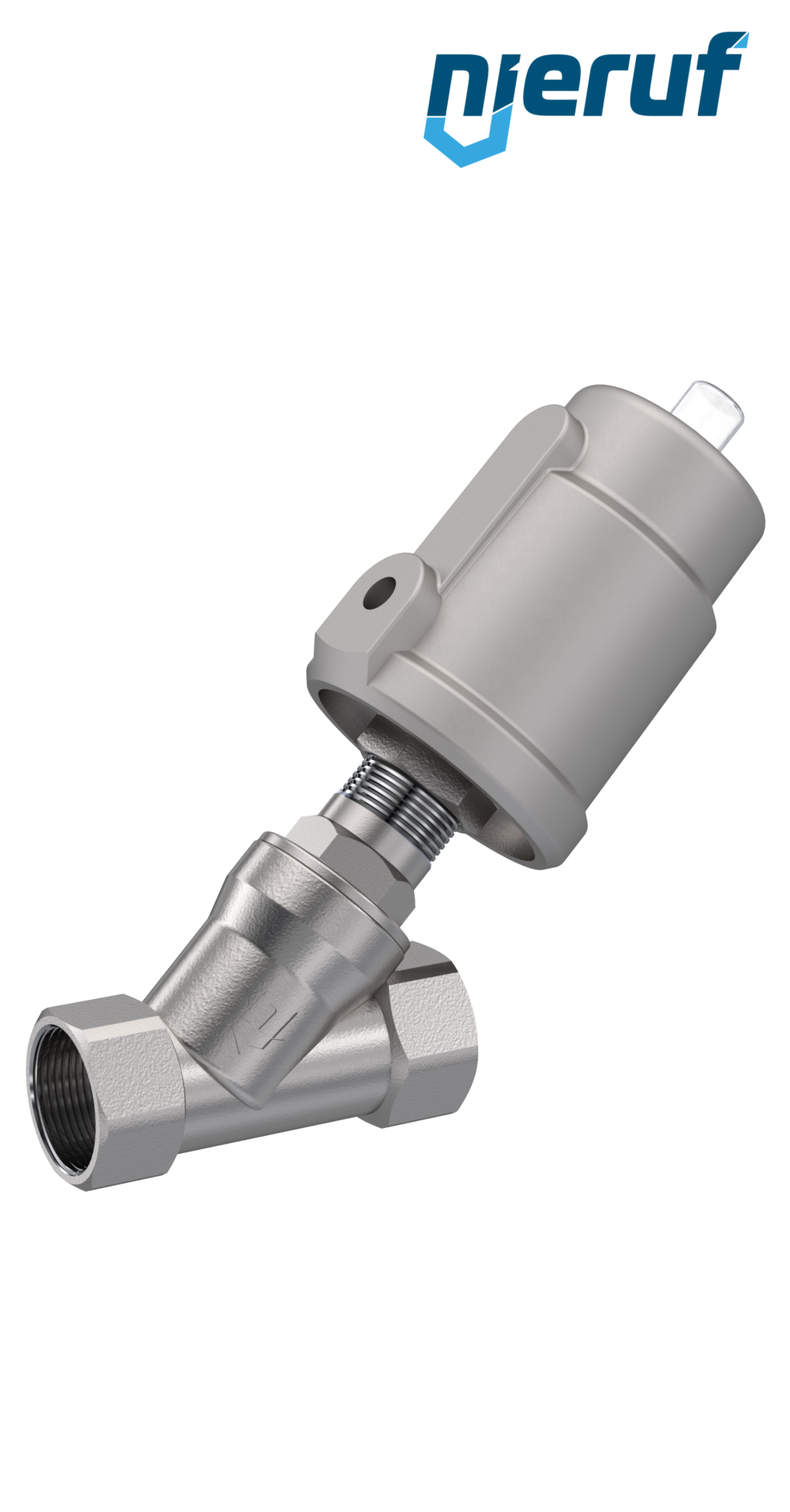

piston-operated angle seat valve G 1" inch SC01 stainless steel
Delivery time: in stock
Express delivery:
Shipping on: Tuesday, 31. December
Guaranteed delivery until Wednesday, 01. January, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
piston-operated angle seat valve type SC01 G 1" inch female thread DN25 closing with flow direction made of stainless steel 1.4408
| product: | piston-operated angle seat valve |
|---|---|
| type: | SC01 |
| manufacturer: | NieRuf |
| design: | angle seat valve with actuator |
| diameter: | DN25 |
| connection: | G 1" inch |
| type of connection: | female thread |
| flow rate: | 18,1 m³/h |
| function: | NC - normally closed |
| working function: | closing with flow direction |
| control: | air min 3.0 to 10.0 bar |
| material: | stainless steel 1.4408 |
| seal: | PTFE |
| actuator: | 50 mm |
| signal: | with optical position indicator |
| media: | liquid and gaseous media |
| temperature : | -10°C up to +60°C |
| temperature media: | -10°C up to +180°C |
| max. pressure: | 0 - 16 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston-operated angle seat valve G 1" inch SC01 stainless steel
Article no.
: SC01000005
product:
piston-operated angle seat valve
type:
SC01
manufacturer:
NieRuf
design:
angle seat valve with actuator
diameter:
DN25
connection:
G 1" inch
type of connection:
female thread
flow rate:
18,1 m³/h
function:
NC - normally closed
working function:
closing with flow direction
control:
air min 3.0 to 10.0 bar
material:
stainless steel 1.4408
seal:
PTFE
actuator:
50 mm
signal:
with optical position indicator
media:
liquid and gaseous media
temperature :
-10°C up to +60°C
temperature media:
-10°C up to +180°C
max. pressure:
0 - 16 bar
installation position:
any position
