SC02010004

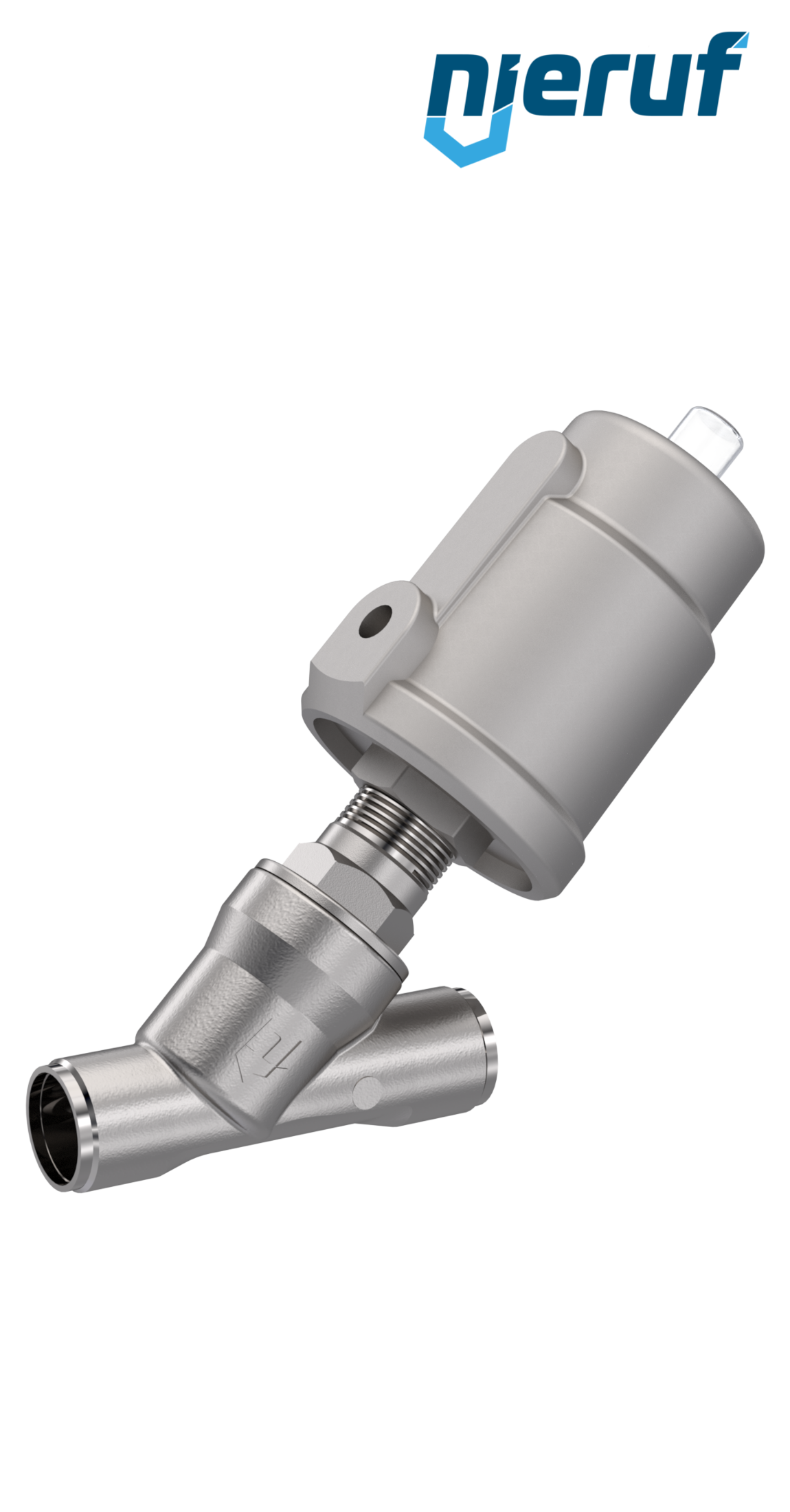

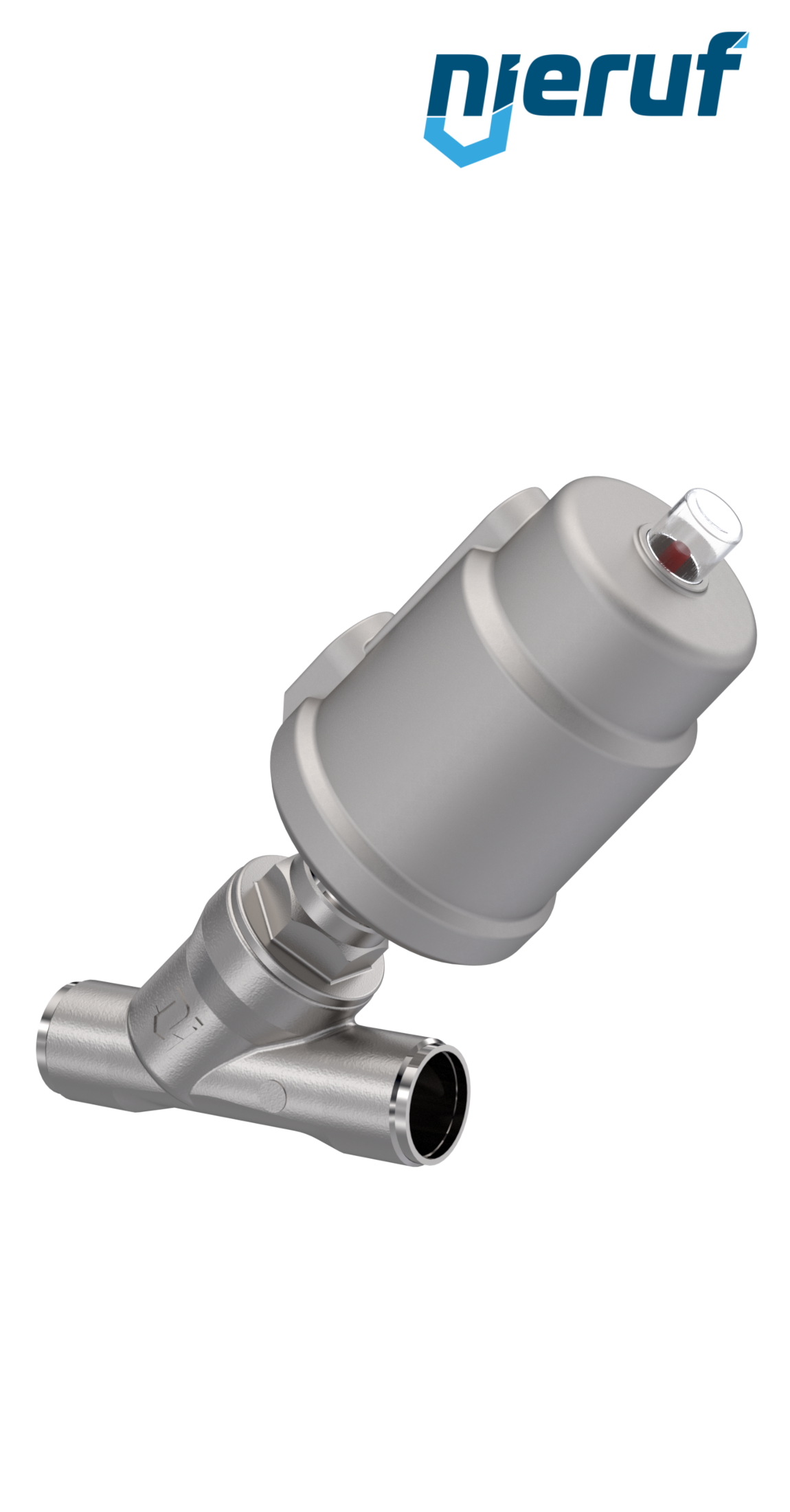

piston-operated angle seat valve G 3/4" inch welding end SC02 stainless steel
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
piston-operated angle seat valve type SC02 G 3/4" inch welding end DN20 closing against direction made of stainless steel 1.4408
| product: | piston-operated angle seat valve |
|---|---|
| type: | SC02 |
| manufacturer: | NieRuf |
| design: | angle seat valve with actuator |
| diameter: | DN20 |
| connection: | G 3/4" inch |
| type of connection: | welding end |
| flow rate: | 9,5 m³/h |
| function: | NC - normally closed |
| working function: | closing against flow direction |
| control: | air min 3.0 to 10.0 bar |
| material: | stainless steel 1.4408 |
| seal: | PTFE |
| actuator: | 50 mm |
| signal: | with optical position indicator |
| media: | liquid and gaseous media |
| temperature : | -10°C up to +60°C |
| temperature media: | -10°C up to +180°C |
| max. pressure: | 0 - 10 bar |
| installation position: | any position |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston-operated angle seat valve G 3/4" inch welding end SC02 stainless steel
Article no.
: SC02010004
product:
piston-operated angle seat valve
type:
SC02
manufacturer:
NieRuf
design:
angle seat valve with actuator
diameter:
DN20
connection:
G 3/4" inch
type of connection:
welding end
flow rate:
9,5 m³/h
function:
NC - normally closed
working function:
closing against flow direction
control:
air min 3.0 to 10.0 bar
material:
stainless steel 1.4408
seal:
PTFE
actuator:
50 mm
signal:
with optical position indicator
media:
liquid and gaseous media
temperature :
-10°C up to +60°C
temperature media:
-10°C up to +180°C
max. pressure:
0 - 10 bar
installation position:
any position
€55.34 VAT included.
€55.34 VAT included.
€5.59 VAT included.
€23.68 VAT included.
€11.19 VAT included.
