Reliable butterfly valves from NieRuf

Within closed pipeline systems, different and sometimes aggressive media have to be controlled and operated reliably. Shut-off valves from NieRuf Industrial Valves play a crucial role in a closed pipeline system and ensure that your facility operates reliably. Butterfly valves can be used to stop the flow rate entirely, thereby preventing damage to the facility. But they also play a crucial role in maintaining proper operation. Since the flow rate varies depending on the pipeline system you are using, we offer butterfly valves with different denominations from DN25 to DN400.

Plastic butterfly valve – shutting off systems easily and quickly


The plastic butterfly valve is installed in piping systems in which the medium would corrode or damage a standard metal flap. For media containing chlorine, e.g. swimming pool applications, a plastic Butterfly valve made of PVC is used in many cases. PP Butterfly valves, on the other hand, are used in the chemical industry. The PP material renders the flap extremely resistant, e.g. in alkaline or acidic applications.


Filter

Product finder

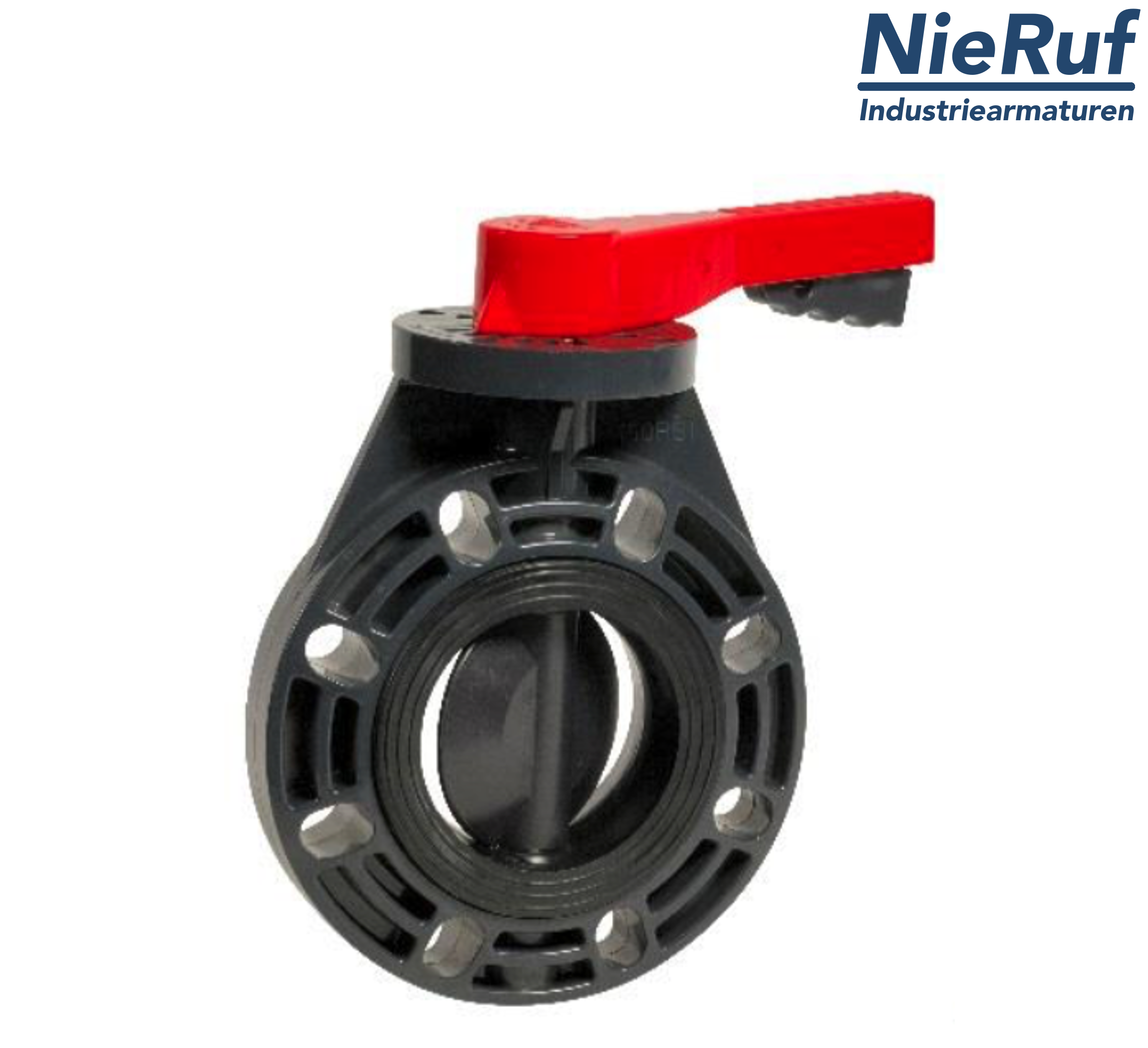

Butterfly-valve-PVC-U DN 40 PN10 AK07 EPDM notch lever

AK07000007

Butterfly-valve-PVC-U DN 40 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 40
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€146.00*

€173.74 VAT included.

Delivery time
in stock
Express delivery*

Butterfly-valve-PVC-U DN 125 PN10 AK07 EPDM notch lever

AK07000012

Butterfly-valve-PVC-U DN 125 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 125
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€340.40*

€405.08 VAT included.

Delivery time
3 - 5 working days

Butterfly-valve-PVC-U DN 50 PN10 AK07 EPDM notch lever

AK07000008

Butterfly-valve-PVC-U DN 50 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 50
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€163.00*

€193.97 VAT included.

Delivery time
3 - 5 working days

Butterfly-valve-PVC-U DN 100 PN10 AK07 EPDM notch lever

AK07000011

Butterfly-valve-PVC-U DN 100 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 100
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€305.60*

€363.66 VAT included.

Delivery time
3 - 5 working days

Butterfly-valve-PVC-U DN 80 PN10 AK07 EPDM notch lever

AK07000010

Butterfly-valve-PVC-U DN 80 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 80
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€262.80*

€312.73 VAT included.

Delivery time
3 - 5 working days

Butterfly-valve-PVC-U DN 200 PN10 AK07 EPDM notch lever

AK07000014

Butterfly-valve-PVC-U DN 200 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 200
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€528.80*

€629.27 VAT included.

Delivery time
3 - 5 working days

Butterfly-valve-PVC-U DN 150 PN10 AK07 EPDM notch lever

AK07000013

Butterfly-valve-PVC-U DN 150 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 150
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€371.60*

€442.20 VAT included.

Delivery time
3 - 5 working days

Butterfly-valve-PVC-U DN 65 PN10 AK07 EPDM notch lever

AK07000009

Butterfly-valve-PVC-U DN 65 PN10 Wafer type body made of PVC-U with notch lever seal made of EPDM

Technical features

  • diameter DN 65
  • sleeves EPDM
  • actuation notch lever
  • body material PVC-U
  • design Wafer type

€164.90*

€196.23 VAT included.

Delivery time
3 - 5 working days


High-quality plastic butterfly valve made of PVC or PP


The plastic butterfly valve made of PVC-U or PP is available with nominal diameters DN40 - DN 200. In both variants, the flap is made of high-quality PP-GF and centrally mounted. They also feature centring lugs and can optionally be fitted with an FPM or EPDM seal. Operation is via a hand crank. In addition, they are provided with an anti-UV coating and can be mounted in any installation position.


The right plastic butterfly valve


Plastic butterfly valves made of PVC-U are broadly used in the field of swimming pool technology, swimming pool construction or other straightforward applications involving chlorine-containing media. It constitutes a simple and affordable variant. The high-quality PP butterfly valve, on the other hand, is used in harsher and more challenging settings. Spanning from +10°C to +80°C at maximum, its temperature range is broader as well. We will be happy to help you choose your plastic shut-off flap – just get in touch.



FAQ

There for you


Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.

You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com

Catalog

Quality


Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
