AN02000000

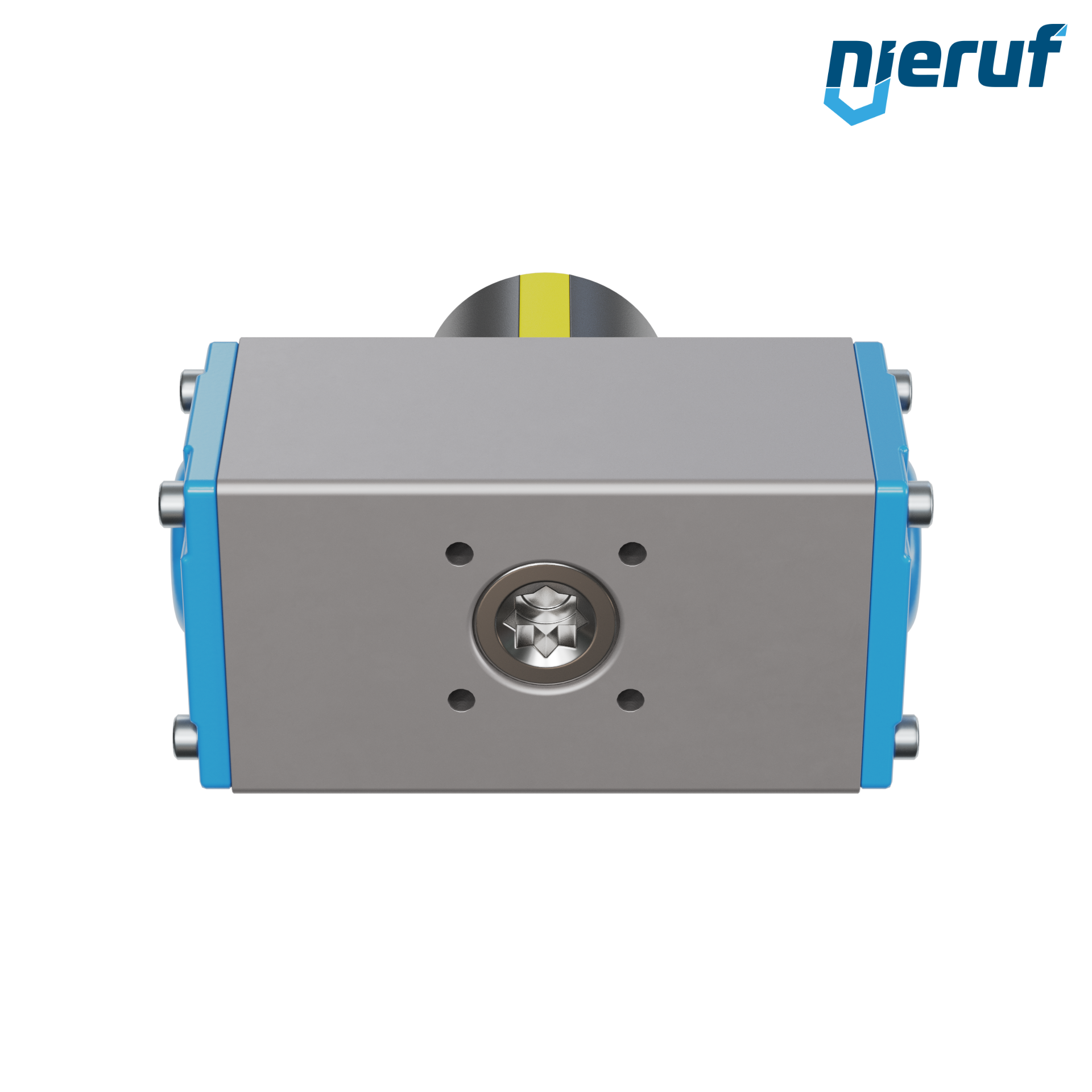

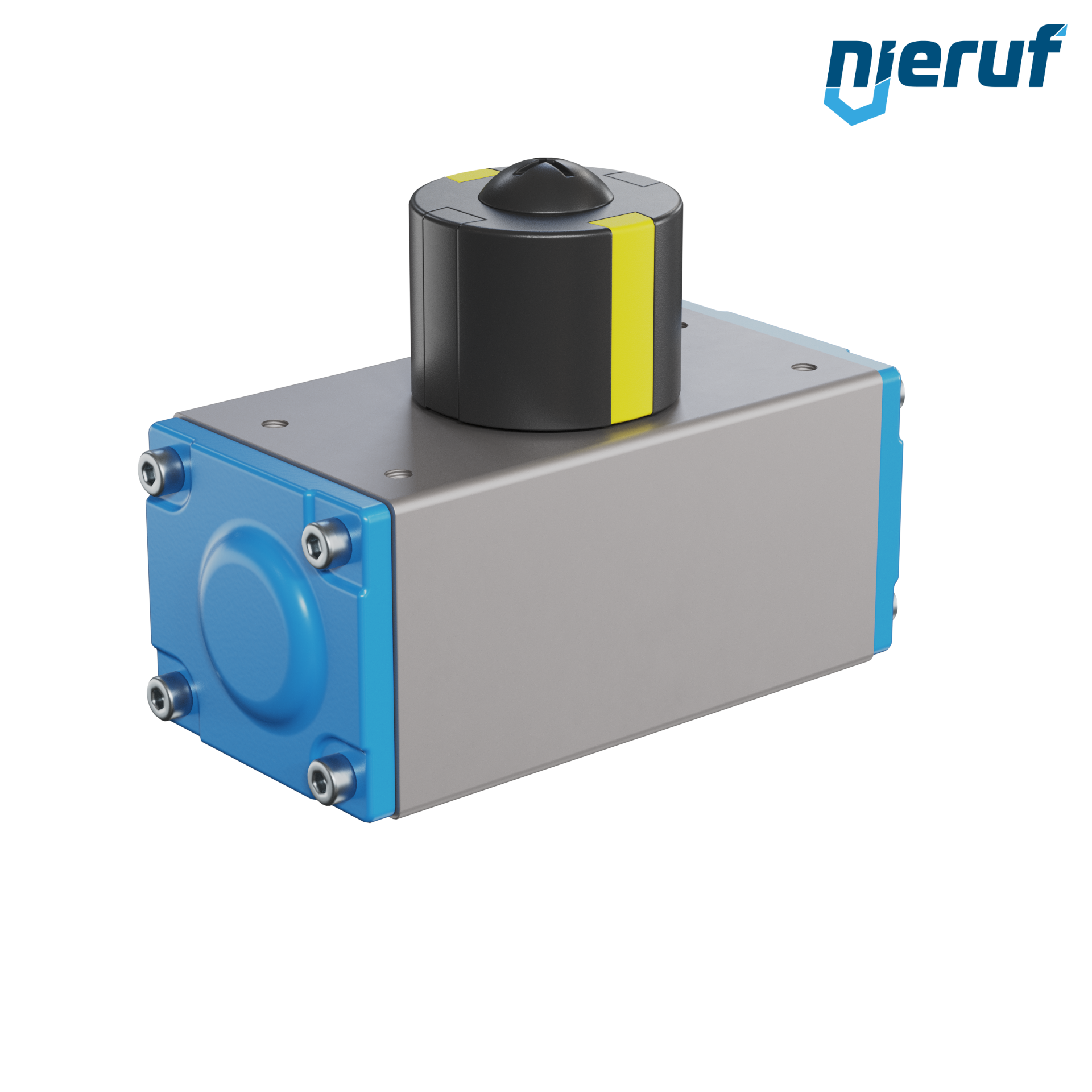

pneumatic actuator AN02 double acting 90° GD-032
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
pneumatic actuator double acting with 90° pan angle GD-032 according to ISO 5211 F03 for control pressure 2 to 8 bar
| product: | pneumatic actuator |
|---|---|
| type: | AN02 |
| manufacturer: | NieRuf |
| SIL - safety integrity level: | SIL 3 |
| ISO flange 5211: | F03 |
| stem intake: | 9mm |
| screw depth: | 11mm |
| torque: | min. 3Nm up to max. 12Nm |
| drive sprocket design: | octagon |
| temperature: | - 20°C up to +80°C |
| length: | 114mm |
| width: | 55mm |
| high: | 86mm |
| actuator: | GD-032 |
| actuator informations: | Robust, high-quality design for aggressive environments. Adjustable by 5° |
| body material: | Hard-coated aluminum alloy |
| function: | double acting |
| swivel angle: | 90° |
| control pressure: | 2 bar to 8 bar |
| seals: | NBR |
| control medium: | filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4] |
| installation position: | any position |
| product description: | Compact, double-acting, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pneumatic actuator AN02 double acting 90° GD-032
Article no.
: AN02000000
product:
pneumatic actuator
type:
AN02
manufacturer:
NieRuf
SIL - safety integrity level:
SIL 3
ISO flange 5211:
F03
stem intake:
9mm
screw depth:
11mm
torque:
min. 3Nm up to max. 12Nm
drive sprocket design:
octagon
temperature:
- 20°C up to +80°C
length:
114mm
width:
55mm
high:
86mm
actuator:
GD-032
actuator informations:
Robust, high-quality design for aggressive environments. Adjustable by 5°
body material:
Hard-coated aluminum alloy
function:
double acting
swivel angle:
90°
control pressure:
2 bar to 8 bar
seals:
NBR
control medium:
filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4]
installation position:
any position
product description:
Compact, double-acting, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator.
€52.84 VAT included.
€72.83 VAT included.
€78.90 VAT included.
