FM01001004
fluid level gauge G 3/4" inch FM01 plug M12 20 - 253 V AC/DC
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

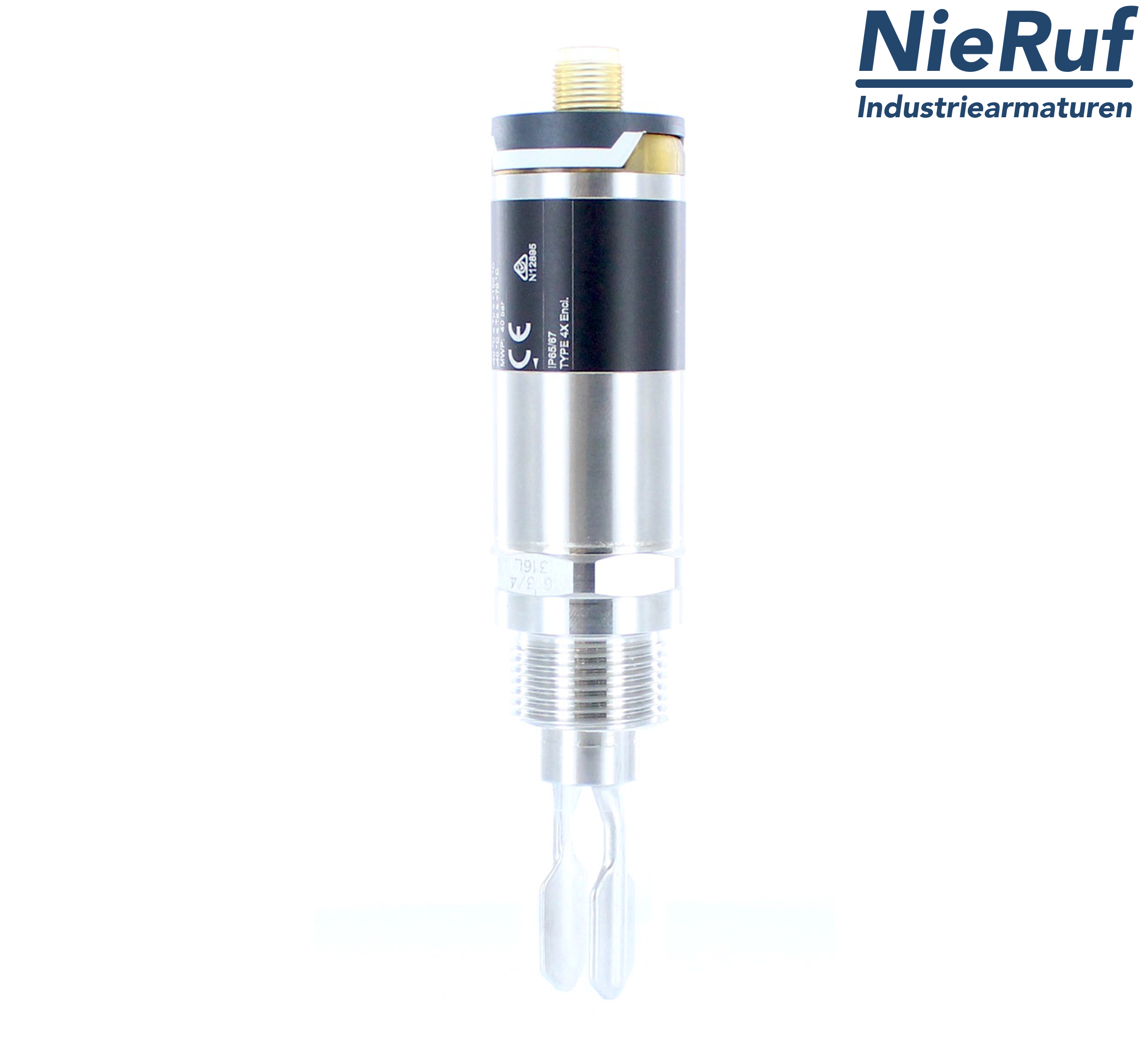

fluid level gauge / point level switch G 3/4" inch with plug M12 (inclusive) 20 - 253 V AC/DC made of stainless steel with fork in compact design Type FM01
| product: | fluid level gauge |
|---|---|
| type: | FM01 |
| manufacturer: | NieRuf |
| diameter: | G 3/4" inch |
| body: | stainless steel |
| response time: | 0,5s at covering, 1s at release |
| temperature: | -40°C - +100°C |
| temperature ambiente: | -40°C - +70°C |
| material density: | >0,7 g/cm^3 |
| sensor: | fork |
| max. working pressure: | 40 bar |
| medium: | for liquids |
| design: | compact |
| electrical output: | 20 - 253 V AC/DC |
| Connection: | plug M12 |
| operating capacity: | 200mA DC, 250mA AC/DC |
| current consumption: | <15mA DC, <3,8 AC/DC |
| product description: | Fluid-level-gauge or point level switch made of stainless steel |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
fluid level gauge G 3/4" inch FM01 plug M12 20 - 253 V AC/DC
Article no.
: FM01001004
product:
fluid level gauge
type:
FM01
manufacturer:
NieRuf
diameter:
G 3/4" inch
body:
stainless steel
response time:
0,5s at covering, 1s at release
temperature:
-40°C - +100°C
temperature ambiente:
-40°C - +70°C
material density:
>0,7 g/cm^3
sensor:
fork
max. working pressure:
40 bar
medium:
for liquids
design:
compact
electrical output:
20 - 253 V AC/DC
Connection:
plug M12
operating capacity:
200mA DC, 250mA AC/DC
current consumption:
<15mA DC, <3,8 AC/DC
product description:
Fluid-level-gauge or point level switch made of stainless steel
