DM15020005

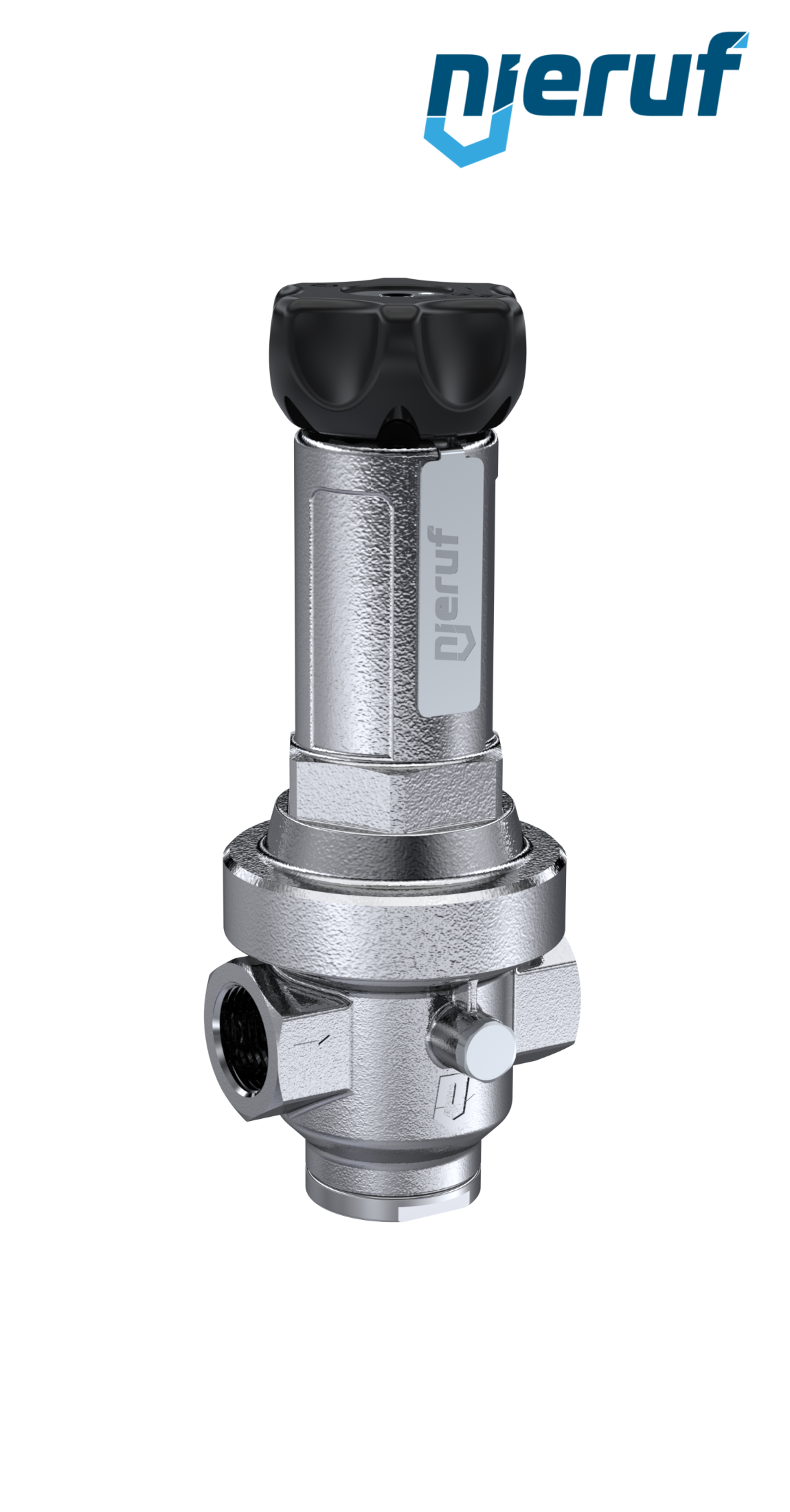

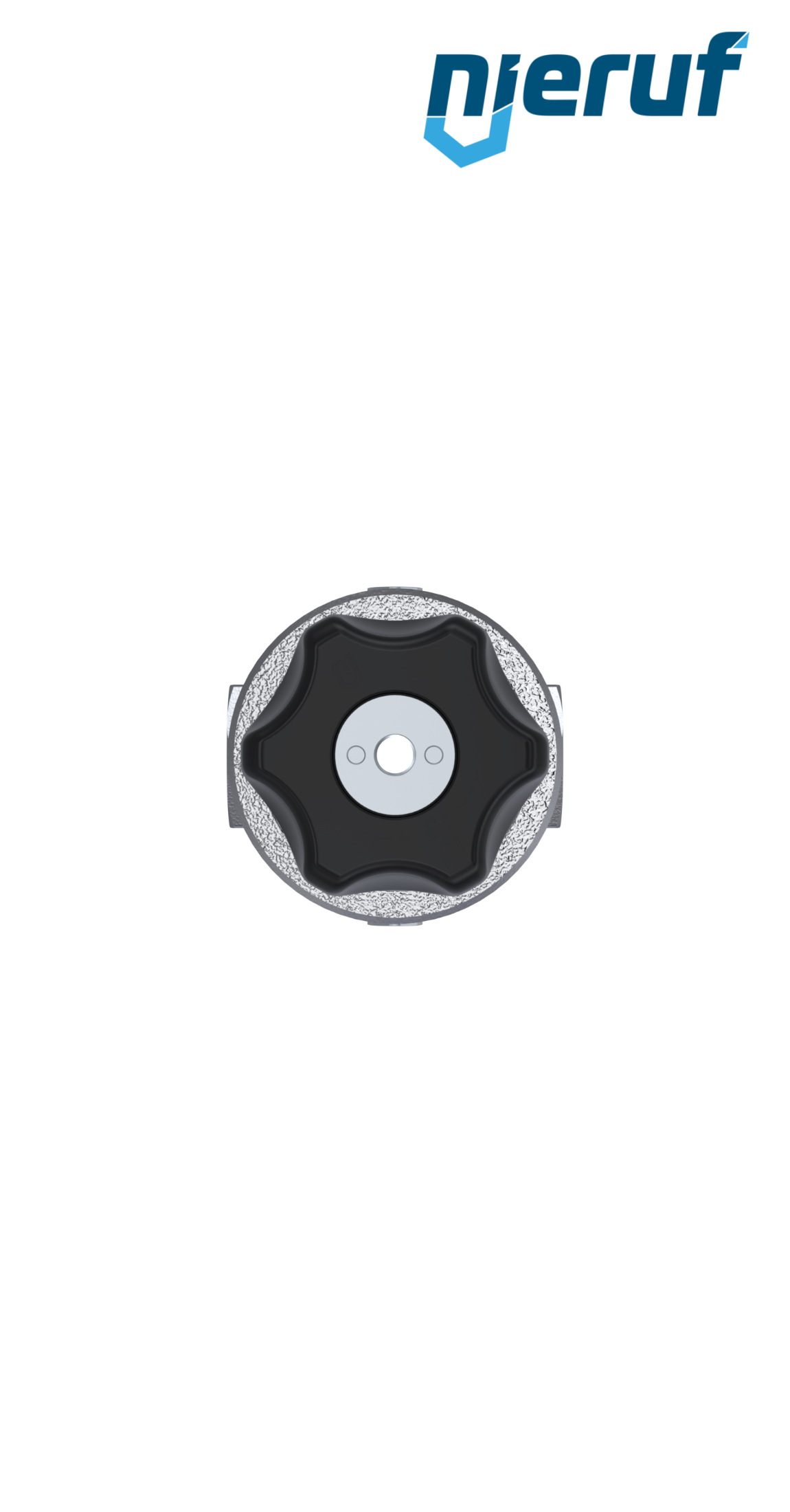

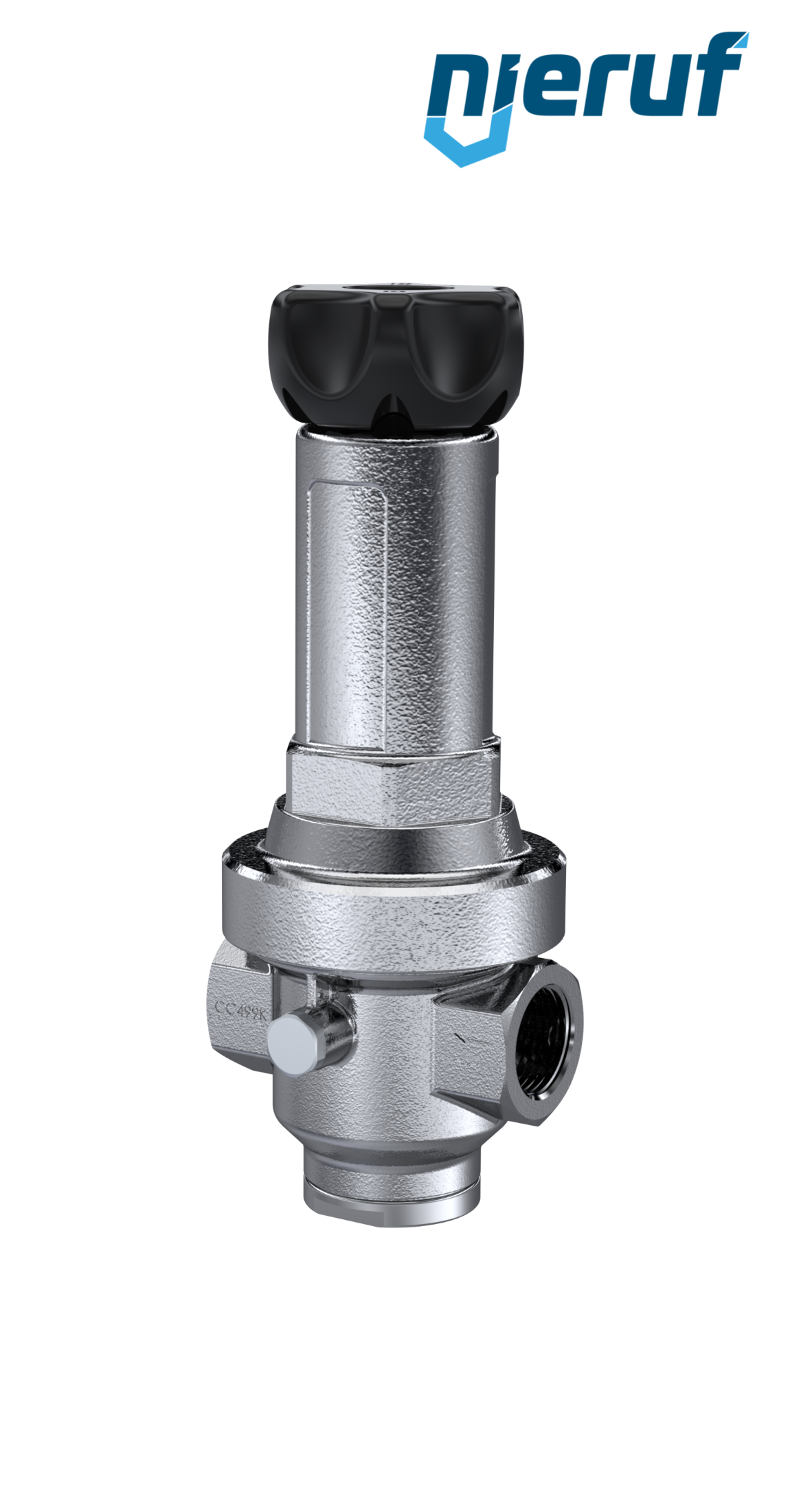

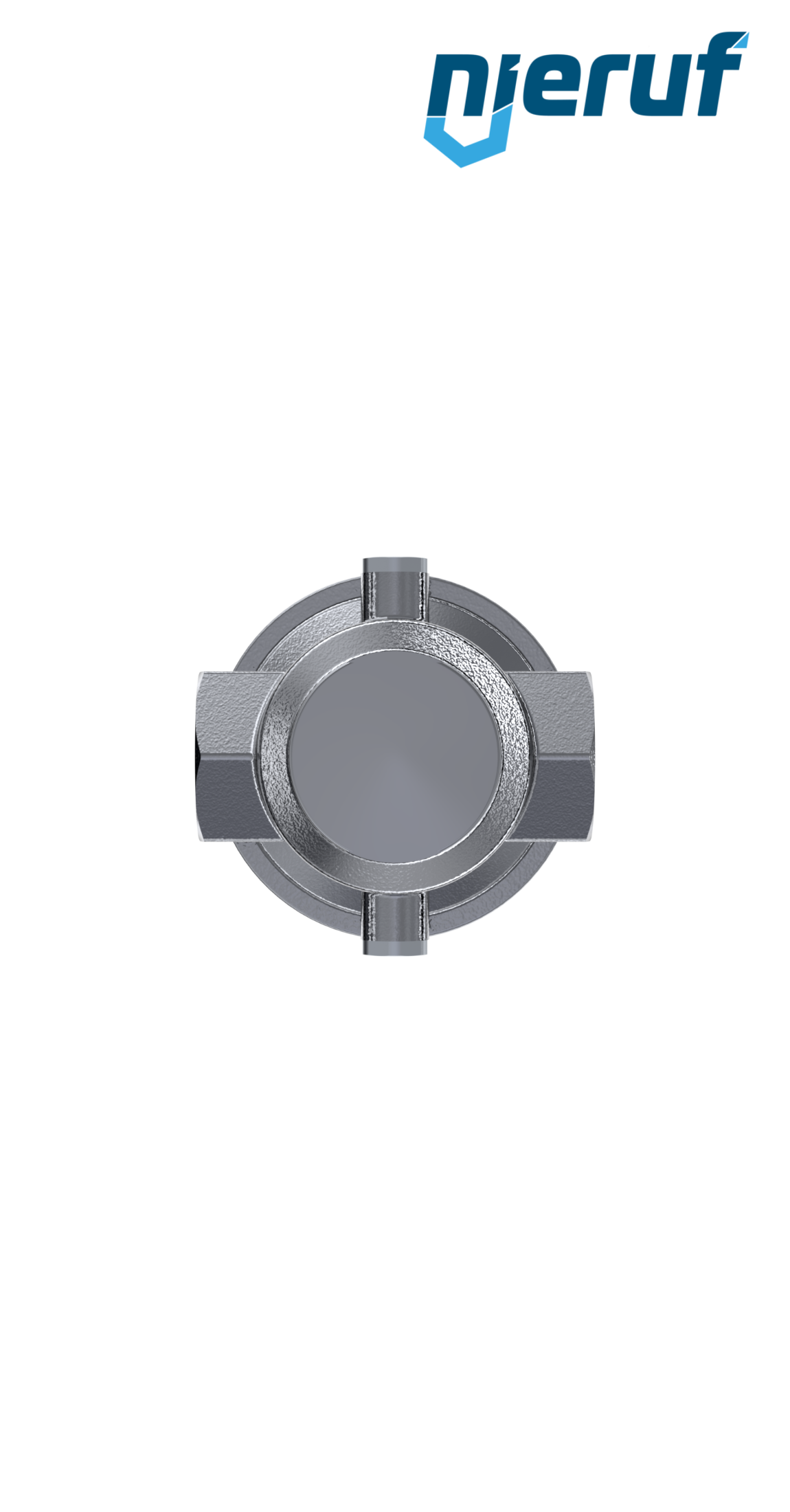

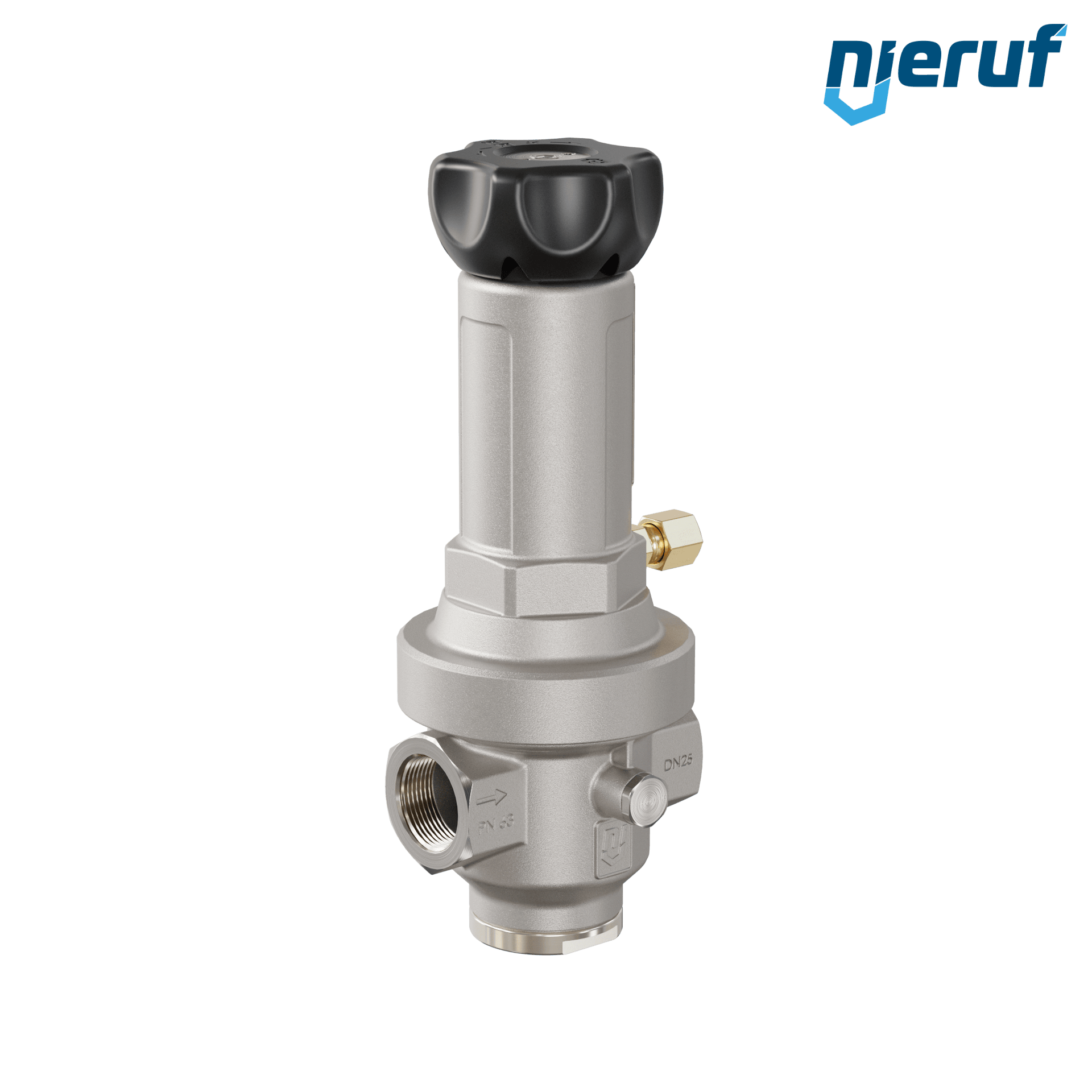

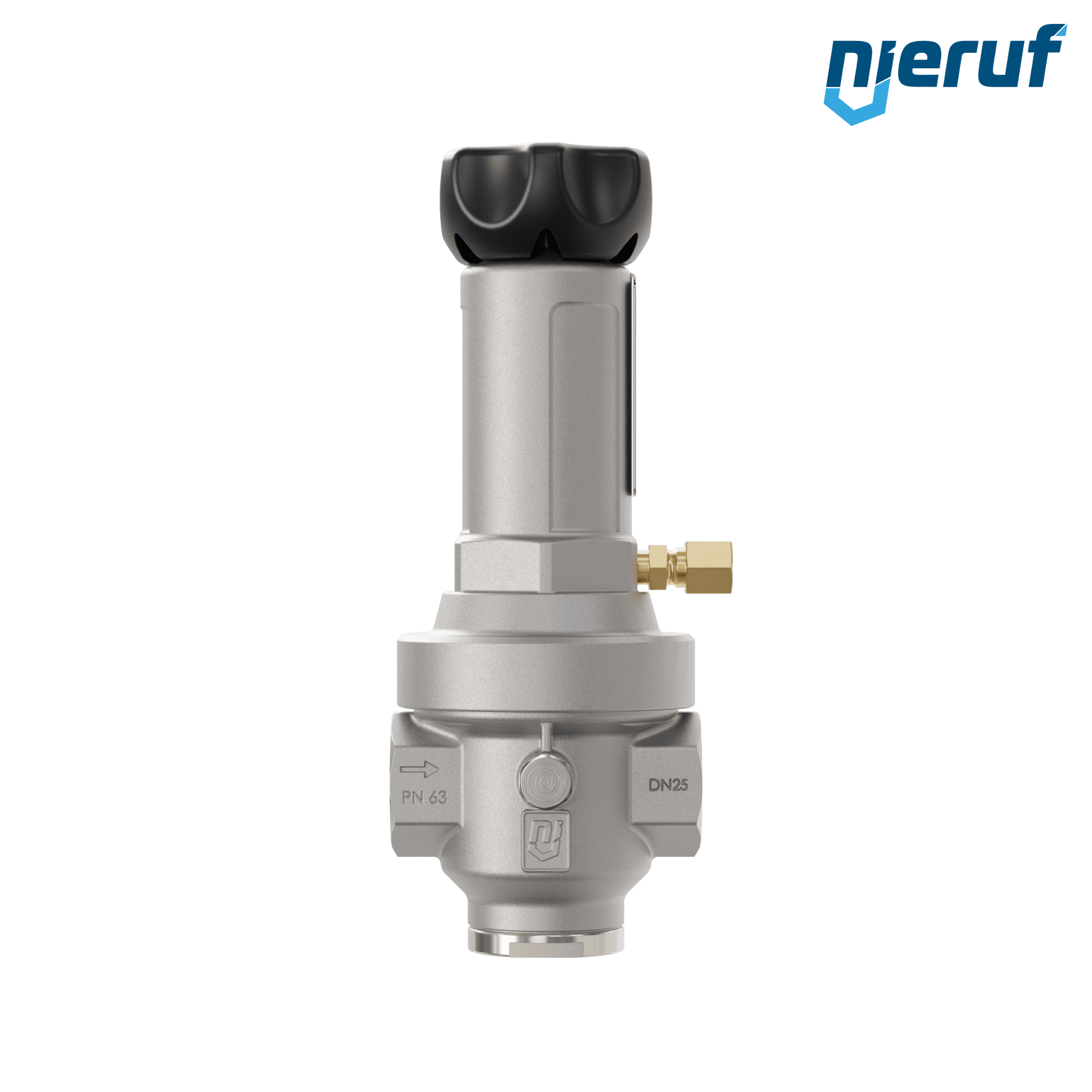

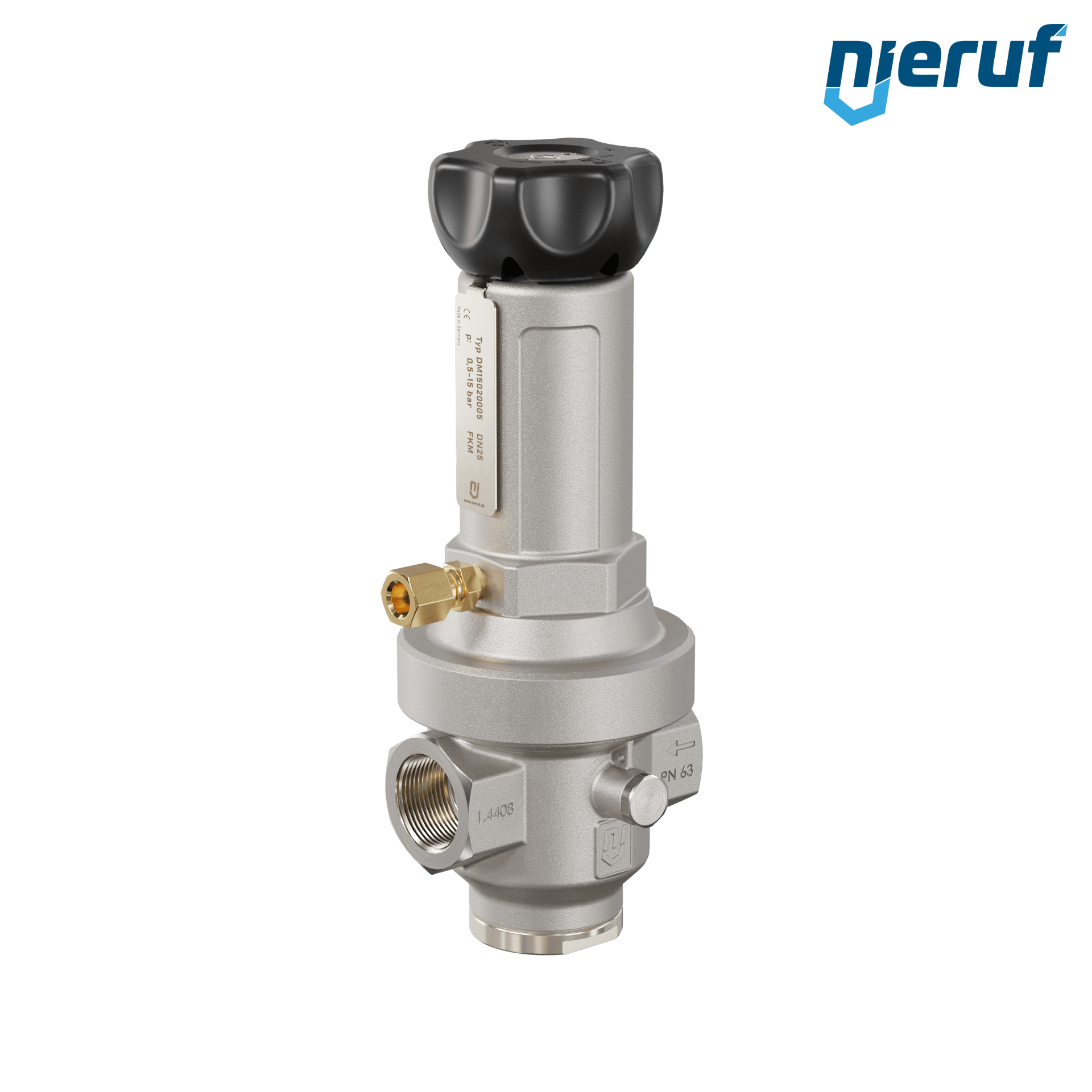

precision-pressure reducing valve with secondary venting 1" inch DM15 stainless steel FKM 0.5 - 15 bar
Delivery time: 3 - 5 working days
Equipment
pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05
€101.27 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
precision-pressure reducing valve with secondary venting 1" inch female thread made of stainless steel seal FKM for neutral gaseous media, set pressure 0.5 - 15 bar
| product: | precision-pressure reducing valve |
|---|---|
| type: | DM15 |
| manufacturer: | NieRuf |
| diameter: | 1" inch |
| connection: | female thread |
| material: | stainless steel |
| seal: | FKM |
| media: | neutral gaseous media |
| temperature: | -10°C up to +120°C |
| range of adjustment: | 0.5 - 15 bar |
| max. inlet pressure: | 60,0 bar |
| design: | straightway form |
| installation position: | any position |
| SIL - safety integrity level: | SIL 2 |
| product feature: | membrane-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4" |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
precision-pressure reducing valve with secondary venting 1" inch DM15 stainless steel FKM 0.5 - 15 bar
Article no.
: DM15020005
product:
precision-pressure reducing valve
type:
DM15
manufacturer:
NieRuf
diameter:
1" inch
connection:
female thread
material:
stainless steel
seal:
FKM
media:
neutral gaseous media
temperature:
-10°C up to +120°C
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60,0 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
membrane-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4"
€4.64 VAT included.
€101.27 VAT included.
