MM03100301

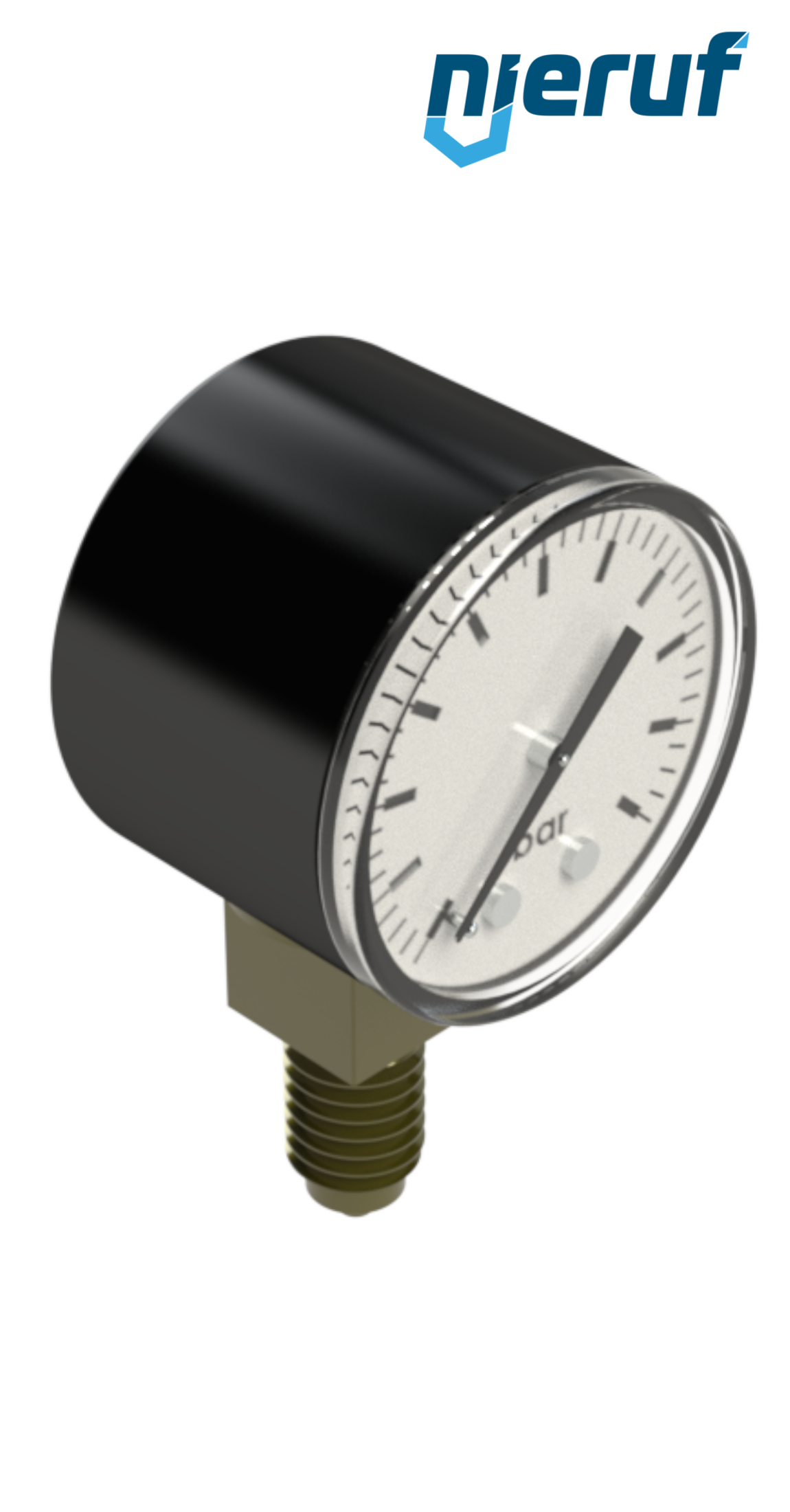

pressure gauge G 1/4" radial 50 mm steel MM03 0 - 10,0 bar
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you
pressure gauge 0 - 10,0 bar G 1/4" diameter: 50 mm steel thread: external thread on downside made of brass
| product: | pressure gauge |
|---|---|
| type: | MM03 |
| manufacturer: | NieRuf |
| diameter: | G 1/4" |
| connection: | external thread on downside |
| design: | radial |
| media: | gaseous, liquid, not highly viscous and crystallising media |
| temperature: | Max. +60°C |
| Measuring range: | 0 - 10,0 bar |
| Measuring range in: | bar |
| accuracy: | 1,6% |
| diameter viewing window: | 50 mm |
| filling: | without filling, dry |
| body material: | steel |
| viewing window: | plastic |
| material connection: | brass |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure gauge G 1/4" radial 50 mm steel MM03 0 - 10,0 bar
Article no.
: MM03100301
product:
pressure gauge
type:
MM03
manufacturer:
NieRuf
diameter:
G 1/4"
connection:
external thread on downside
design:
radial
media:
gaseous, liquid, not highly viscous and crystallising media
temperature:
Max. +60°C
Measuring range:
0 - 10,0 bar
Measuring range in:
bar
accuracy:
1,6%
diameter viewing window:
50 mm
filling:
without filling, dry
body material:
steel
viewing window:
plastic
material connection:
brass
