DM13020006
pressure reducing valve DN 32 DM13 stainless steel FPM / FKM 0.5 - 9.0 bar
Delivery time: 3 - 5 working days
Equipment
Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541
€35.11 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05
€101.27 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

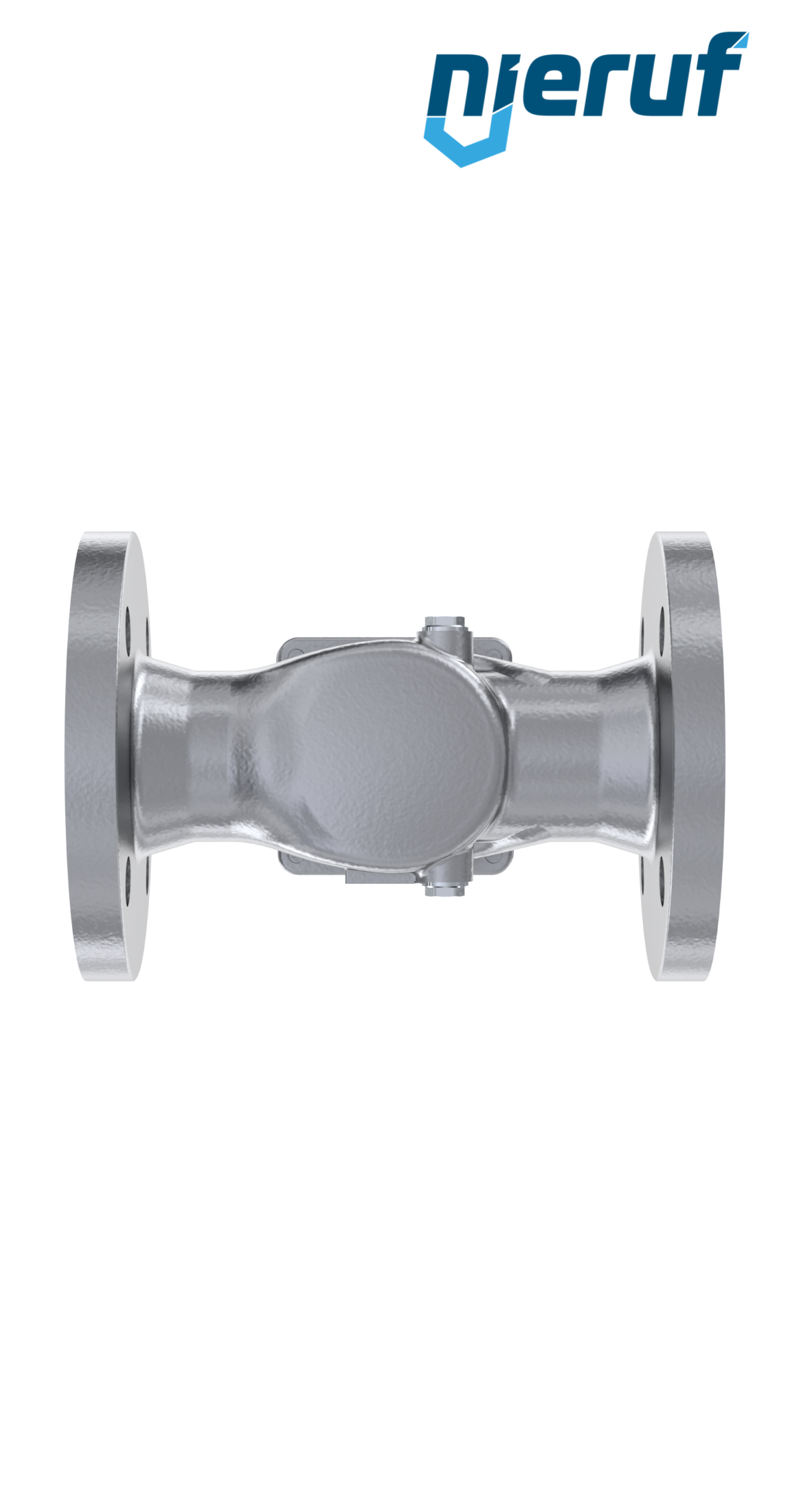

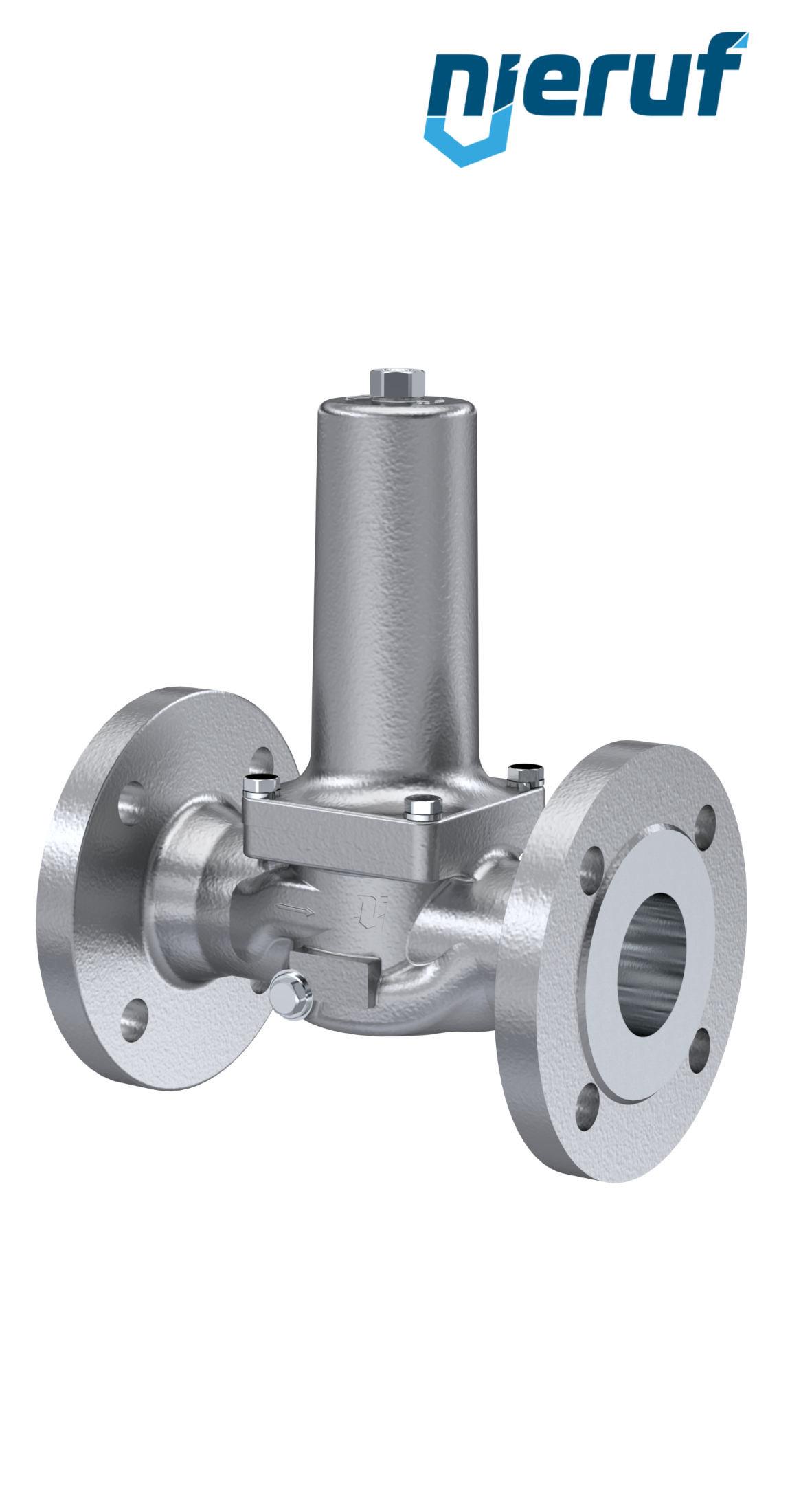

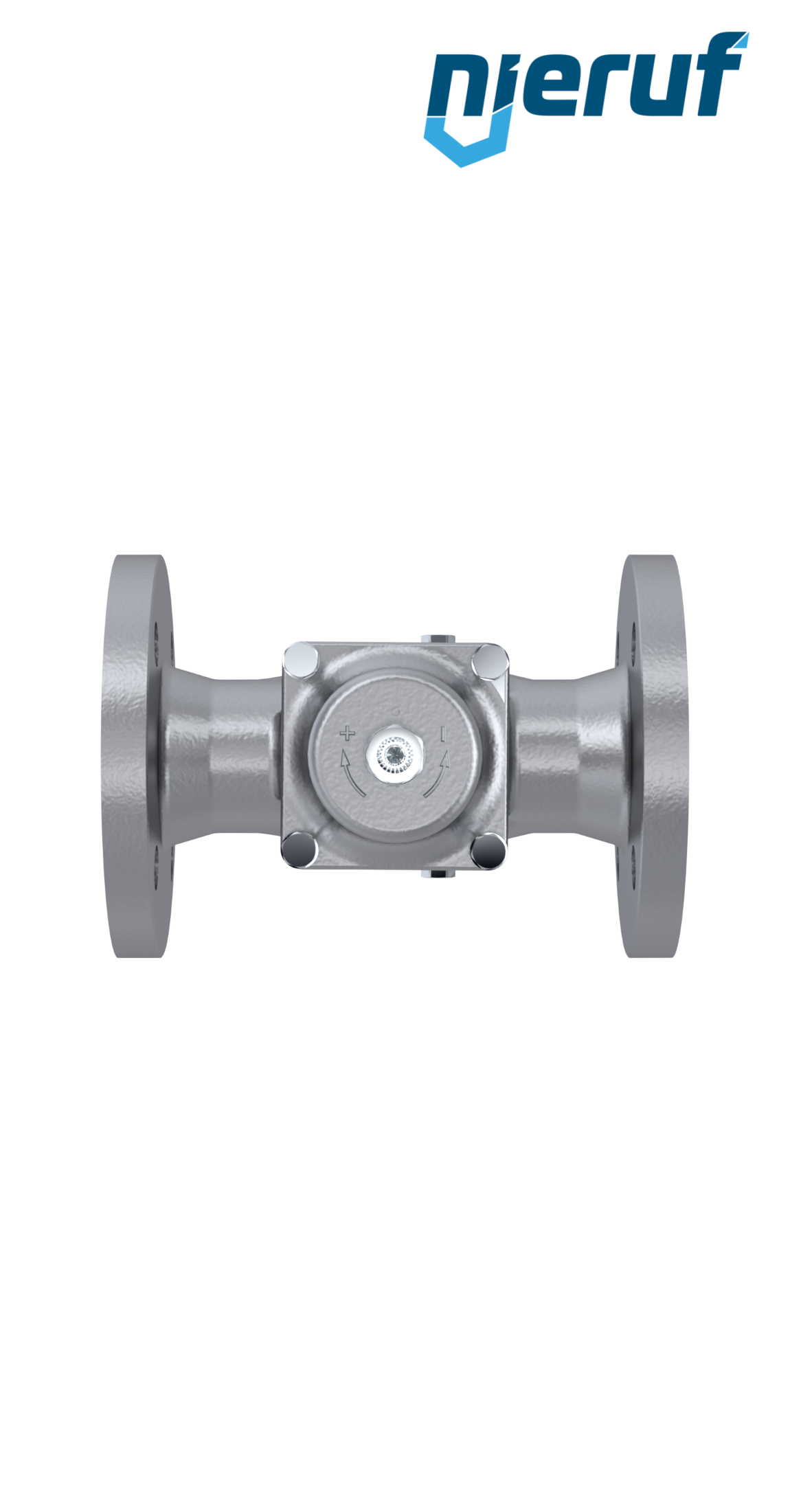

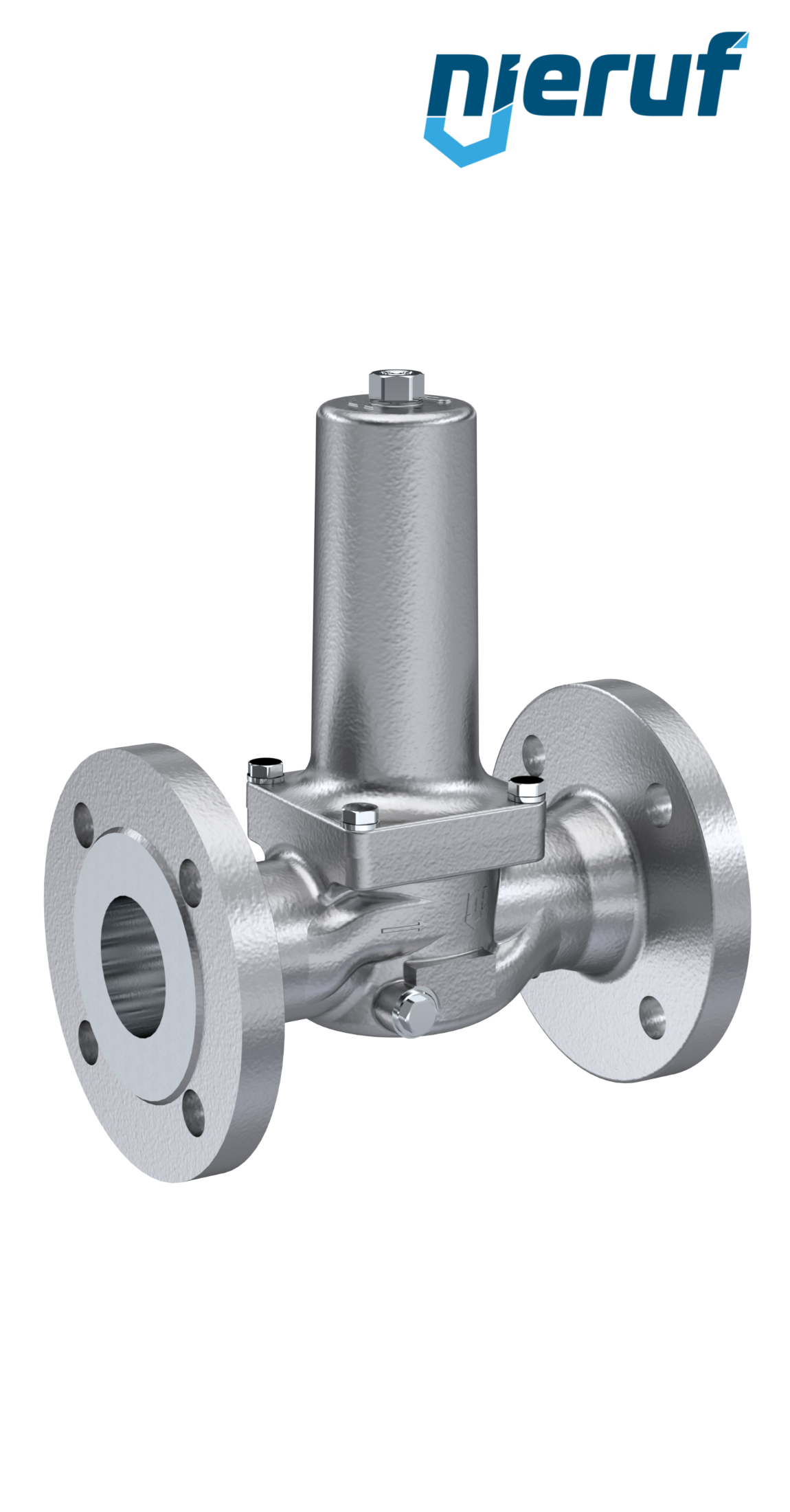

pressure reducing valve DN 32 DIN EN 1092 flange made of stainless steel pressure 0.5 - 9.0 bar seal FPM / FKM for liquid and neutral gaseous media.
| product: | pressure reducing valve |
|---|---|
| type: | DM13 |
| manufacturer: | NieRuf |
| diameter: | DN 32 |
| connection: | flange |
| material: | stainless steel |
| seal: | FPM / FKM |
| media: | liquid and neutral gaseous media |
| temperature: | -10°C up to +190°C |
| range of adjustment: | 0.5 - 9.0 bar |
| max. inlet pressure: | 40 bar |
| design: | straightway form |
| installation position: | any position |
| product feature: | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel, cast iron flanges, dirt-trap and double-ended G 1/4" manometer fitting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve DN 32 DM13 stainless steel FPM / FKM 0.5 - 9.0 bar
Article no.
: DM13020006
product:
pressure reducing valve
type:
DM13
manufacturer:
NieRuf
diameter:
DN 32
connection:
flange
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +190°C
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
40 bar
design:
straightway form
installation position:
any position
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel, cast iron flanges, dirt-trap and double-ended G 1/4" manometer fitting
