DM20010006

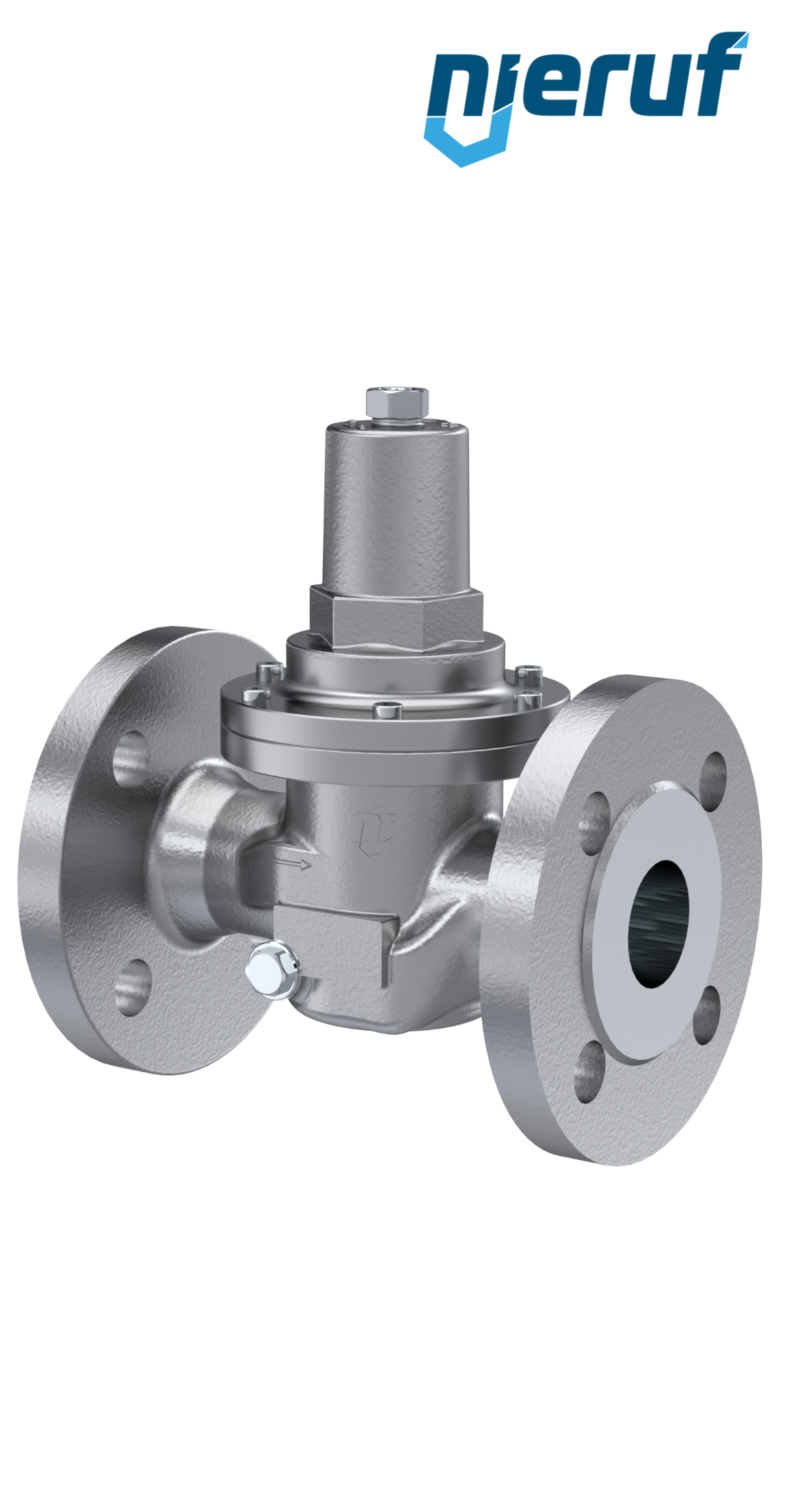

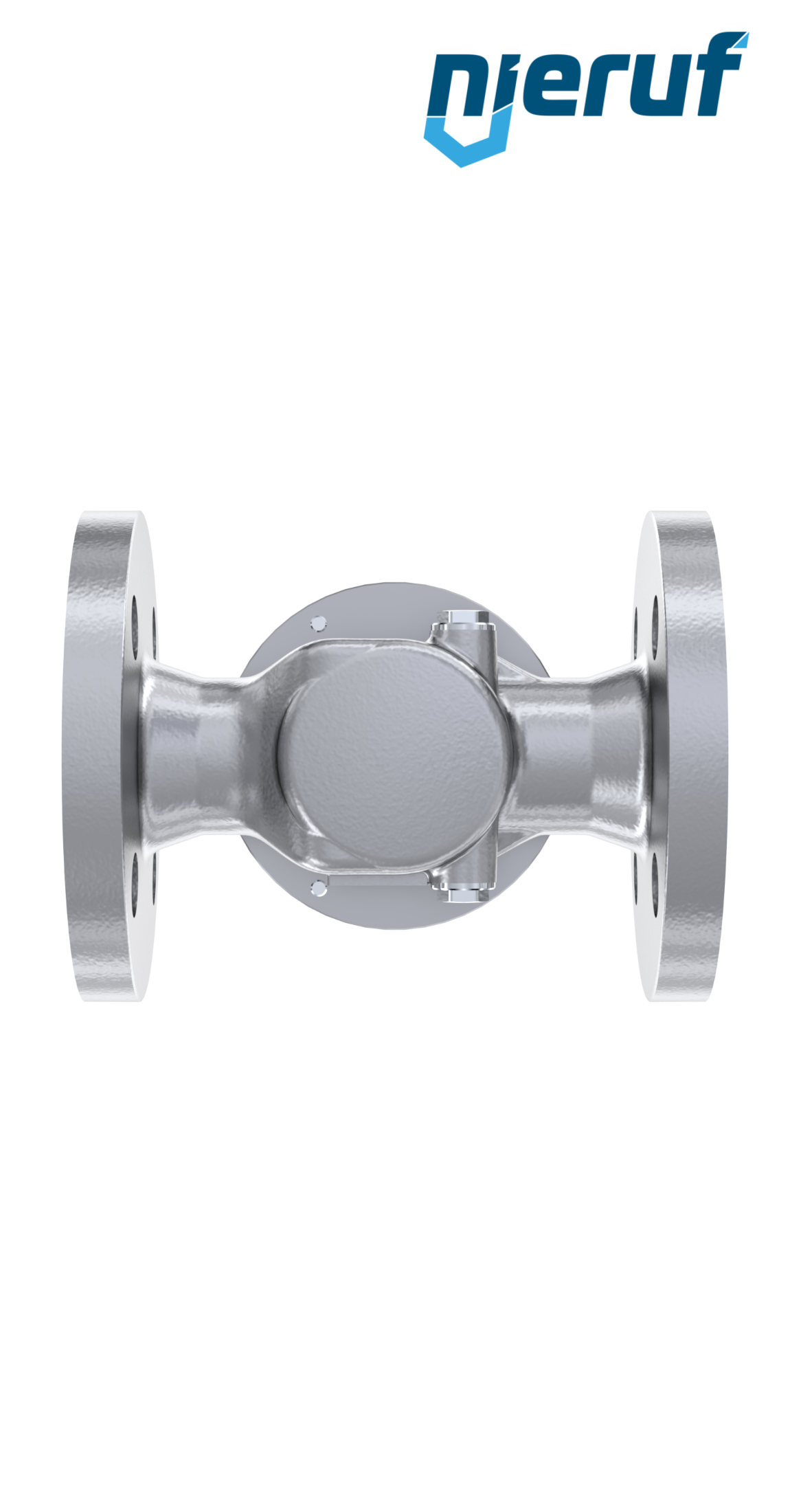

pressure reducing valve DN32 DM20 stainless steel EPDM 0,2 - 2,0 bar
Delivery time: 3 - 5 working days
Equipment
Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541
€47.36 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
pressure gauge 0 - 4,0 bar G 1/4" axial 50 mm stainless steel MM05
€101.27 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
FDA-pressure reducing valve set pressure 0,2 - 2,0 bar DN32 made of stainless steel seal EPDM for liquid and neutral gaseous media.
| product: | pressure reducing valve |
|---|---|
| type: | DM20 |
| manufacturer: | NieRuf |
| diameter: | DN32 |
| connection: | Flange DIN EN 1092 |
| material: | stainless steel |
| seal: | EPDM |
| media: | liquid and neutral gaseous media |
| temperature: | -30°C up to +130°C |
| range of adjustment: | 0,2 - 2,0 bar |
| max. inlet pressure: | 25 bar |
| design: | straightway form |
| installation position: | any position |
| product feature: | This version with cast iron flanges meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve DN32 DM20 stainless steel EPDM 0,2 - 2,0 bar
Article no.
: DM20010006
product:
pressure reducing valve
type:
DM20
manufacturer:
NieRuf
diameter:
DN32
connection:
Flange DIN EN 1092
material:
stainless steel
seal:
EPDM
media:
liquid and neutral gaseous media
temperature:
-30°C up to +130°C
range of adjustment:
0,2 - 2,0 bar
max. inlet pressure:
25 bar
design:
straightway form
installation position:
any position
product feature:
This version with cast iron flanges meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant.
