DM13020009

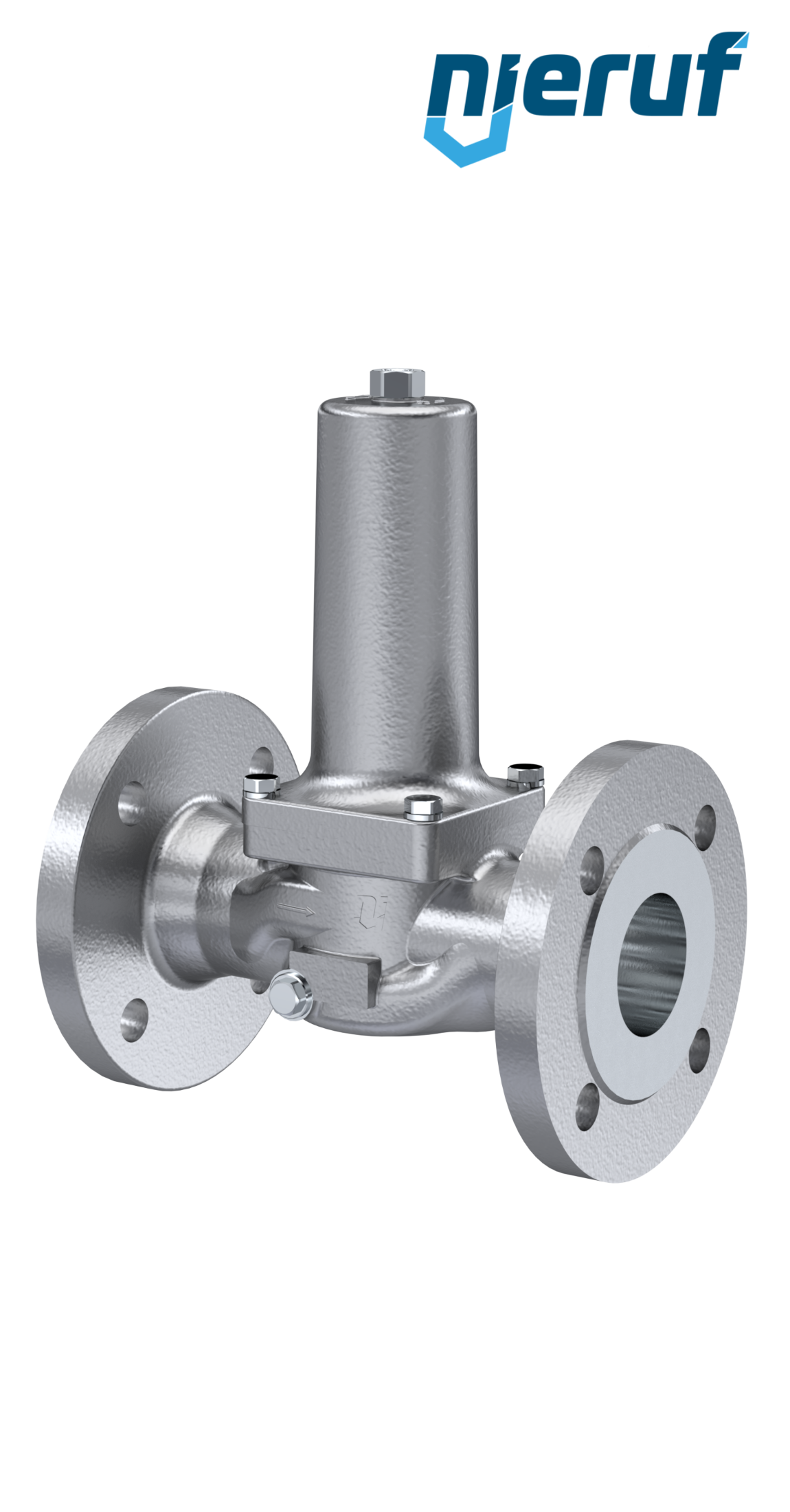

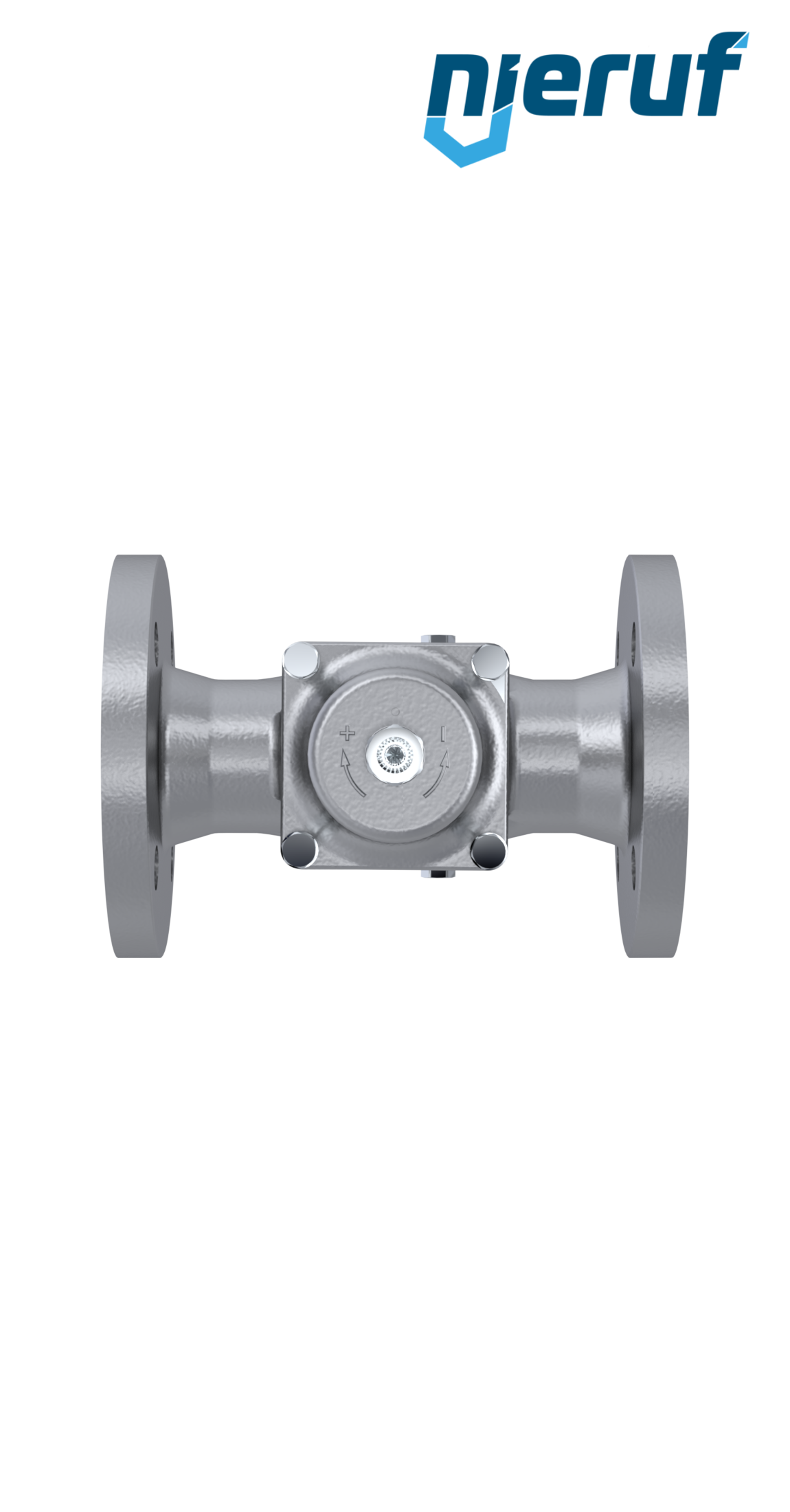

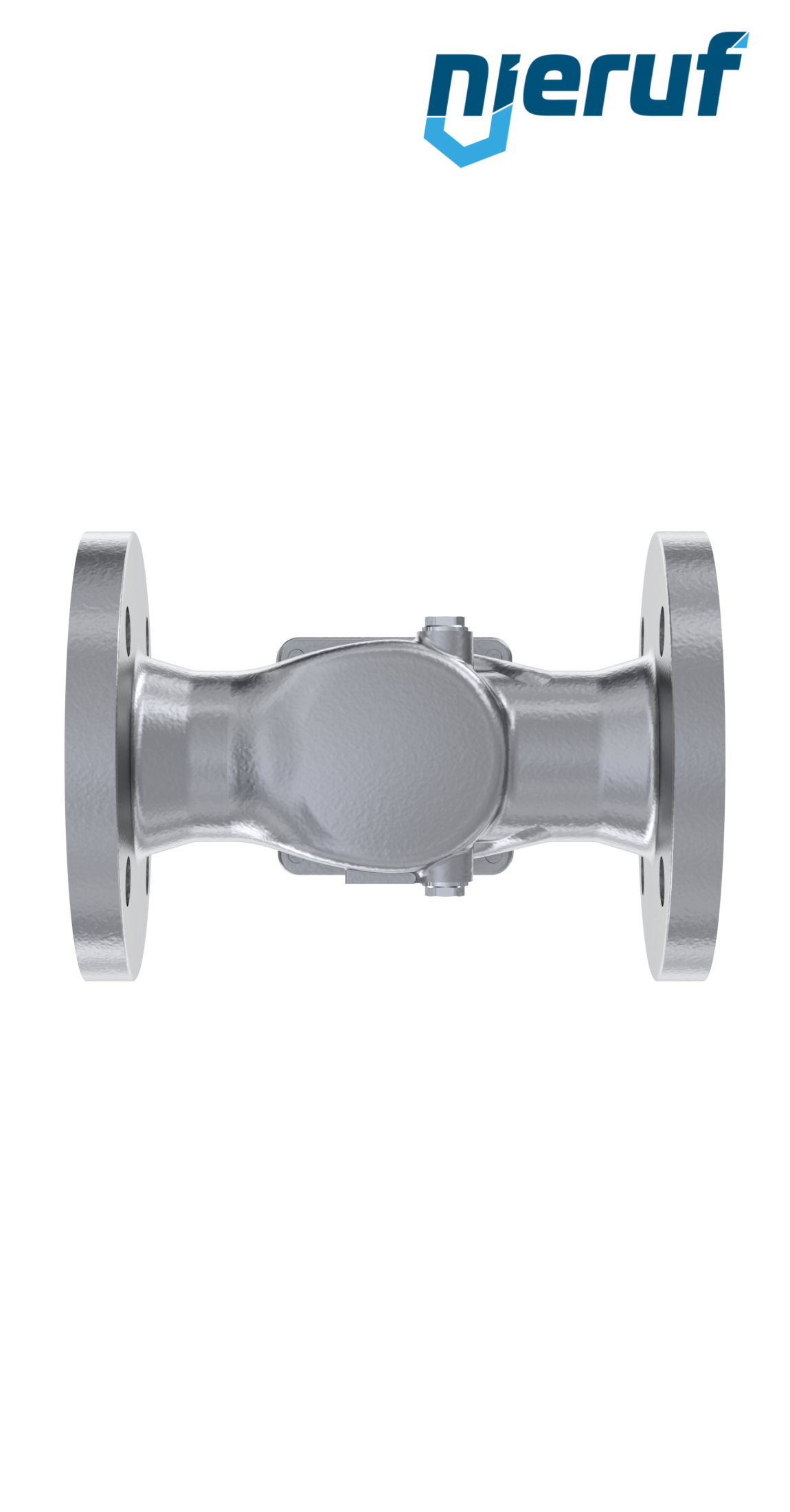

pressure reducing valve DN65 DM13 stainless steel FPM / FKM 0,5 - 9,0 bar
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 stainless steel
€10.00 VAT included.
pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05
€101.27 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
pressure reducing valve DN65 DIN EN 1092 flange DIN EN 1092 made of stainless steel pressure 0,5 - 9,0 bar seal FPM / FKM for liquid and neutral gaseous media.
| product: | pressure reducing valve |
|---|---|
| type: | DM13 |
| manufacturer: | NieRuf |
| diameter: | DN65 |
| connection: | flange DIN EN 1092 |
| material: | stainless steel |
| seal: | FPM / FKM |
| media: | liquid and neutral gaseous media |
| temperature: | -10°C up to +190°C |
| range of adjustment: | 0,5 - 9,0 bar |
| max. inlet pressure: | 25 bar |
| design: | straightway form |
| installation position: | any position |
| product feature: | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless, cast iron flanges and steel and double-ended G 1/4" manometer fitting. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure reducing valve DN65 DM13 stainless steel FPM / FKM 0,5 - 9,0 bar
Article no.
: DM13020009
product:
pressure reducing valve
type:
DM13
manufacturer:
NieRuf
diameter:
DN65
connection:
flange DIN EN 1092
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +190°C
range of adjustment:
0,5 - 9,0 bar
max. inlet pressure:
25 bar
design:
straightway form
installation position:
any position
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless, cast iron flanges and steel and double-ended G 1/4" manometer fitting.
