DS01150003
pressure sensor G 1/2" B DS01 stainless steel 2-wire: 4-20mA FPM 0,0 - 250,0 bar
Delivery time: 2 - 3 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

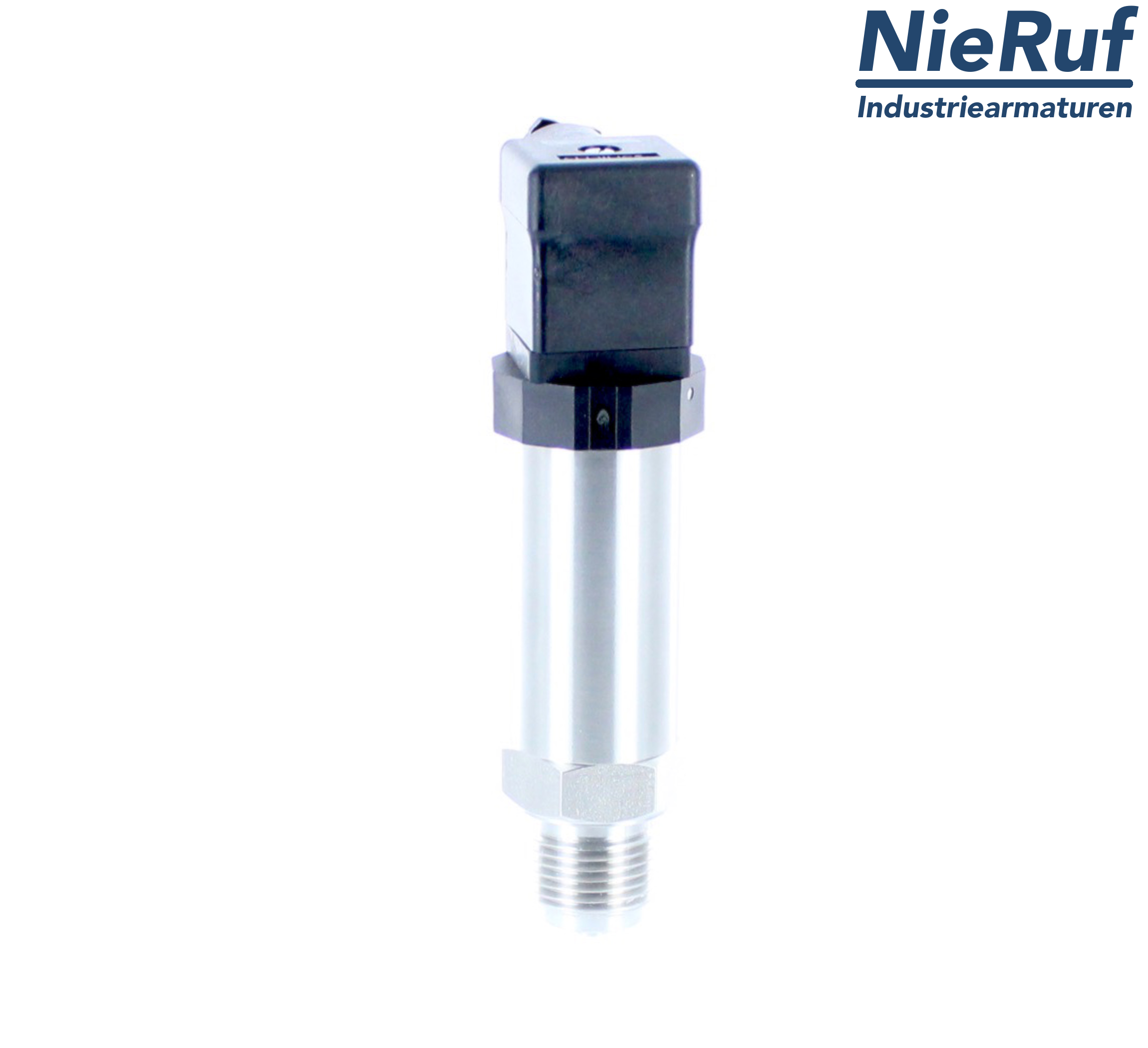

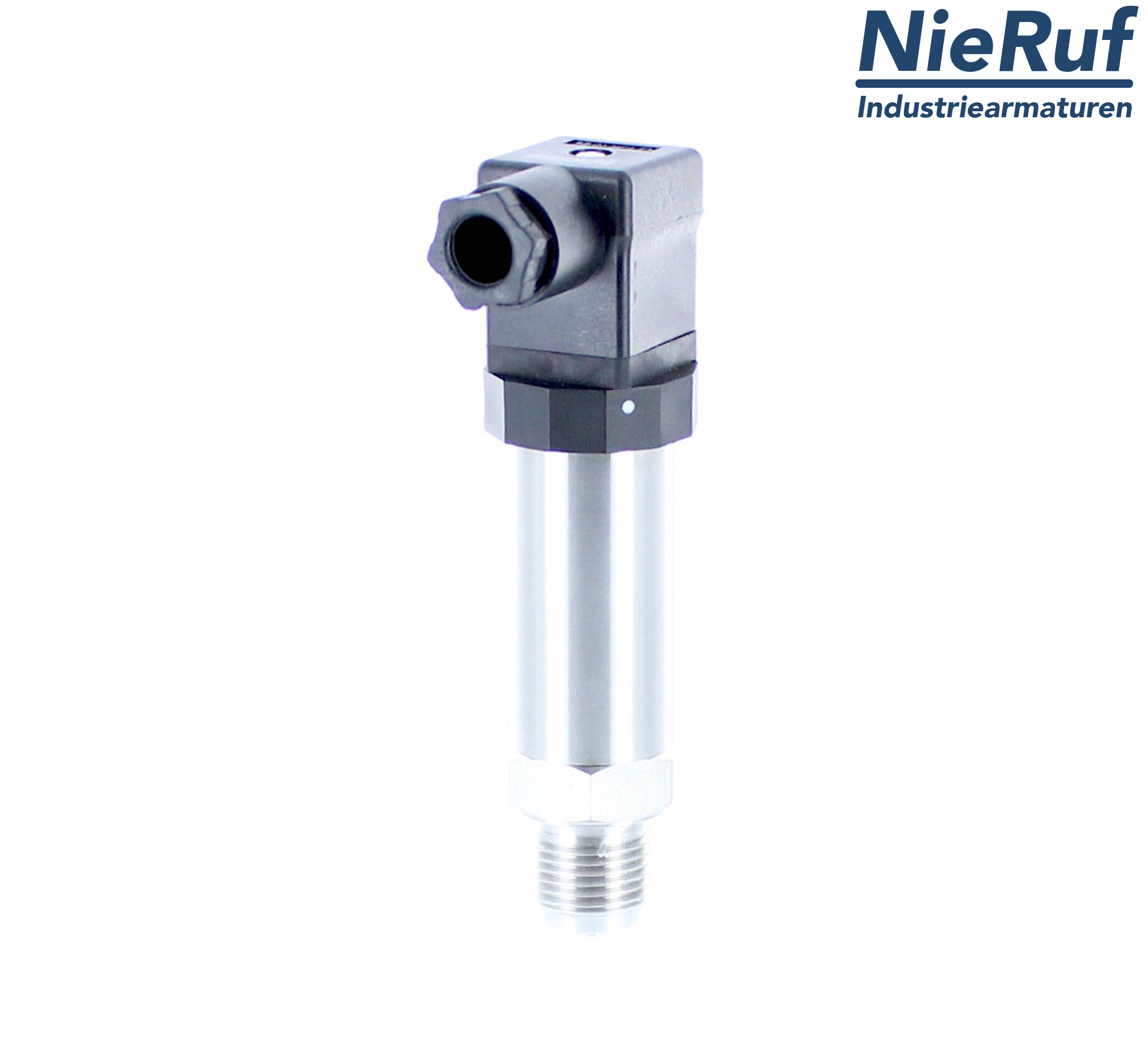

pressure sensor G 1/2" B pressure range 0,0 - 250,0 bar made of stainless steel 2-wire: 4-20mA seal FPM for liquid and gaseous media male thread
| product: | pressure sensor |
|---|---|
| type: | DS01 |
| manufacturer: | NieRuf |
| diameter: | G 1/2" B |
| connection: | male thread |
| material connection: | stainless steel |
| material: | chromium-nickel steel |
| seal: | FPM |
| media: | liquid and gaseous media |
| temperature: | -40°C up to +100°C |
| temperature ambiente: | -40°C up to +85°C |
| membrane: | ceramic |
| range of measurement: | 0,0 - 250,0 bar |
| pressure version: | relative pressure |
| accuracy: | ≤ 0,5% |
| output: | 2-wire: 4-20mA |
| plug: | EN 175-301-803-A PA Polyamid body |
| product feature: | High-quality pressure sensor with internal ceramic membrane. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pressure sensor G 1/2" B DS01 stainless steel 2-wire: 4-20mA FPM 0,0 - 250,0 bar
Article no.
: DS01150003
product:
pressure sensor
type:
DS01
manufacturer:
NieRuf
diameter:
G 1/2" B
connection:
male thread
material connection:
stainless steel
material:
chromium-nickel steel
seal:
FPM
media:
liquid and gaseous media
temperature:
-40°C up to +100°C
temperature ambiente:
-40°C up to +85°C
membrane:
ceramic
range of measurement:
0,0 - 250,0 bar
pressure version:
relative pressure
accuracy:
≤ 0,5%
output:
2-wire: 4-20mA
plug:
EN 175-301-803-A PA Polyamid body
product feature:
High-quality pressure sensor with internal ceramic membrane.
€3.93 VAT included.
