SV07100107

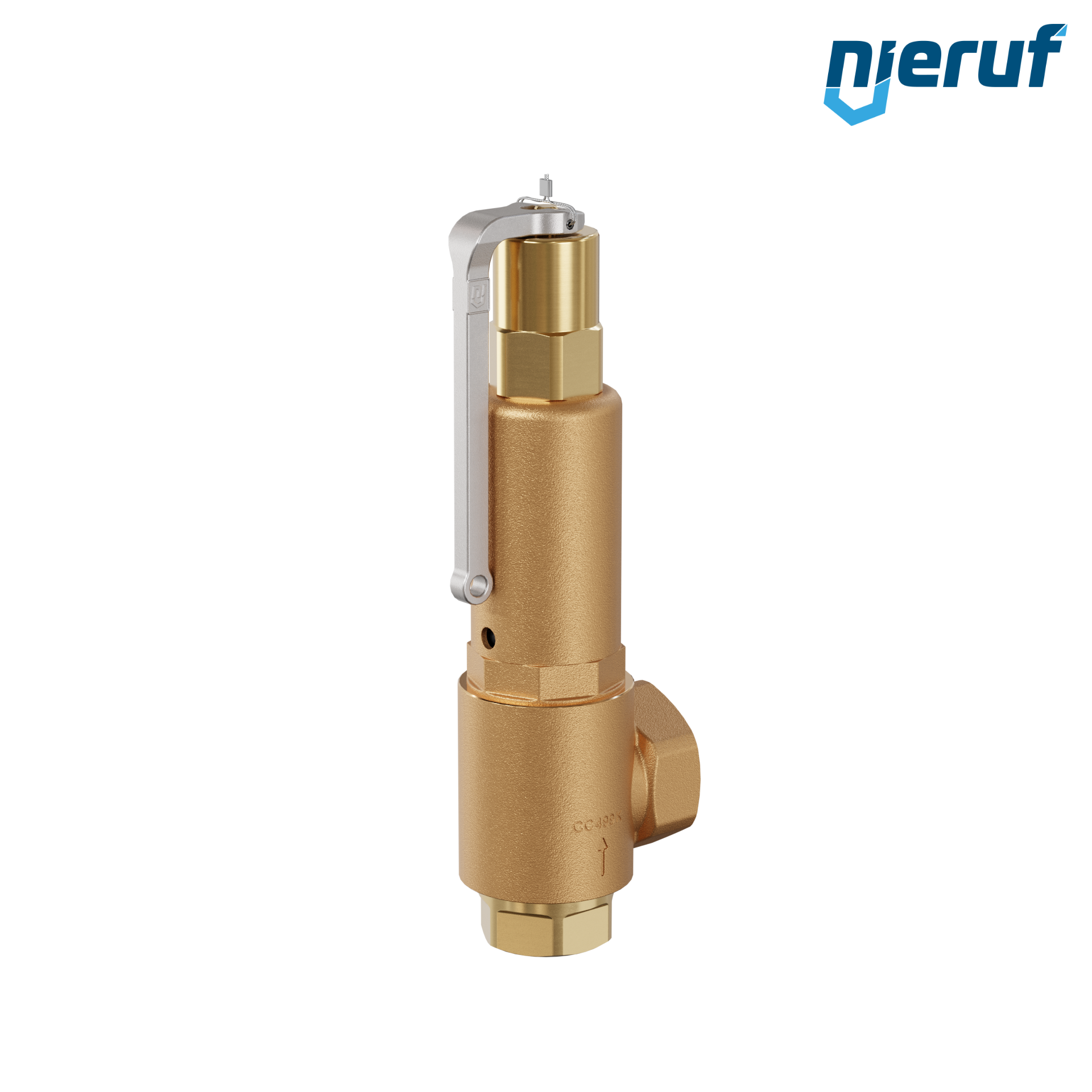

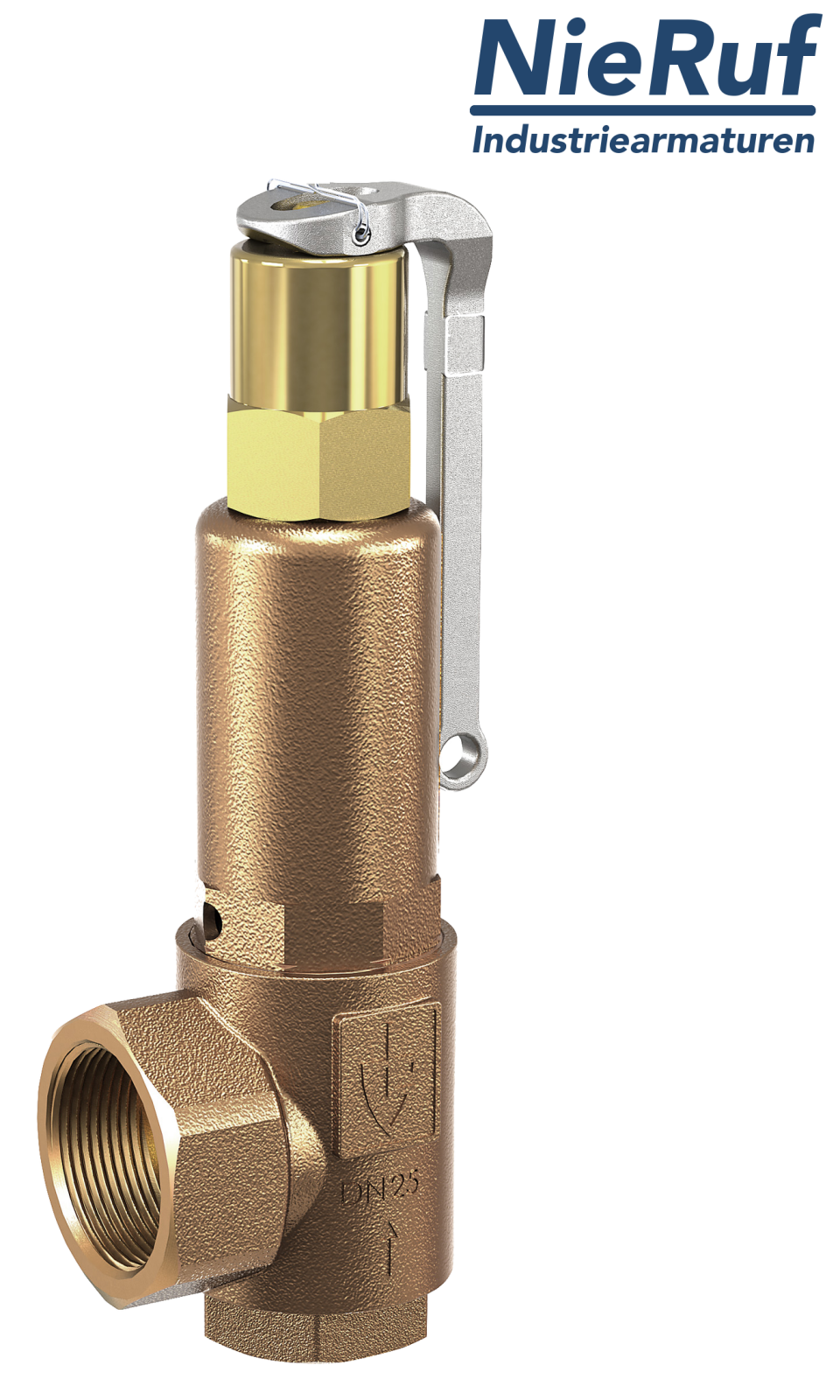

safety valve 1 1/2" x 2" fm SV07 neutral gaseous media, gunmetal EPDM, with lever

Operating data


€695.50*

€827.65 VAT included.

Delivery time
3 - 5 working days

Equipment

GF01300007

hexagon nipple 1 1/2" inch male stainless steel 316

€6.60*

€7.85 VAT included.


GF01300008

hexagon nipple 2" inch male stainless steel 316

€10.20*

€12.14 VAT included.


GF01100107

tee 1 1/2" inch stainless steel 316 90° angle FM

€13.00*

€15.47 VAT included.


Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€60.00*

€71.40 VAT included.


ZEU32APZ00

Certificate of conformity EN 10204-3.2

€75.00*

€89.25 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

24 months warranty

24 months warranty

Certified

Certified

Product number: SV07100107

Downloads

safety valve 1 1/2" x 2" fm SV07 neutral gaseous media, gunmetal EPDM, with lever

safety valve 1 1/2" x 2" fm mit with lever SV07 for neutral gaseous media made of gunmetal seal EPDM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version

product safety valve
type SV07
manufacturer NieRuf
diameter 1 1/2" x 2" fm
d0 30,3 mm

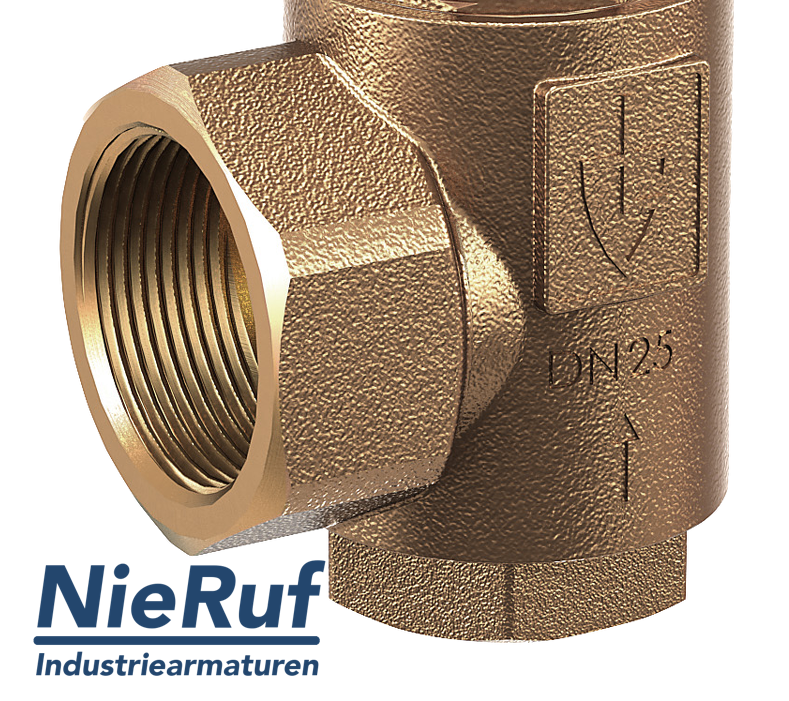

connection Female screw threaded BSP-P
seal EPDM
media neutral gaseous media
temperature -40°C to +170°C
set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
design angle-type
material gunmetal

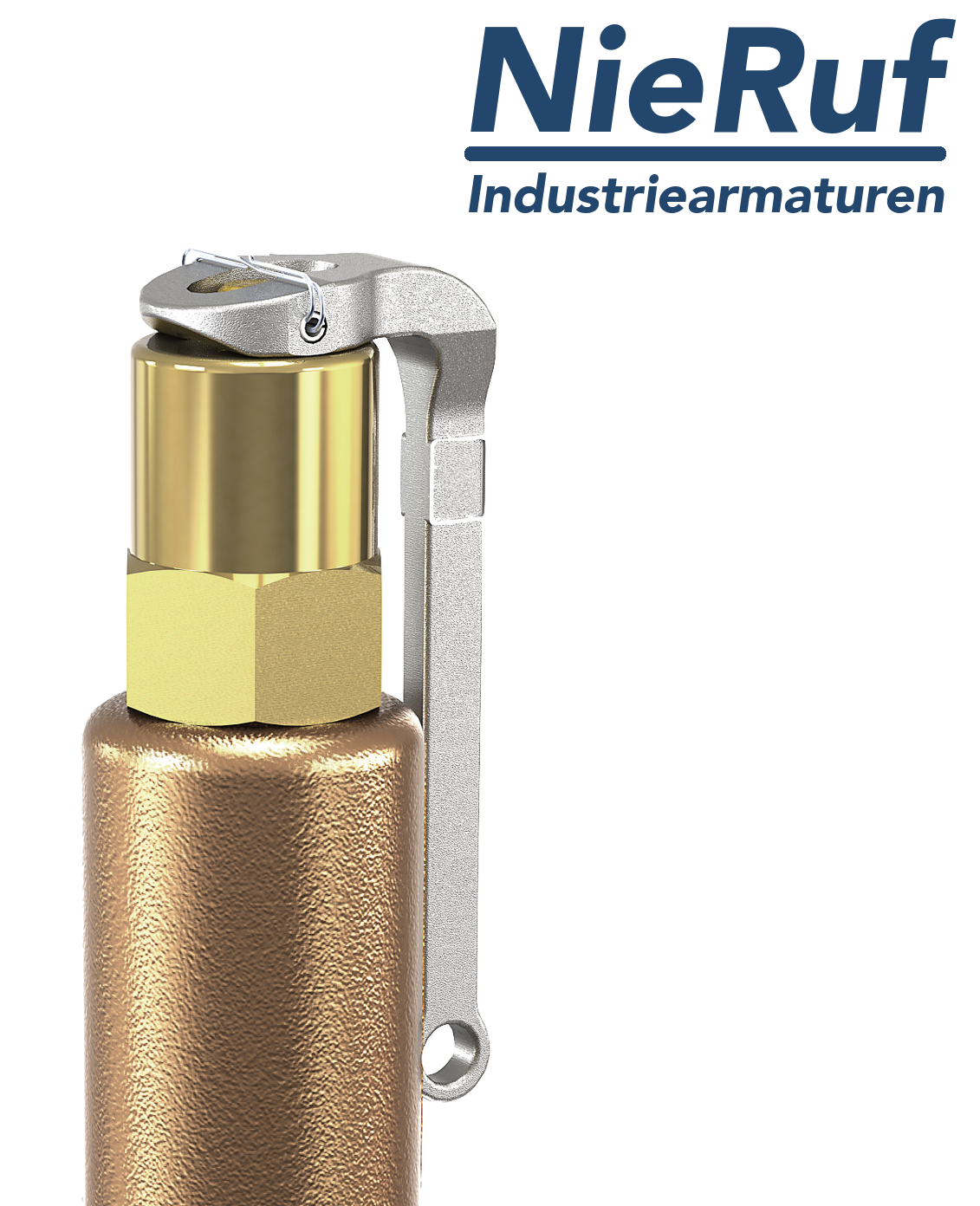

lifting with lever
type test approval TUV = D/G | EG = S/G
requirements acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level SIL 3
product feature 1 without bellows
product feature 2 for neutral media without counter pressure.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

safety valve 1 1/2" x 2" fm SV07 neutral gaseous media, gunmetal EPDM, with lever

Article no. : SV07100107
product: safety valve
type: SV07
manufacturer: NieRuf
diameter: 1 1/2" x 2" fm
d0: 30,3 mm
connection: Female screw threaded BSP-P
seal: EPDM
media: neutral gaseous media
temperature: -40°C to +170°C
set pressure: 0,5 - 25,0 bar- higher pressures possible in PTFE version
design: angle-type
material: gunmetal
lifting: with lever
type test approval: TUV = D/G | EG = S/G
requirements: acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position: Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level: SIL 3
product feature 1: without bellows
product feature 2: for neutral media without counter pressure.
