SV04100403

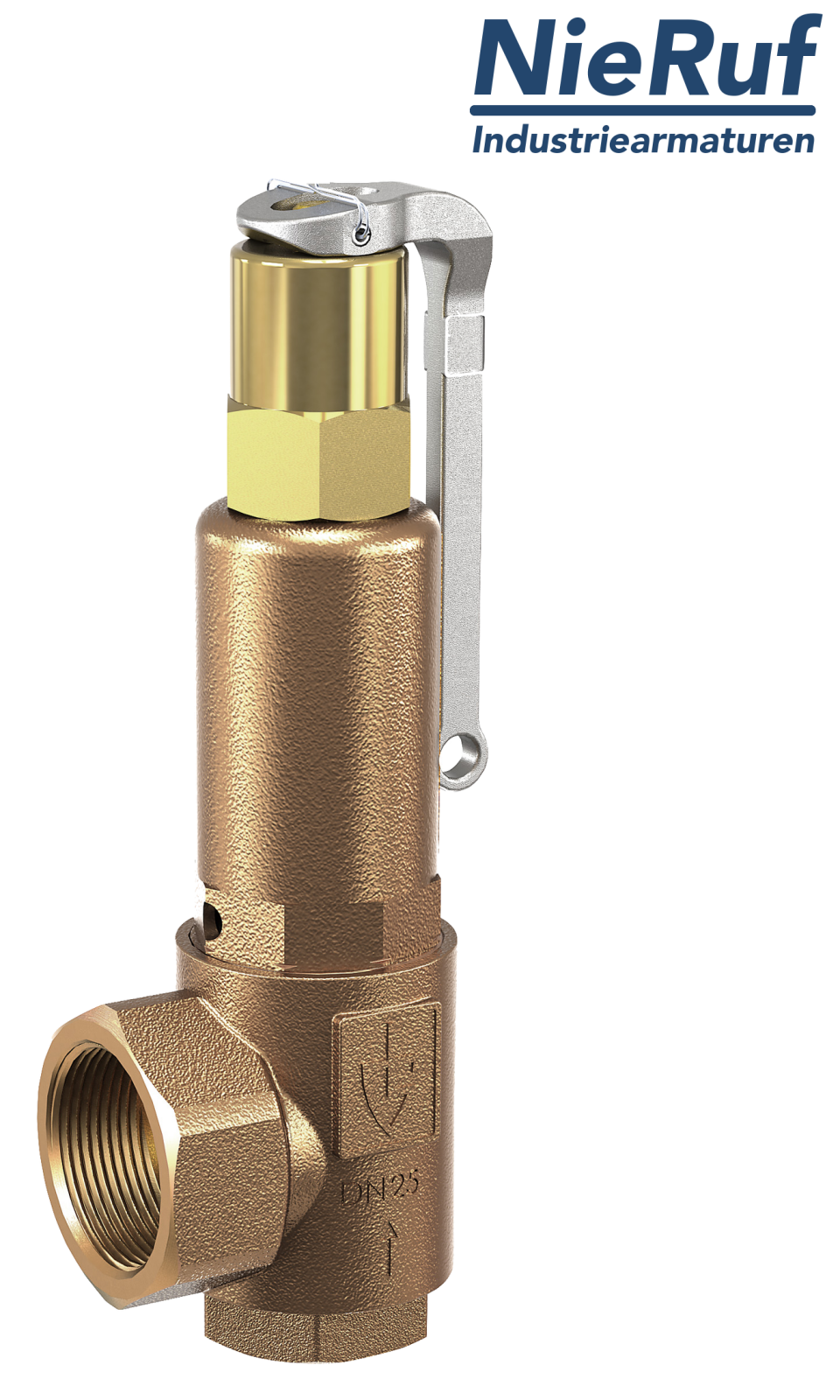

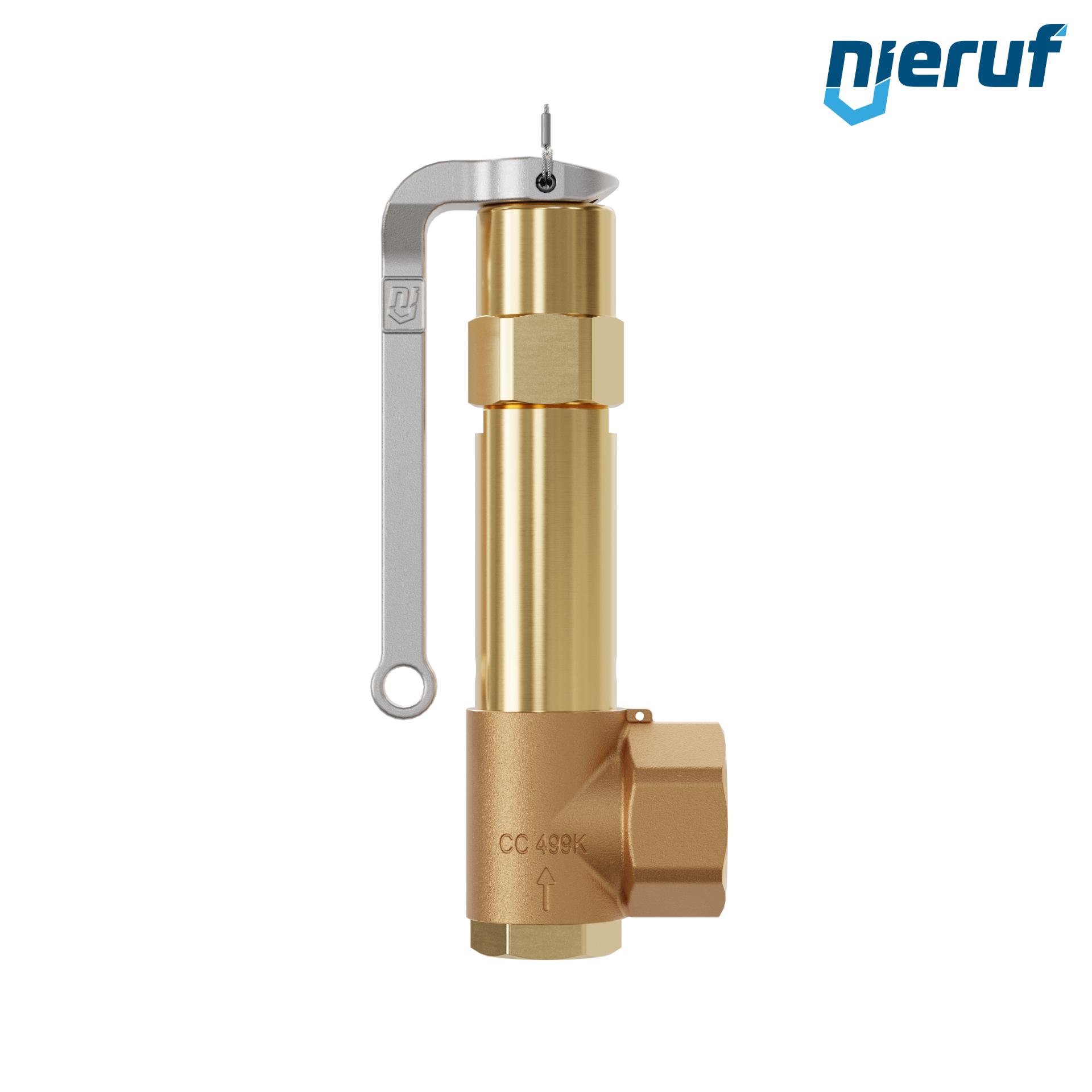

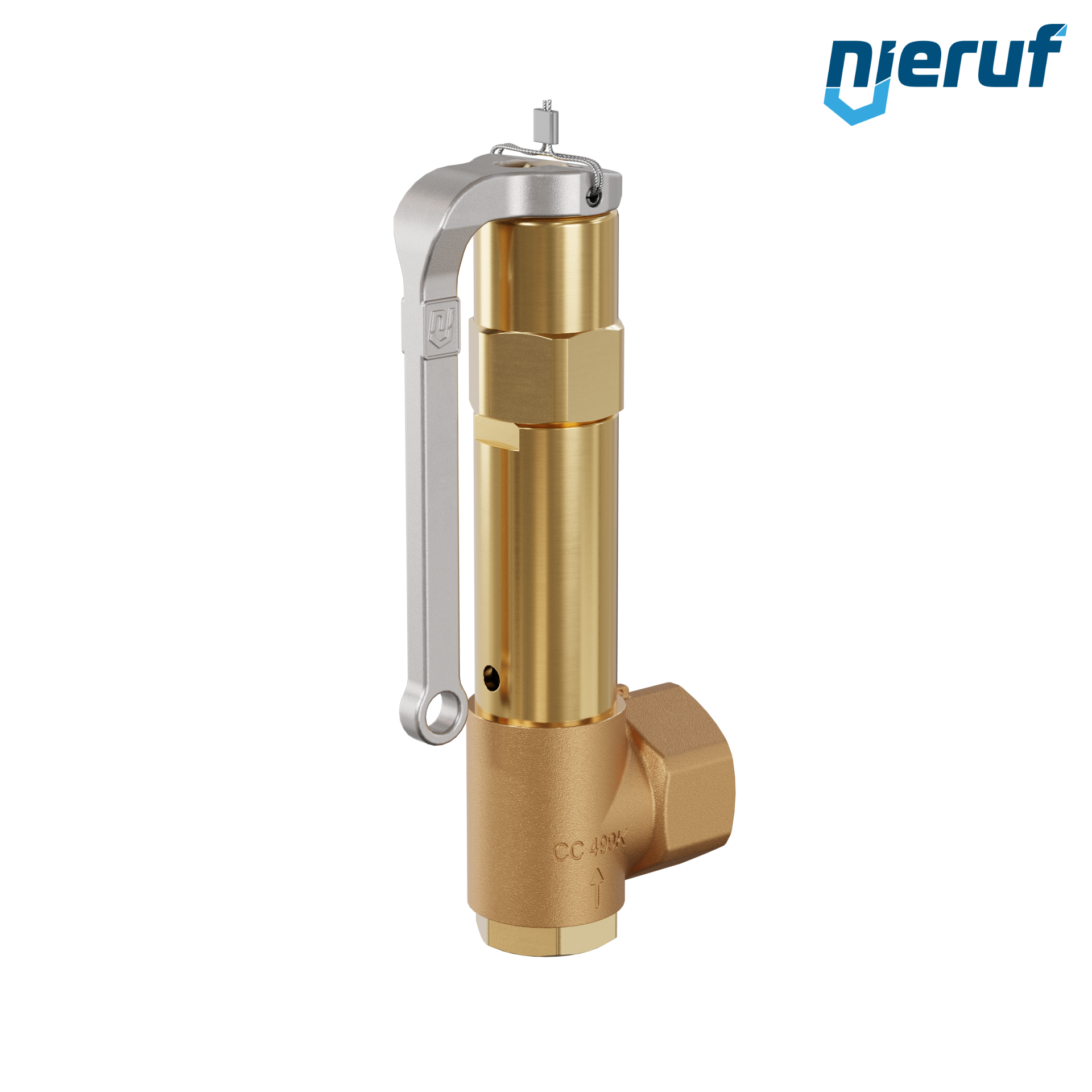

safety valve 1/2" x 1" fm SV04 liquid media, gunmetal NBR, with lever
Delivery time: 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
safety valve for liquid media NBR 1/2" x 1" fm gunmetal Typ SV04 with Female screw threaded BSP-P with lever and with bellows
| product: | safety valve |
|---|---|
| type: | SV04 |
| manufacturer: | NieRuf |
| diameter: | 1/2" x 1" fm |
| d0: | 15,8 mm |
| connection: | Female screw threaded BSP-P |
| seal: | NBR |
| media: | liquid media |
| temperature: | -30°C to +130°C |
| set pressure: | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design: | angle-type |
| material: | gunmetal |
| lifting: | with lever |
| type test approval: | TÜV = F 666 / EG = L |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level: | SIL 3 |
| product feature 1: | with bellows |
| product feature 2: | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1/2" x 1" fm SV04 liquid media, gunmetal NBR, with lever
Article no.
: SV04100403
product:
safety valve
type:
SV04
manufacturer:
NieRuf
diameter:
1/2" x 1" fm
d0:
15,8 mm
connection:
Female screw threaded BSP-P
seal:
NBR
media:
liquid media
temperature:
-30°C to +130°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
gunmetal
lifting:
with lever
type test approval:
TÜV = F 666 / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
€2.38 VAT included.
€4.64 VAT included.
€3.93 VAT included.
€5.00 VAT included.
€20.35 VAT included.
€9.16 VAT included.
