SV05110105

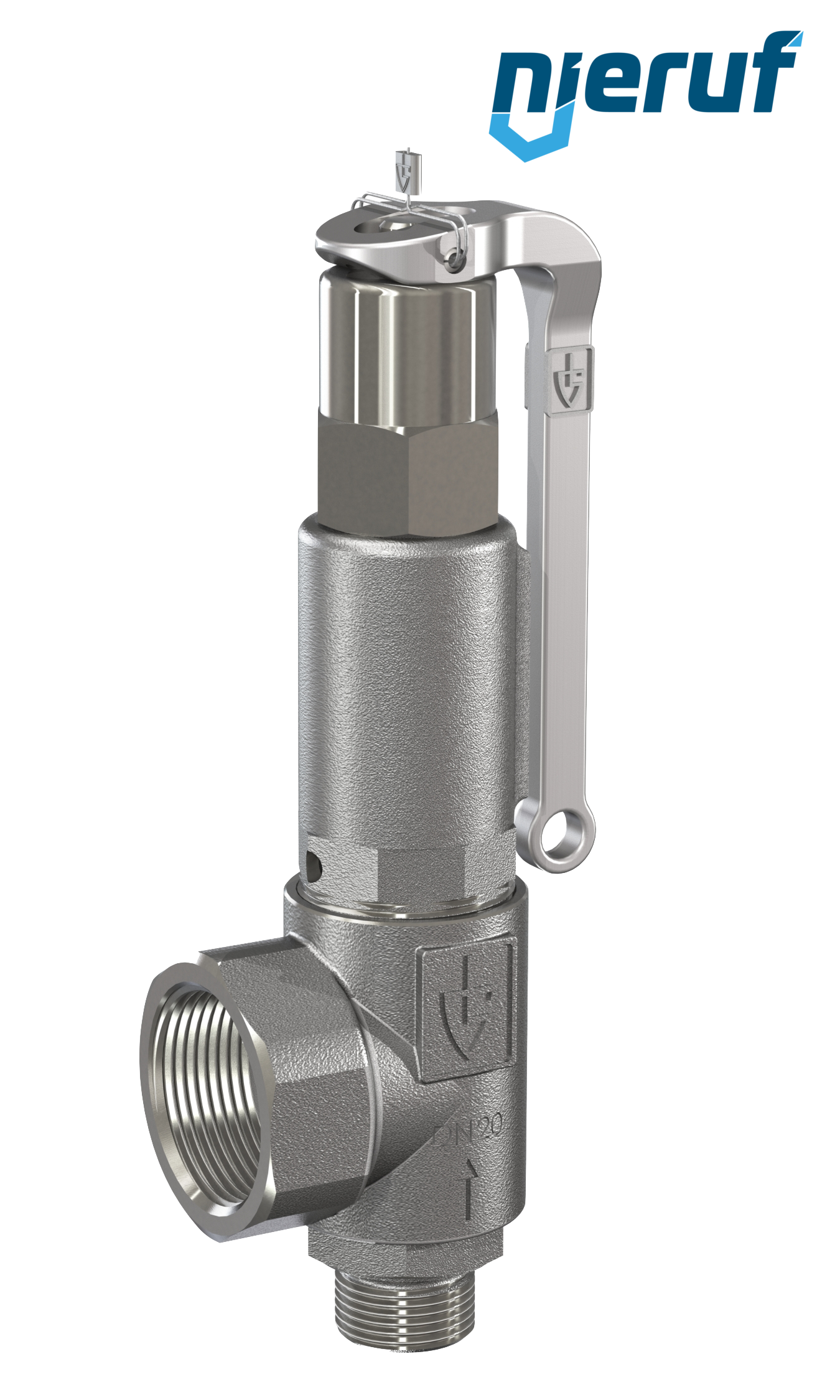

safety valve 1" m x 1 1/2" fm SV05 neutral liquid media, stainless steel EPDM, with lever
Delivery time: 3 - 5 working days
Certificates
Questions about the article?
Our employee Max Eisele
will be happy to help you
safety-valve 1" m x 1 1/2" fm stainless steel with with lever Typ SV05 with male screw threaded BSP-P EPDM-seal for neutral liquid media
| product: | safety valve |
|---|---|
| type: | SV05 |
| manufacturer: | NieRuf |
| diameter: | 1" m x 1 1/2" fm |
| d0: | 23,0 mm |
| connection: | male screw threaded BSP-P |
| seal: | EPDM |
| media: | neutral liquid media |
| temperature: | -40°C to +170°C |
| set pressure: | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design: | angle-type |
| material: | stainless steel |
| lifting: | with lever |
| type test approval: | TUV = F / EG = L |
| requirements: | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position: | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level: | SIL 3 |
| product feature 1: | without bellows |
| product feature 2: | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" m x 1 1/2" fm SV05 neutral liquid media, stainless steel EPDM, with lever
Article no.
: SV05110105
product:
safety valve
type:
SV05
manufacturer:
NieRuf
diameter:
1" m x 1 1/2" fm
d0:
23,0 mm
connection:
male screw threaded BSP-P
seal:
EPDM
media:
neutral liquid media
temperature:
-40°C to +170°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel
lifting:
with lever
type test approval:
TUV = F / EG = L
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
€6.66 VAT included.
€28.92 VAT included.
€11.78 VAT included.
